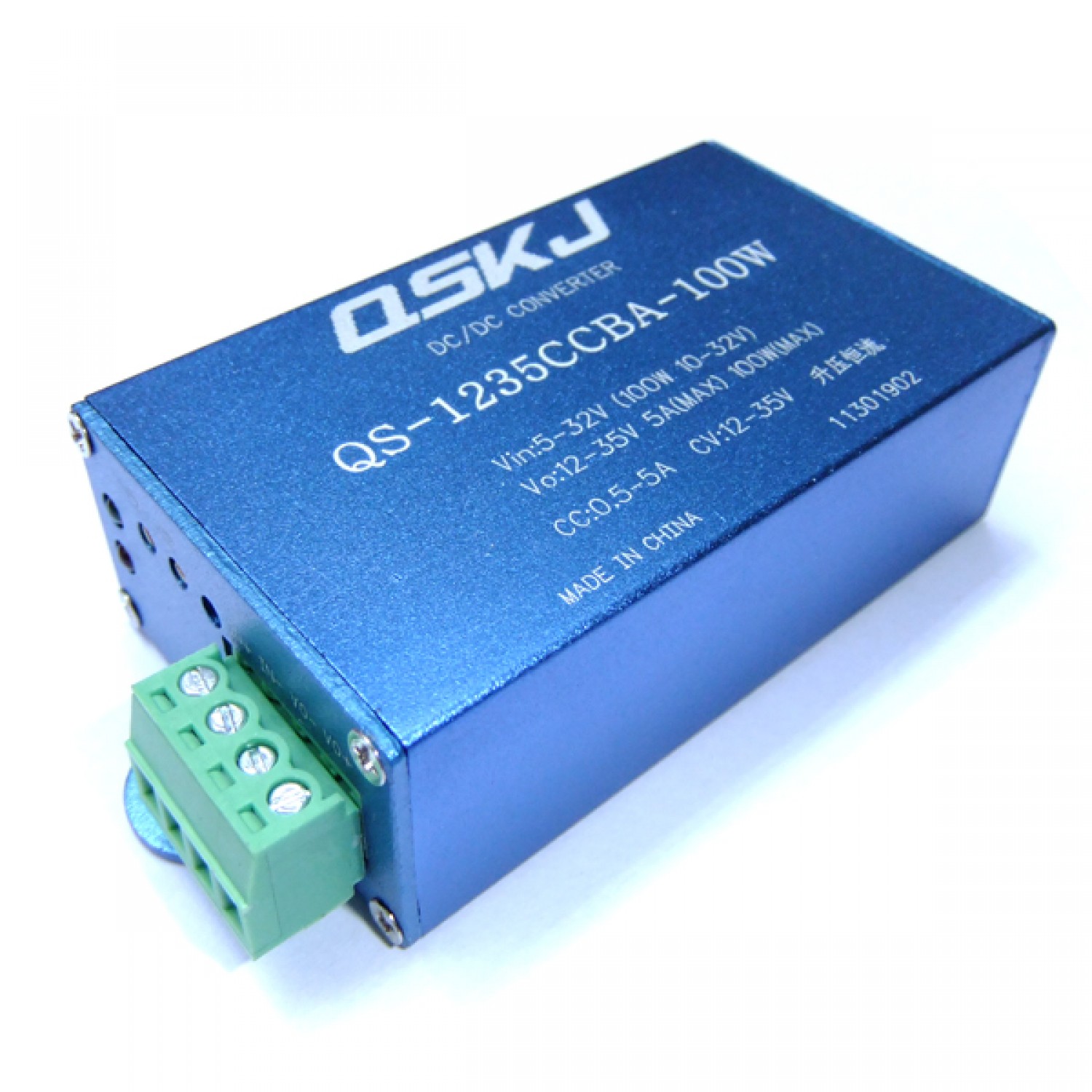

-36% 100W Adapter DC 5~32V to 12~35V 5A Boost Voltage Regulator DC 12V 24V Power Supply Module/Power Converter/Driver Module

Ask Question

It is a 100W Power Supply Module/Power Converter/Adapter, Input Voltage: DC 5~32V, Output voltage: DC 12~35V (adjustable), Output current range: 0.5~5A (100W MAX) (continuously adjustable), Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, Monitoring System, LED lights, Fan, intercom and monitor system, etc.

Feature:
  • 1. Step-up structure, Wide input voltage range (input less than output)
  • 2. Constant current and voltage, Used to drive high power LEDs, and to charge the battery
  • 3. Efficiency as high as 92%
  • 4. Can be used for laptop power supply (voltage 16~20V)
  • 5. Even the Step-up structure breakdown, Will not damage equipment, security design
  • 6. With input reverse and undervoltage protection

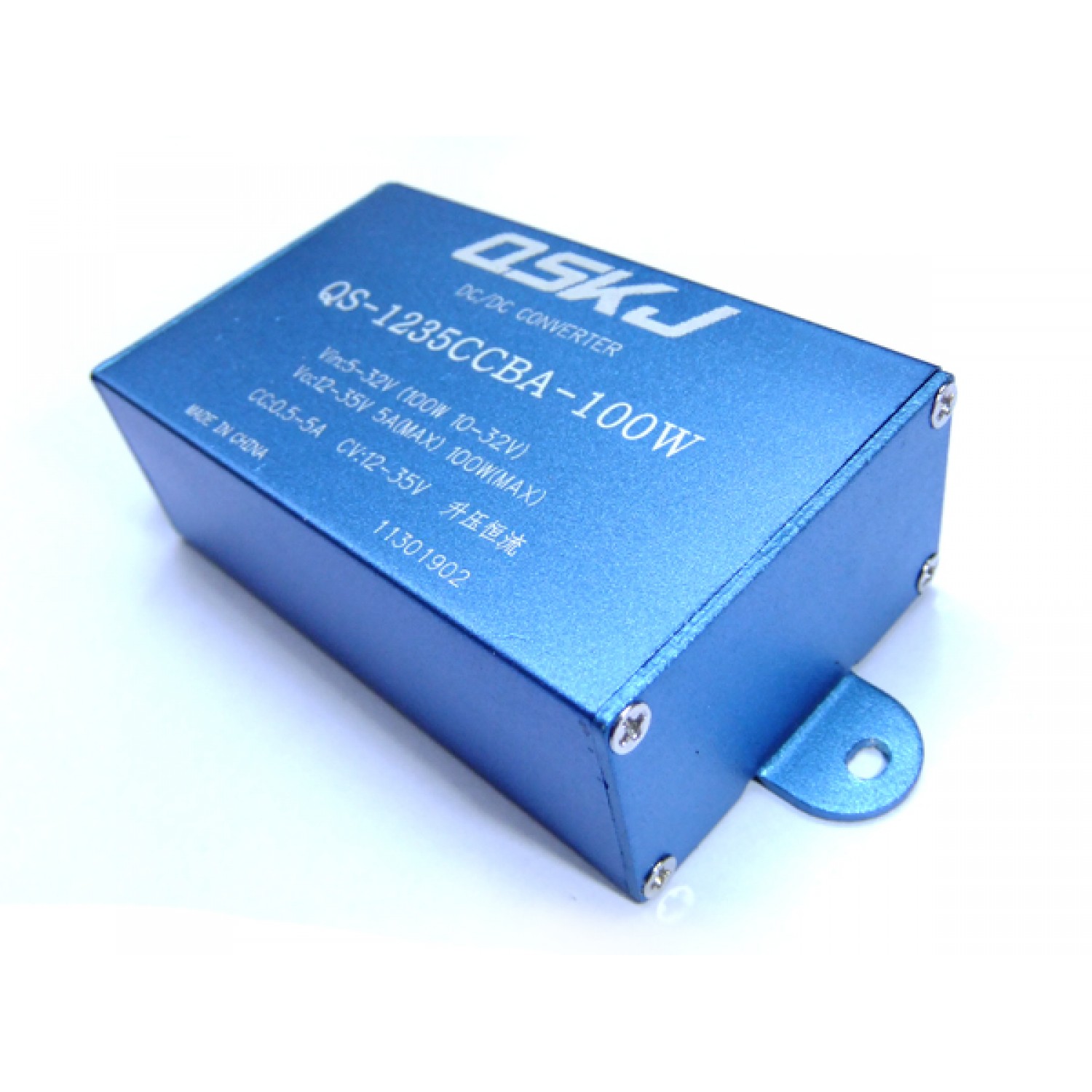

  • 7. Aluminum shell potting design, shockproof, Waterproof, Heat-Sink, harsh environments adaptable

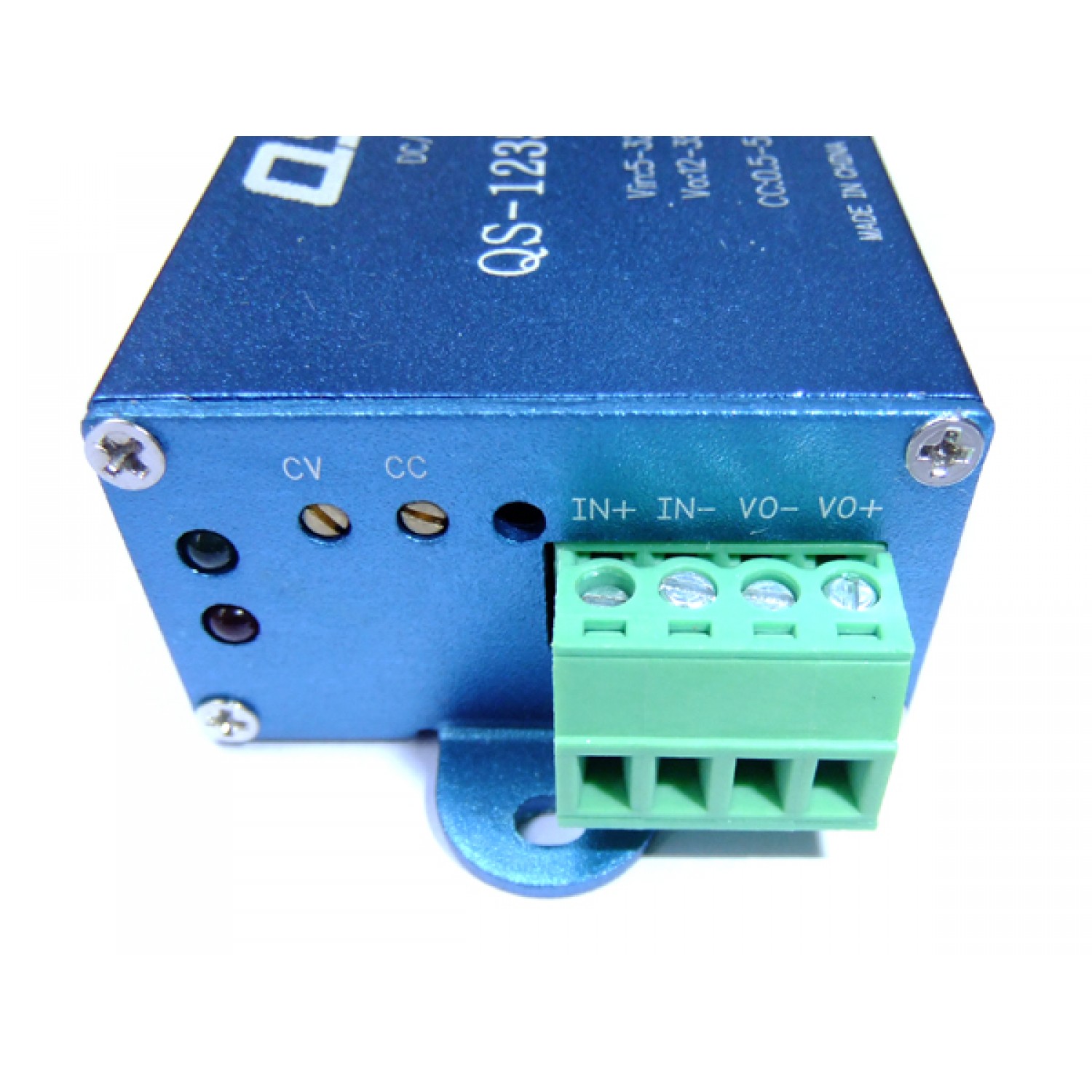

  • 8. Pluggable terminal design, easy assembly and disassembly, wiring more convenient
  • 9. Can be Parallel work in power is not enough occasions
More Detail:
  • Module Properties: non-isolated constant current and voltage can be automatically boost.
  • Input Voltage: DC 5~32V
  • Output voltage: DC 12~35V (adjustable)
  • Output current range: 0.5~5A (100W MAX) (continuously adjustable)
  • Output Power: 100W maximum cooling power (input voltage greater than 10V, the input 8V output 60W MAX)
  • Conversion Efficiency: 92%
  • Output ripple: 20M bandwidth (for reference)
  • Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation), case surface temperature should not exceed 90°c.)
  • Full load temperature rise: 40°c
  • No-load current: Typical
  • Load regulation: ± 2%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: No
  • Undervoltage protection: No
  • Input Reverse Polarity Protection: Yes.

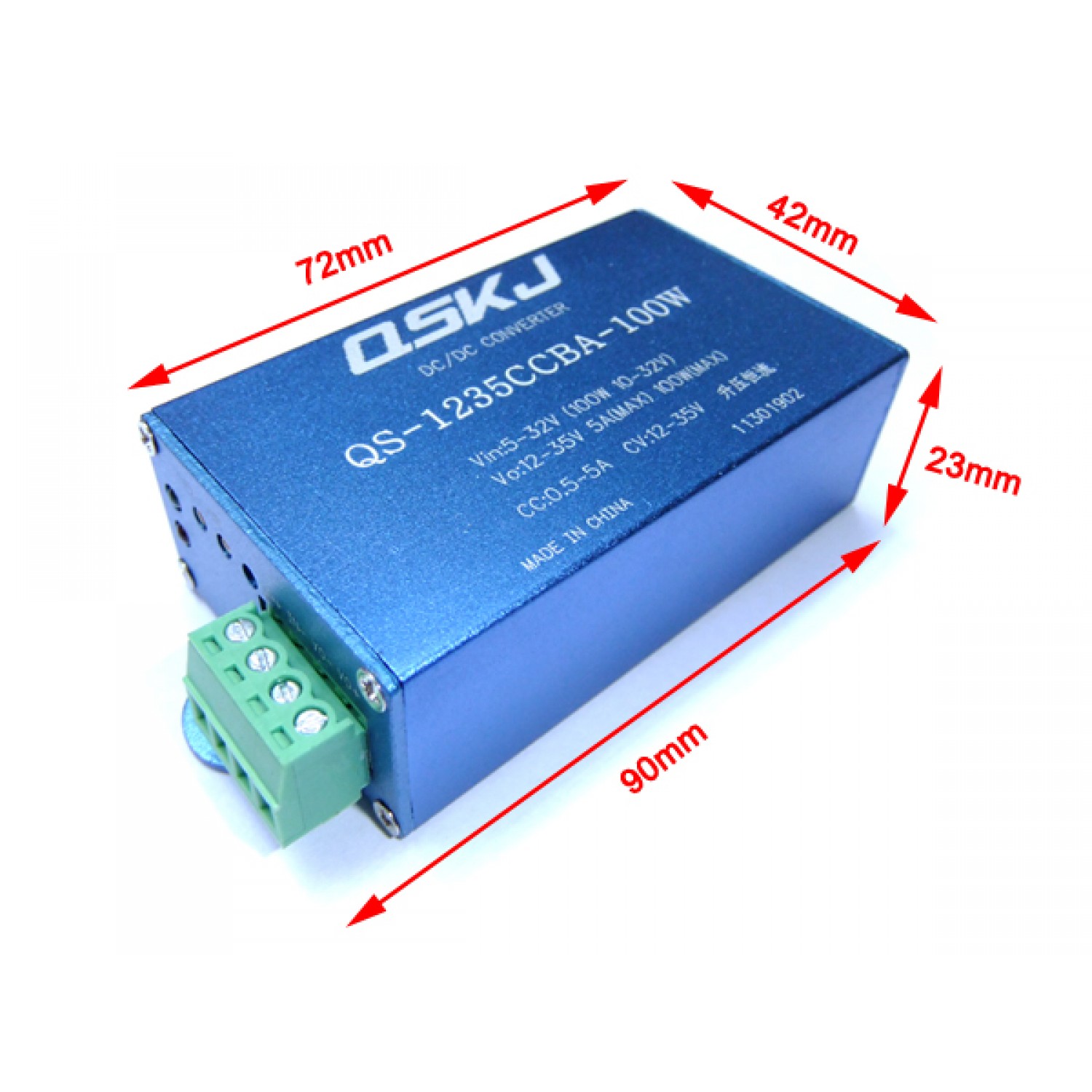

  • Installation: screw (diameter 3 mm), 2 mounting holes, 2 holes spaced 82mm
  • Shell: full aluminum
Some Applications:
  • High Power LED driver(Suitable for 30W-50W-70W-80W-100W LED)
  • Adjustable Output Car Power
  • Boost Charger
  • Power for your electronic equipment
  • Solar battery charger for electric vehicles
Package Includes:
  • 1 x DC/DC Boost Converter ( Power Supply Module/Voltage Regulator/Adapte )

Attributes
input voltage5~32V
output current0.5~5A
output power100W
output voltage12~35V
output ways1
