-10% Dual display 60V switch Power Supply, AC 110V 220V to DC 0-60V 8A 480W Buck Converter, Voltage Adjustable Adapter Regulated 5V 12V 24V 30V 36V 48V 60Volt Switching Voltage Transformer 3A 5A 8A Charger

Ask Question

About this item

  • 【Volt Adjustment】 Input Voltage can be 110V or 220V. Wide adjustable output Voltage range: DC 0-60V. This supply is suitable for   5V 6V 9V 12V 24V 48V 60V devices. The voltage precision is 0.1V. Note——The maximum current is 8A.  Make sure to use the devices which is below 8A.

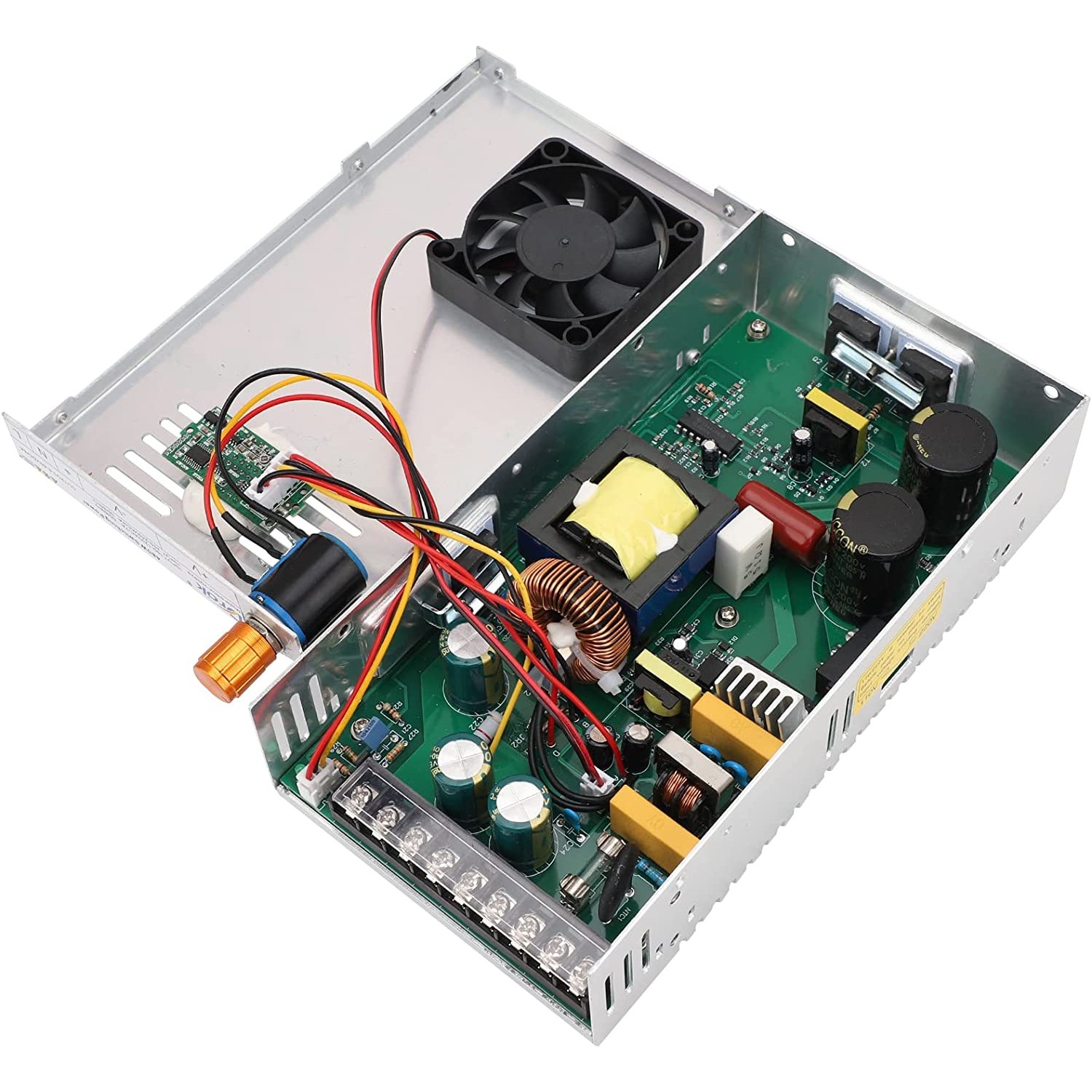

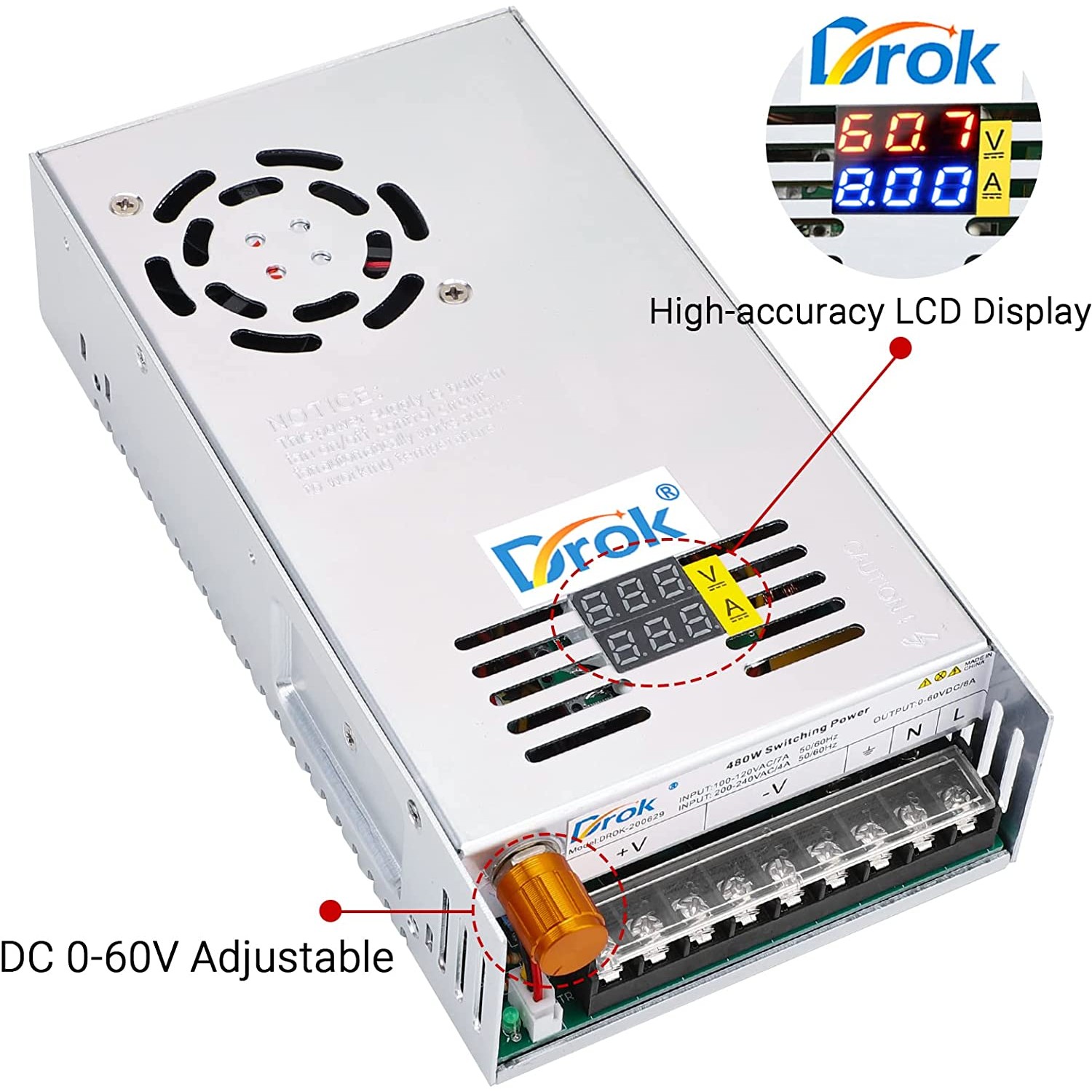

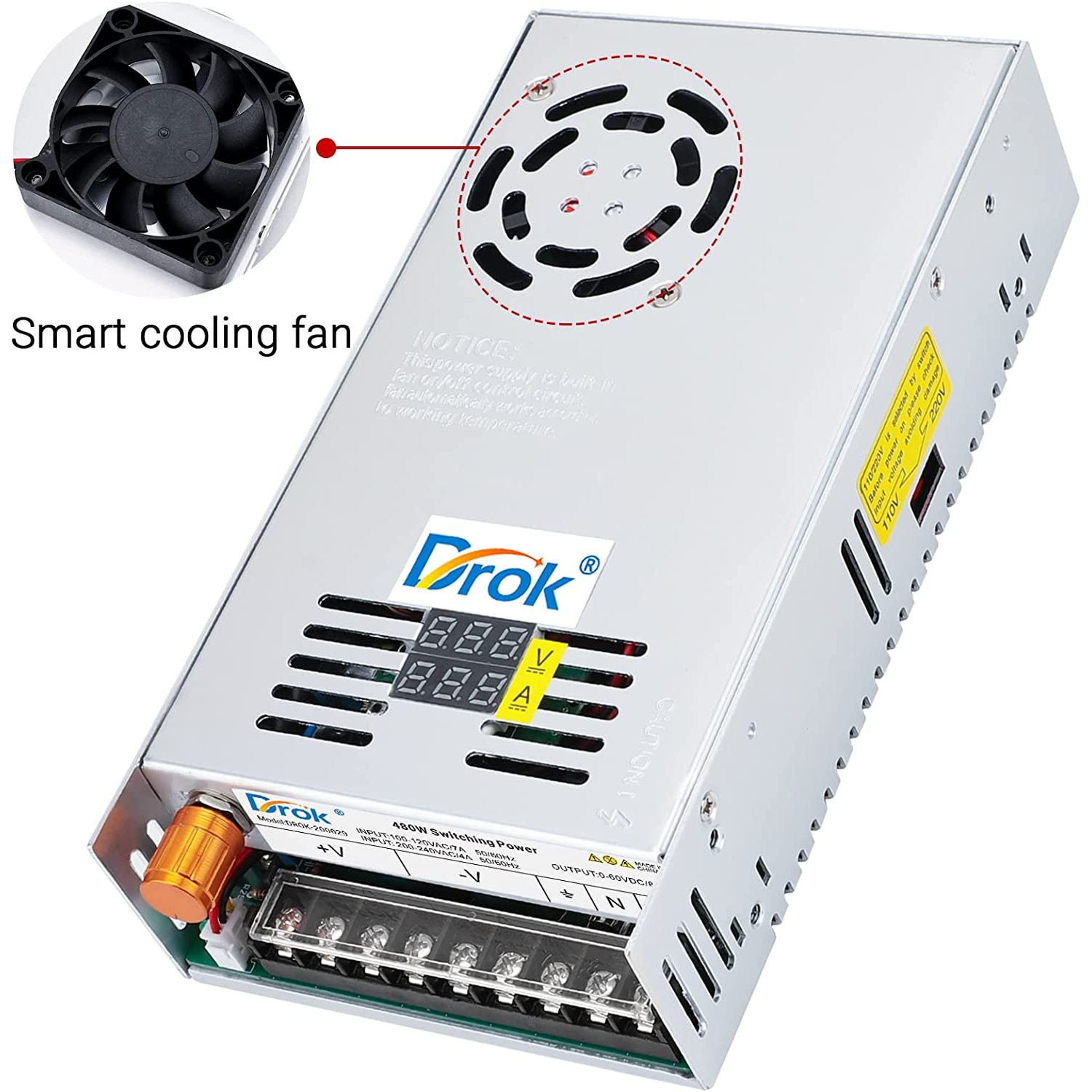

  • 【Hareware】 This Buck Converter is equipped with LED screen and cooling fan. The LED screen can clearly display  output voltage. When the running power is high, the cooling fan will automatically activate.

  • 【Easy Operation】  After connecting wire, it can be used to adjust output voltage directly with potentiometer.

  • 【Protection】 Over Load Protection, Over Voltage Protection, Short Circuit Protection, which can protect your device from damage. Note: the default input voltage is 220V, before using, please switching the voltage range to match actual input  voltage

  • 【Wide Application】 This power supply has variable application. It can be used as a 5V 6V 9V 12V 24V 48V 60V  power supply for RV, Car, Labtop, Computer, Lab, CCTV, Ham Radio, etc. All of our item has one year long time warranty guarantee.


Product Description

Parameters:
Input voltage: AC 110-220V ± 15%
Output: DC 0-60V 8A
Rated power: 480W

Dispaly: Voltage

Current Adjustment: No

Voltage Adjustment: Yes

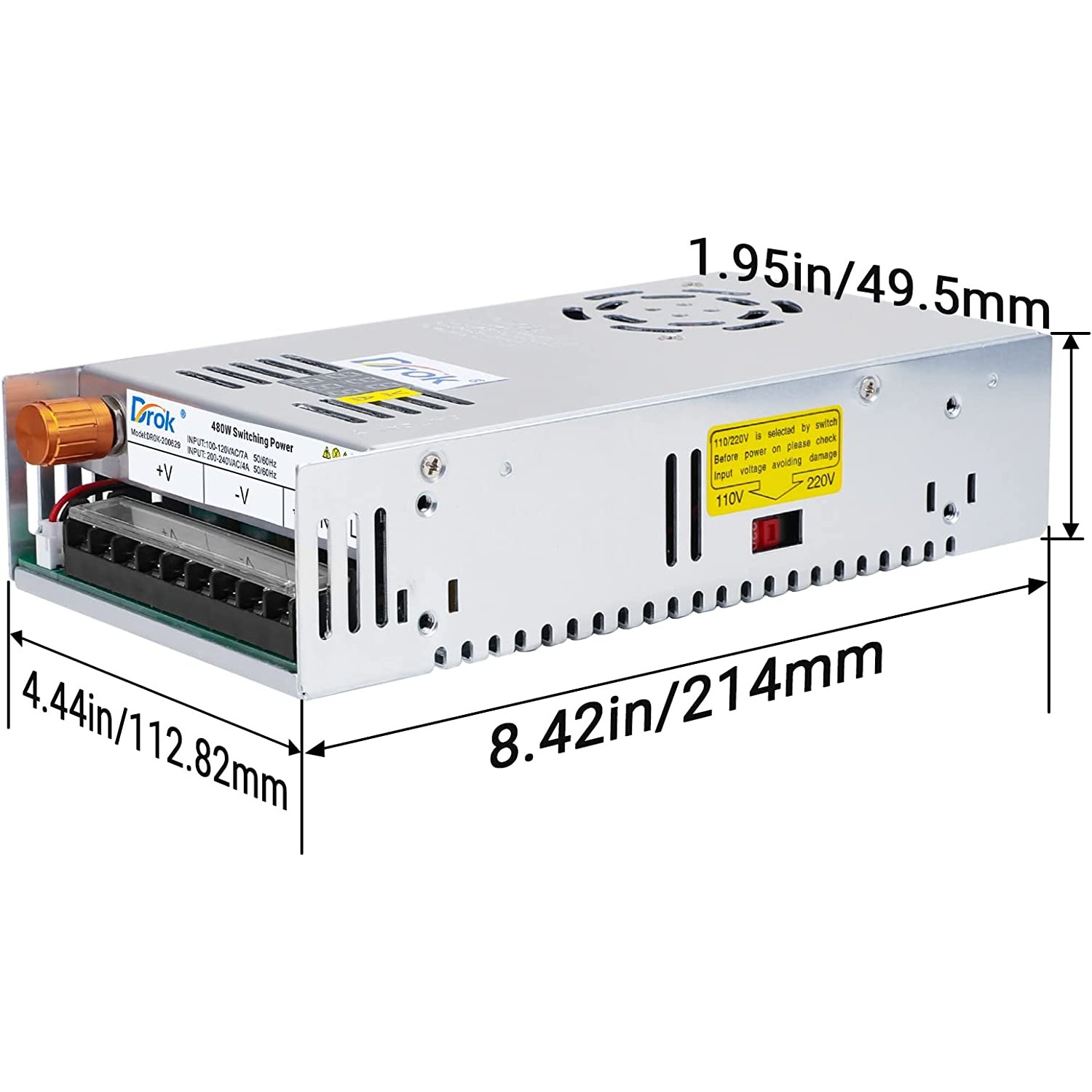

Product Dimension: 215*115*50mm ​/ 8.46x4.53x1.97inch (length*width*height)

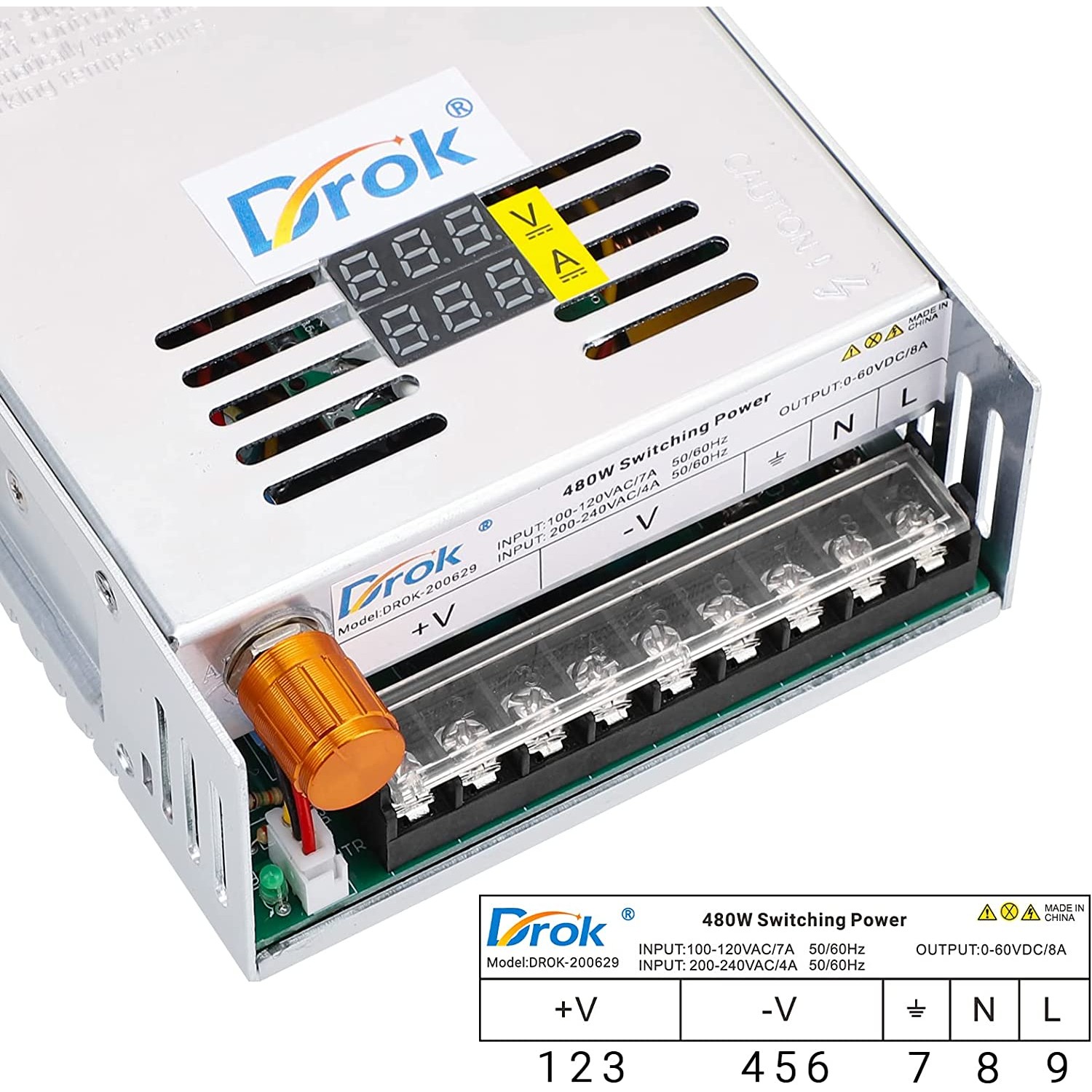

Wiring:
〨: Ground
N: Null wire
L: Live wire
V+: DC output +
V-: DC output -

Instructions for use:
The current is unregulated and maximum is 8A. The actual current is determined by load.
Any devices above 8A current cannot use this product.

Note:

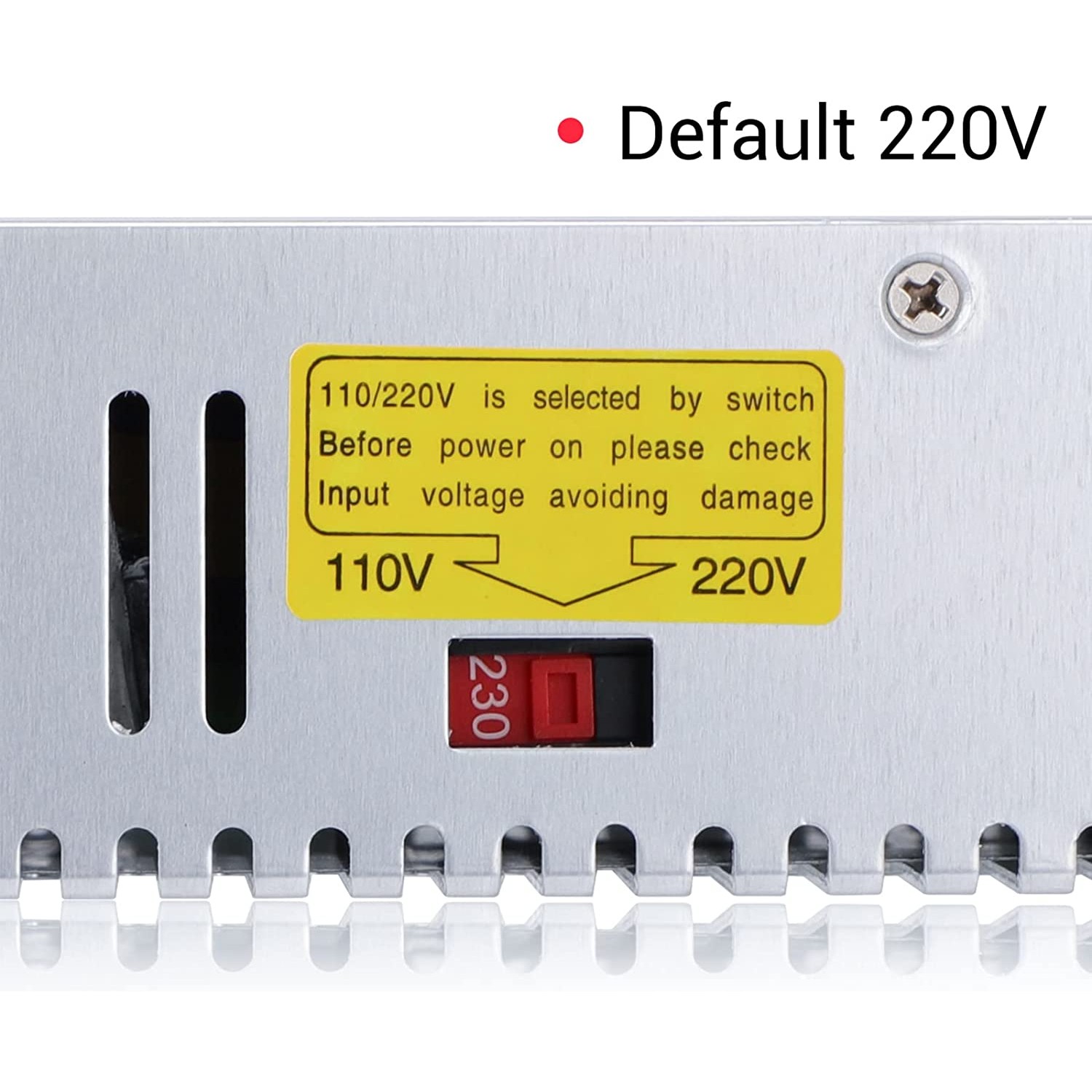

Before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side

For motor, fan and other inductive load, please pay attention to the load’s maximum starting current parameter. This parameter shall not be higher than the power supply’s max output current. Otherwise it may damage the power supply. Otherwise you need to allocate the soft starting protection circuit for the load to absorb the impact current.

Package includes:
1 x AC-DC Switch Power Supply

Write a review

Please login or register to review

Dual display 60V switch Power Supply, AC 110V 220V to DC 0-60V 8A 480W Buck Converter, Voltage Adjustable Adapter Regulated 5V 12V 24V 30V 36V 48V 60Volt Switching Voltage Transformer 3A 5A 8A Charger

  • Product Code: 200629
  • Availability: In Stock
  • $55.99
  • $50.39
  • Bulk Buy Discounts. Buy more please contact us
    Qty251020+
    Price$47.87$45.35$44.34$41.82
