-30% 10A Power Converter DC 4~30V to 1.2~30V Buck Power Supply Module/Voltage Regulator DC 5V 12V 24V Adapter/Charger/Driver Module

Ask Question

It is a Power Supply Module/Adapter/Charger/Power Converter, Input Voltage: DC 4~30V (limit 36V), Output Voltage: DC 1.2~30V (adjustable,Default output 5V), Output Current Range: 0~10A, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc.

Feature:
  • Synchronous Rectification Adjustable
  • Module properties: non-isolated buck module
  • Input Voltage: DC 4~30V (limit 36V)
  • Output Voltage: DC 1.2~30V (adjustable,Default output 5V)
  • Minimum Voltage Difference: 1V
  • Output Current Range: 0~10A
  • Output Constant Current Range: 0.3~10A
  • Default output: 5V/6A
  • Operating temperature: -40°c to +85°c
  • Working frequency: 150KHz
  • Conversion efficiency: up to 98%
  • Installation: 4 x 3mm screws
  • Wiring: Terminals, Needn't solder, V-IN input, V-OUT output

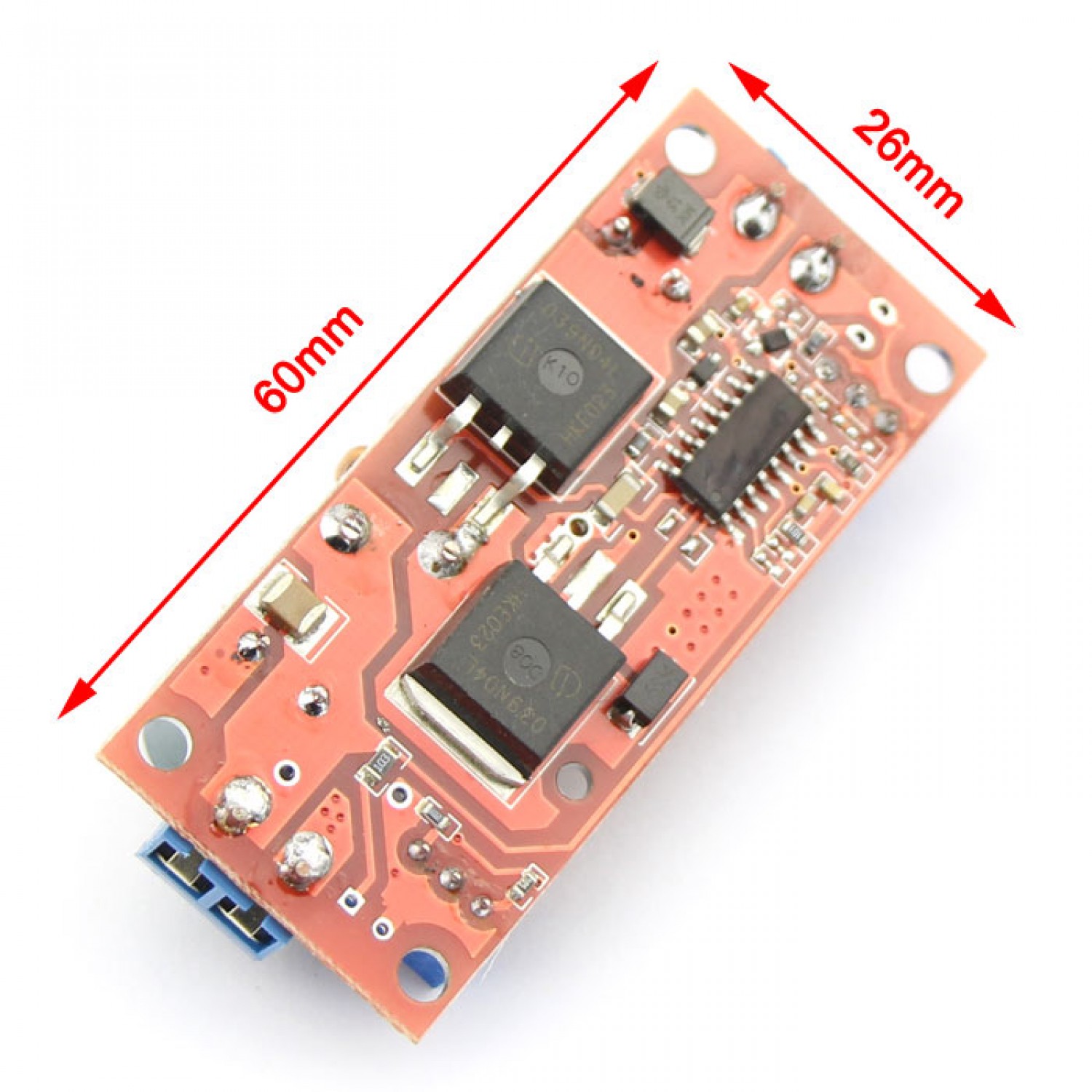

  • Cutting size: 60mm x 26mm
  • Have operating indicator
  • Protection function
  • Short circuit protection: YES ( Limit current is the constant current value)
  • Over-temperature protection: YES (Over-temperature auto reduces the output current)
  • Input reverse polarity protection: None (If need please install diode at input port )
  • Output install diode protection: None ( please install diode at output port )

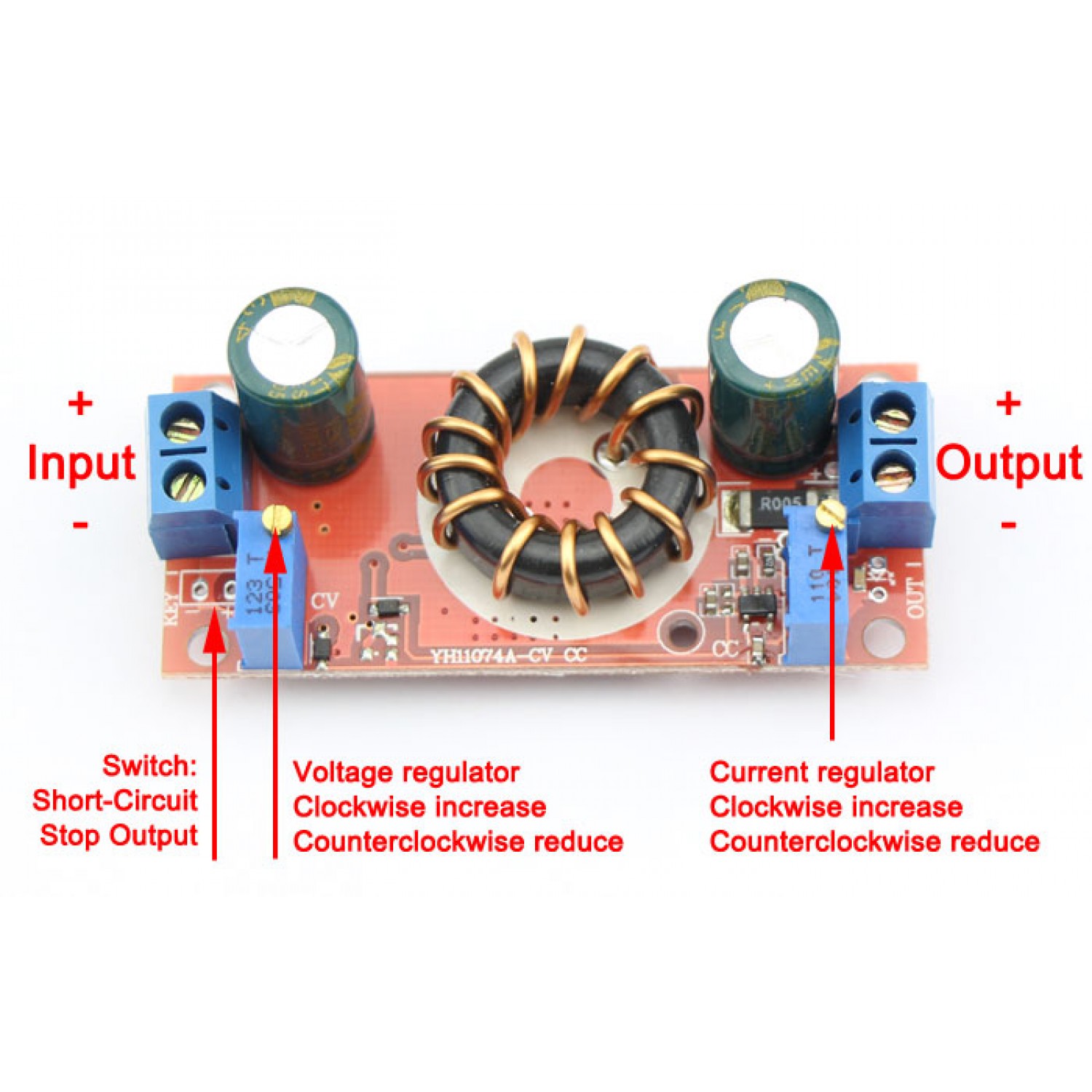

  • Current voltage adjusted:
    • Voltage adjusted: clockwise increase,counterclockwise reduce
    • Current adjusted: clockwise increase,counterclockwise reduce
  • Please note that when setting the constant current value,voltage should higher than 1.2V
  • please check the picture above for details
Some Application:
  • DIY voltage Regulator, with constant current, can protect the load.
  • The power supply for electronic equipment.
  • For battery charging,Setting the charging voltage and current according to the different voltage&battery capacity,with indicator, convenient to observe the state of charge.
  • Solar panels power supply for battery charging, With constant current, which prevents battery overcharge.
  • Used as a car power supply, Power supply for cell phone, laptop, or a variety of digital products
Package Include:
  • 1 x DC/DC Buck Converter ( Power Supply Module/Voltage Regulator/Adapter/Charger )
Attributes
input voltage 4~30V
output voltage 1.2~30V
output ways 1
