-45% 250W Voltage Regulator DC 6~55V to 0V~50V 5A Programmable Power Supply Module/Adapter With USB + Bluetooth Communication Board

Ask Question

It is a 250W Programmable Power Supply Module/Adapter, Input voltage range:  DC6~55V, Output voltage range:  0V~50V, Output current: 0~5A, This constant voltage and constant current programmable control power supply module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied.

Product Characteristics:
  • This constant voltage and constant current programmable control power supply module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied.
  • The module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-50V, step by 0.01V. Its adjustable output current range is 0-5A, step by 0.001A.
  • This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value.
  • Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter.

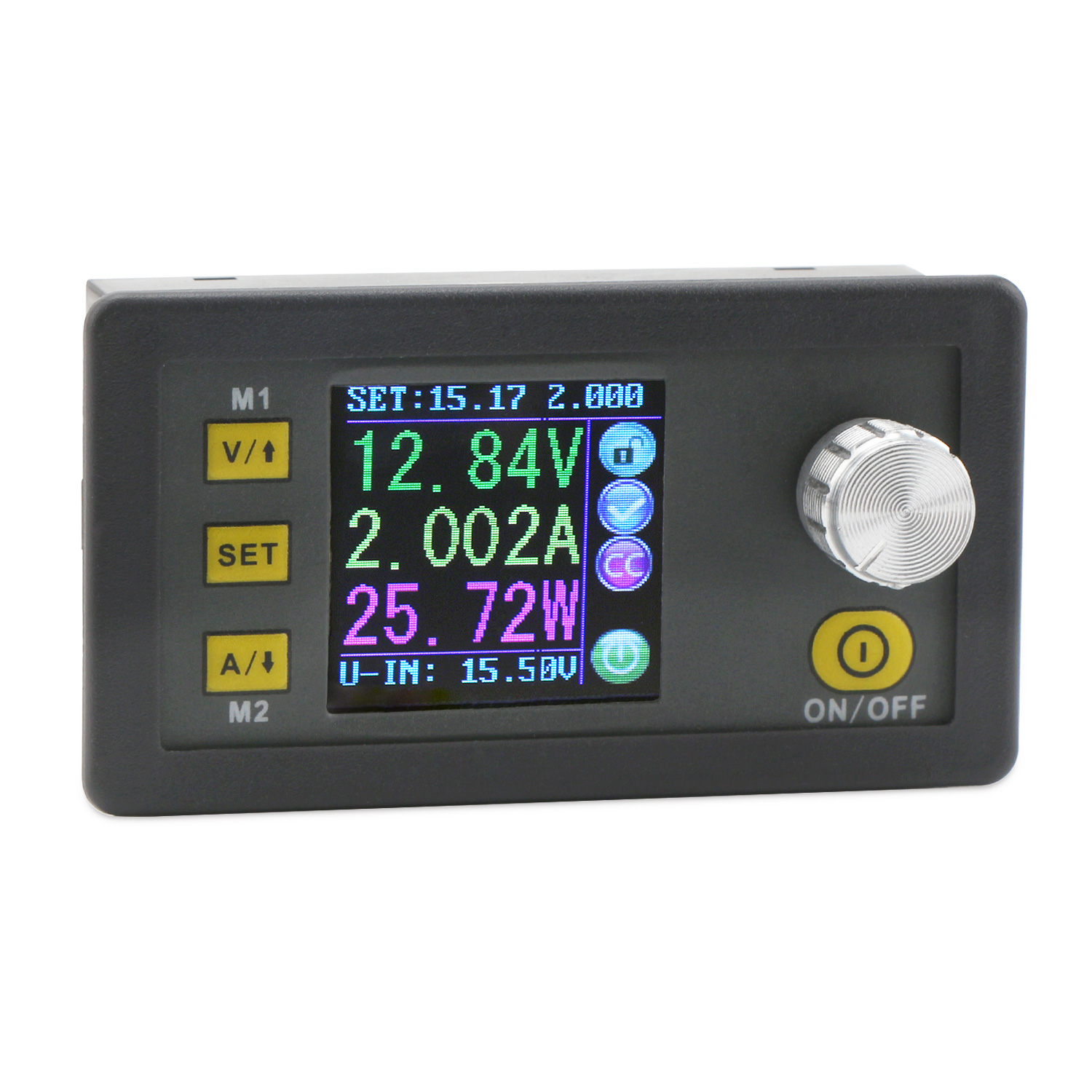

  • You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used.

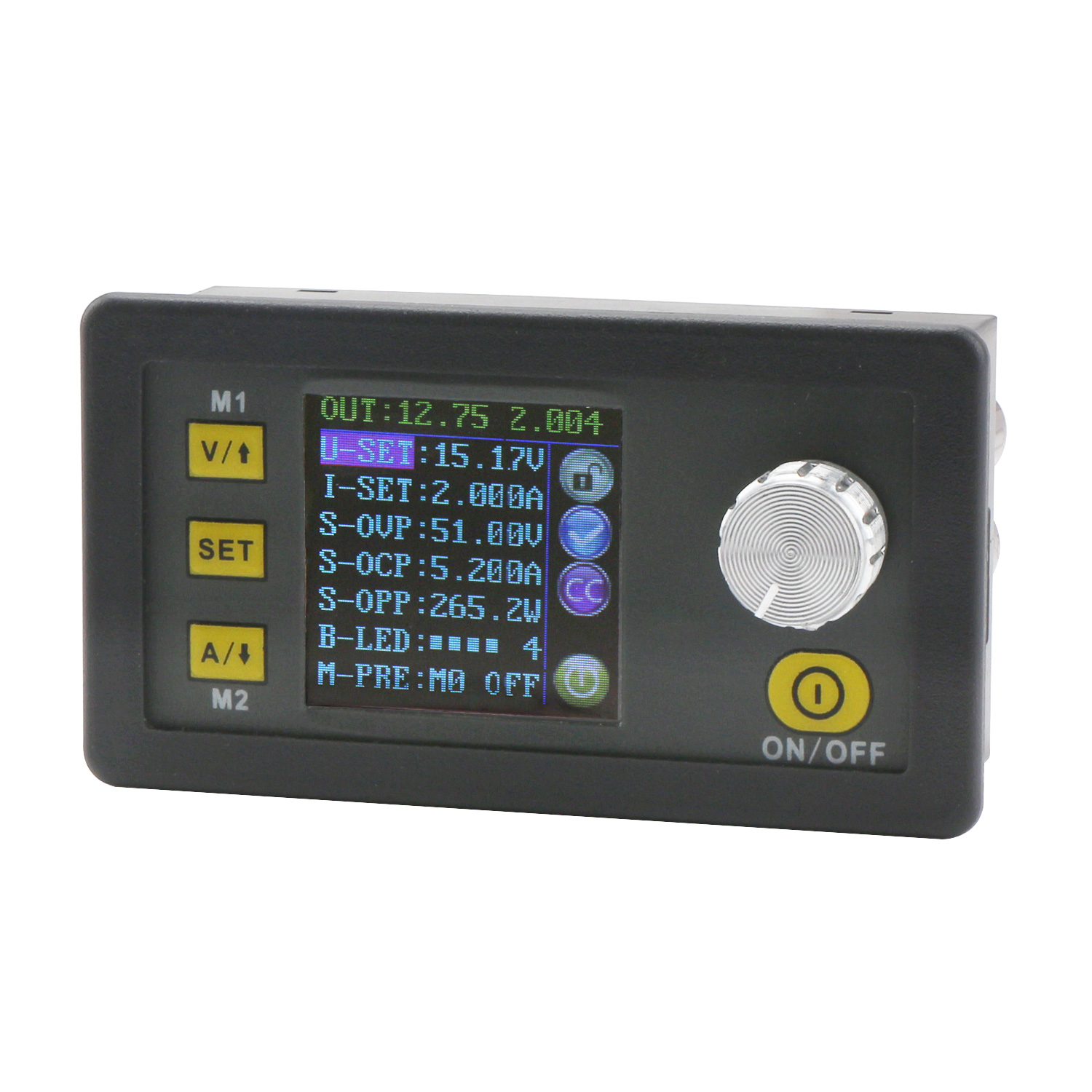

  • On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data groups, LCD brightness, etc.
Technical Parameters:
  • Input voltage range:  DC6~55V
  • Output voltage range:  0V~50V
  • Output current: 0~5A
  • Output power range: 0~250W
  • Product Weight: about 113g
  • Product Dimension: 79*43*48(mm) (L*W*H)
  • Open size:  71mm*39mm
  • Output voltage resolution: 0.01V
  • Output current resolution: 0.001A
  • Output Voltage accuracy: ± (0.5% + 1 digits)
  • Output Current accuracy: ± (0.5% + 2 digit)
  • NOTE: You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.
Connection Description:
  • IN+: Input positive
  • IN-: Input negative:
  • OUT+: Output positive:
  • OUT-: Output negative
  • Note: Input voltage range is DC 6-55V and 55v is the limit voltage; please leave a room to use. Or else it will be burnt.
  • The input must be DC power supply, not AC 220V, or else it will be burnt too.
  • Though this module has reverse connection protection and output short circuit protection, you must be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt.

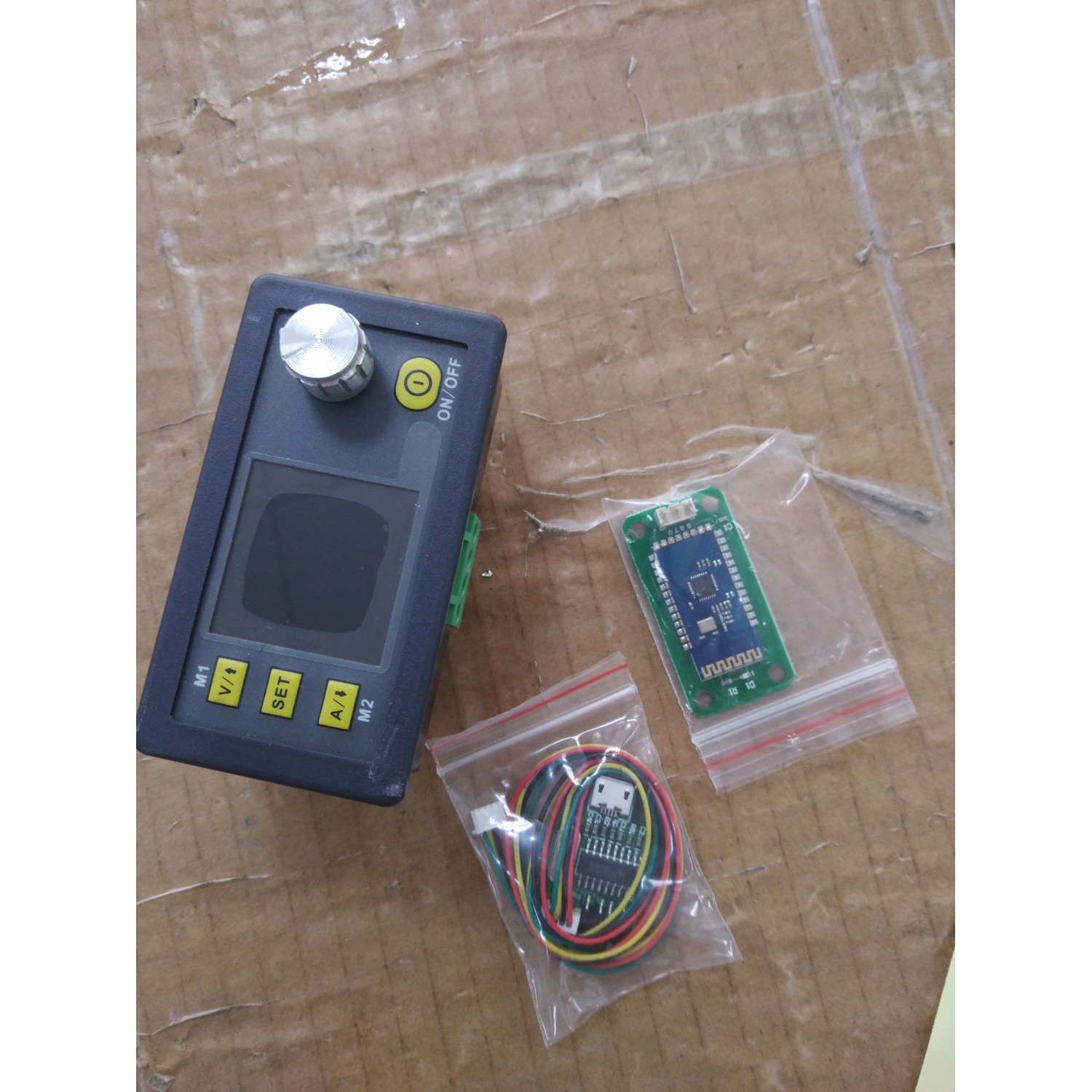

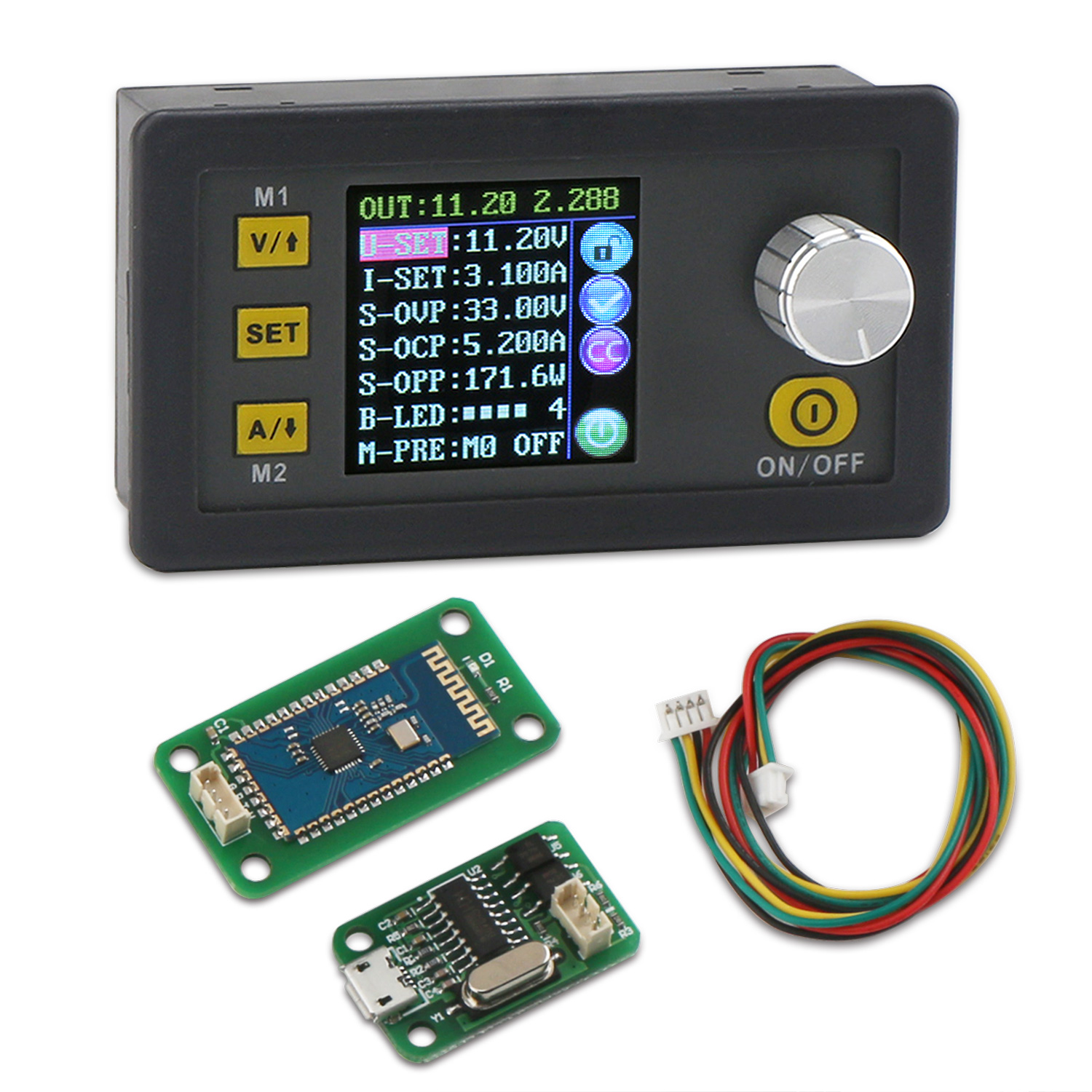

Package Includes:
  • 1 x  DC Adjustable Constant Voltage Power Supply
  • 1 x  USB Communication Board

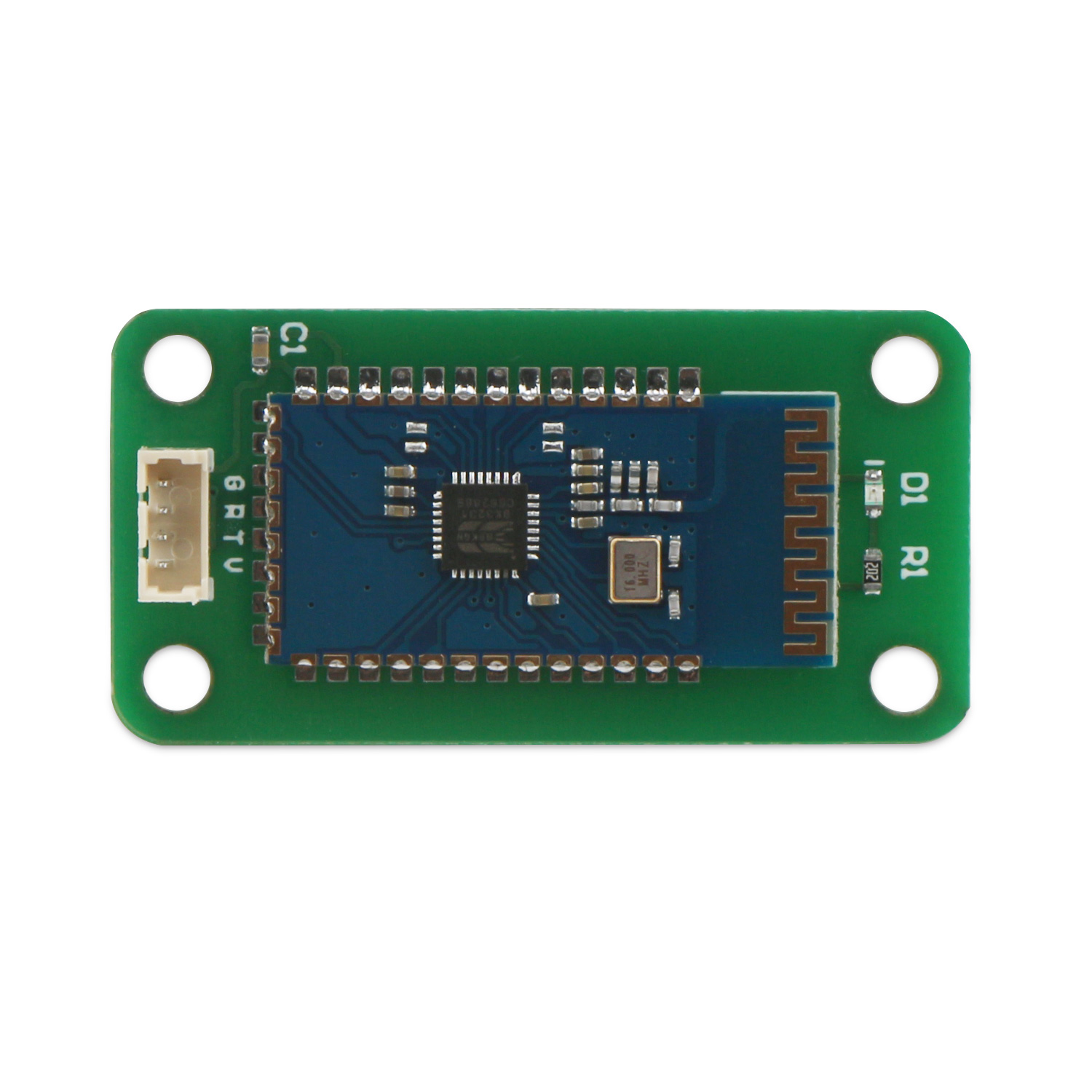

  • 1 x  Bluetooth Communication Board
  • 1 x  Cable

Attributes
input voltage 6~55V
output current 0~5A
output power 250W
output voltage 0~50V
output ways 1
