-58% Digital Audio Amplifier Board 5W+5W Amplifier Circuit PAM8406 Module DC 5V Dual Channel Class D Stereo Power Amp Module

Ask Question

Description:


Technical Specification:

Working Voltage: DC 5V (Do not exceed 5V, or the IC will be burned.)

Input Method: monaural input

Output Power: 5W 2Ω 5V / 3W 4Ω 5V / 1.8W 8Ω 5V

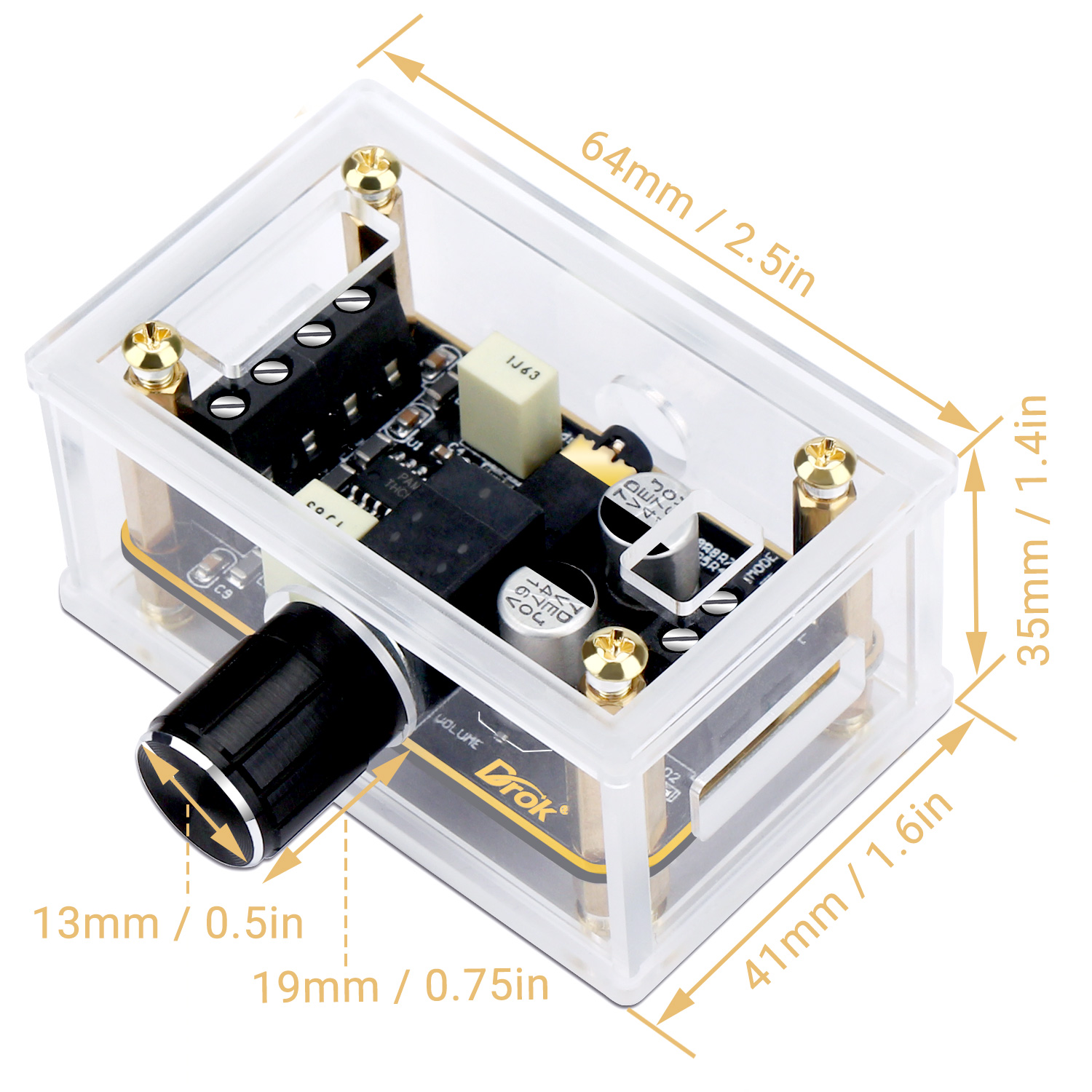

Dimension: 64*41*35mm/2.5*1.6*1.4 inch


Performance:

Efficiency: >90%

General Harmonic Distortion Noise: <10%

Low quiescent current

Low noise suppression.




Features:


PARAMETER --- power supply voltage DC 5V; output power 5W(2Ω 5V) / 3W(4Ω 5V) / 1.8W(8Ω 5V); input method is monaural input.


PROTECTION --- power supply input reverse connection protection; short-circuit protection; over-heat protection; EMI is allowed to pass.

PERFORMANCE --- efficiency >90%; general harmonic distortion noise <10%; low quiescent current and noise suppression.

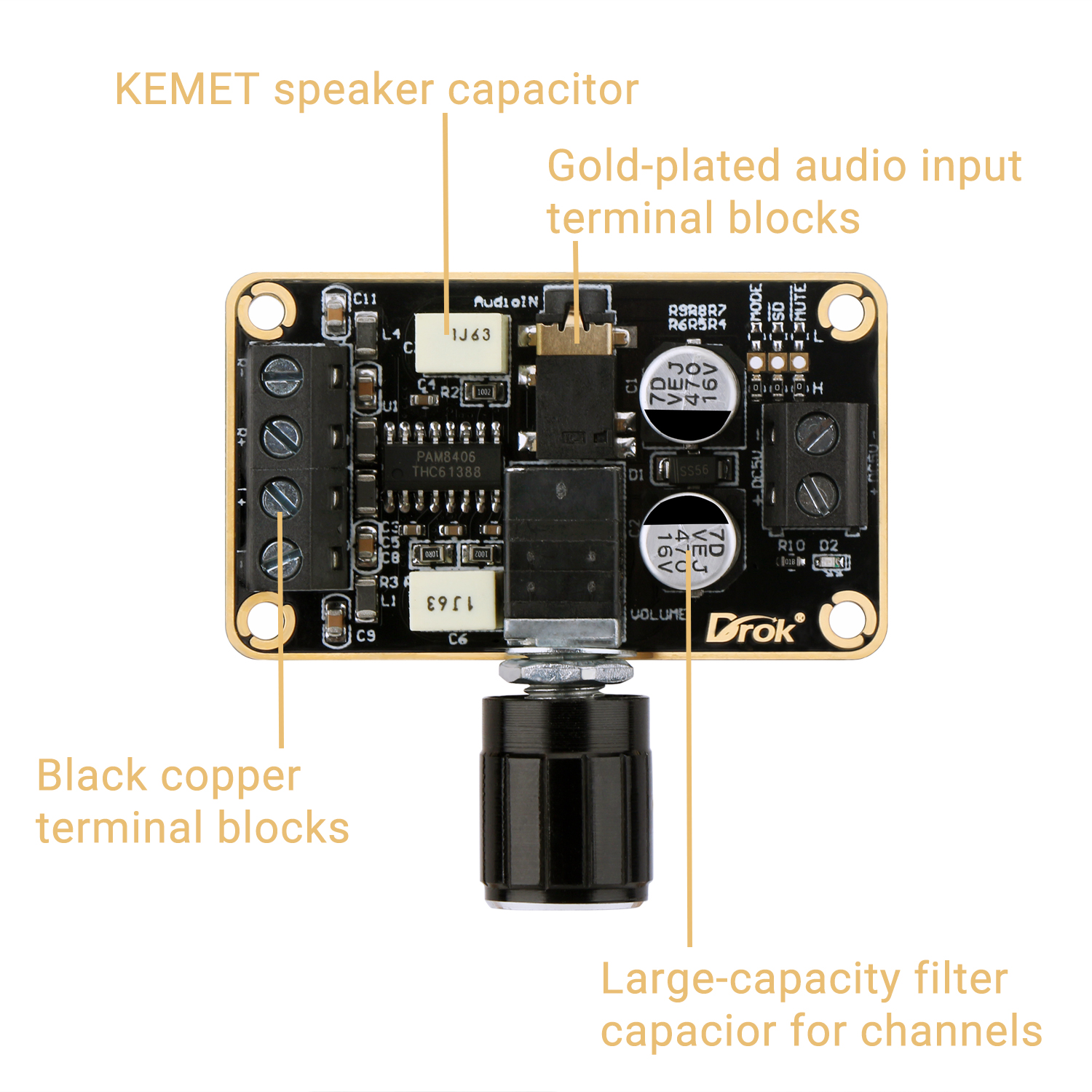

MATERIAL --- noble black immersion gold circuit board, KEMET speaker capacitor, large-capacity filter capacitor for channels, black copper terminal blocks, gold-plated audio input terminal blocks.


ADDITIONAL FUNCTION --- available to choose different amplifier type to be connected; available to add an external shutdown; available to add an external mute.



Protection:


Power supply input reverse connection protection;

Short-circuit protection;

Over-heat protection;

EMI is allowed to pass.



Additional Function:

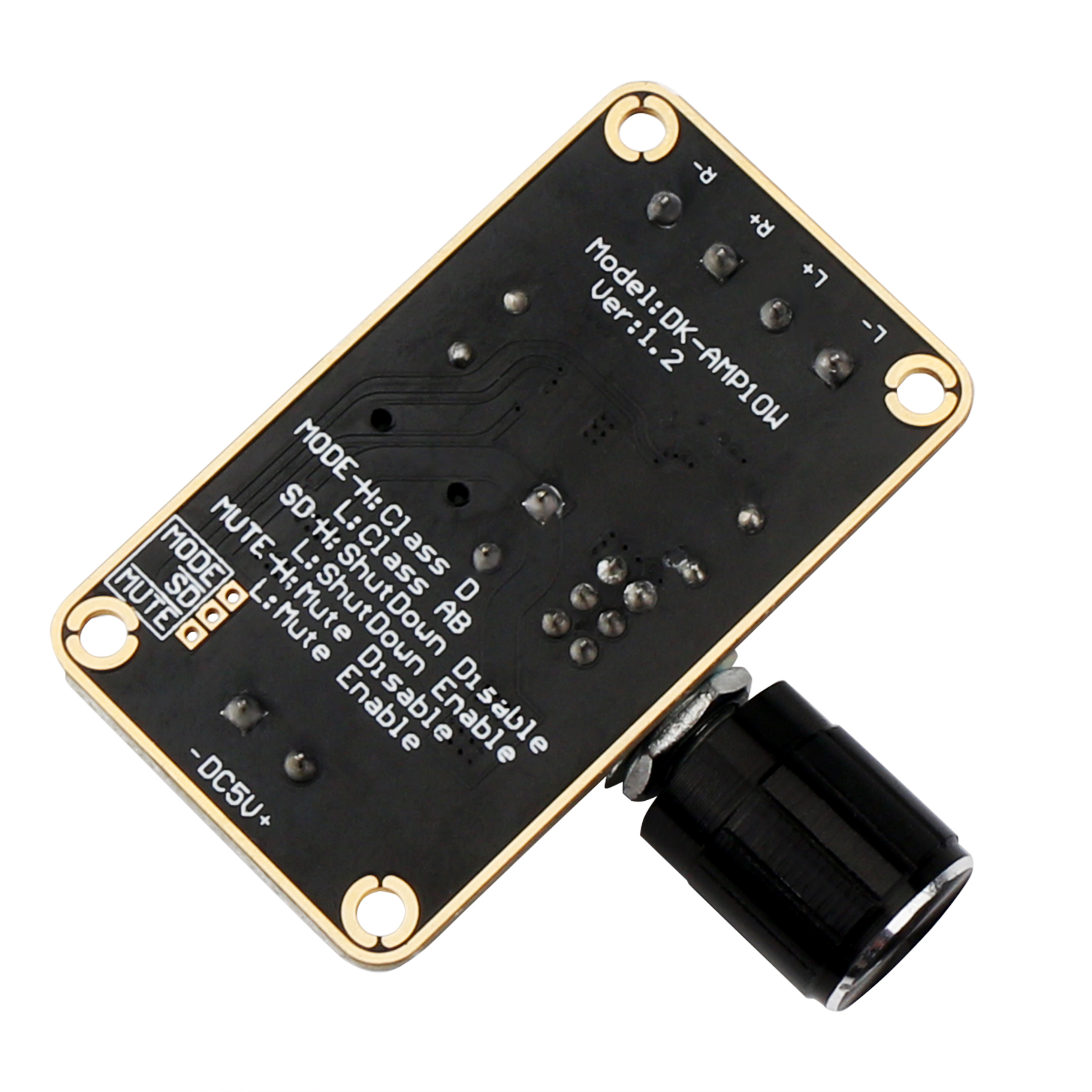

1. Available to choose different amplifier type to be connected.

(MODE: high level -- class D, low level -- Class AB; default high level)


2. Available to add an external shutdown.

(SD: high level -- shutdown disabled, low level -- shutdown enabled; default high level)


3. Available to add an external mute.

(MUTE: high level -- mute disabled, low level -- mute enabled; default high level).



Note:

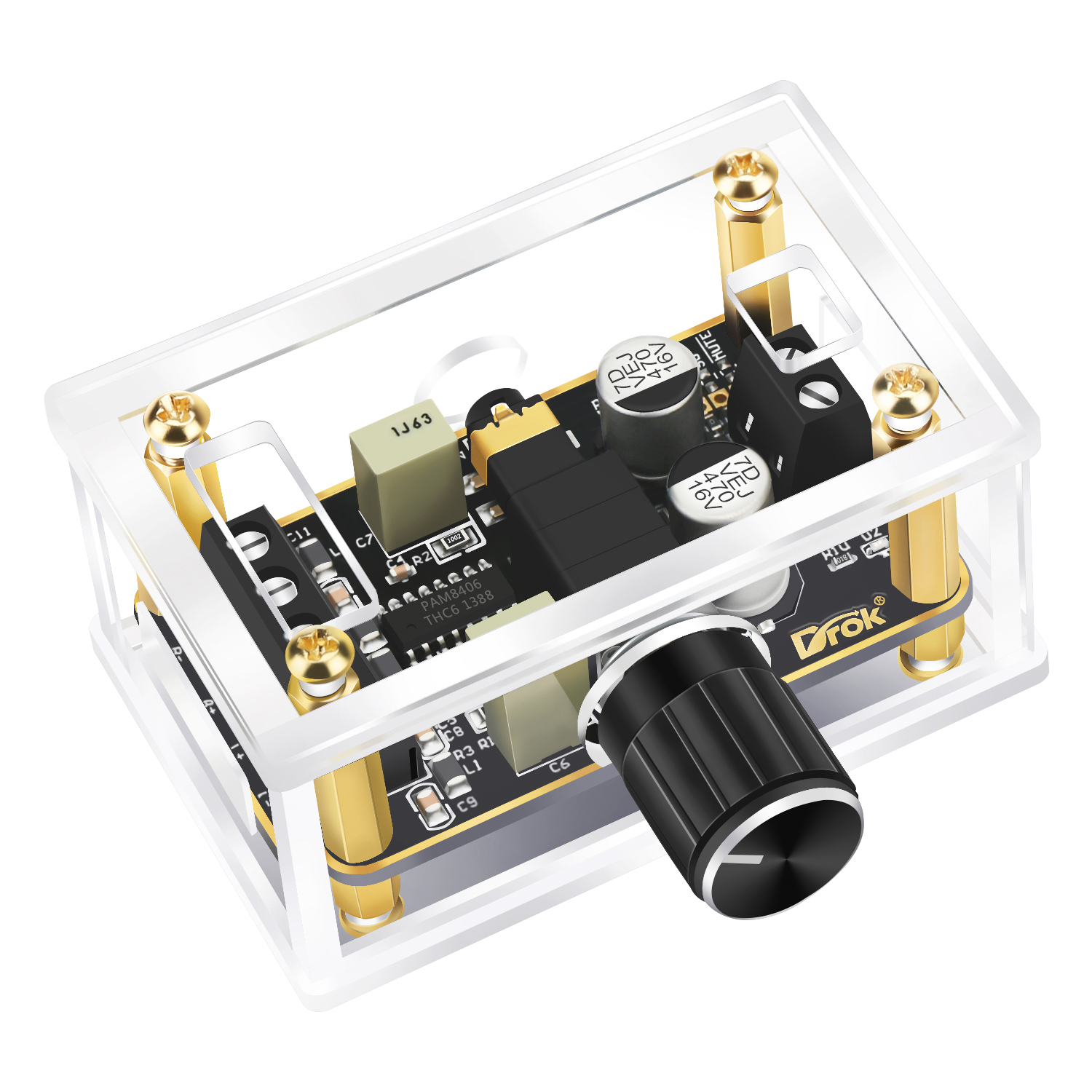

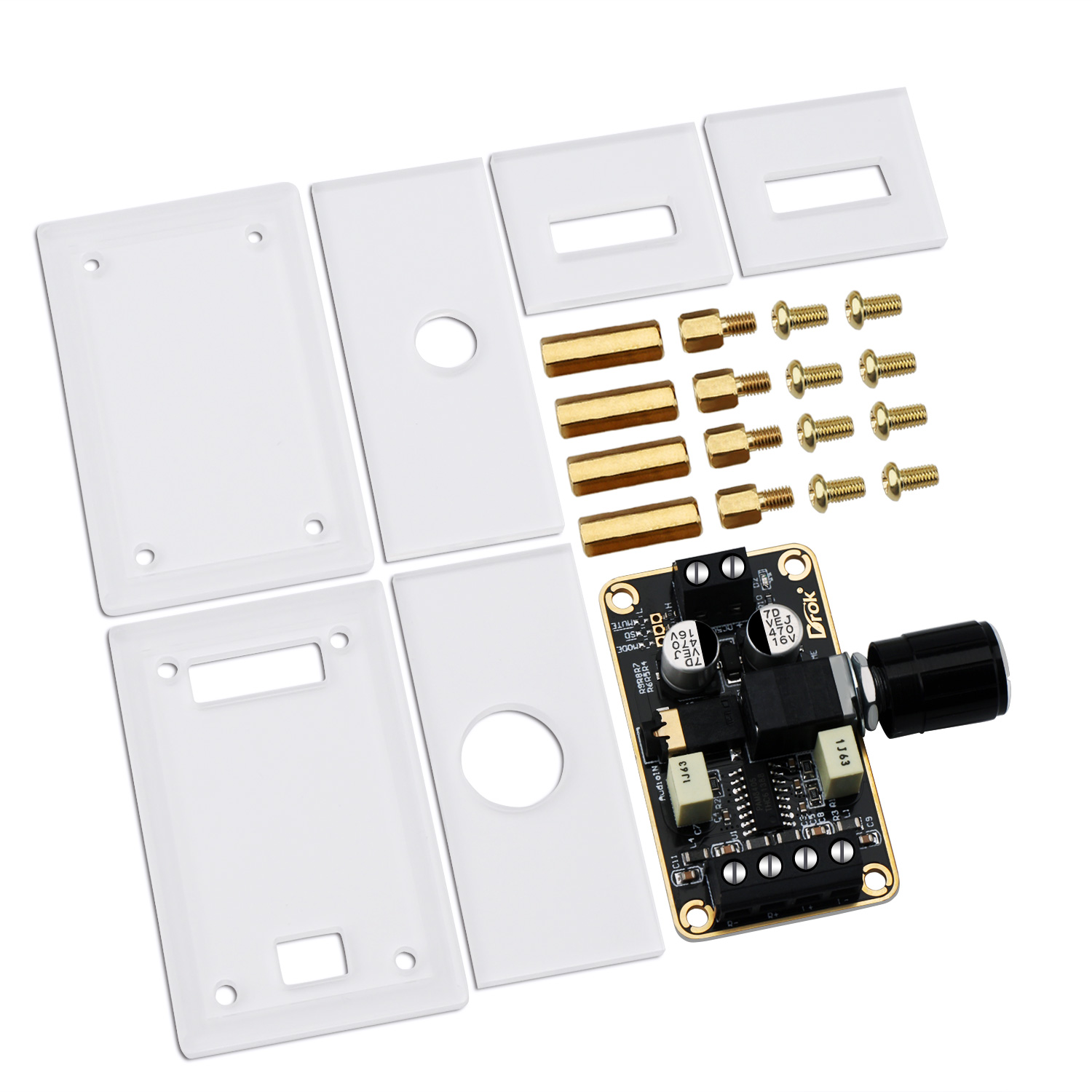

1. The case is shipped unassembled to aviod damage during transit, needs to be installed manually.

2. Please remove the protective film on the Acrylic case before installation.



Package Included:


1x Amplifier Circuit Module

Write a review

Please login or register to review

Digital Audio Amplifier Board 5W+5W Amplifier Circuit PAM8406 Module DC 5V Dual Channel Class D Stereo Power Amp Module

  • Brand: Drok
  • Product Code: 200442
  • Availability: In Stock
  • $17.99
  • $7.49
  • Bulk Buy Discounts. Buy more please contact us
    Qty251030+
    Price$7.25$7.08$6.95$6.82
