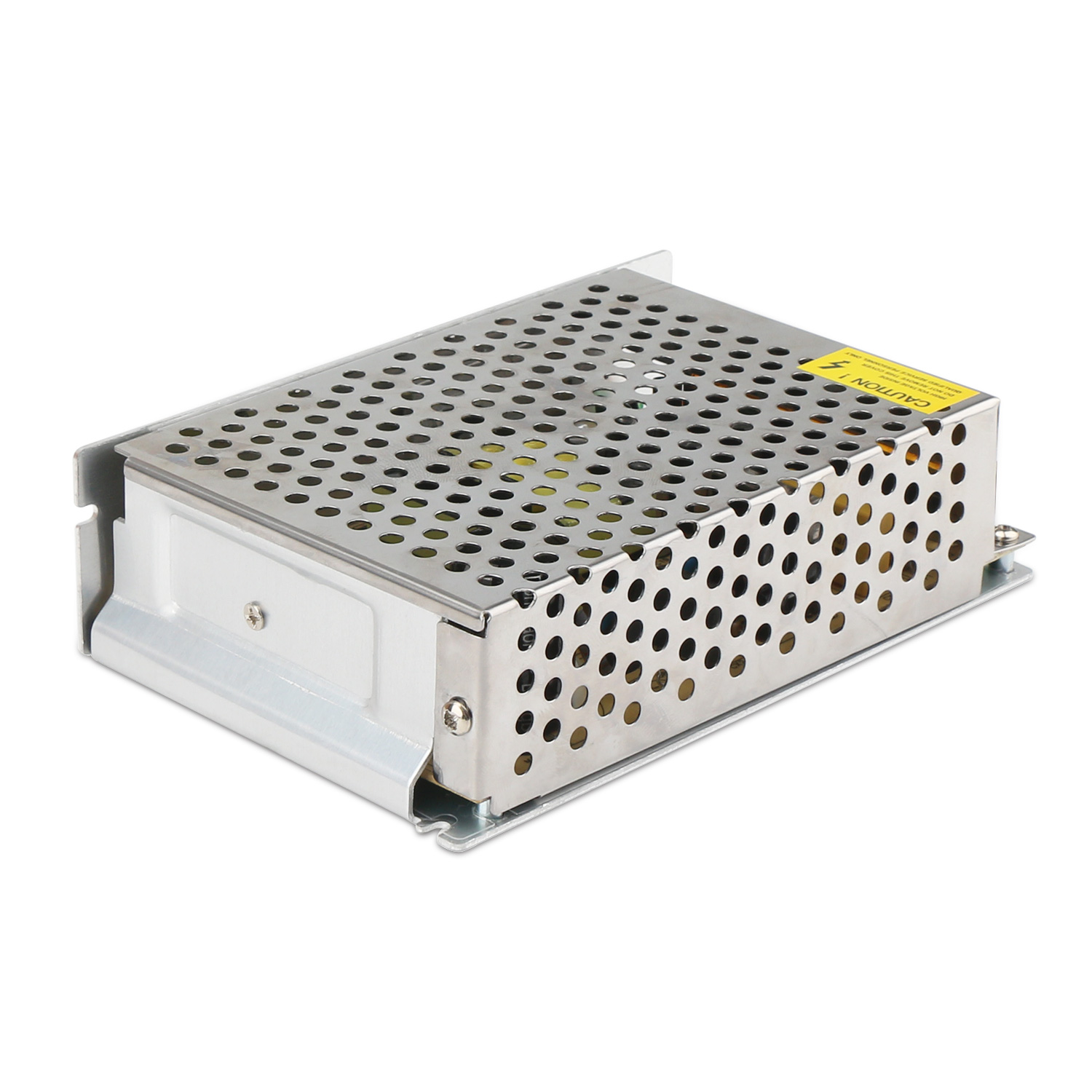

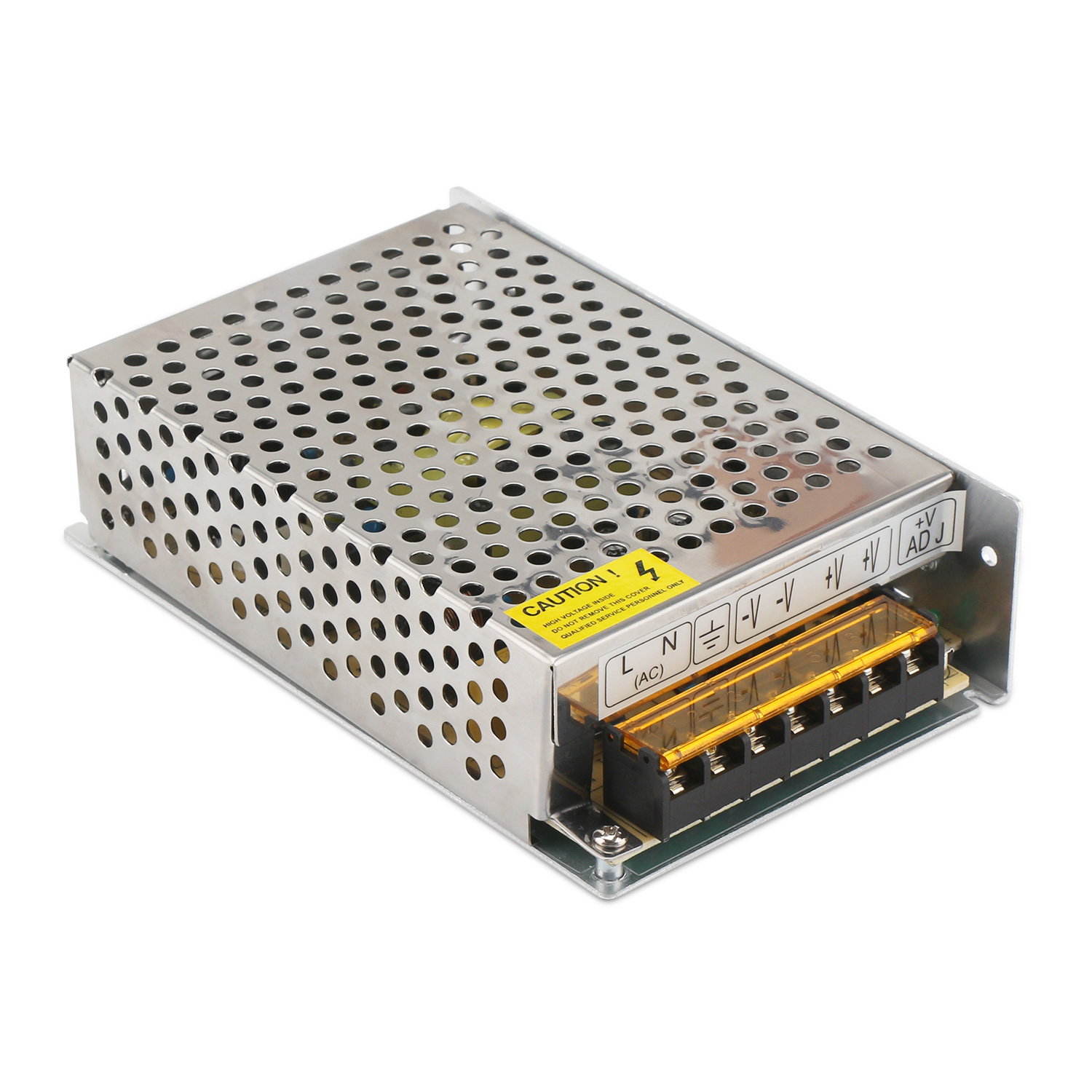

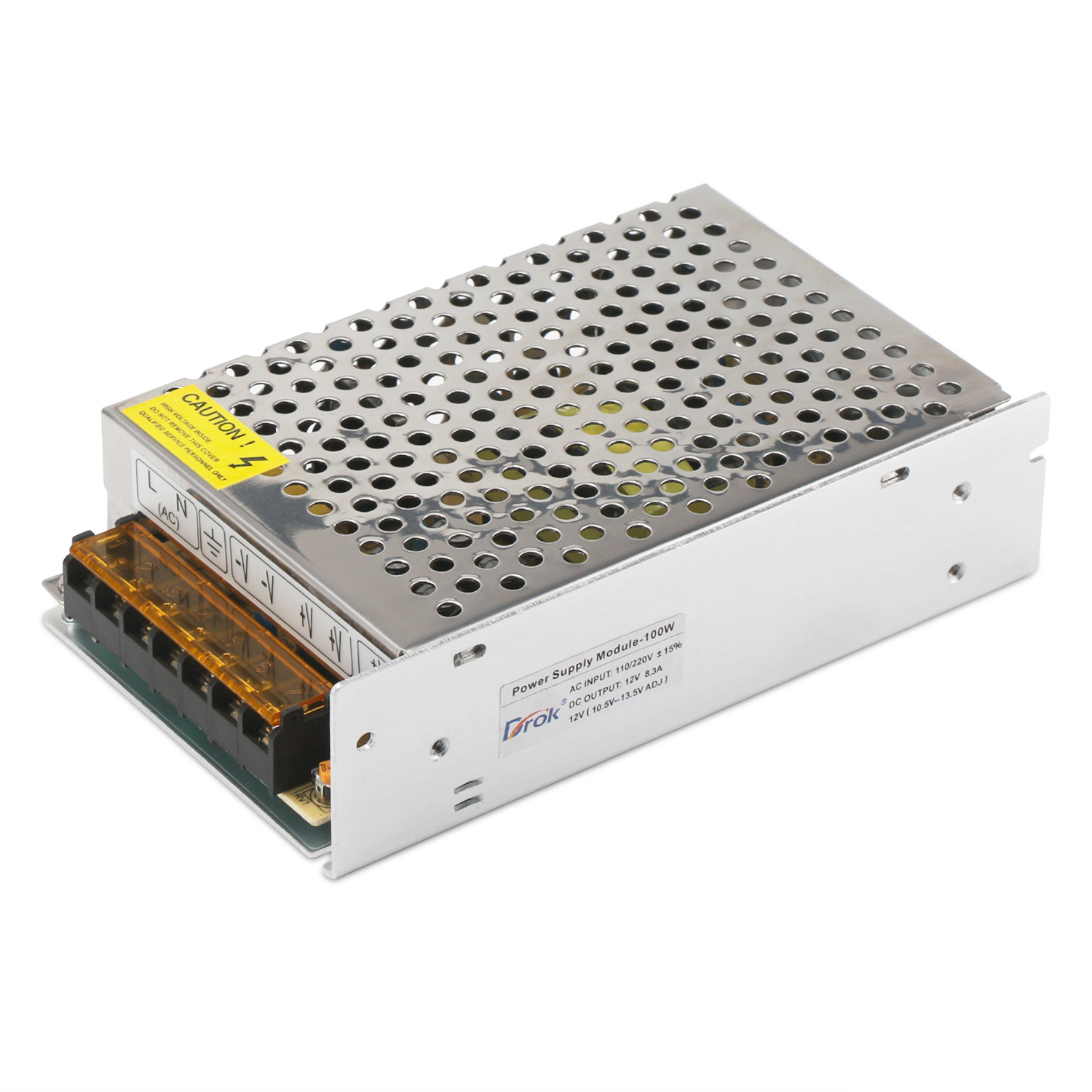

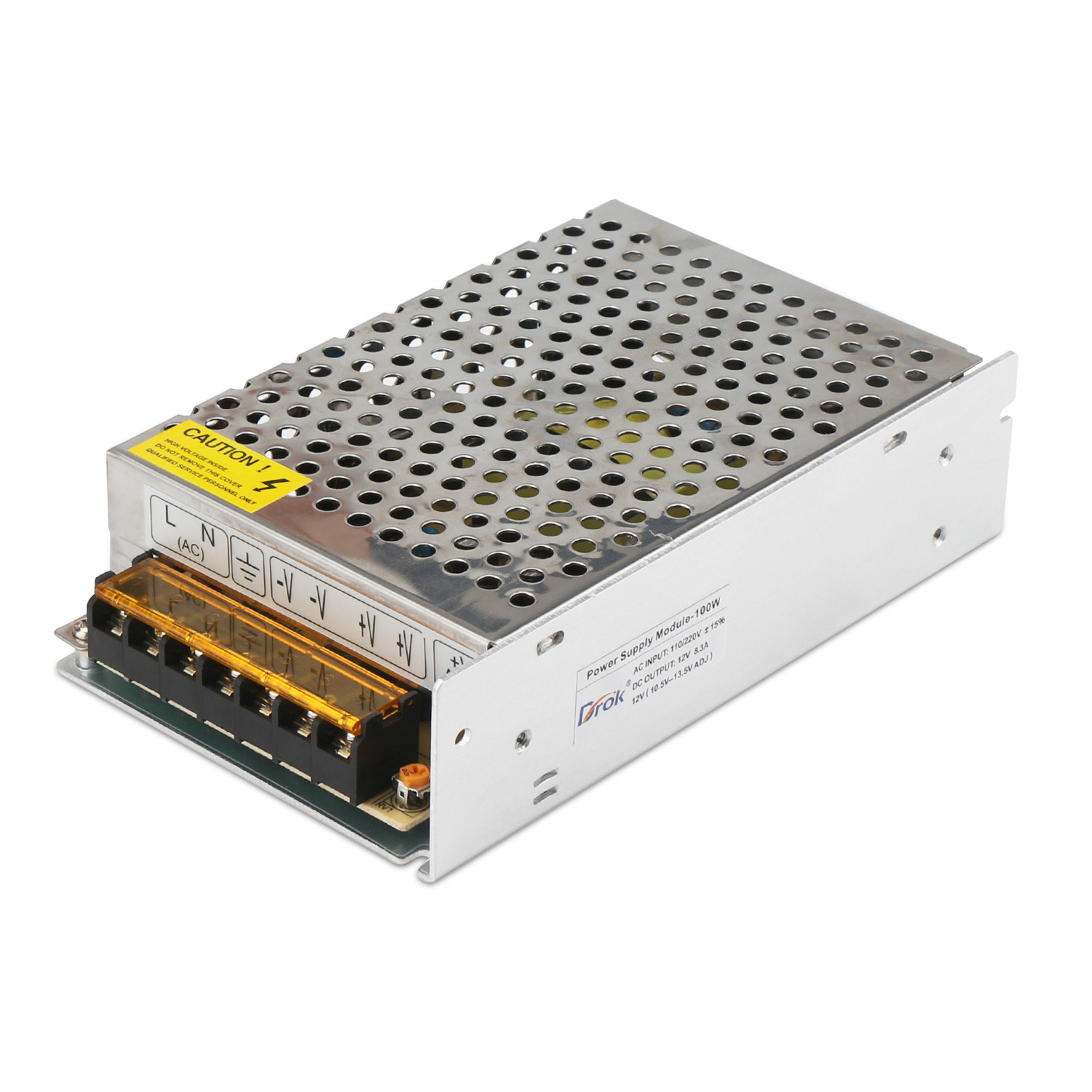

It is a 100W Switching Power Supply/Adapter/Power Converter, Input Voltage: AC110/220V ±15%, Output Voltage: DC12V, Output Current: 8.5A max, Application: Widely used in light strips, LED billboards, LED display, Luminous characters, monitoring and so on.Parameters:
- Input Voltage: AC110/220V ±15%
- Output Voltage: DC12V
- Output Current: 8.5A max
- Output Power: 100W max
- Outer Case Material: aluminum alloy + stainless steel
- Weight: 355g

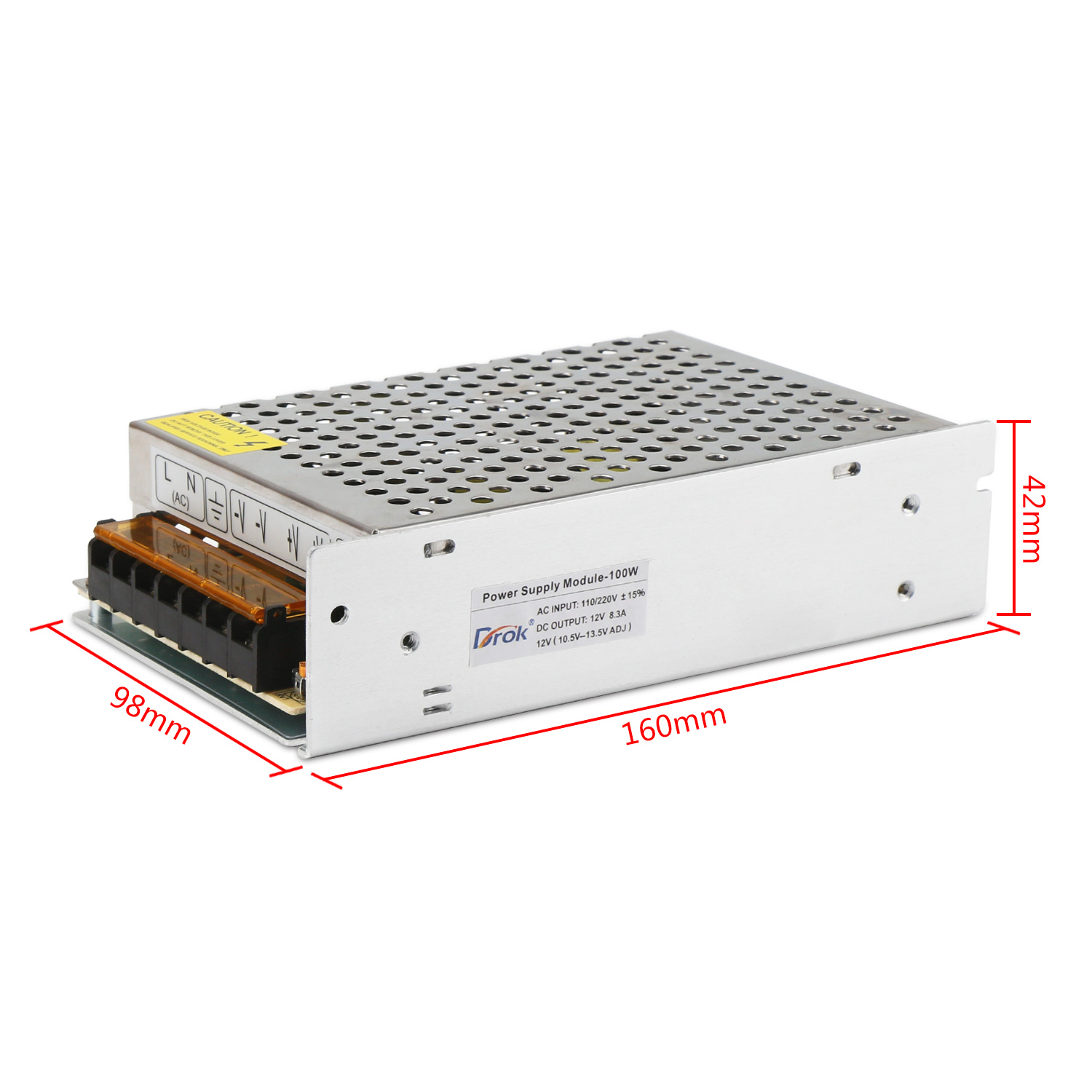

- Dimension: 160 x 98 x 42mm
- Protect Function: over-load protection, over-voltage protection, over-current protection, short-circuit protection
- Wide input range of AC110~220V, default output voltage is DC 12V, 8.3A and can be adjusted from 10.5-13.5V, output power is 100W.

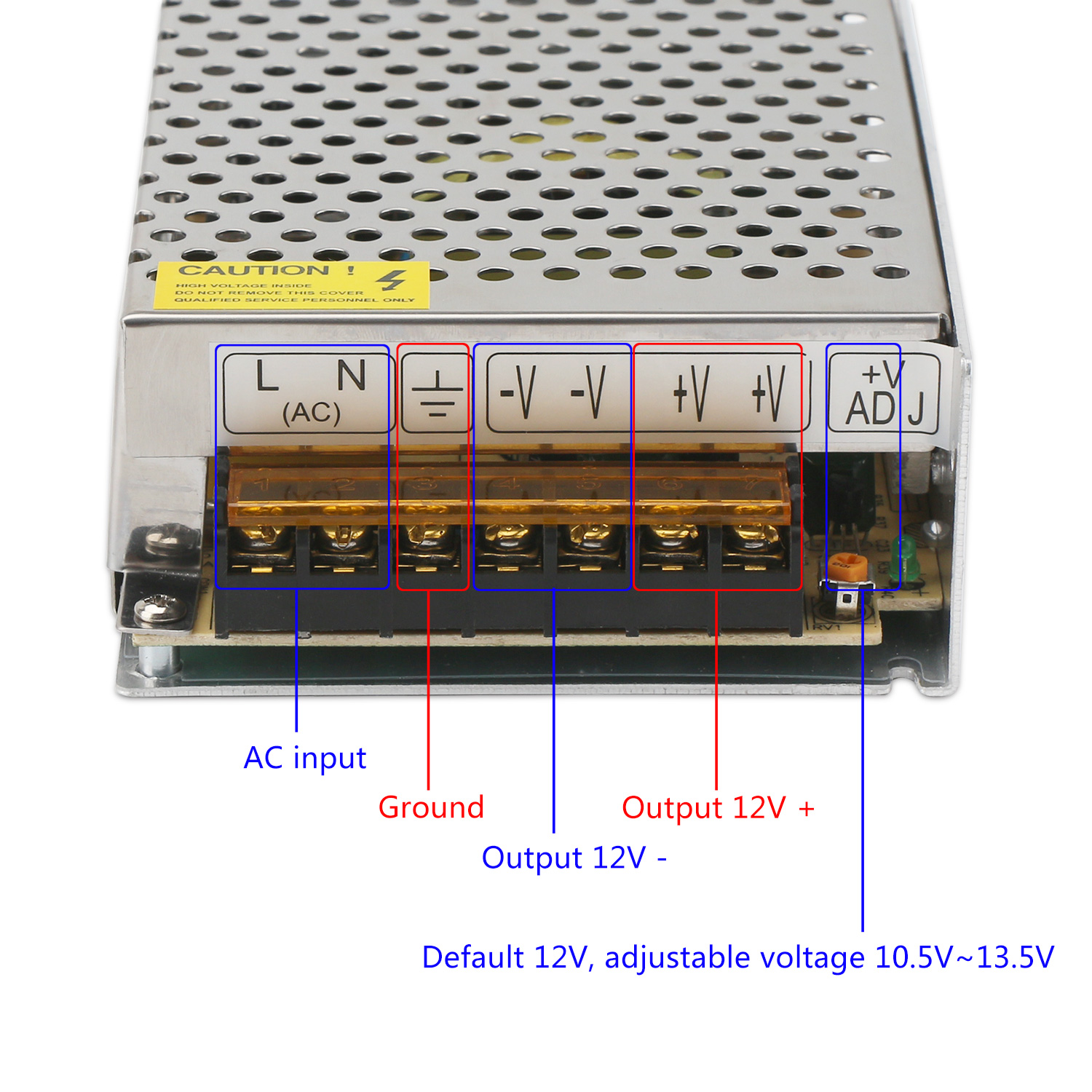

- Compact size and light weight, with wiring terminal blocks, easy to install this power module.

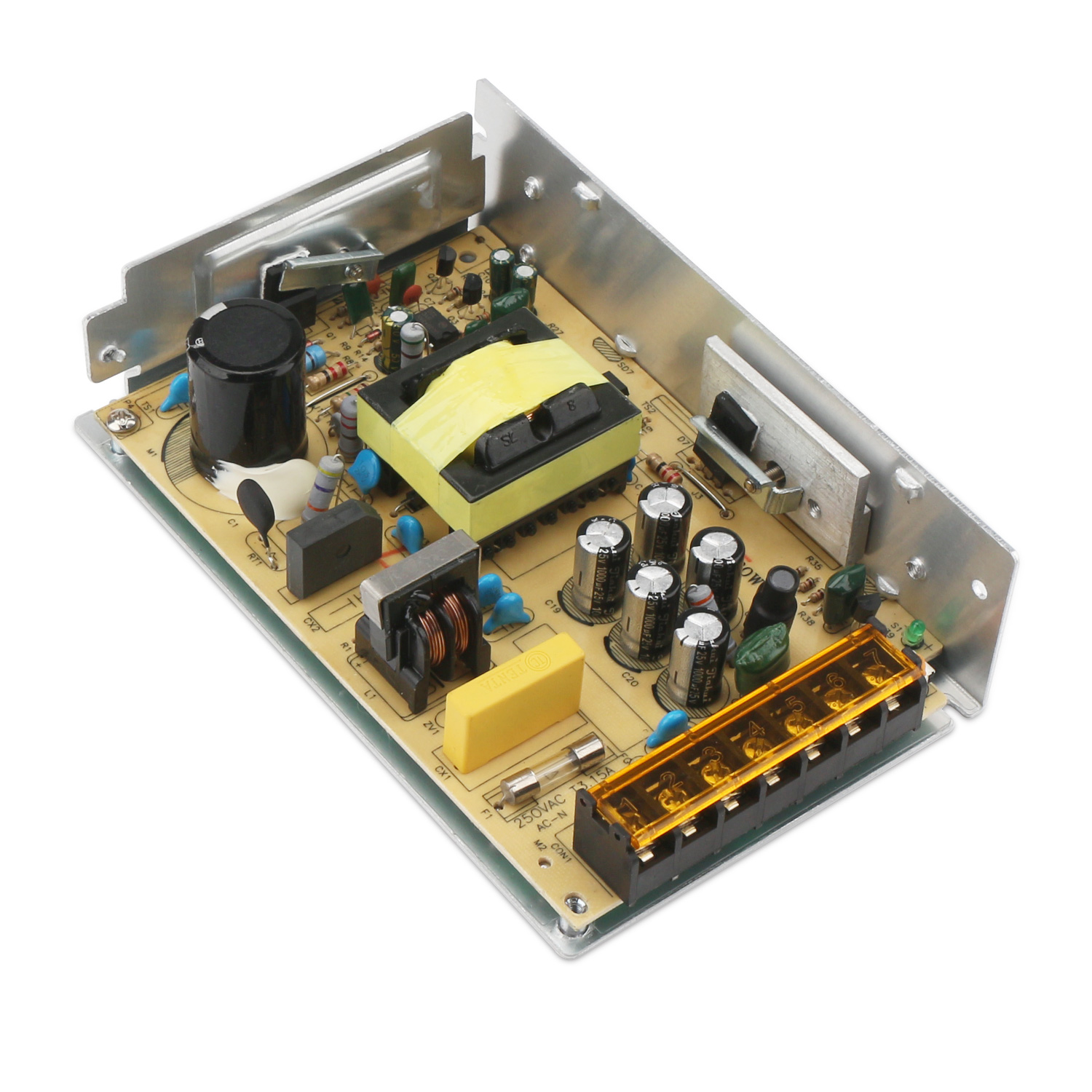

- Equipped with dual power tube, large-capacity capacitors, pure copper transformer and EMI filter, these solid components make it work more stable and efficiently.
- Application: Widely used in light strips, LED billboards, LED display, Luminous characters, monitoring and so on.
- 1 x 100W Power Supply Module ( Switching Power Supply/Power Converter/Voltage Regulator/Adapter )
- Stock: In Stock
- Model: 2001709004
- Weight: 0.60kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 2001709004
