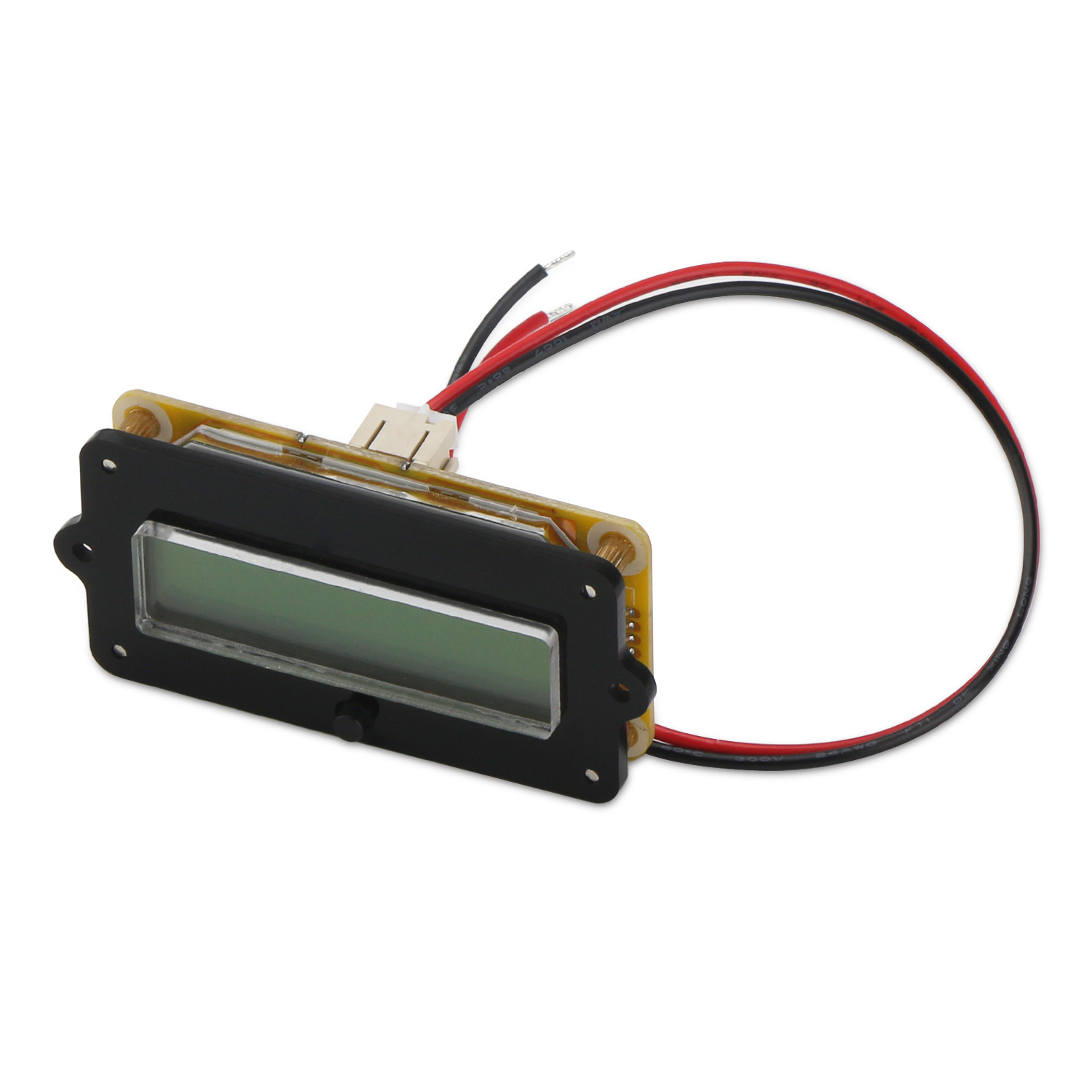

It is a Battery Capacity Indicator Tester, Working voltage: DC 8~63V, working current: 3A normally, 5A max, Applications: widely used on all kinds of measurement meter, mobile and portable equipment, mobile power, medical equipment, electric bike, balance car,wheelbarrow and etc.
Parameter:- Mearuging voltage: DC 12~96V
- working current: 3A normally, 5A max
- Power consumption during working: 8mA normally, 10mA max
- Power consumption during standby: 0.15mA
- Power consumption during dormancy: 15uA
- Voltage acquisition accuracy: +/- 1%
- Capacity acquisition accuracy: +/- 1%
- Current of Backlight on: 5 mA
- Working environmetal temperature: 0°c~40°c

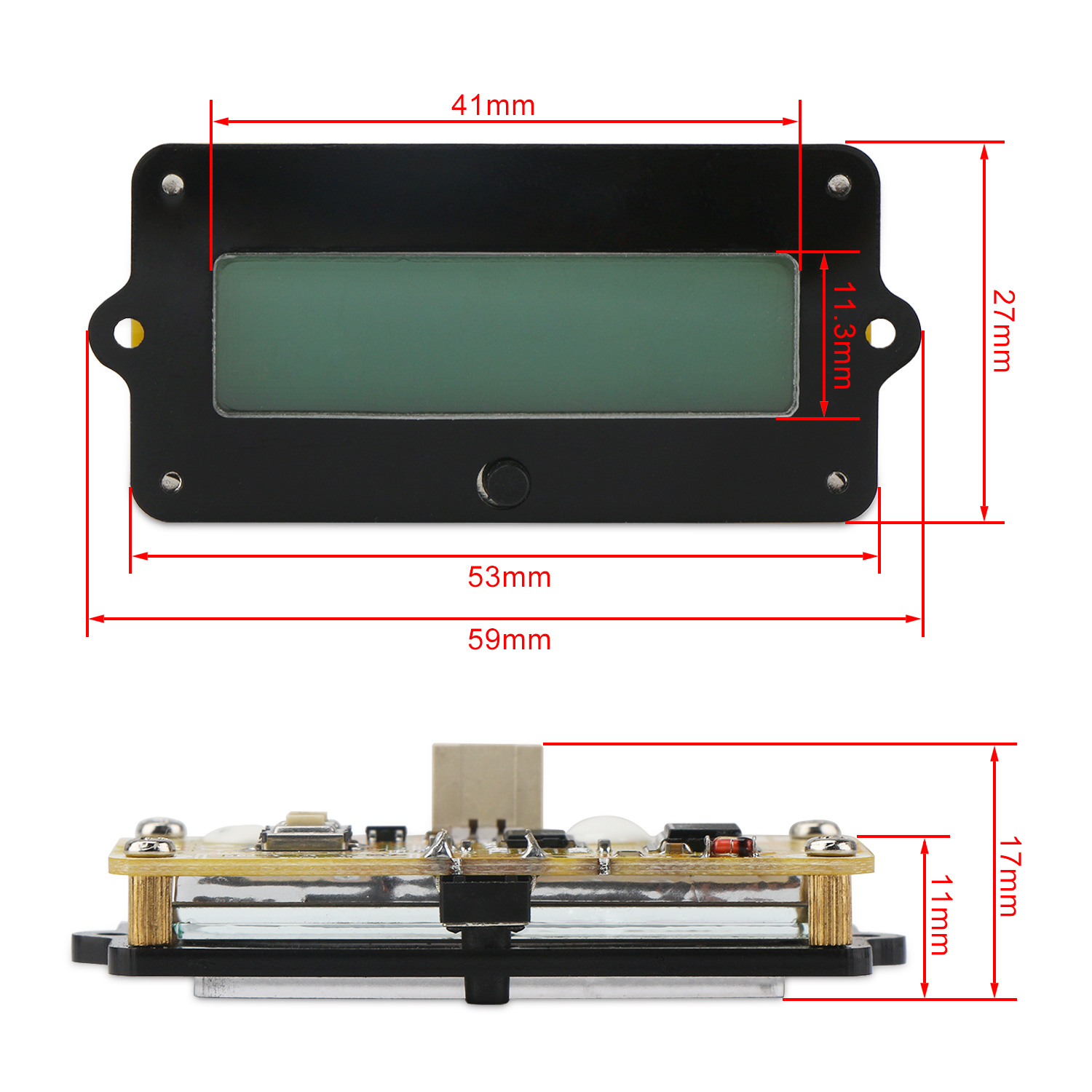

- Dimension: 2.32*1.06*0.66 inches
- Applicable Battery Types:
- Lead-acid battery: 12V 24V 36V 48V
- Li battery: 3~15 batteries

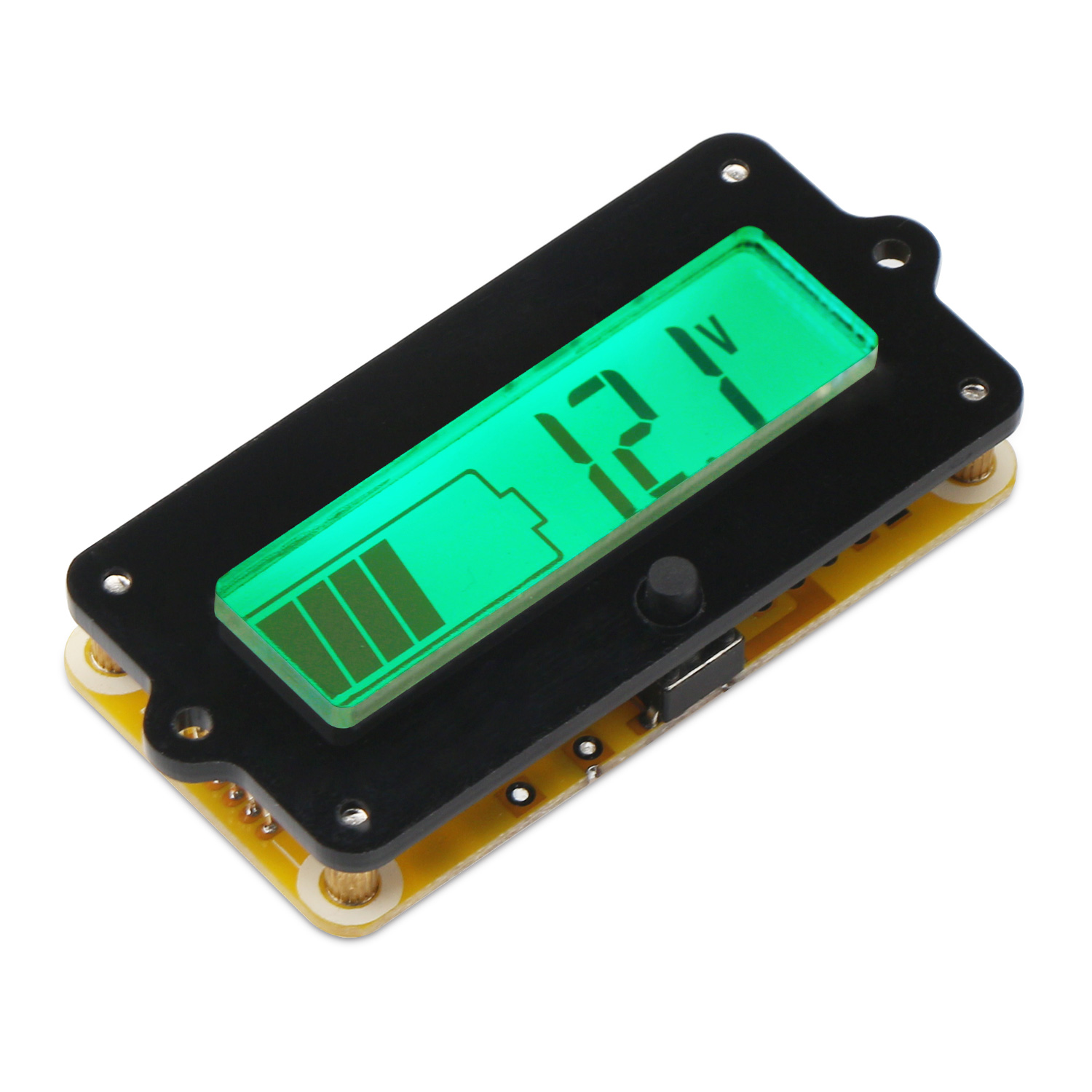

- ONE METER TWO FUNCTION: voltage capacity 2 in 1 meter will test voltage and capacity, just press the button, you can switch voltage reading and capacity quickly.

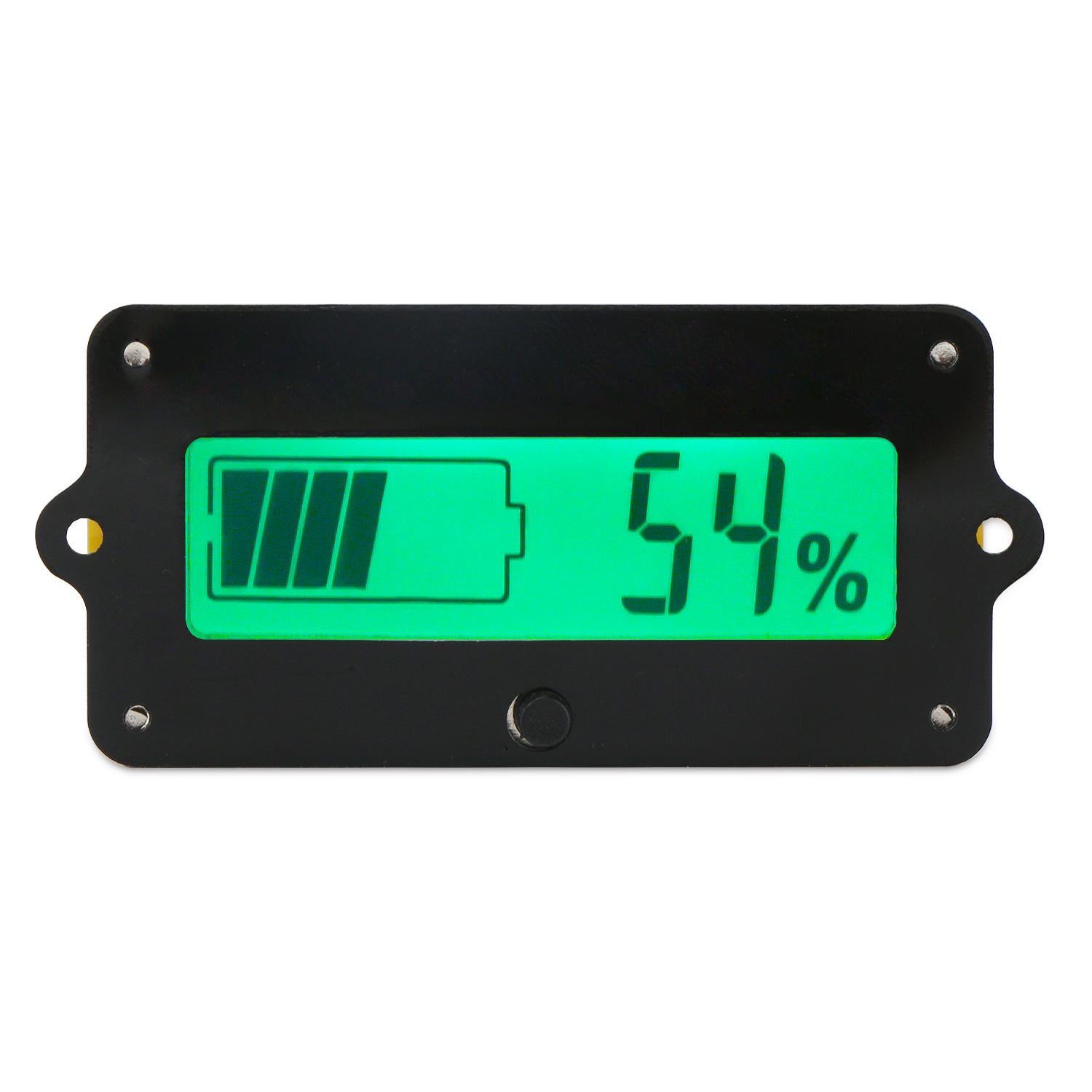

- Super clear LCD display and ultra-wide viewing angle, voltage and capacity reading can be easily seen at any time.
- Designed with dormancy function and standby function, simple and convenient to switch its function.
- Applications: widely used on all kinds of measurement meter, mobile and portable equipment, mobile power, medical equipment, electric bike, balance car,wheelbarrow and etc.
- 1 x Voltage Capacity Tester
Attributes | |
output ways | 1 |
