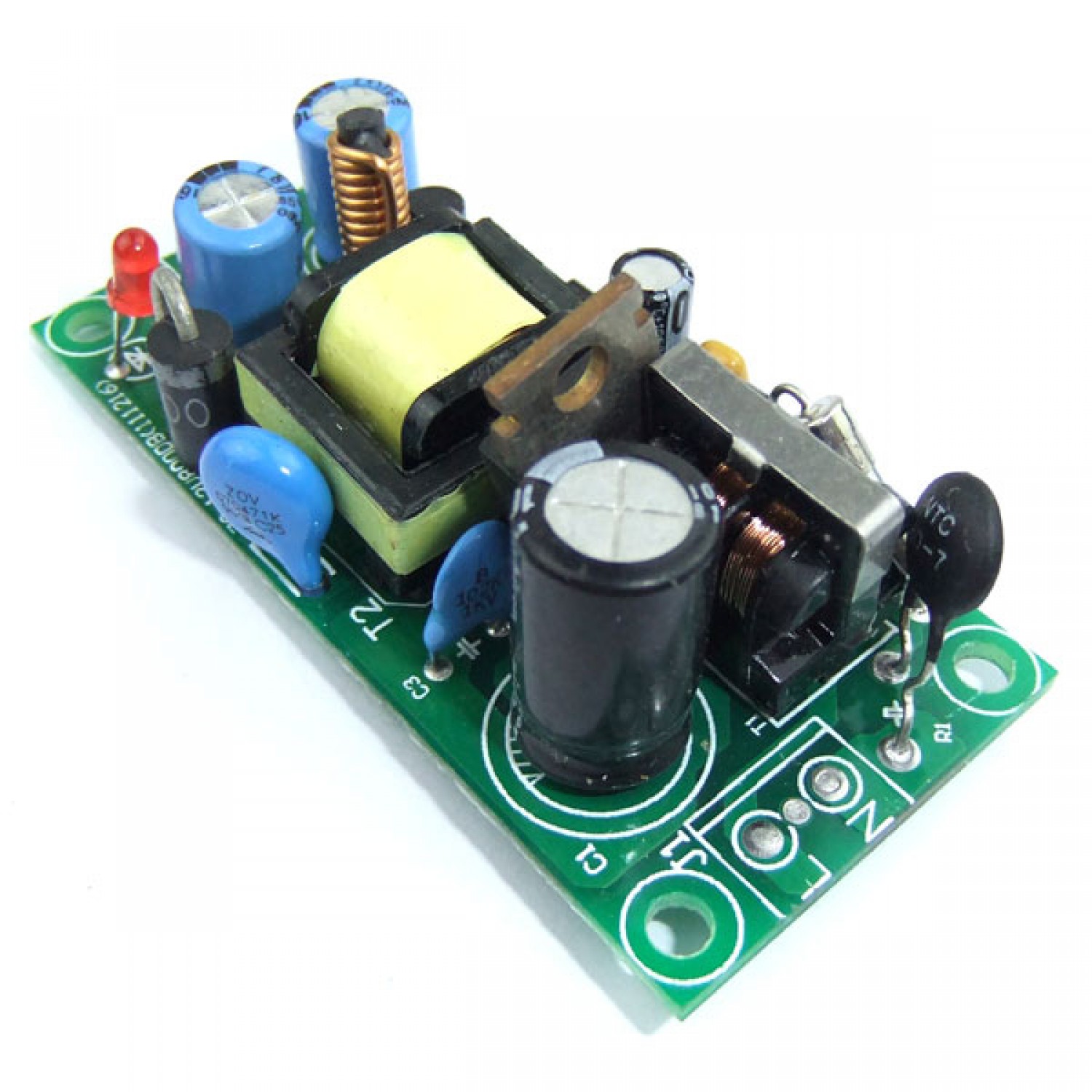

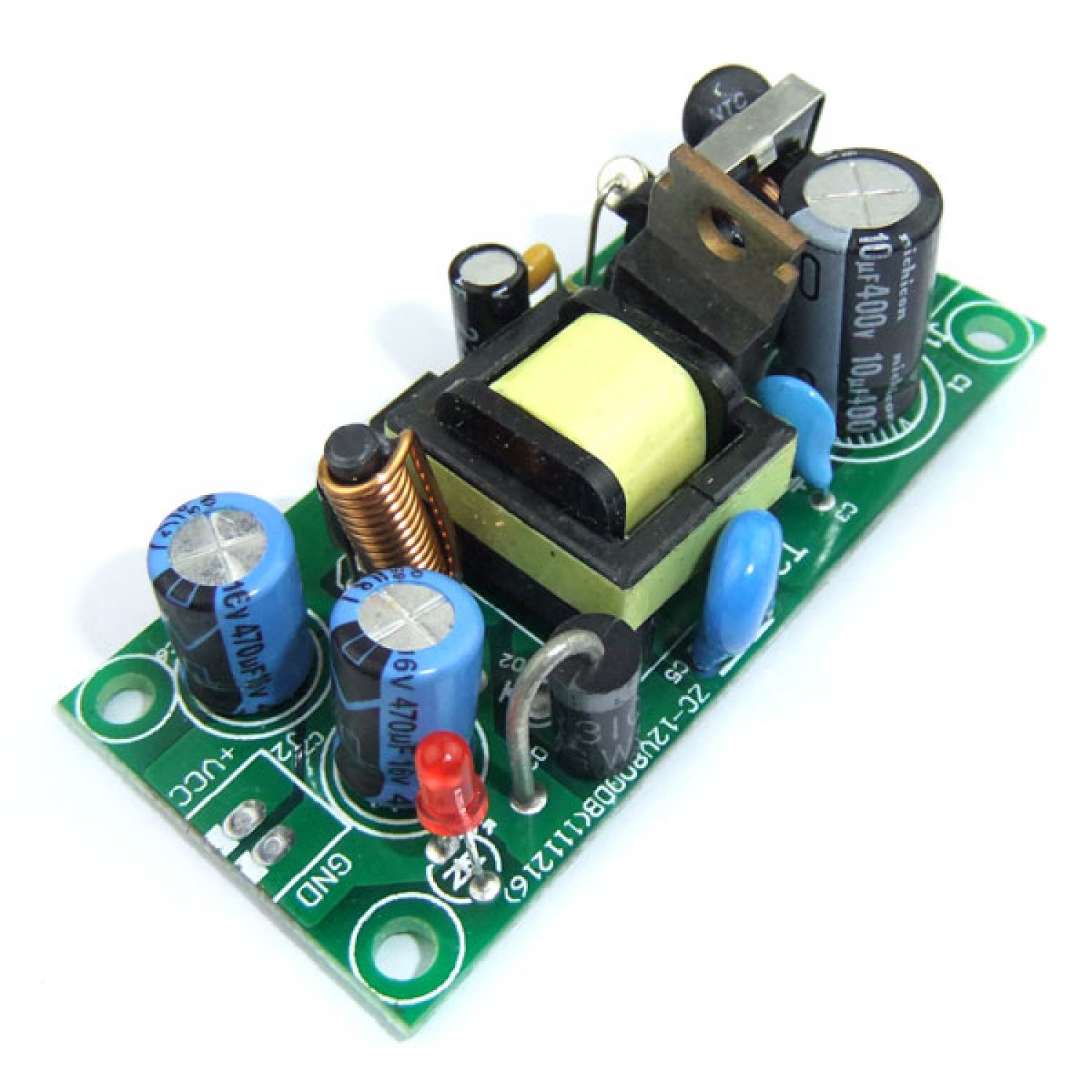

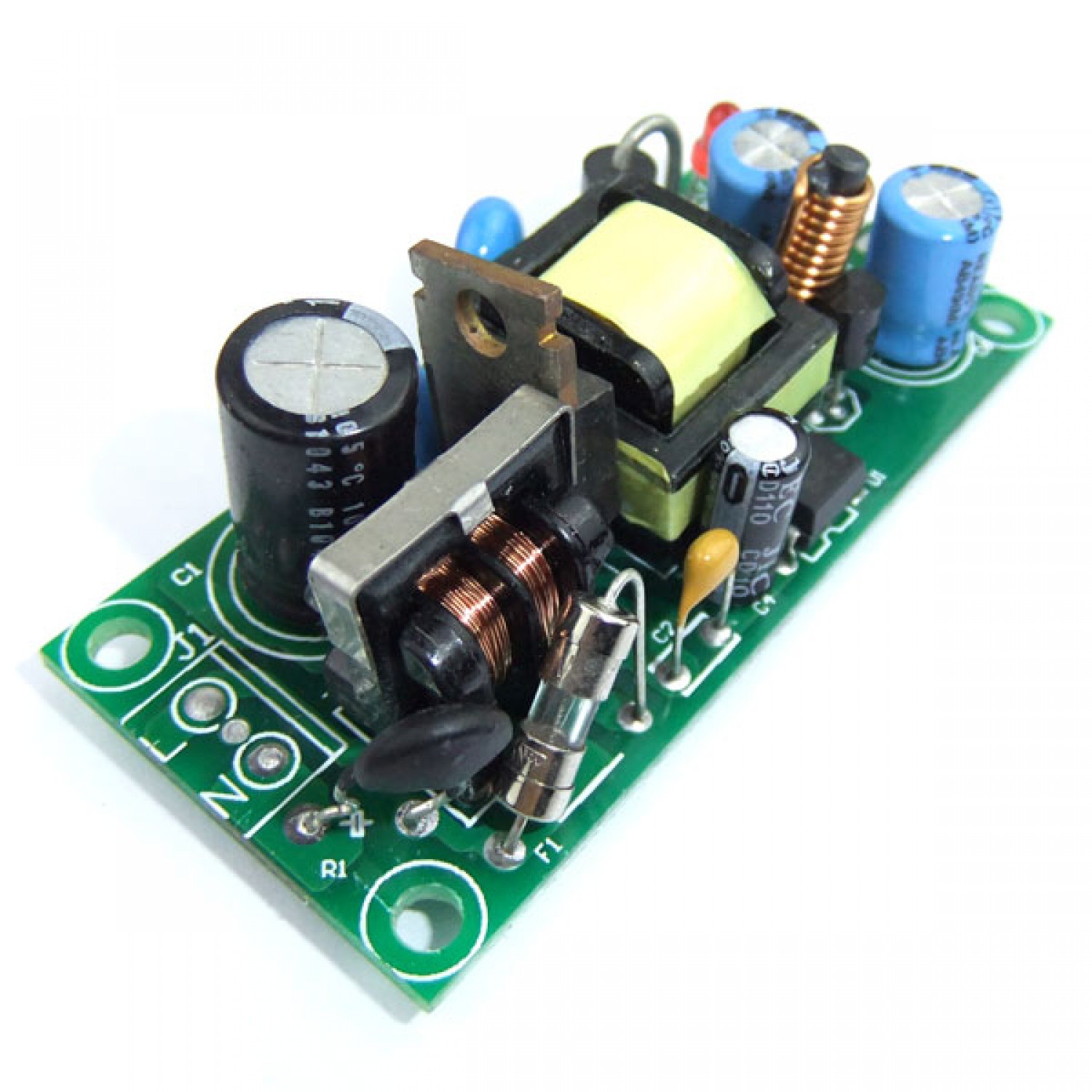

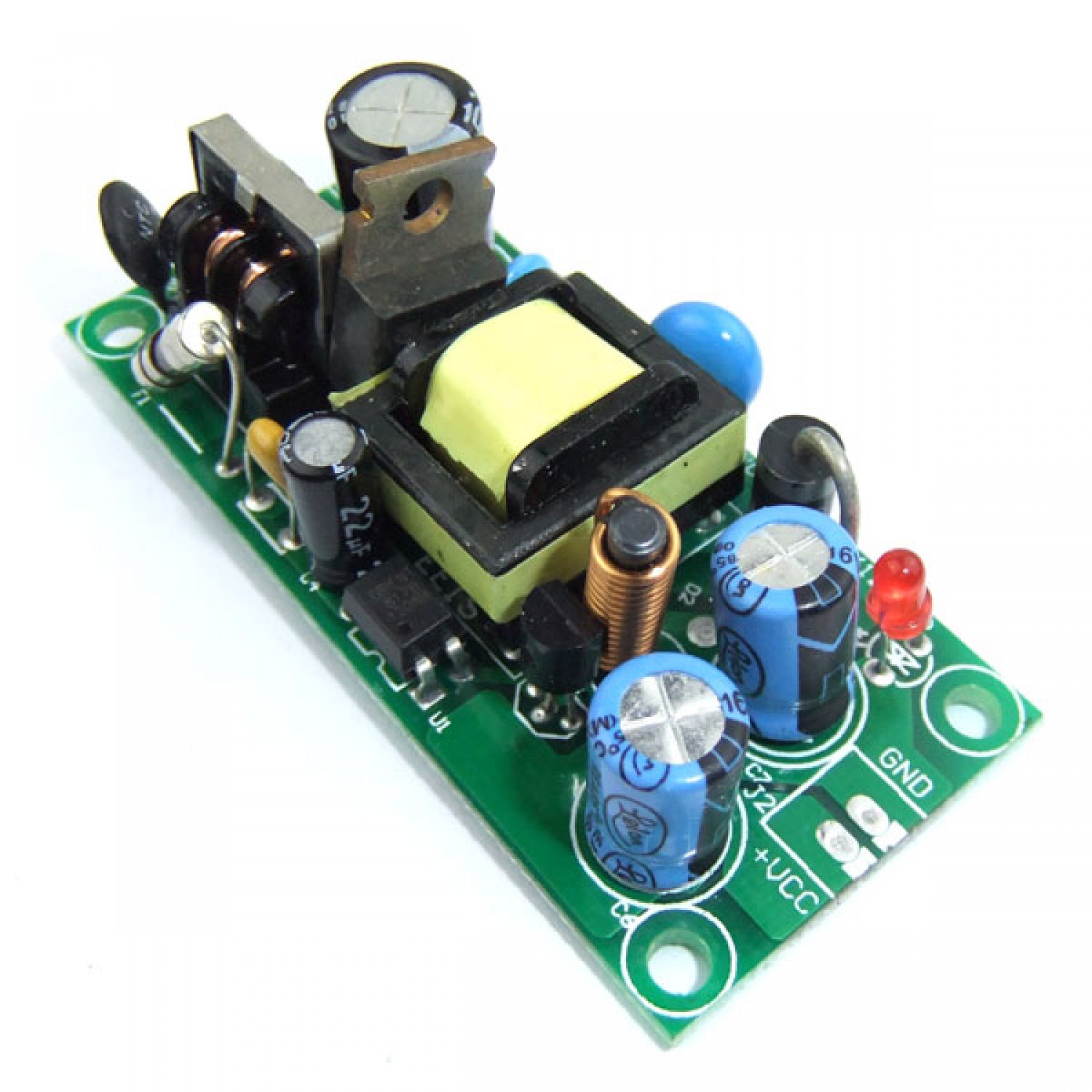

It is a 12W Voltage Regulator/Adapter/Switching Power Supply, Input voltage: 90VAC to 240 VAC 50/60HZ, Output voltage: DC 12V (±0.1V), Output Current: 1A, It has Shortage Protection,Temperature protection,Overcurrent protection. Applied to the power adapter,industrial equipment,microcontroller,LED lighting power supply,and etc.

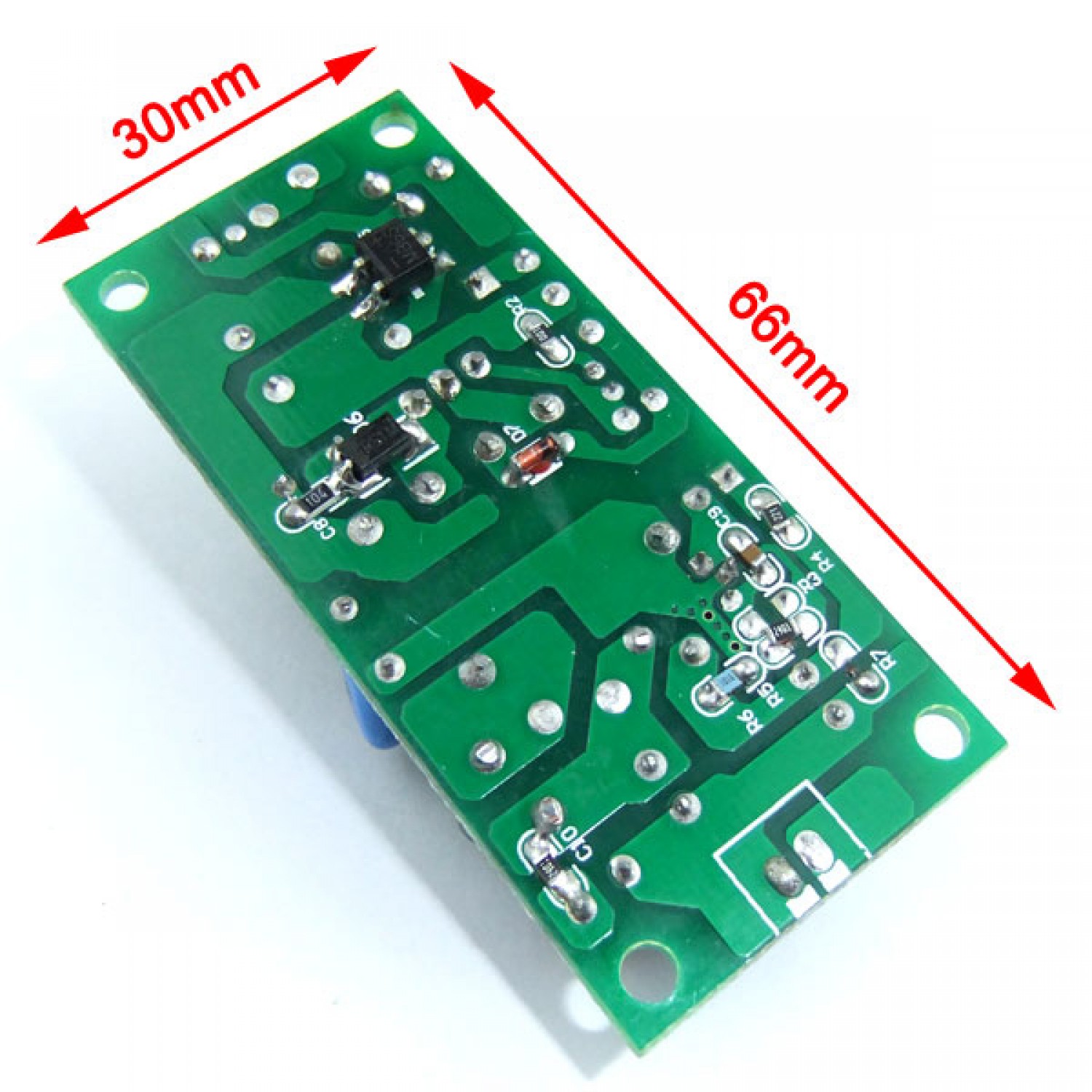

Features:- Mounting dimensions: 66mm x 30mm
- Input voltage: 90VAC to 240 VAC 50/60HZ
- Output voltage: DC 12V (±0.1V)
- Output Current: 1A
- Output power: 12W
- Output ripple: 150mv
- Operating temperature: -20°c ~ 60 °c
- Relative humidity: 40 to 90% RH

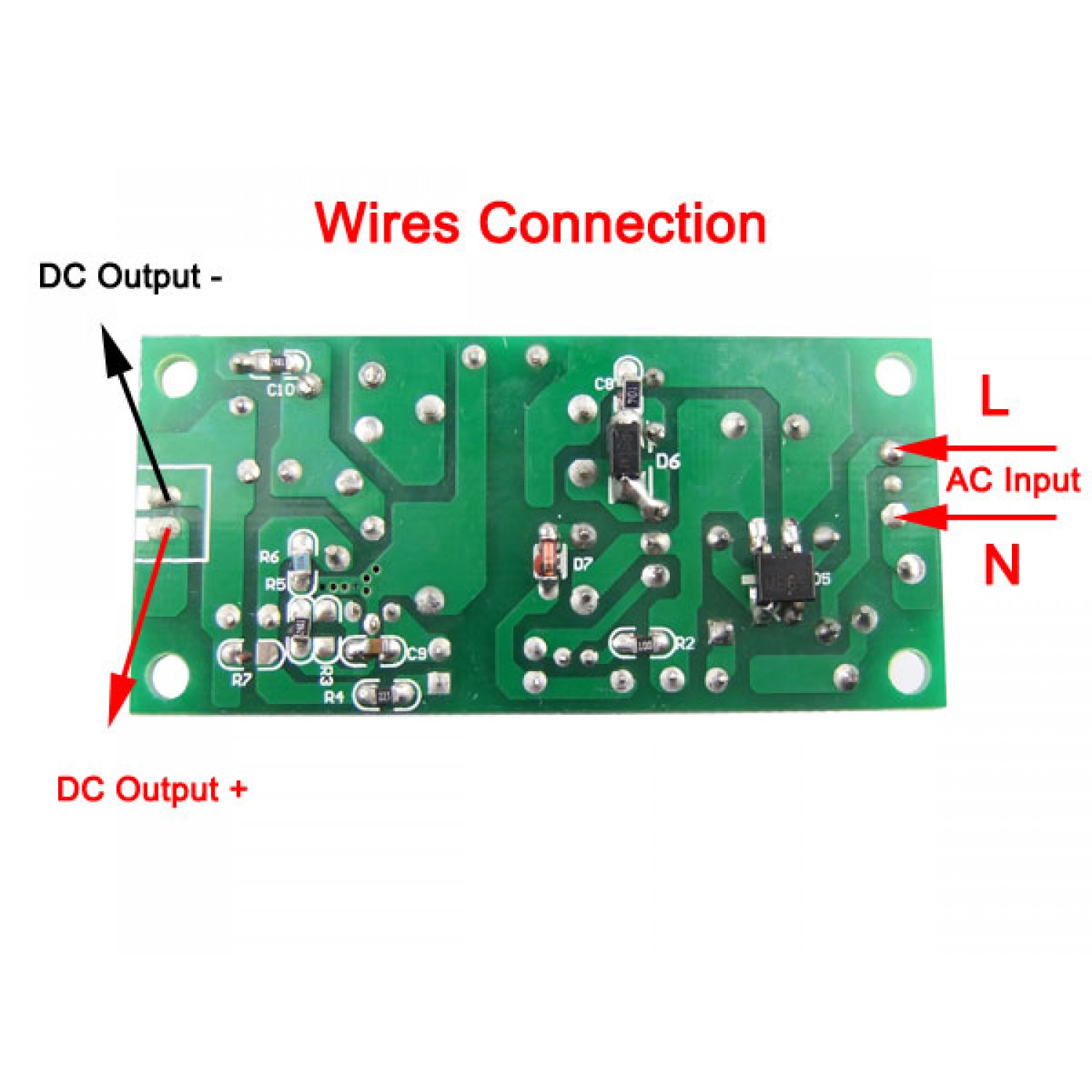

- 90V~240VAC Input, 12VDC Output ,with EMI filter
- Applied to Power adapter, industrial equipment, power microcontroller and LED lights
- Output power protection: lock, restart recovery
- Shortage Protection: lock, restart recovery
- Temperature protection: lock, restart recovery
- Overcurrent protection: lock, restart recovery
- 1 x Switching Power Supply ( Power Supply Module/Voltage Regulator/Adapter )
| Attributes | |
| input voltage | 90~240V |
| output current | 1A |
| output power | 12W |
| output voltage | 12V |
| output ways | 1 |
