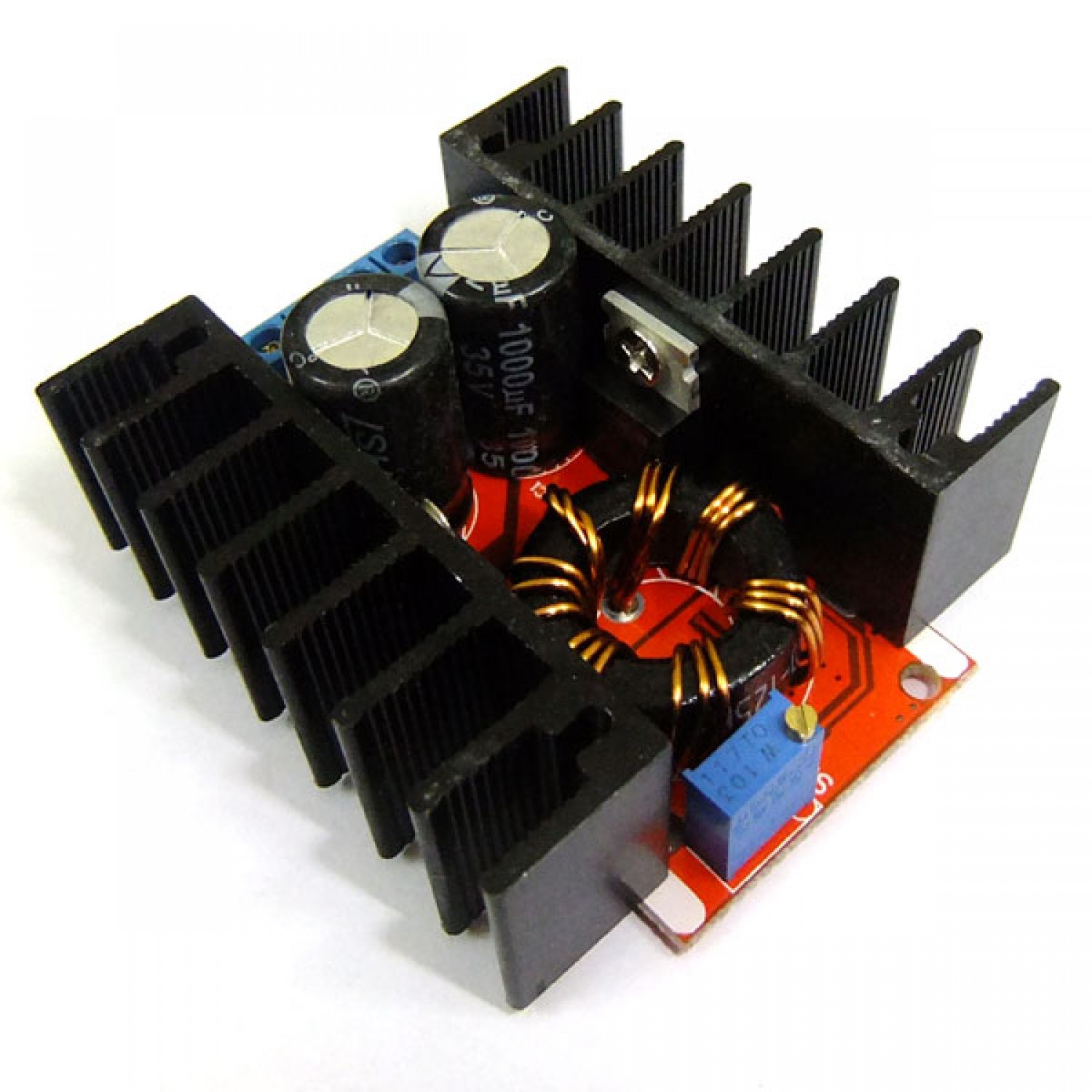

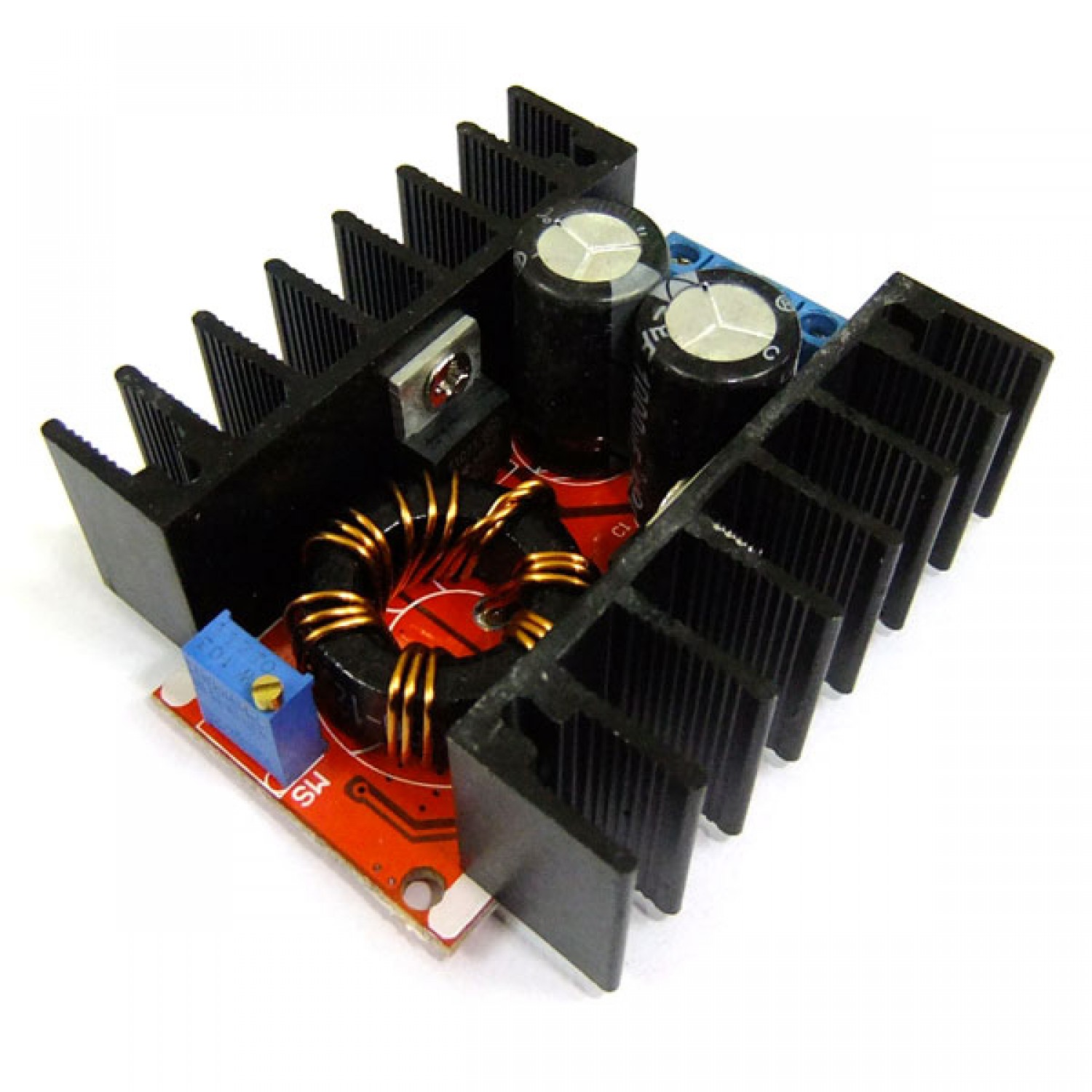

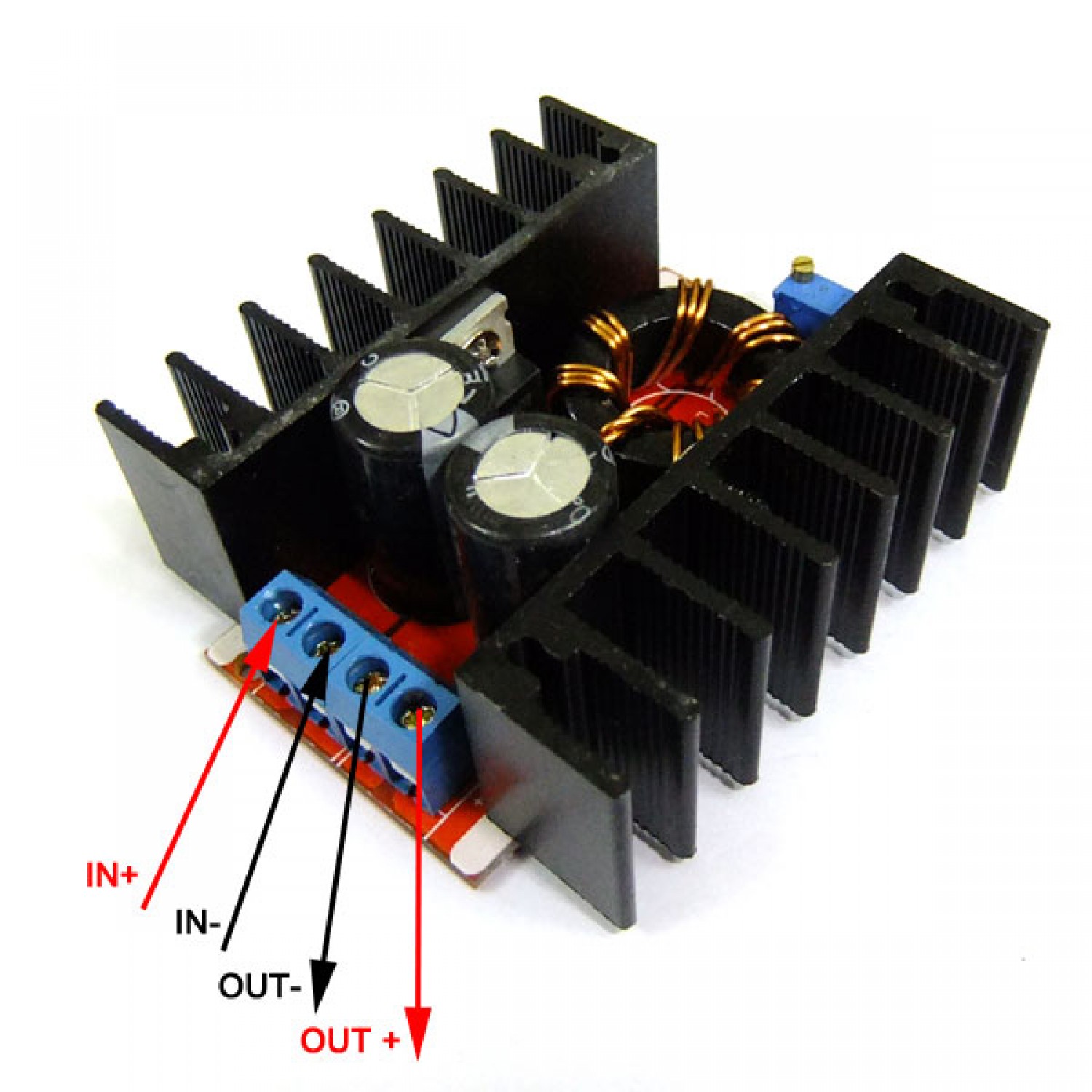

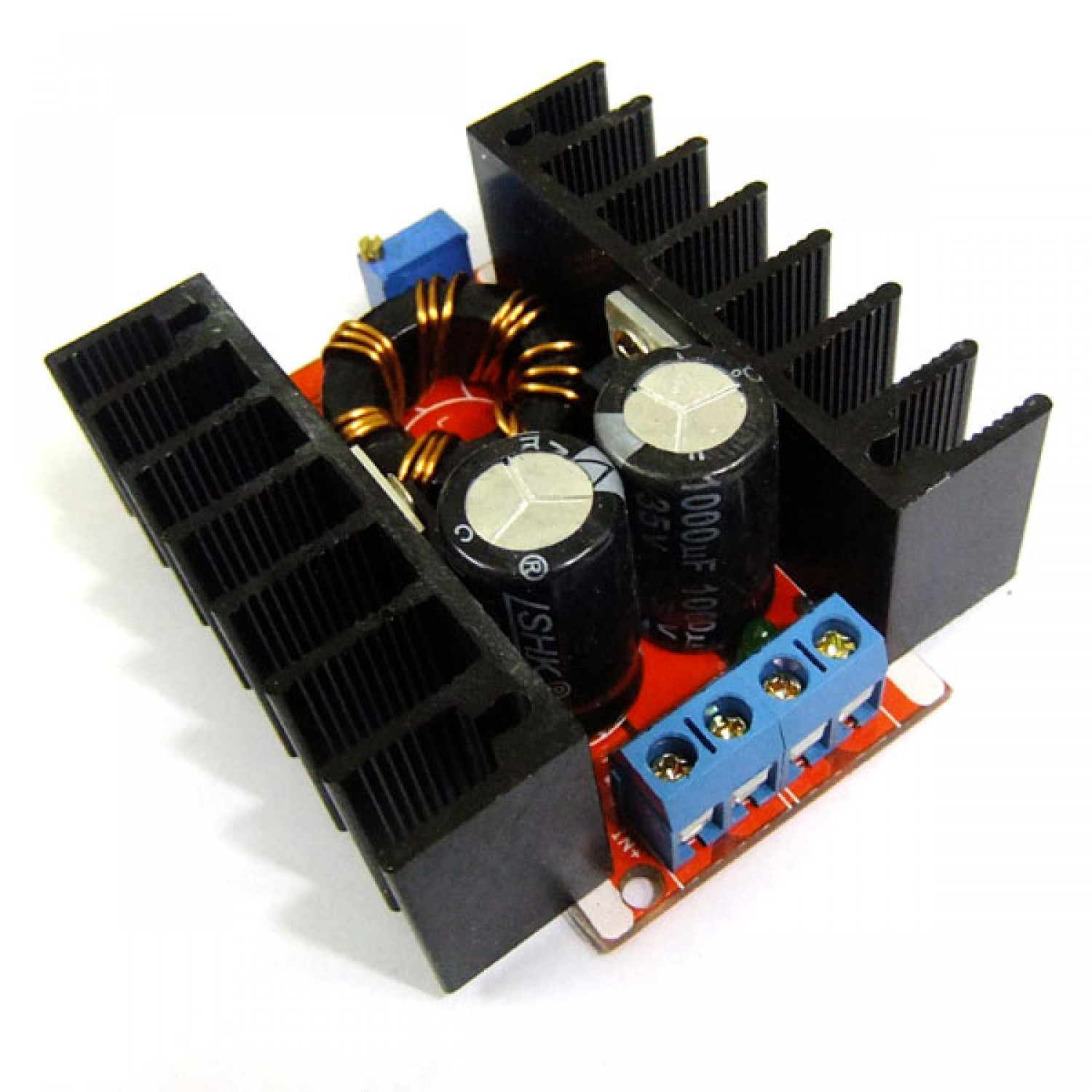

-23% 100W Power Supply Module DC 10~32V to 12~35V 5A  Boost Voltage Regulator DC 12V 24V Car Car Power Supply/Adapter/Driver Module

Ask Question

It is a 100W Adapter/Driver Module/Car Power Supply, Input voltage: DC 10~32V, Output voltage: DC 12~35V (adjustable), Output Current: 5A (MAX), Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, Monitoring System, LED lights, Fan, intercom and monitor system, etc.

Feature:
  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage: DC 10~32V
  • Output voltage: DC 12~35V (adjustable)
  • Output Current: 5A (MAX)
  • Input Current: 10A (MAX)
  • Output power: natural cooling 100W (MAX), enhance heat dissipation 120W (MAX)
  • Easy to drive 65W 90W dual-core notebook.
  • Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
  • Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
  • 1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
  • 2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
Package Includes:
  • 1 x 100W Boost Converter( Power Supply Module/Voltage Regulator/Adapter )

Attributes
input voltage10~32V
output current6A
output power100W
output voltage12~35V
output ways1

Write a review

Please login or register to review

100W Power Supply Module DC 10~32V to 12~35V 5A Boost Voltage Regulator DC 12V 24V Car Car Power Supply/Adapter/Driver Module

  • Brand: Drok
  • Product Code: 090421
  • Availability: In Stock
  • $8.80
  • $6.80
  • Bulk Buy Discounts. Buy more please contact us
    Qty252030+
    Price$6.46$6.12$5.78$5.44
