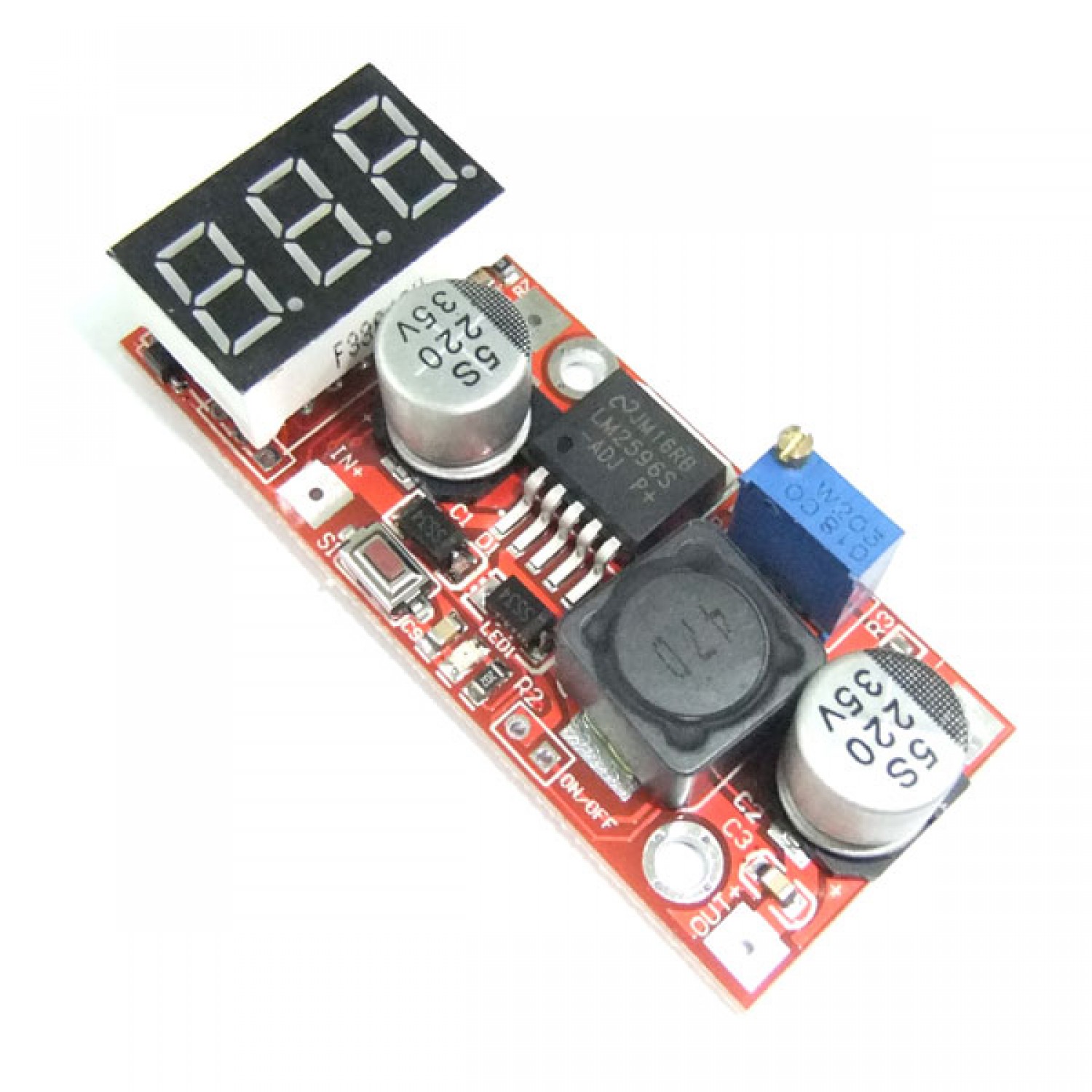

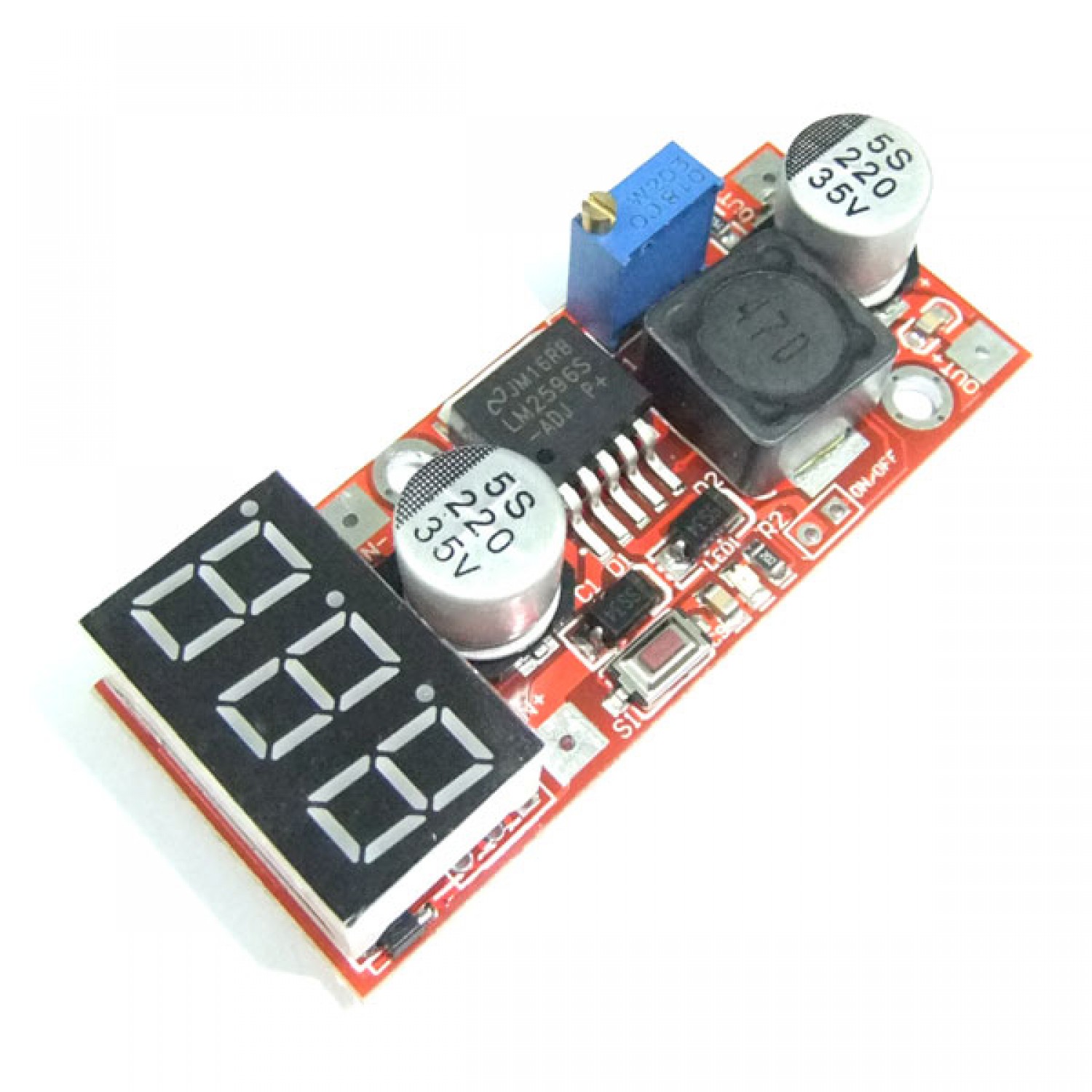

-26% 15W Power Supply Module DC 4.5~27V to 1.3V~25V 1.5A Power Converter/Voltage Regulator DC 5V 12V 24V Adapter/Driver Module

Ask Question

It is a 15W Power Converter/Adapter/Power Supply Module, Input Voltage: DC 4.5~27V, Output Voltage: DC 1.3V~25V (step-down mode, the input voltage must be 2V higher than the output voltage), Output Current: 1.5A. Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc.

Specific:
  • Input Voltage: DC 4.5~27V
  • Output Voltage: DC 1.3V~25V (step-down mode, the input voltage must be 2V higher than the output voltage)
  • Output Current: 1.5A
  • Output power: 15W maximum

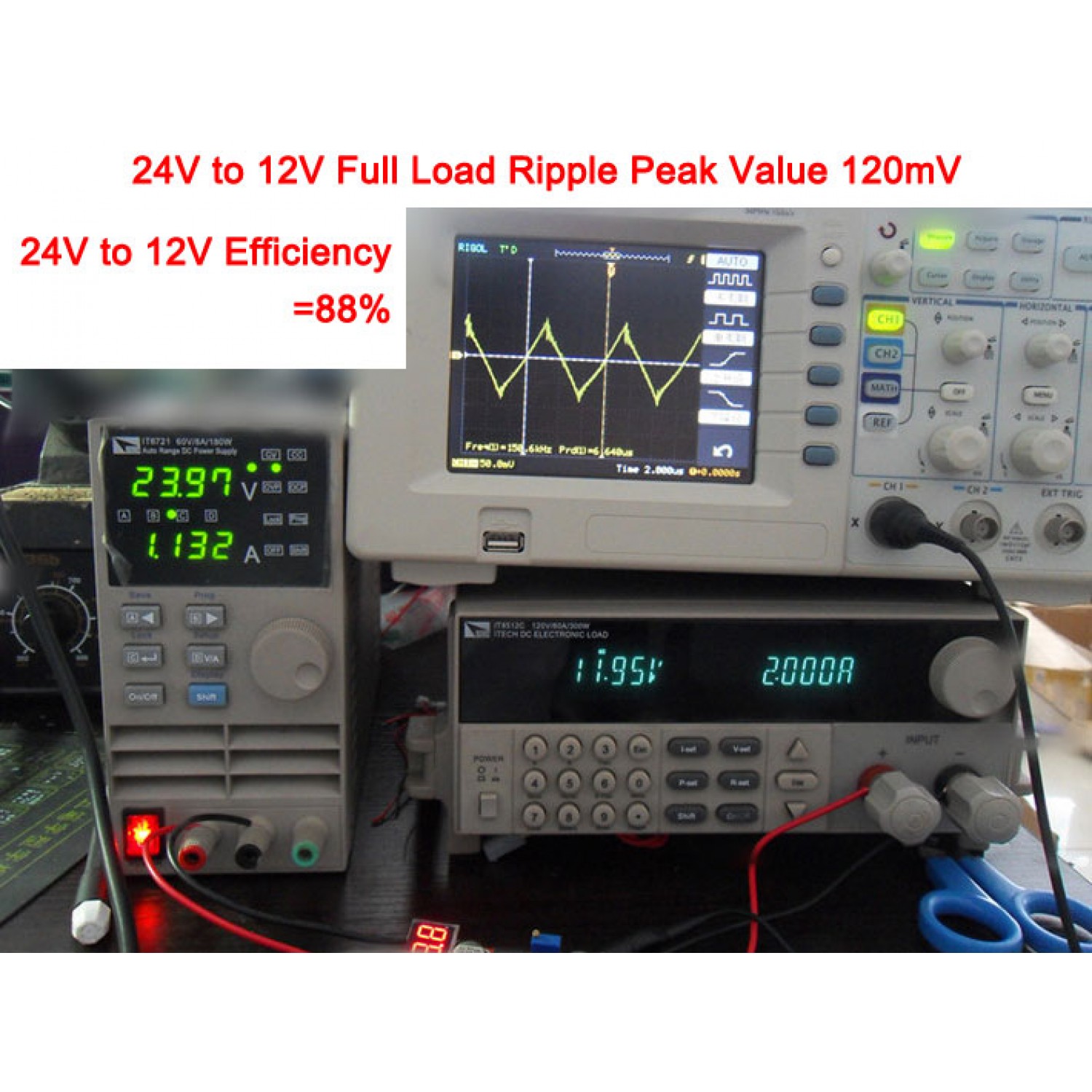

  • Ripple Frequency: About 150Khz
  • Ripple Peak: About 100mV

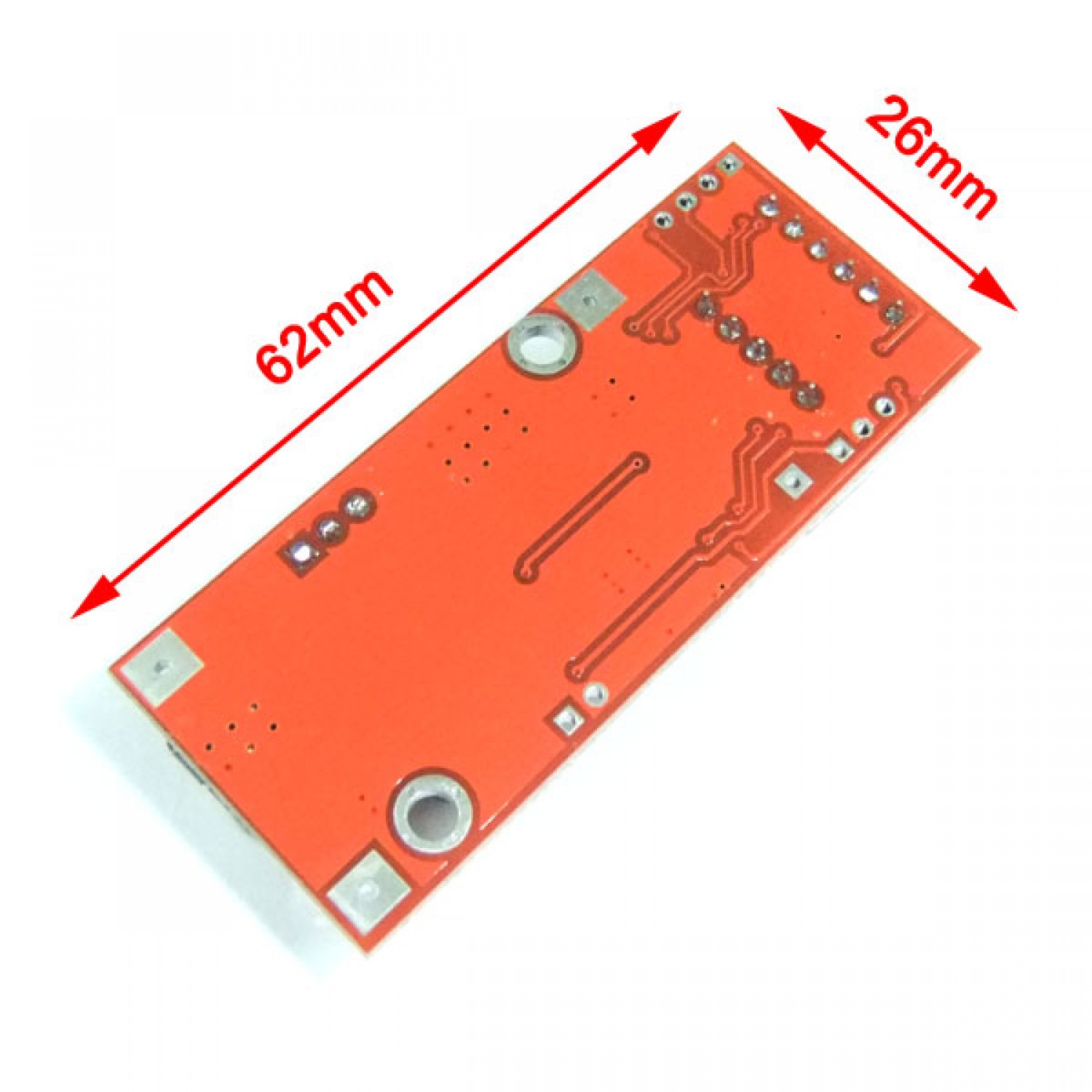

  • Dimensions: 62 x 26 x 14 mm
  • Display Color: Red
  • Voltage Meter Accuracy: ± (5 ‰ +1 digit)
  • Static power consumption: Typical about 20mA
  • IN+: Input Postive
  • IN-: Input Negative
  • Out+: Output Postive
  • Out-: Ouput Negative
Features:
  • Input and output voltages can be displayed alternately.
  • Power state can be freely defined.

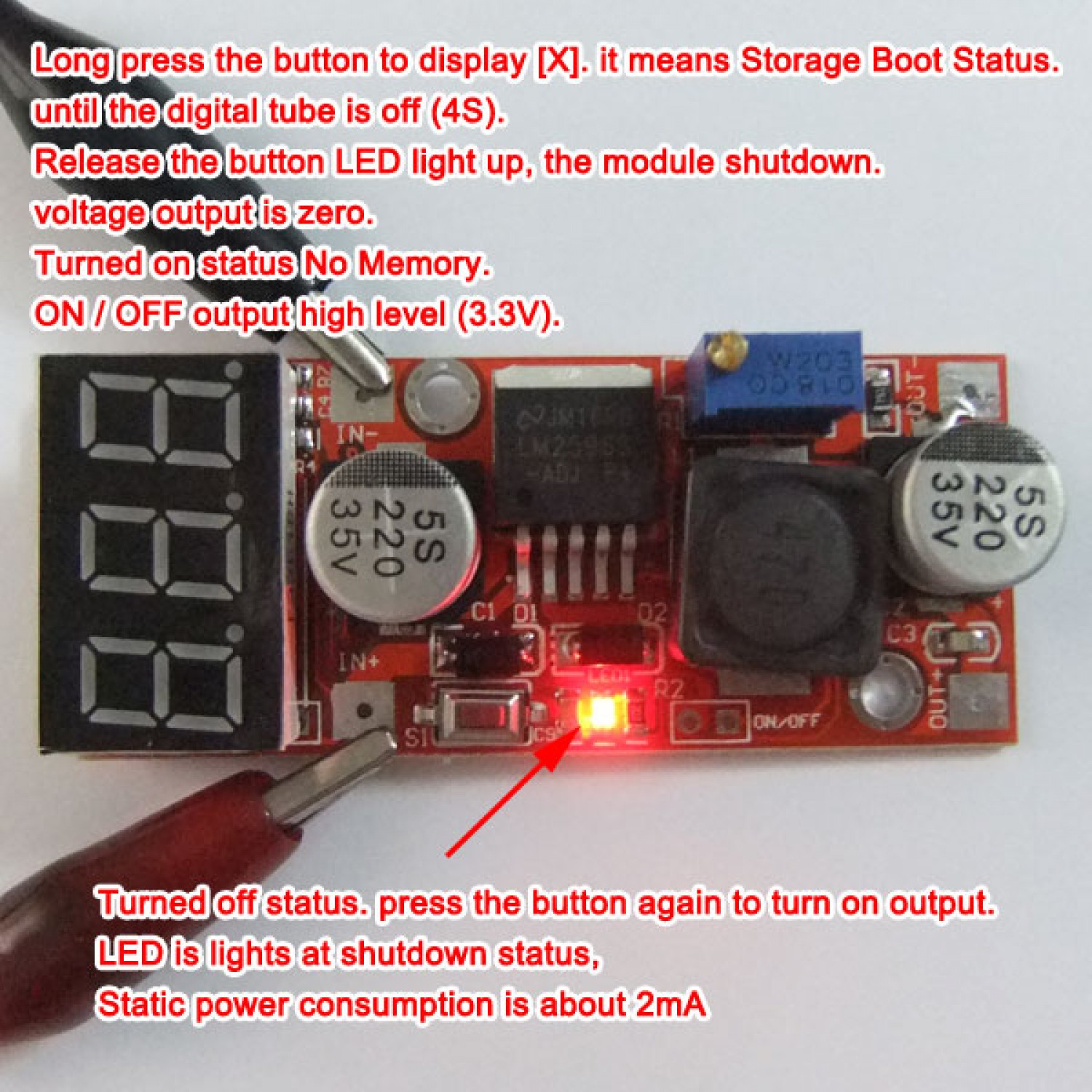

  • With button Off function,
  • Lower Power consumption.
  • ON/0FF output Status, High level means output off, Low level means output on. (Note: High level (3.3V),  the maximum output current 5mA.)

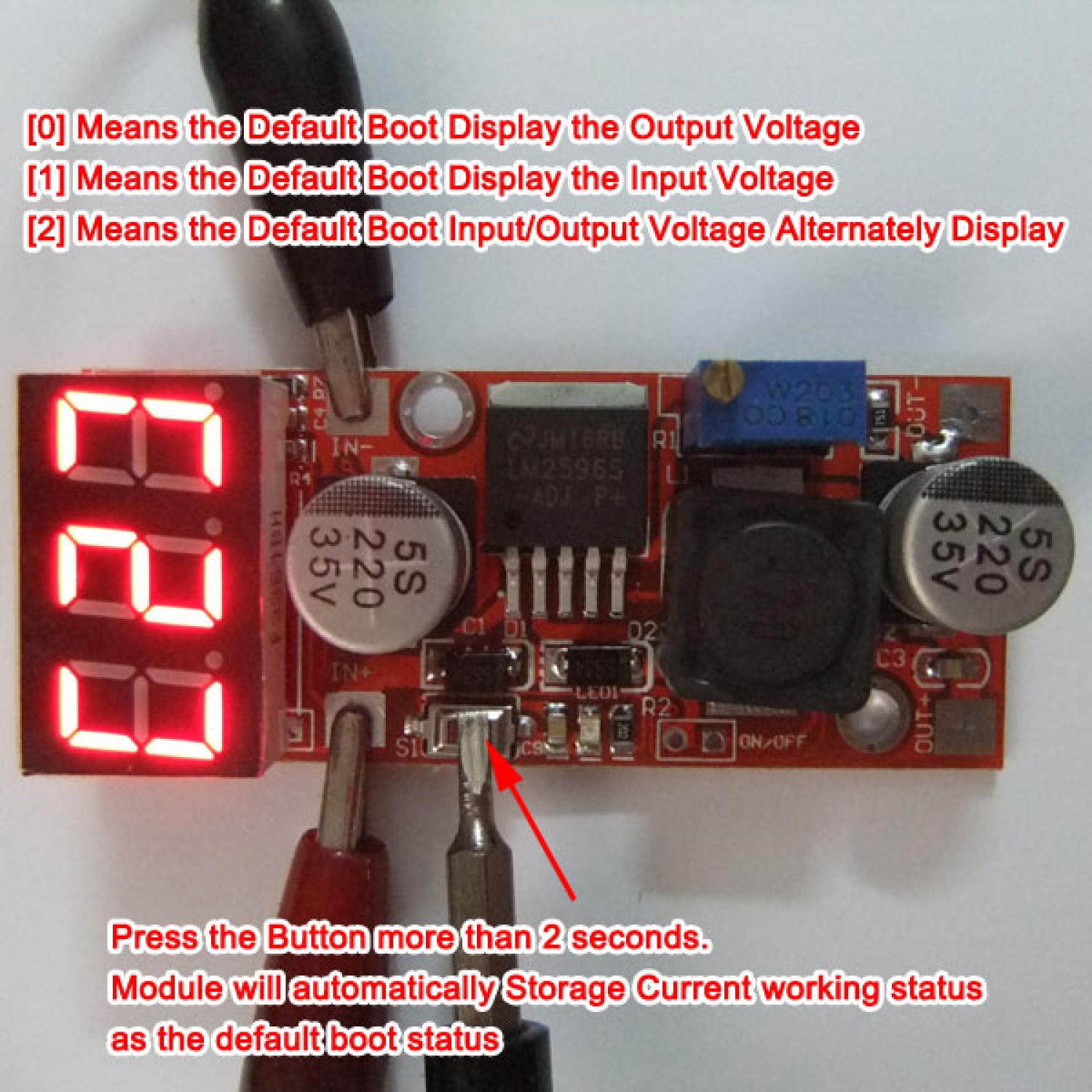

Working Mode:

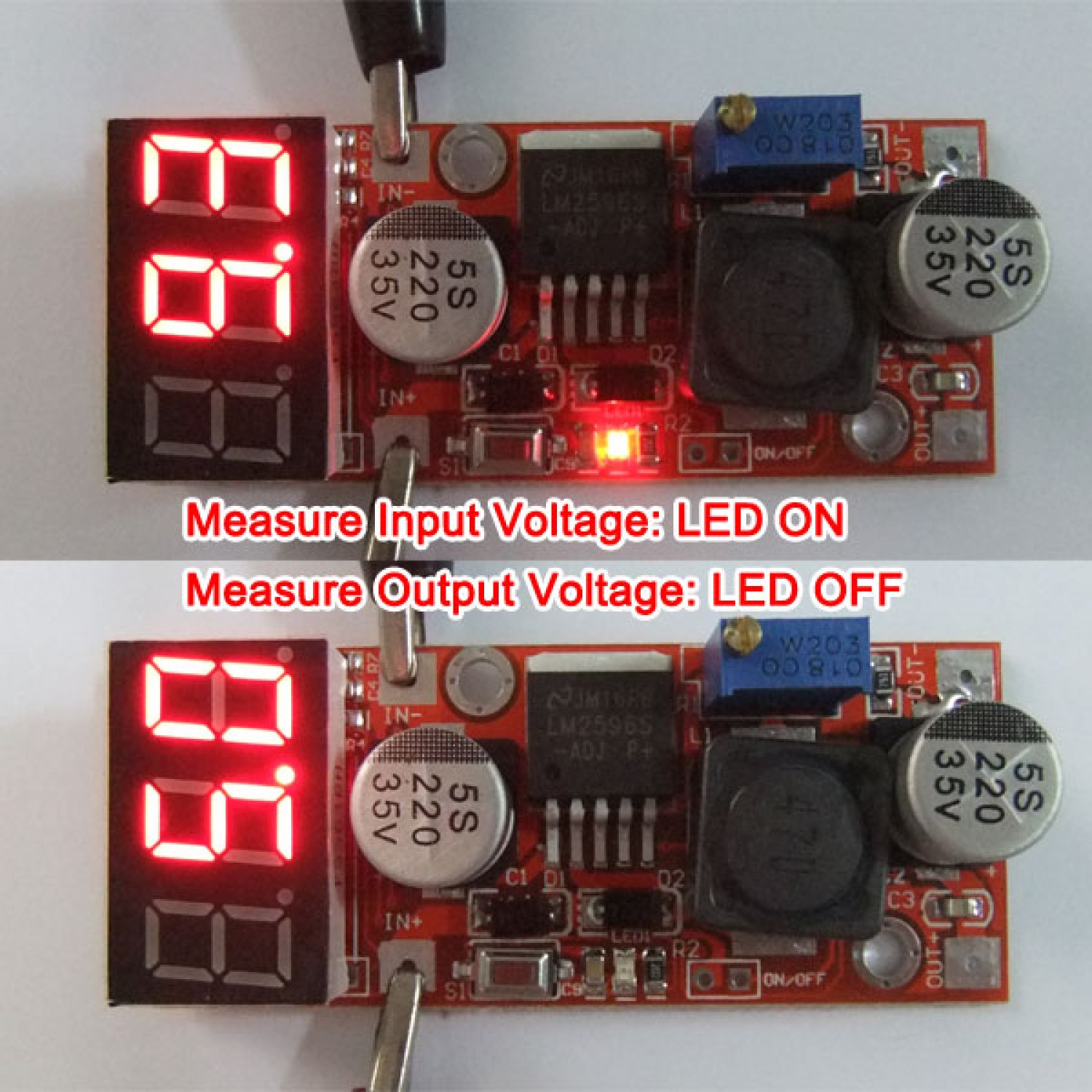

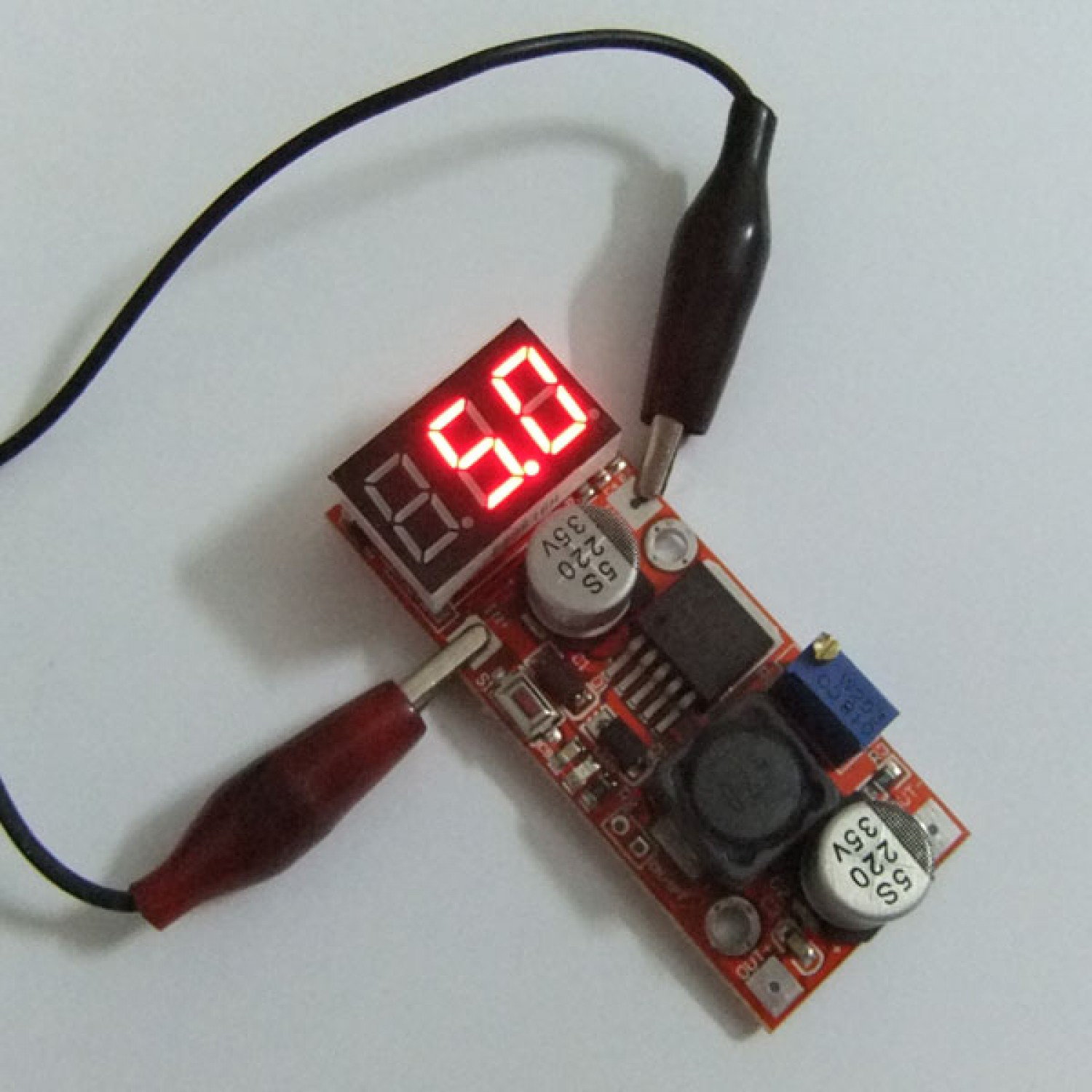

  • Output voltage mode: boot default display xx.x, LED OFF
  • Input voltage mode: press button switch to xx.x, LED ON
  • Alternating mode: press button again input/output voltage Alternately display (3S), press button again switch to output voltage display.
  • (Please check the picture to see more detail.)
Package Include:
  • 1 x DC Buck Converter( Power Supply Module/Voltage Regulator/Adapter )
Attributes
input voltage4.5~27V
output current1.5A
output power15W
output voltage1.3~25V
output ways1
