-60% 2in1 Digital Meter DC 4.5~100V/50A Led Dual Display Voltage/Current Meter DC 12V 24V Voltmeter Ammeter + 50A Shunt

Ask Question

It is a 2in1 Digital Meter/Voltmeter Ammeter, Voltage Measuring Range: DC 4.5~100V, Current Measuring Range: 0.0~50.0A, It has small size, high efficiency, long term stable and reliable quality,easy installation and use. Suitable for monitoring storage battery, DC adjustable power supply, or voltage and current changing state of other device.

Parameters:
  • Voltage Measuring Range: DC 4.5~100V
  • Voltage Resolution: 0.01V under 10V; 0.1V between 10V and 100V
  • Current Measuring Range: 0.0~50.0A (If the current is higher than 20A,  a shunt is required to use, or the meter will burn; do no worry, the 50A shunt is offered in the package)
  • Current Resolution: 0.1A
  • Display: 0.39" LED
  • Measuring Velocity: ≥500mS each time
  • Accuracy of Measurement: 1% (±1 digit)
  • Opening Size: 68mm x 38mm

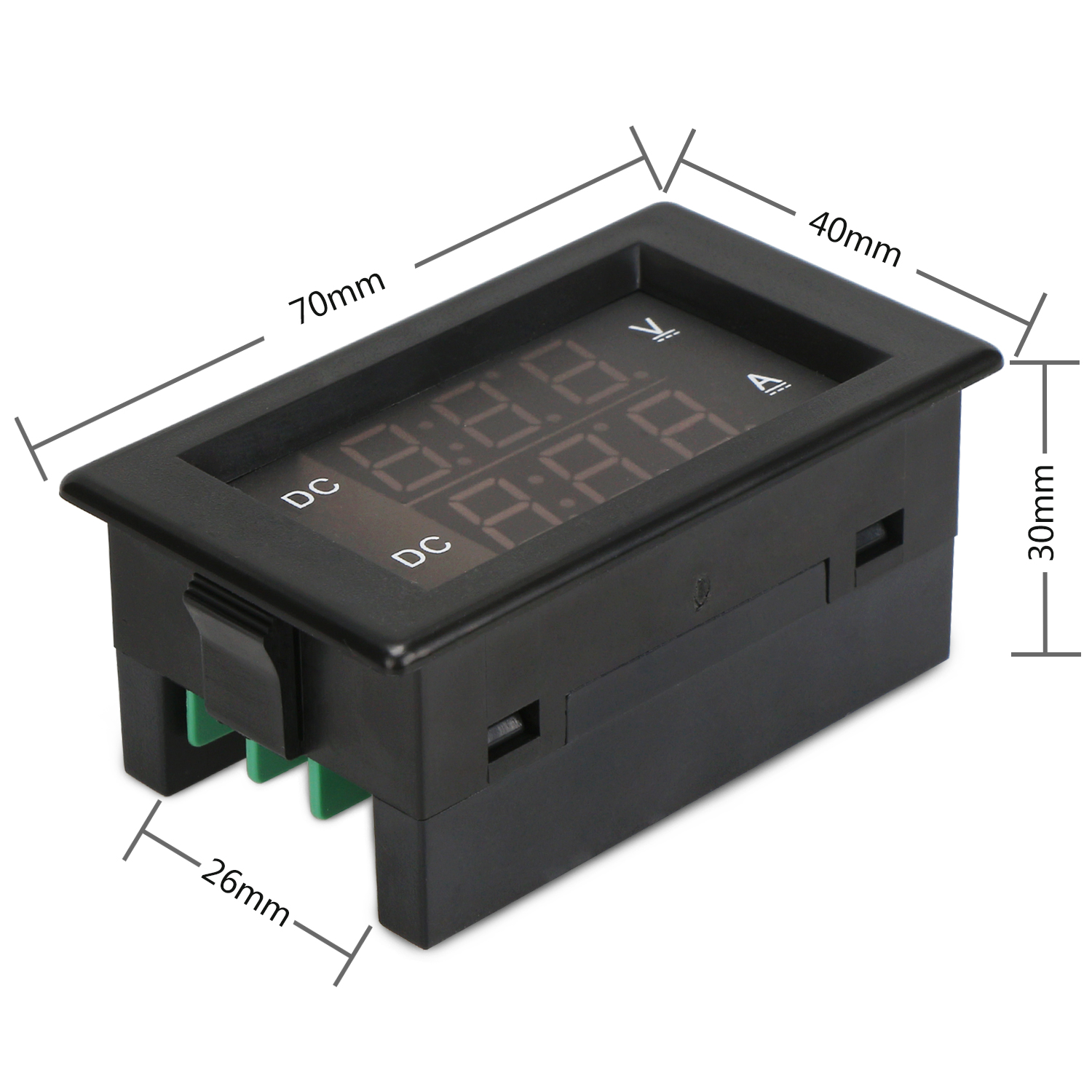

  • Dimension: 70mm x 40mm x 30mm
  • Extreme Working Condition:
  • Working Temperature: -10°c~+65°c
  • Working Humidity: 10~80% ( No Condensation)
  • Working Air Pressure: 80~106kPa
  • Sunlight: No direct exposure

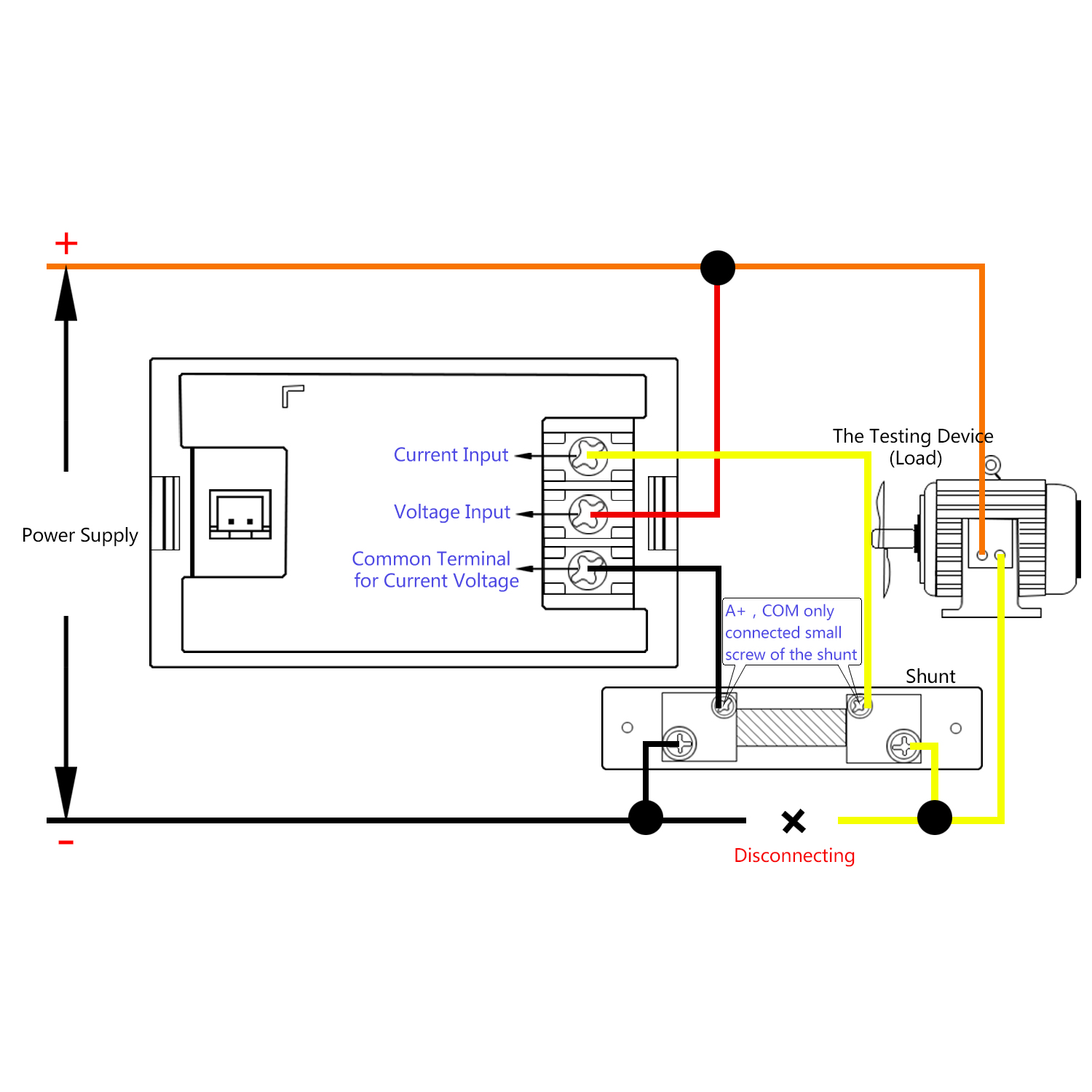

Connecting Method:
  • COM: Common terminal of power supply negative pole
  • V+: Positive pole of tested voltage, positive pole input terminal of power supply
  • A+: Positive pole input terminal of tested current ( This meter adopts common-ground design that earth wire of measuring terminal is interlinked with earth wire of power supply, so A+ only can be connected bewteen the tested device negative pole and power supply negative pole. the meter will be burnt if connected wrong.)
  • Note: If the meter is just used as voltmeter, it is suggested that the yellow wire and black wire are connected together.
Features:
  • With shell, the meter is safe, reliable and dustproof; it is small and can display voltage and current at the same tiem.

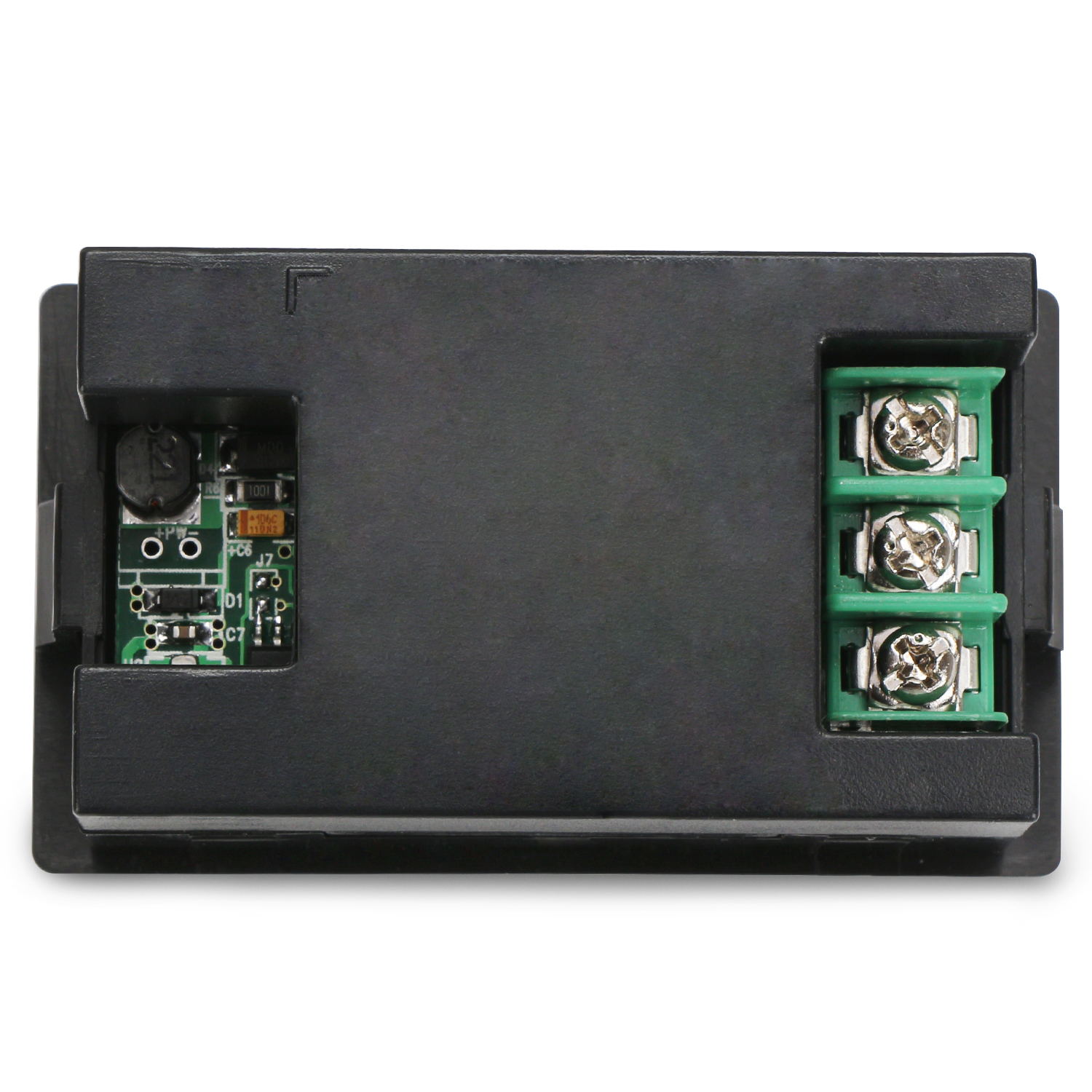

  • This meter is provided with 3 wiring terminal, when testing voltage and current, the power comes from the return circuit, so you don't need extra power supply.
  • This meter adopts common-ground design that earth wire of measuring terminal is nterlinked with the earth wire of power supply, so the meter only can be connected in series bewteen the tested device negative pole and power supply negative pole when testing current.
  • It has voltage calibration potentiometer and current calibration potentiometer, if there is an error, you can adjust them by yourself.

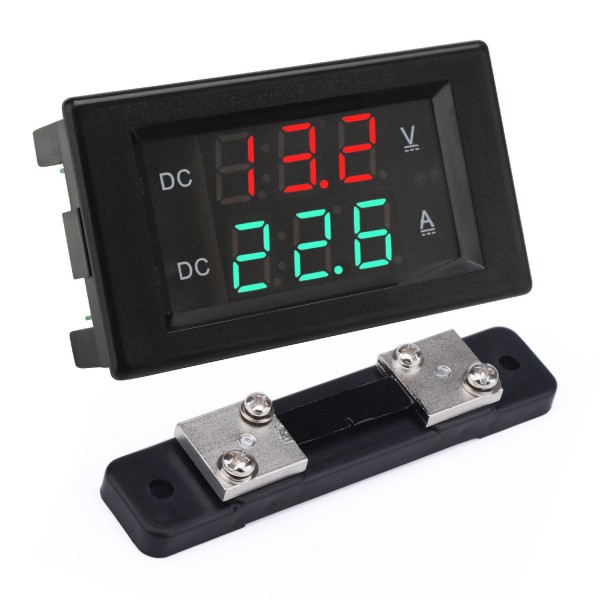

  • This voltage current meter adopts 0.39" LED display, voltage shows red and current shows green; the decimal point can move automatically.
  • With strong anti-interference capability, it can quickly display refresh rate; with exquisite SMT technology, it has good consistency.
  • This meter has handy coonection and wide application, for example, it can be applied to monitoring storage battery, DC adjustable power supply, or voltage and current changing state of other device.
Package Included:

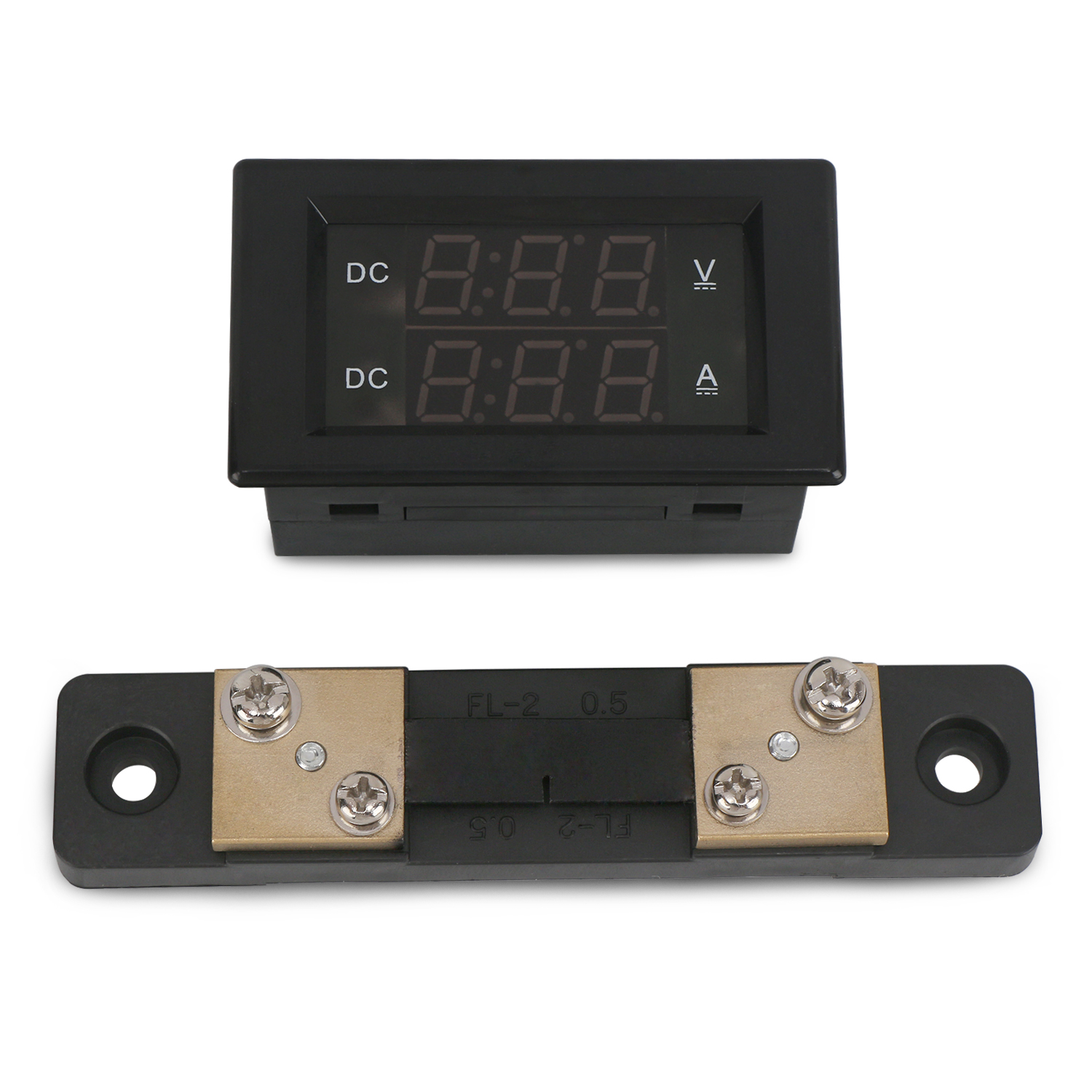

  • 1 x DC Digital Voltmeter Ammeter (2in1)
  • 1 x  50A Shunt
Attributes
output ways 1
