It is a Signal Generator/Adjustable Current Voltage Analog Simulator, Working voltage: DC24V, Output signal: 0 ~20mA or 0 ~10V, Wide Application: the product can be used: signal sources, valve adjustment, frequency converter controlling, PLC testing, panel testing, LED testing, simulating the output of transmitter
Product Features:- By rotating a multi-cycle precise potentiometer, this product can generate 0/4 - 20mA current signal and 0-10V voltage signal, which can used as signal generator, valve adjustment, inverter control, PLC debugging, panel debugging, LED testing, simulating the output of transmitter.
- Working voltage: DC24V
- Input signal: Potentiometer
- Output signal: 0/4 ~20mA or 0 ~10V
- Display accuracy: Current: 0.1mA; Voltage: 0.01V

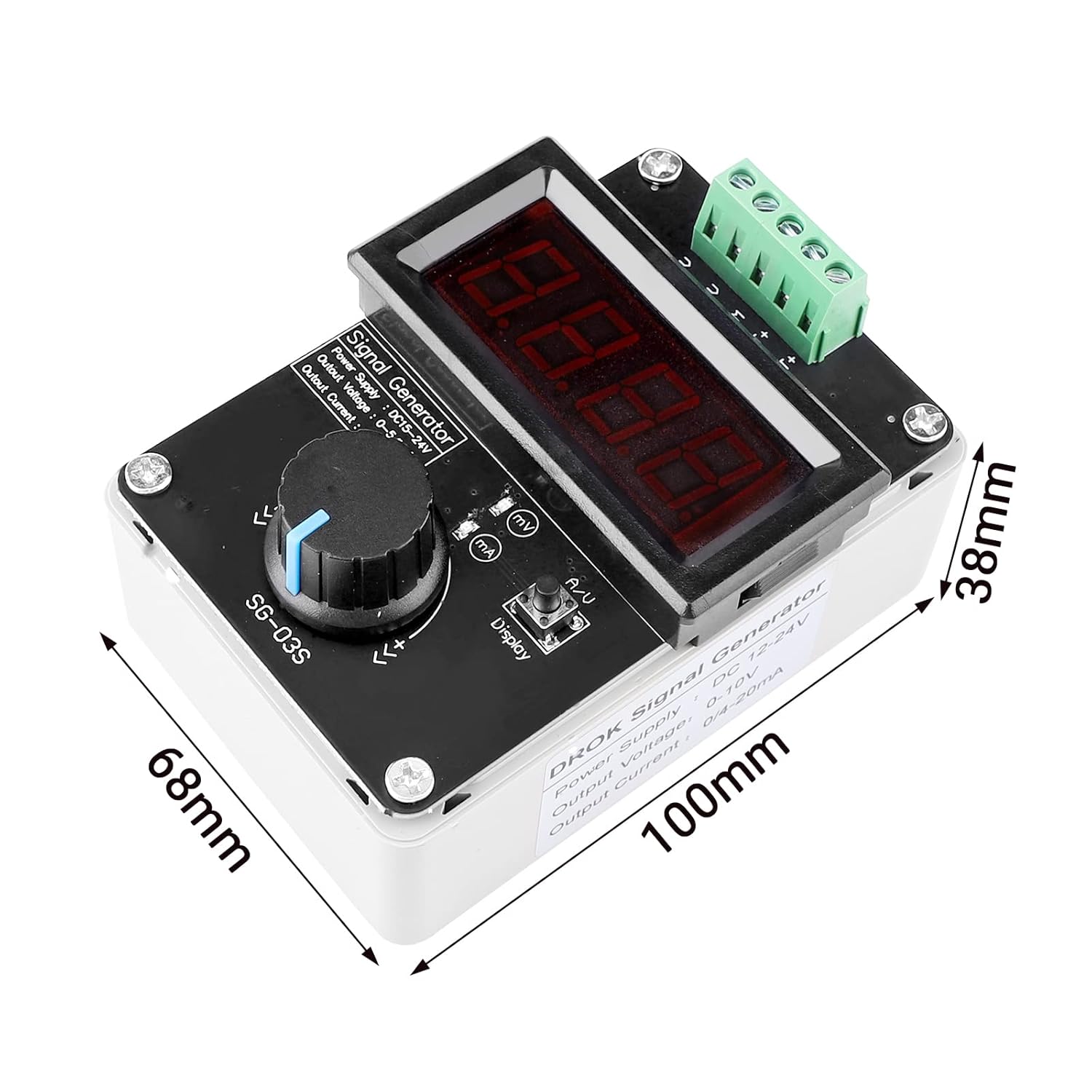

- Dimension: 100*68*38mm
- A. Current display calibration
- Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the right and then using a multimeter to test the actual value of the output current. At this time, you can adjust the current display adjusting potentiometer to make the display value equal to the actual output value.
- B. Voltage display calibration
- Clockwise rotating the multi-cycle potentiometer to the maximum, switching the display switch to the left and then using a multimeter to test the actual value of the output voltage. At this time, you can adjust the voltage display adjusting potentiometer to make the display value equal to the actual output value.
- 1 x Signal Generator
Attributes | |
input voltage | 24V |
output current | 0.02A |
output power | -- |
output voltage | 0~10V |
output ways | 1 |
