Parameters:

    Input voltage: AC 110 ~ 220V ± 15%
    Output voltage/current: DC 0 ~ 5V 60A
    Rated power: 480W

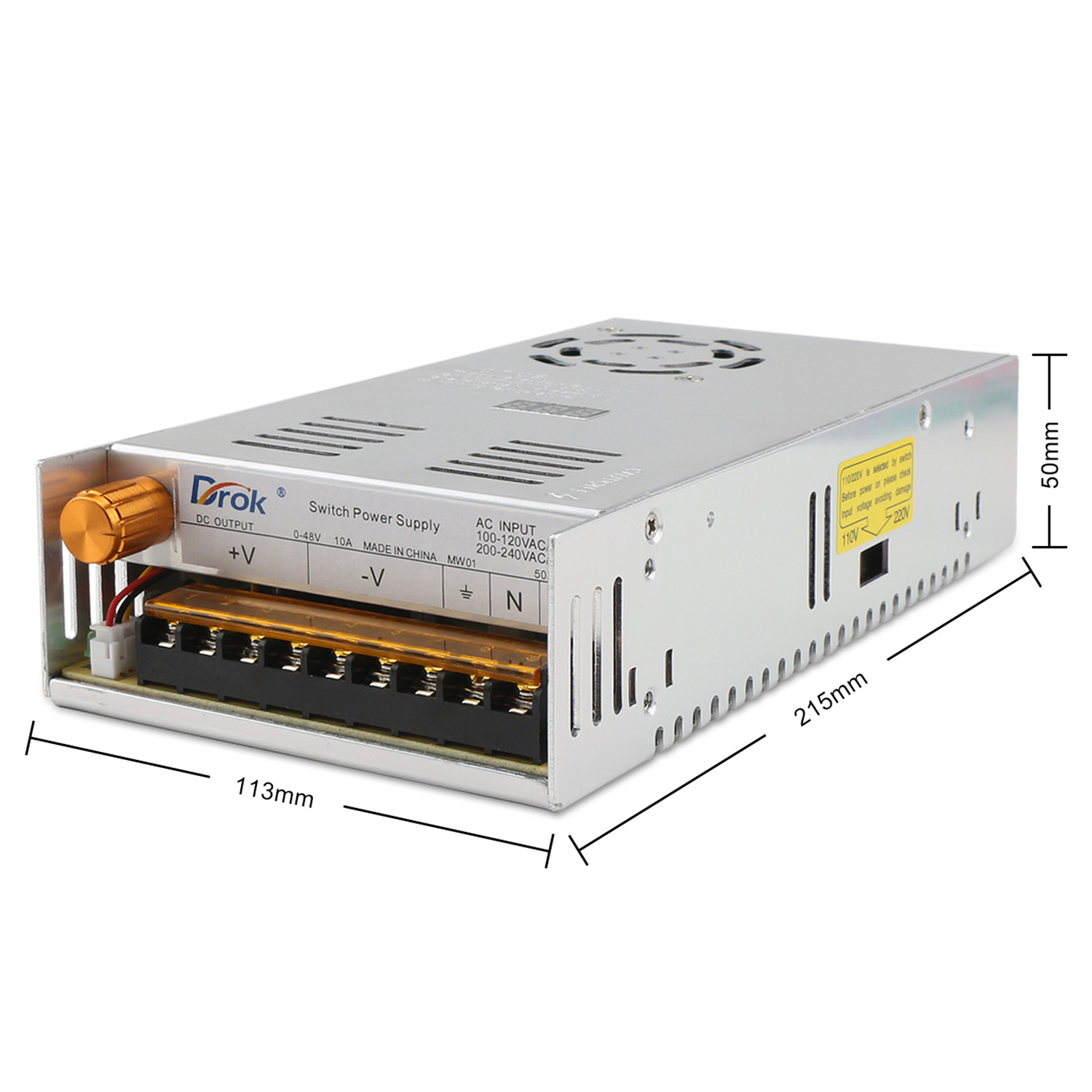

    Product Dimension: 215 x 115 x 50mm (length x width x height)

Wiring:

    〨: Ground
    N: Null wire
    L: Live wire
    V+: DC output +
    V-: DC output -


Note:

    If use motor, fan and other inductive load, please pay attention to the load’s maximum starting current parameter. This parameter shall not be higher than the power supply’s max. current. Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current.

Applications:

    Mainly used for a variety of DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electrolysis and plating speed regulation, research and testing, student experiments, and so on.

Package includes:

    1 x AC-DC Switching Power Supply (Power Adapter)
