--- Input Voltage: 10-100V
--- Defaulted Applicable Battery: 24V lead-acid battery
--- Detect Value: battery level; electric quantity percentage; voltage; temperature
--- Working Consumption: 5mA typically, 6mA max.
--- Voltage Accuracy: ±0.1% typically, ±0.5% max
--- Temperature Accuracy: ±0.5℃ typically, ±1℃ max
--- Dormant Mode Consumption: 6-12uA, 10uA typically
--- Working Temperature: -10~55℃
--- Reverse Protection: Yes
--- Display: LCD color screen
--- Auto Power-off: Yes
--- Auto Power-off Time Value: Adjustable

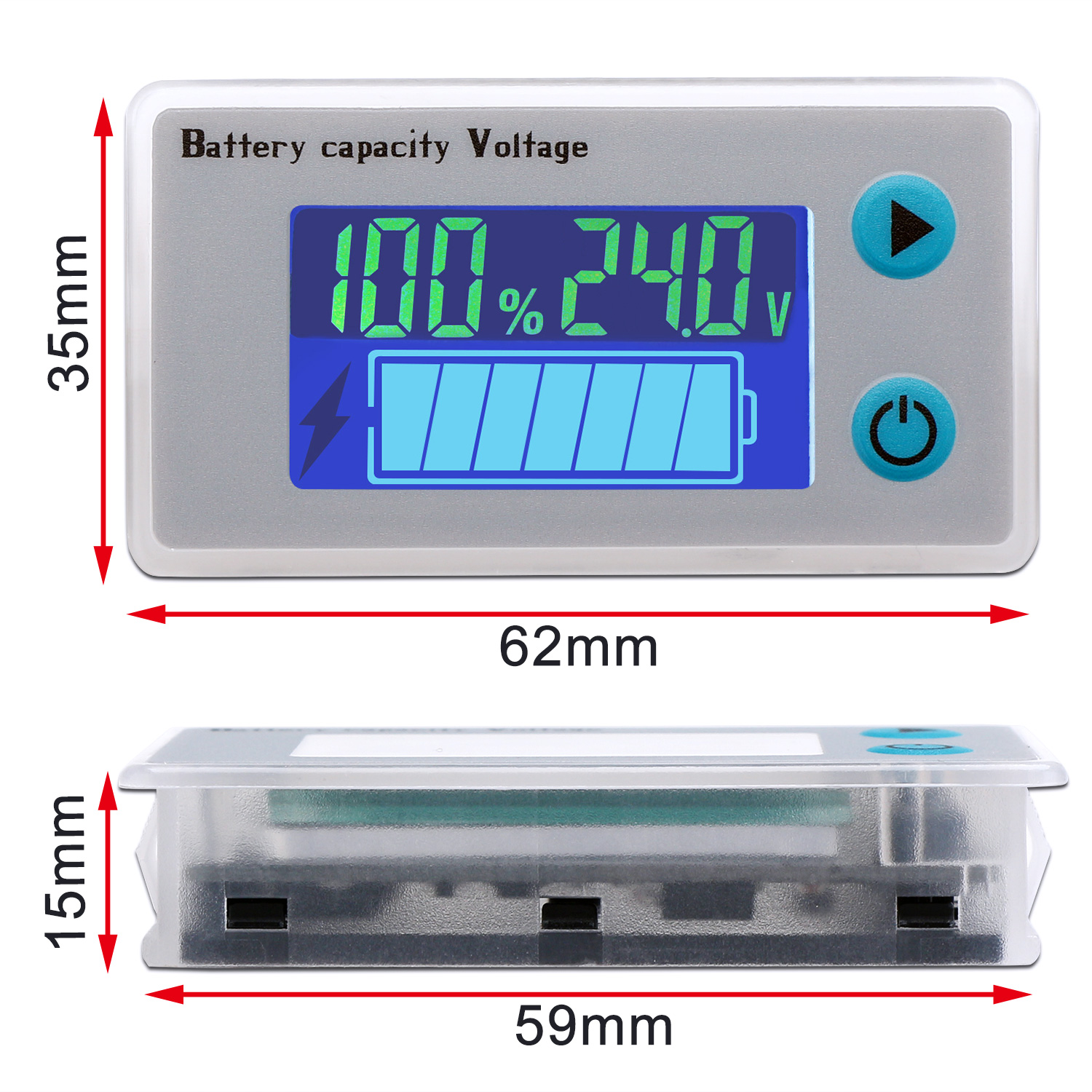

--- Product Size: 61.5*33.5*13.5mm
--- Installation Size: 58.5*28.5mm
--- Display Size: 36*19.5mm
1. APPLICABLE BATTERY --- battery monitor meter is suitable for 10-100V (24V) lithium battery, lead-acid battery, lithium iron phosphate battery, Ni MH battery. Default 24V lead acid battery.
2. APPLICATION --- this multi-tester can be used as a battery voltmeter, battery capacity indicator, temperature reader for car, boat, marine, RV, etc.

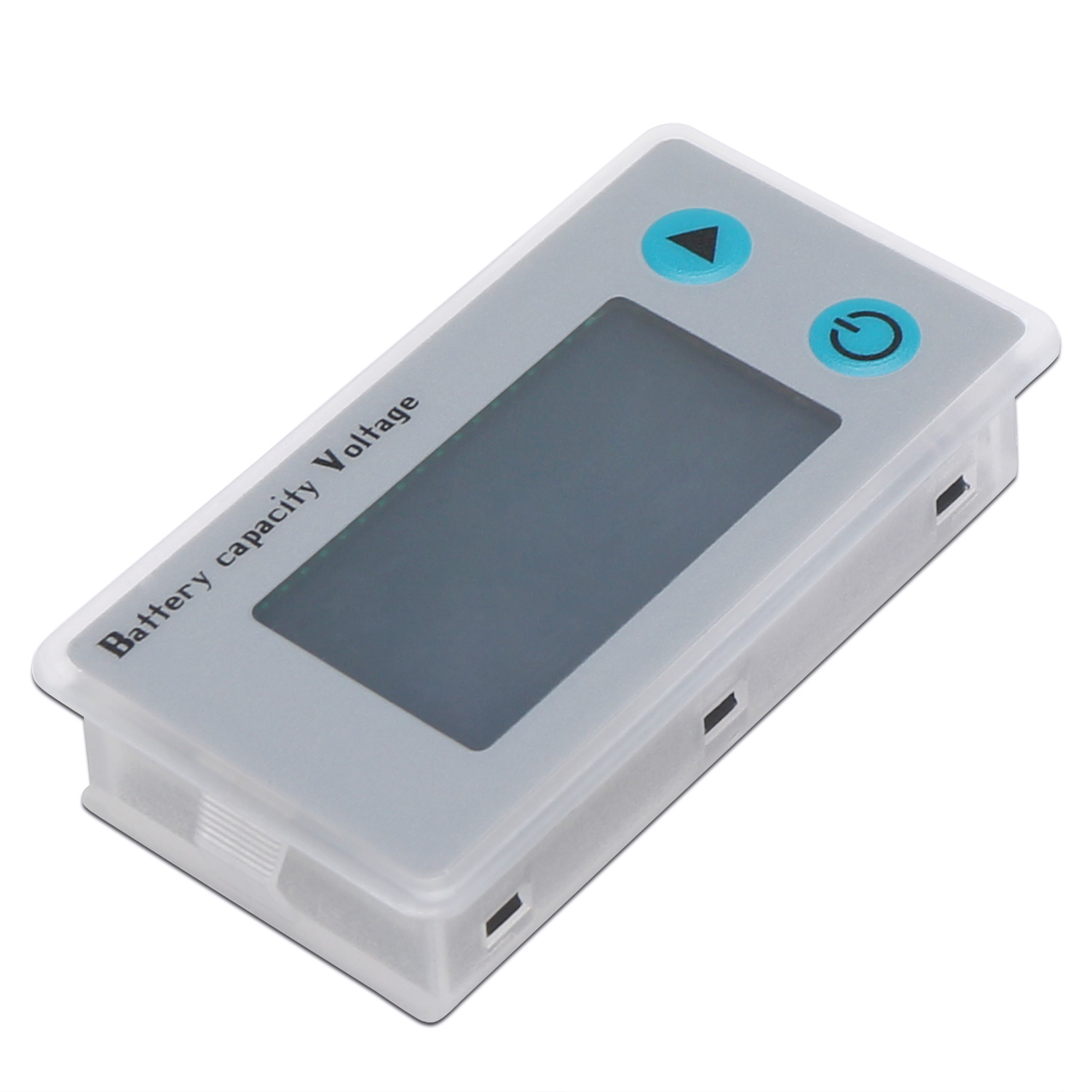

3. PROTECTION --- the battery status indicator comes with protective shell, dustproof waterproof surface and input reverse connection protection.

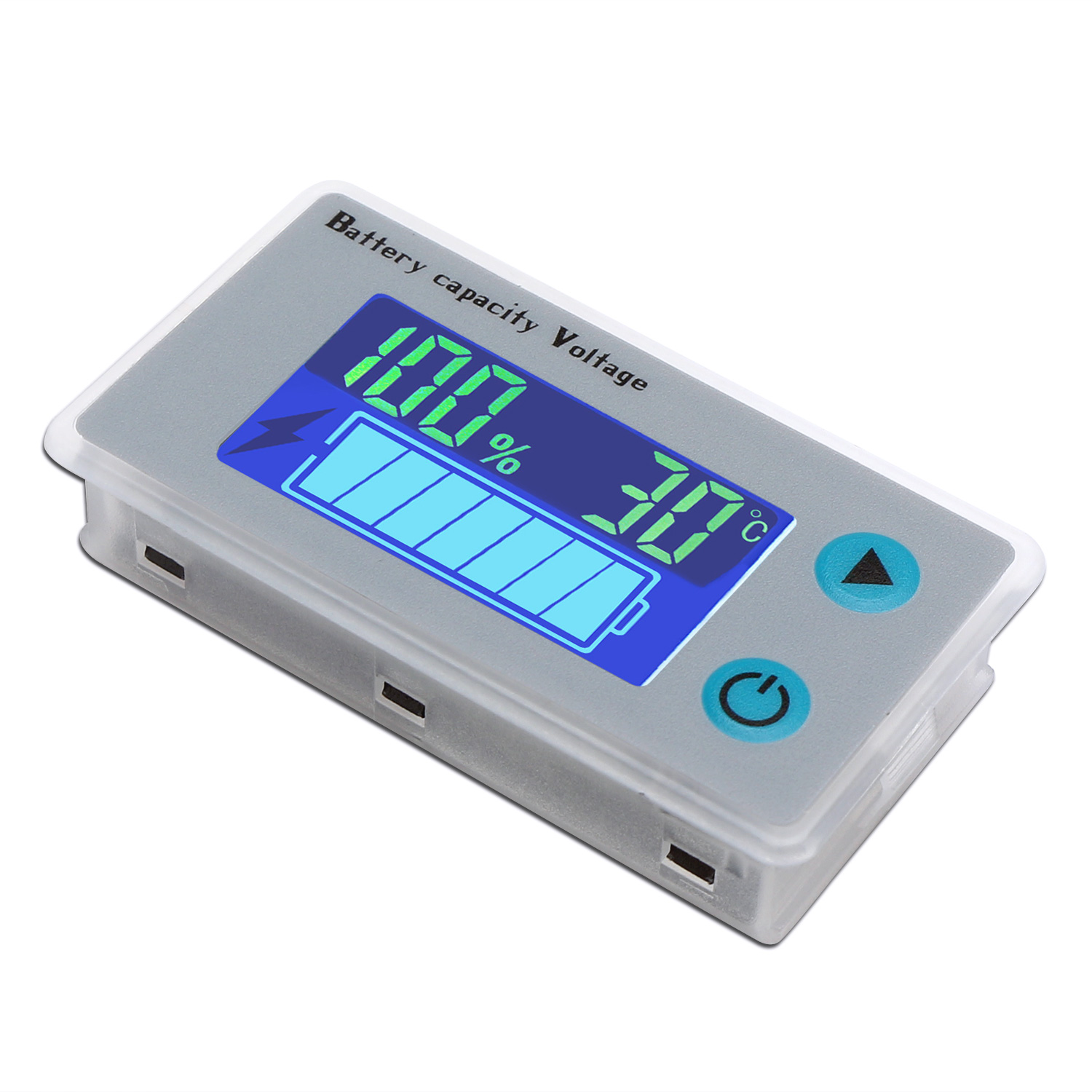

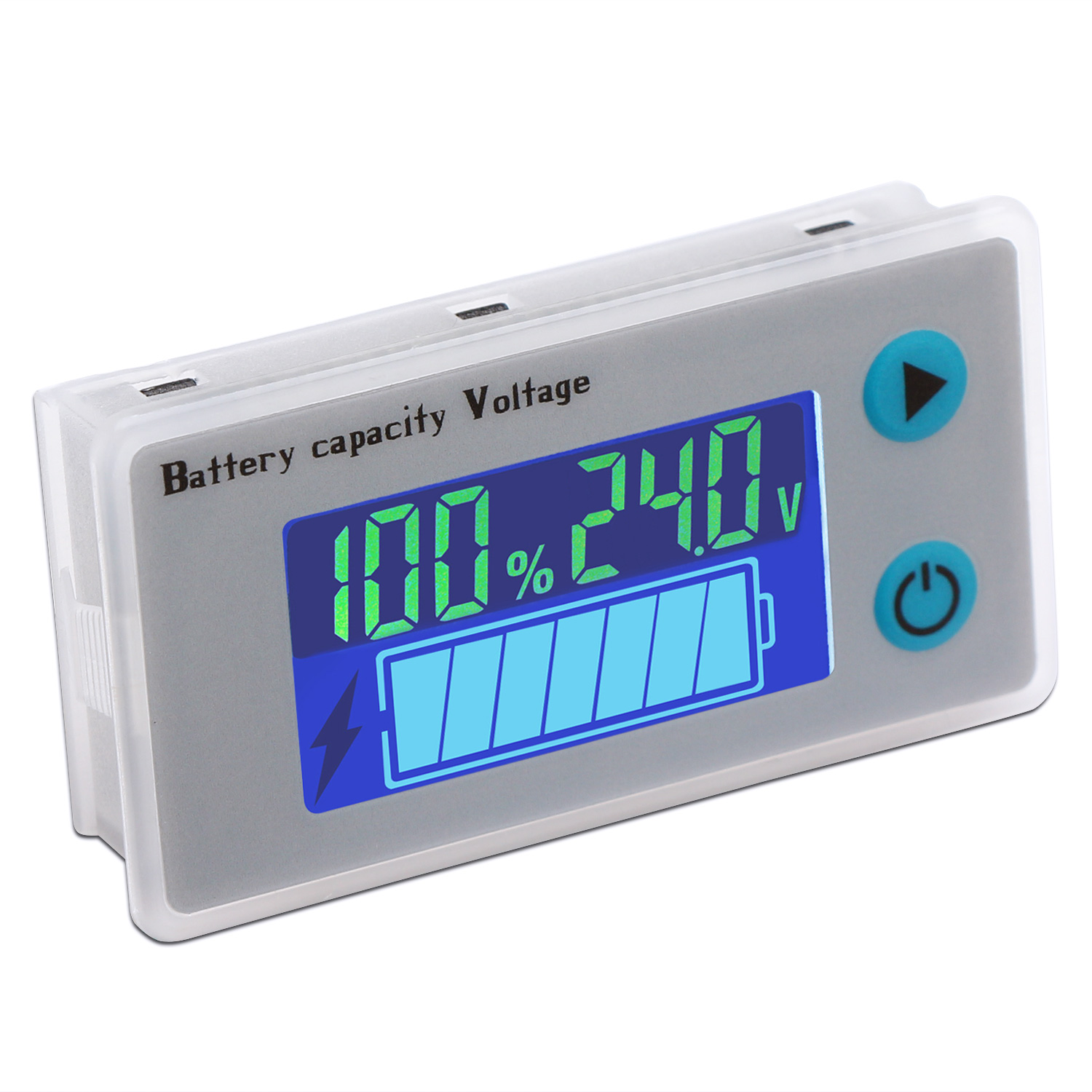

4. DISPLAY --- the battery monitor meter adopts clear LCD color screen, displays battery capacity, voltage, temperature value (switched by button).

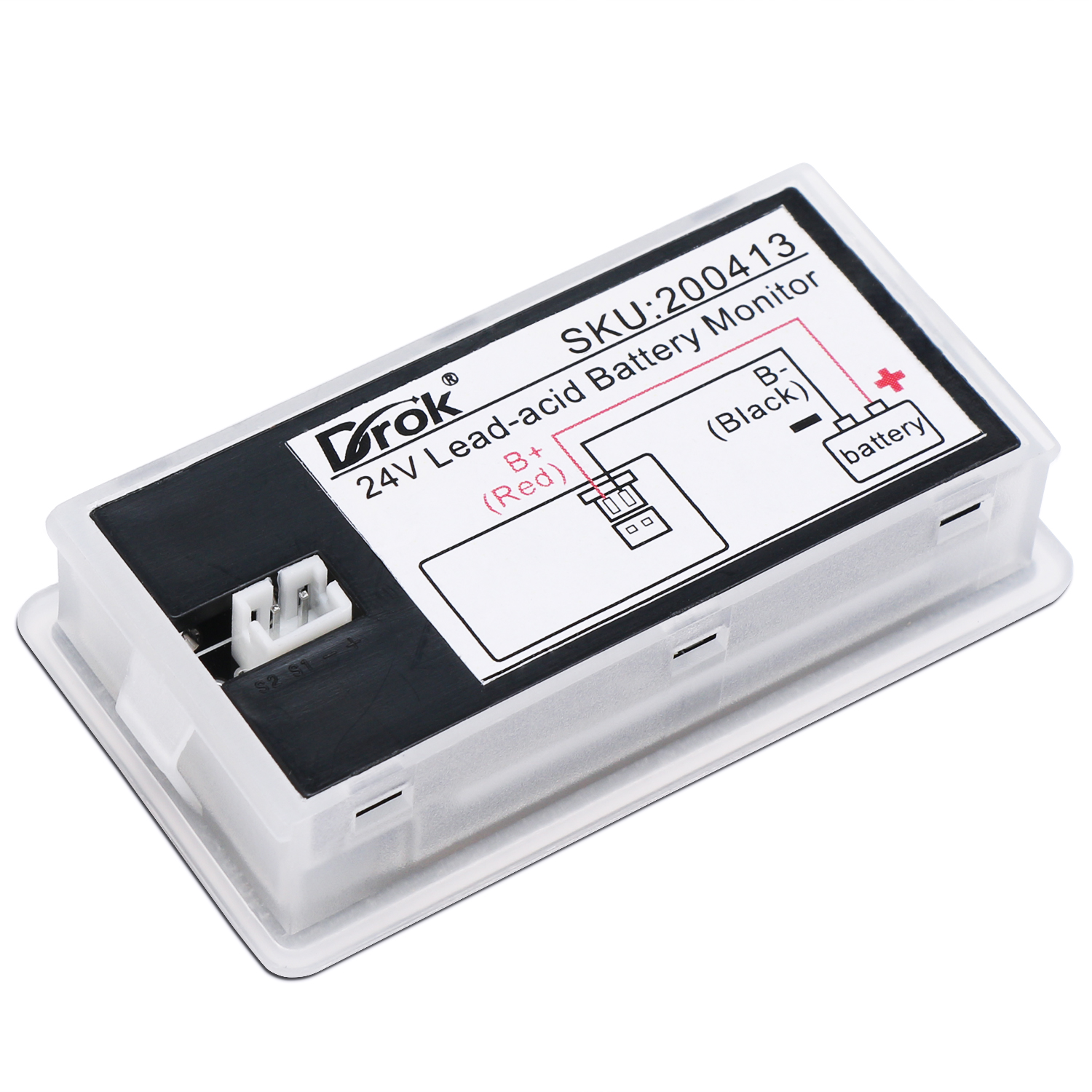

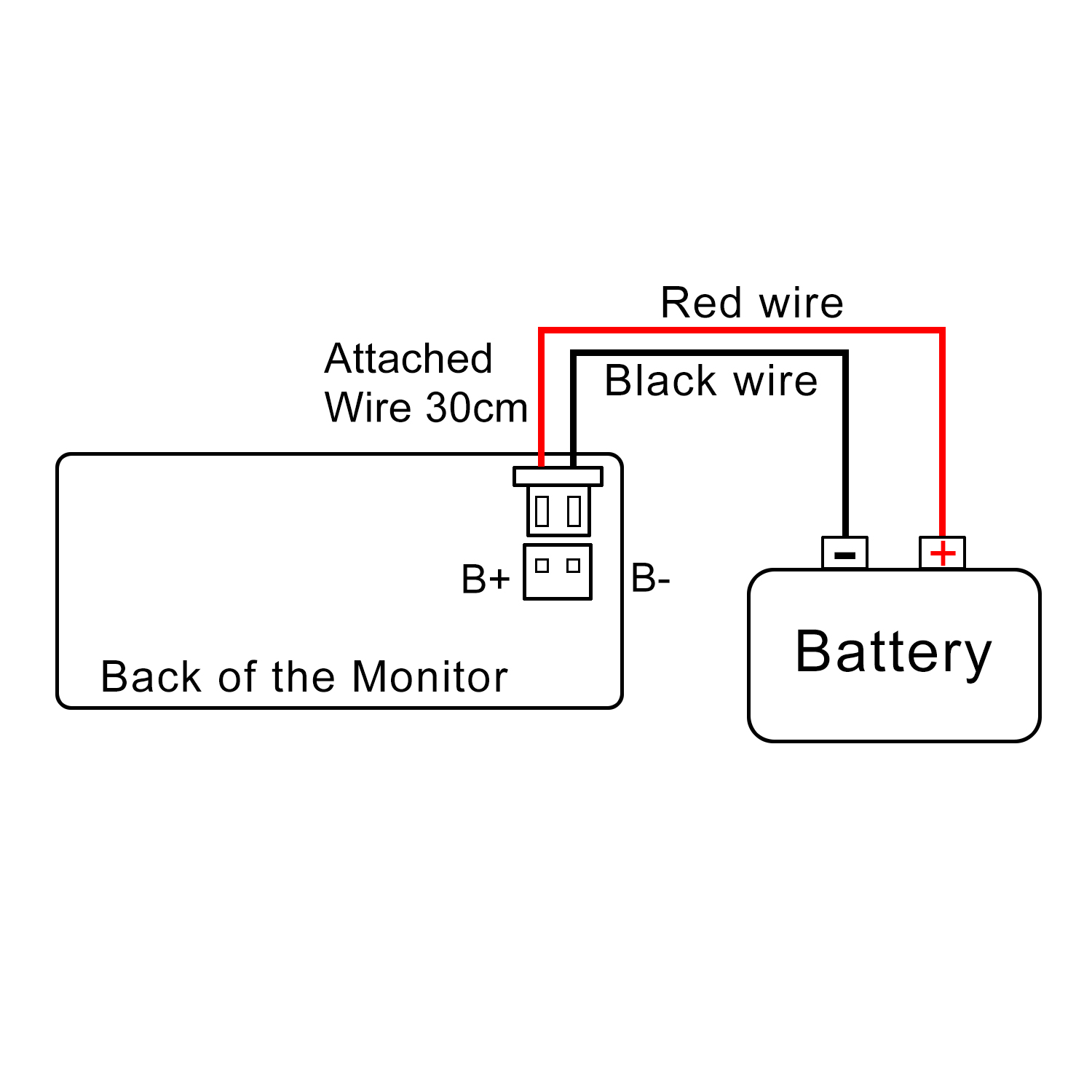

5. INSTALLATION --- red wire for the positive, black wire for the negative.

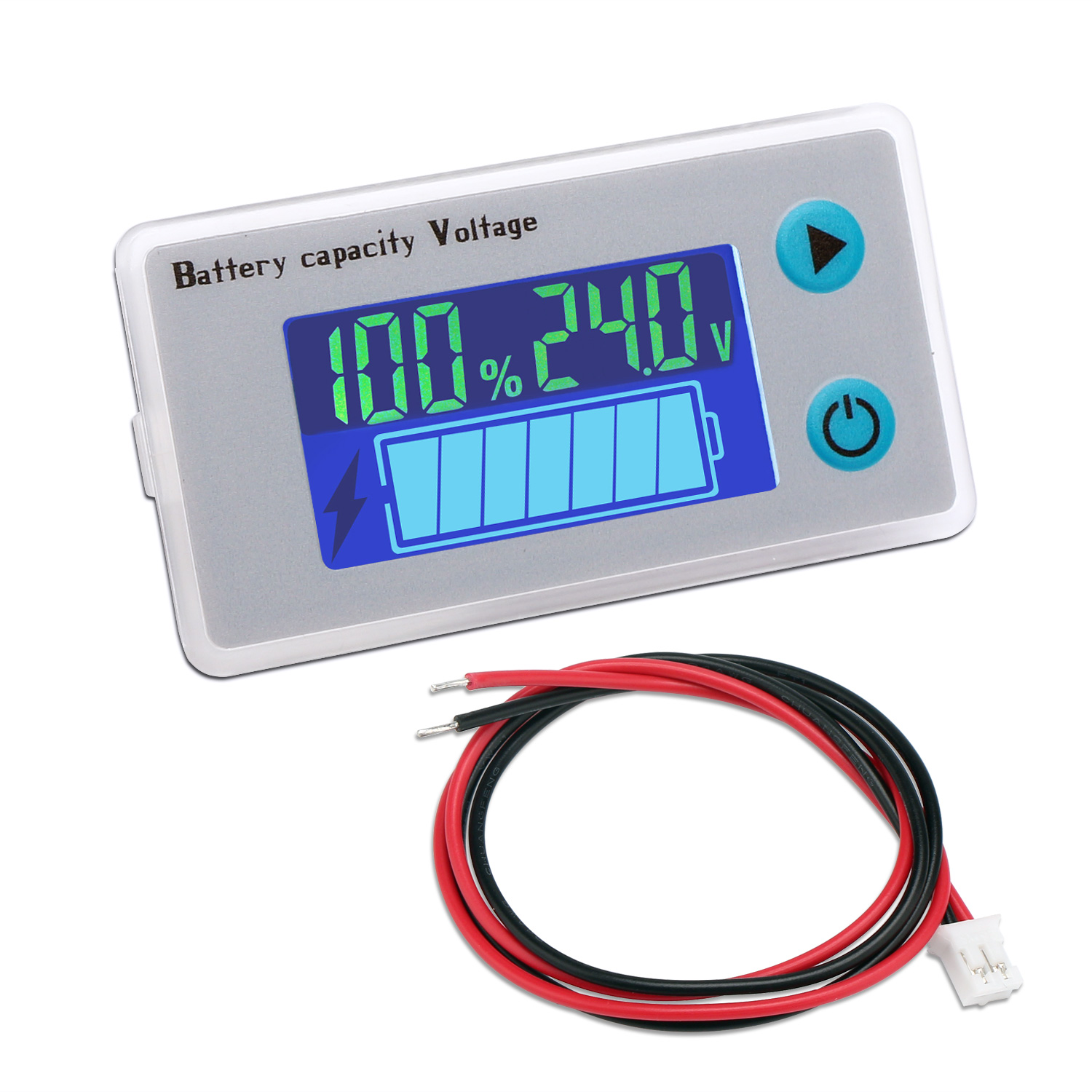

1x 24V Battery Monitor Meter
