Parameter:

• Working Voltage: DC 8-24V

• Output Power: 2x15w Stereo(24V/8Ω)

• Availabled Devices: 6/8/16Ω Speakers

• Audio nput: 5.0 BlueTooth ; 3.5mm Audio Input; 3P_2.54mm Terminal

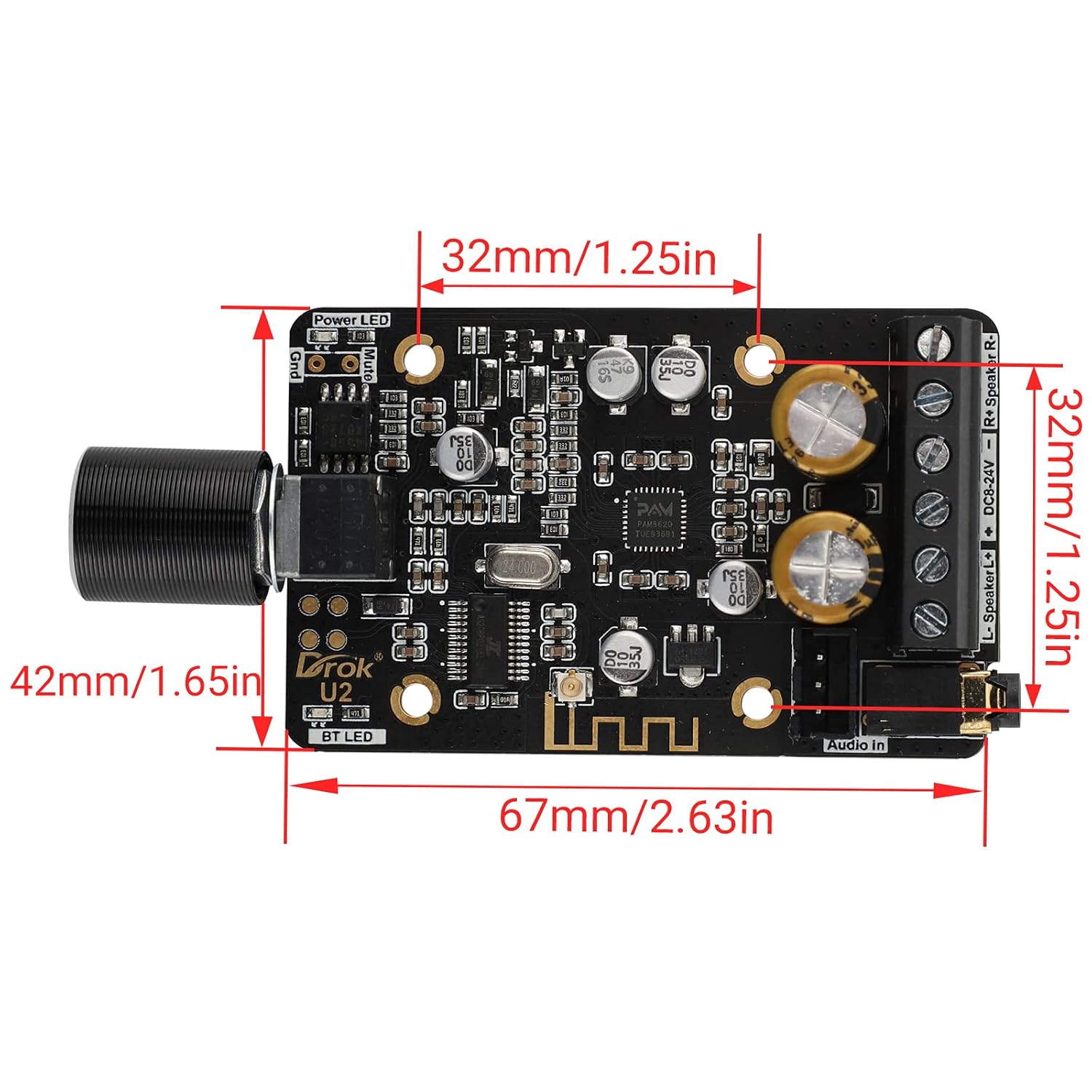

• PCB Size: 67mm*42mm (length*wide)

• Overall Size (radiator included): 67mm*42mm*15mm

• Potentiometer Rotating Handle Opening: 7mm

• Installing Hole Spacing: 32mm*32mm

• Installing Hole Size: M3

Performance:

Efficiency ＞ 90%

Total Harmonic Distortion and Noise ＜ 0.2%
Gain: 32db
Low Quiescent Current and Noise Suppression

BlueTooth Indicator

Quick Flashing --- No Connection ; Slow Flashing --- Playing Music: Keep Lighting --- Successful Connection

Audio Source Switching

Default is AUDIO IN(or 3P Terminal), Automatically switch to blue-tooth source when connecting to blue-tooth.

Protection: input anti reverse-connect protection, output short circuit protection, over current protection (OCP), over temperature protection (OTP), low voltage protection (LVP)

Additional Function: MUTE/GND Port (short circuit this port can achieve mute)
