1. Applicable batteries--- battery monitor is suitable for 6V-30V (6V, 12V, 24V, 30V) lithium battery, lead-acid battery, lithium iron phosphate battery, Ni MH battery.
2. Multifunction--- Can be used as battery voltage meter, battery capacity tester for car, marine, RV, boat, etc. It can also be used as an battery monitor, charger, fast charging adapter, smart power strip and step-down voltage converter for car, marine, RV, boat,etc.

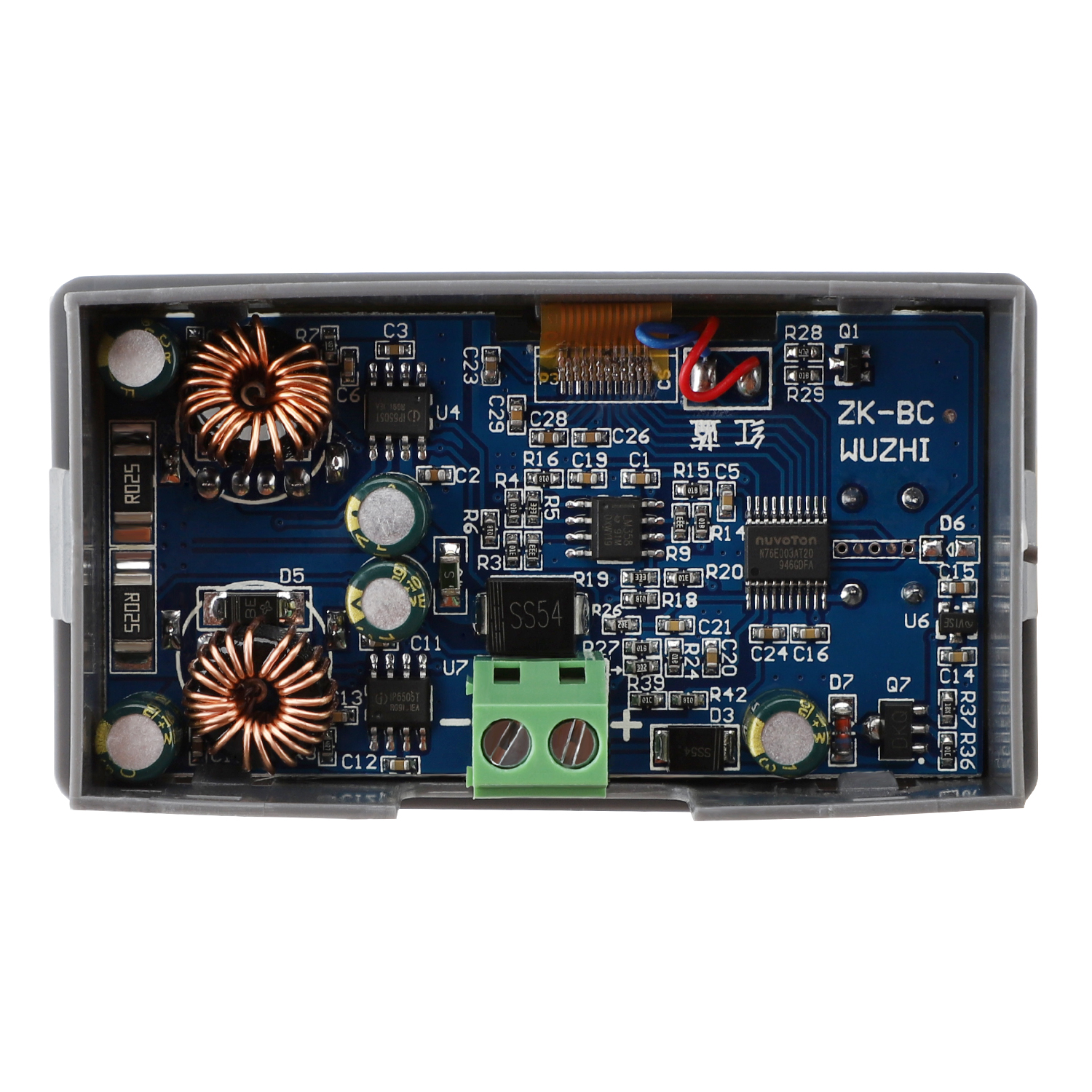

3. Support fast charge--- With dual USB ports and IP6505T chip,the battery monitor support fast charge. It supports various fast charge protocols,including QC2.0/QC3.0/FCP/SCP/MTK/APPLE.
4. Safe protection--- The battery monitor is designed with input reverse connection protection, short circuit protection, over heat protection, overcurrent protection, overvoltage protection, undervoltage protection.
5. Default--- 12V lead-acid battery.
- Input Voltage：DC6V-30V (Note: the USB port is step-down power source.)
- Output Voltage: default 5V, and it will automatically adjust between 3-12V after triggering fast charge.
- Output Power: max power is 24W
- USB Efficiency: 90%-97%
- Fast Charge Protocols:DCP, QC2.0/QC3.0, MTK PE1.1/2.0,FCP/SCP, AFC, SFCP
- Protection: input reverse connection protection, short circuit protection, over heat protection, overcurrent protection, overvoltage protection, undervoltage protection.
- Working Environment Temperature: -10℃- 60℃
- Working Environment Humidity: 10-80% (without condensation)

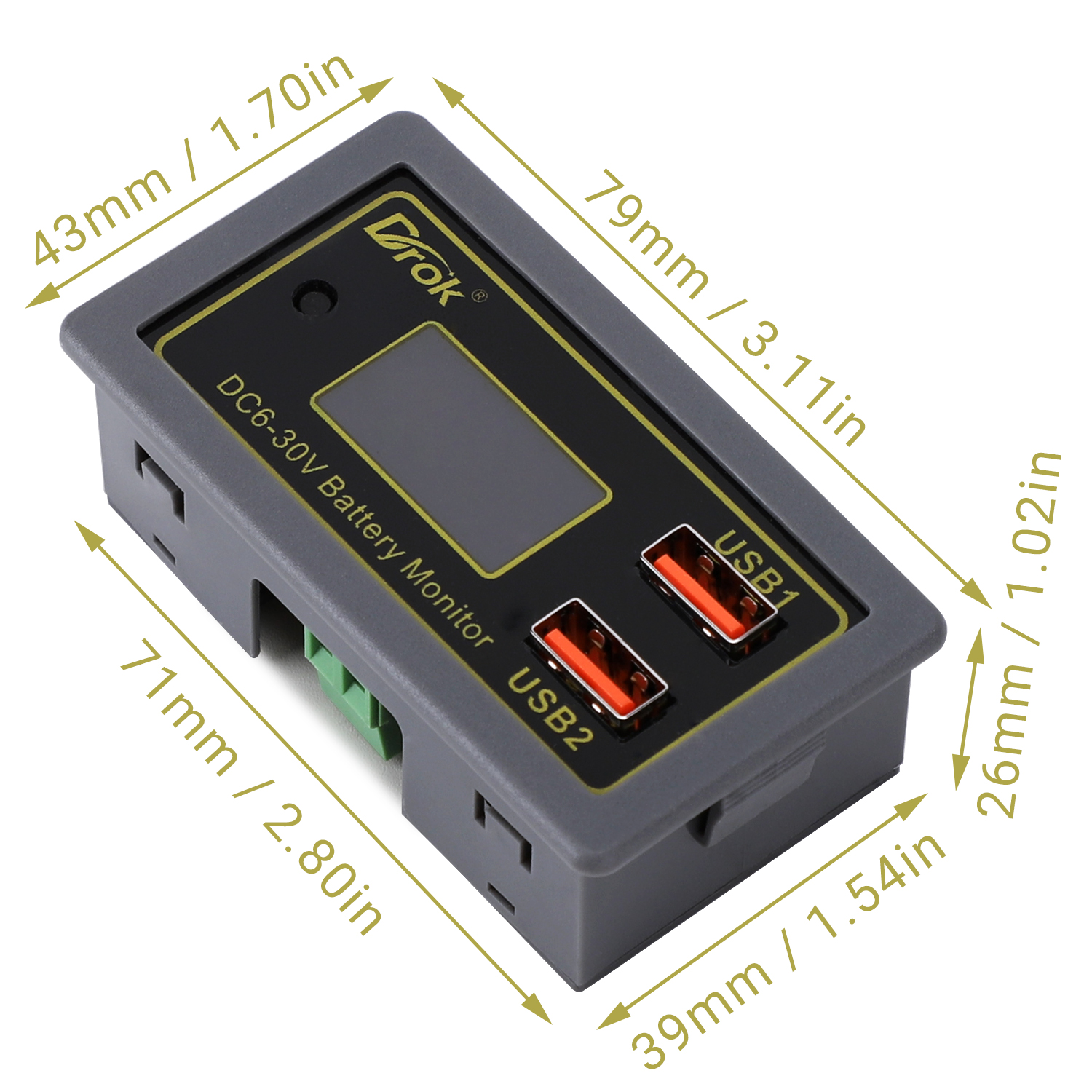

- Installed size:75mm*39mm

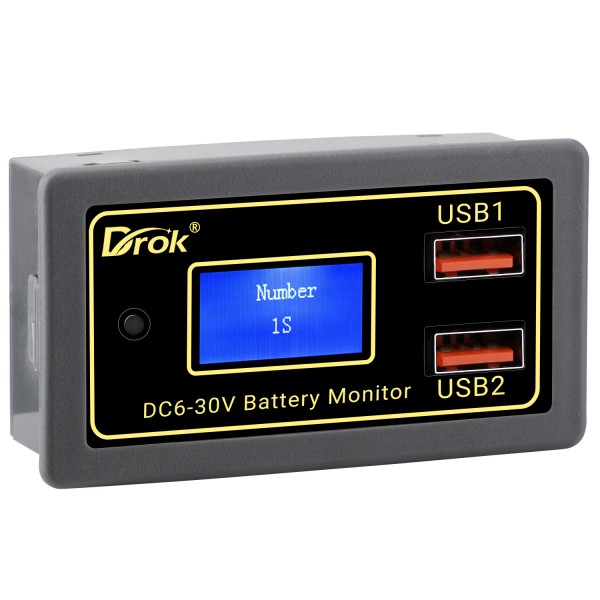

1 * Car Battery Capacity Monitor
- Stock: In Stock
- Model: 200532
- Weight: 0.20kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 200532
