Description:

Power range: DC6-120V (The input voltage cannot exceed 120V, otherwise it will be burned.)

Measurement voltage: DC6~120V

The minimum resolution below 100V: 0.1V

The minimum resolution over 100V: 1V

Voltage measurement accuracy: 1% (±2 digits)

Temperature measurement range:

Celsius degree: -50 ~ +120°C

The minimum resolution of -9.9~99.9°C: 0.1°C

The minimum resolution in other range: 1°C

Fahrenheit degree: -58~245°F

The minimum resolution of -9.9~99.9°C: 0.1°C

The minimum resolution in other range: 1°C

Temperature type: NTC

Temperature probe cable length :>120mm

Electricity resolution:1%

Working current：<20mA

Display form：LED color display

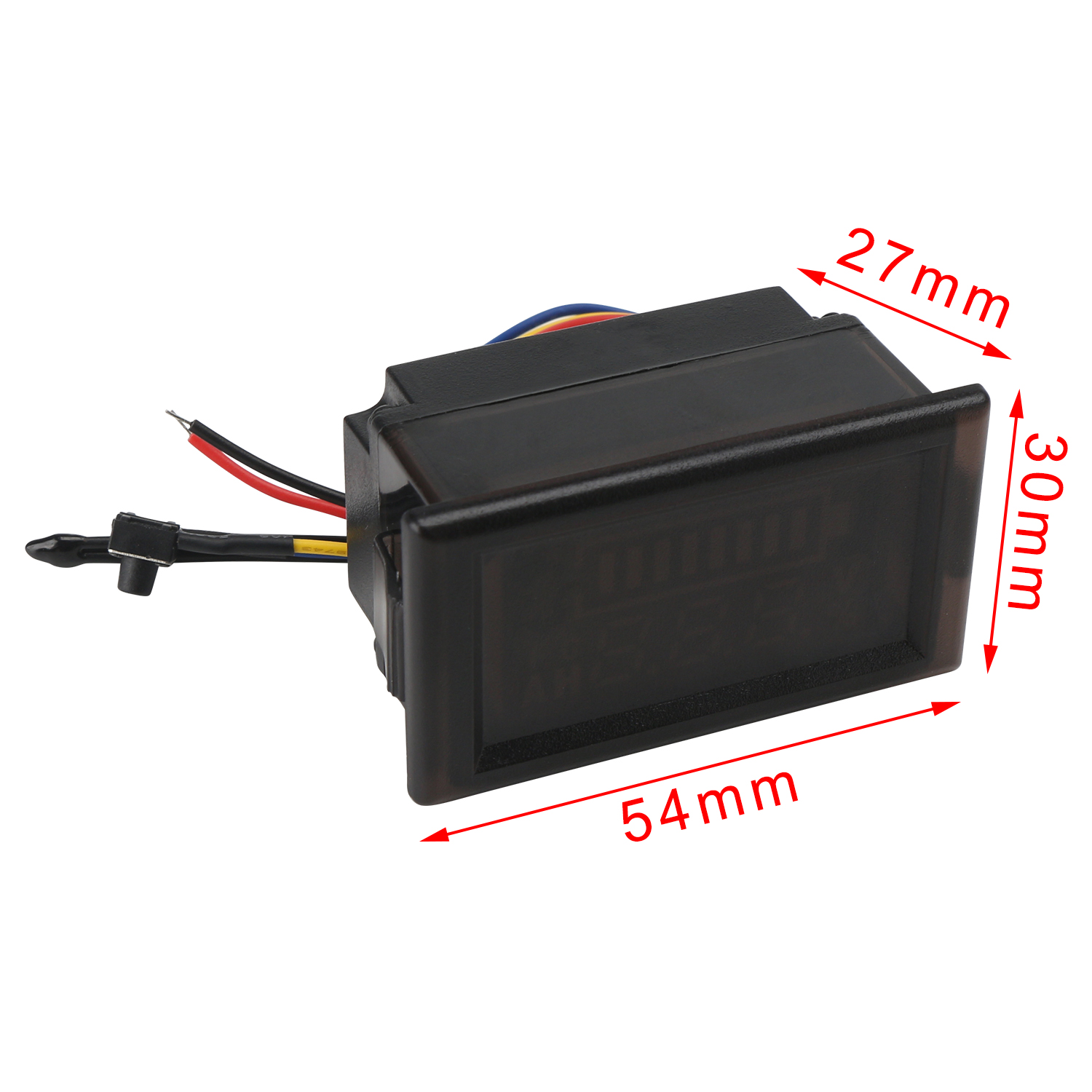

Size：L54*W30*H27mm

Hole size：47.2*27.3mm

Measuring rate：≥500mS/T

Supply and switch cable length：>150mm

Extreme working conditions:

The lowest power voltage: +6 V

The highest power voltage: +120 V

Working temperature: -10～+50℃

Working humidity: 10 ~ 80% (no frost)

Working pressure: 80 ~ 106 kPa

Sun: no directly sunshine

Features:

• Parameter:The woking voltage:DC 6-120V; default voltage:48V; adjustable range: 24V, 36V, 48V

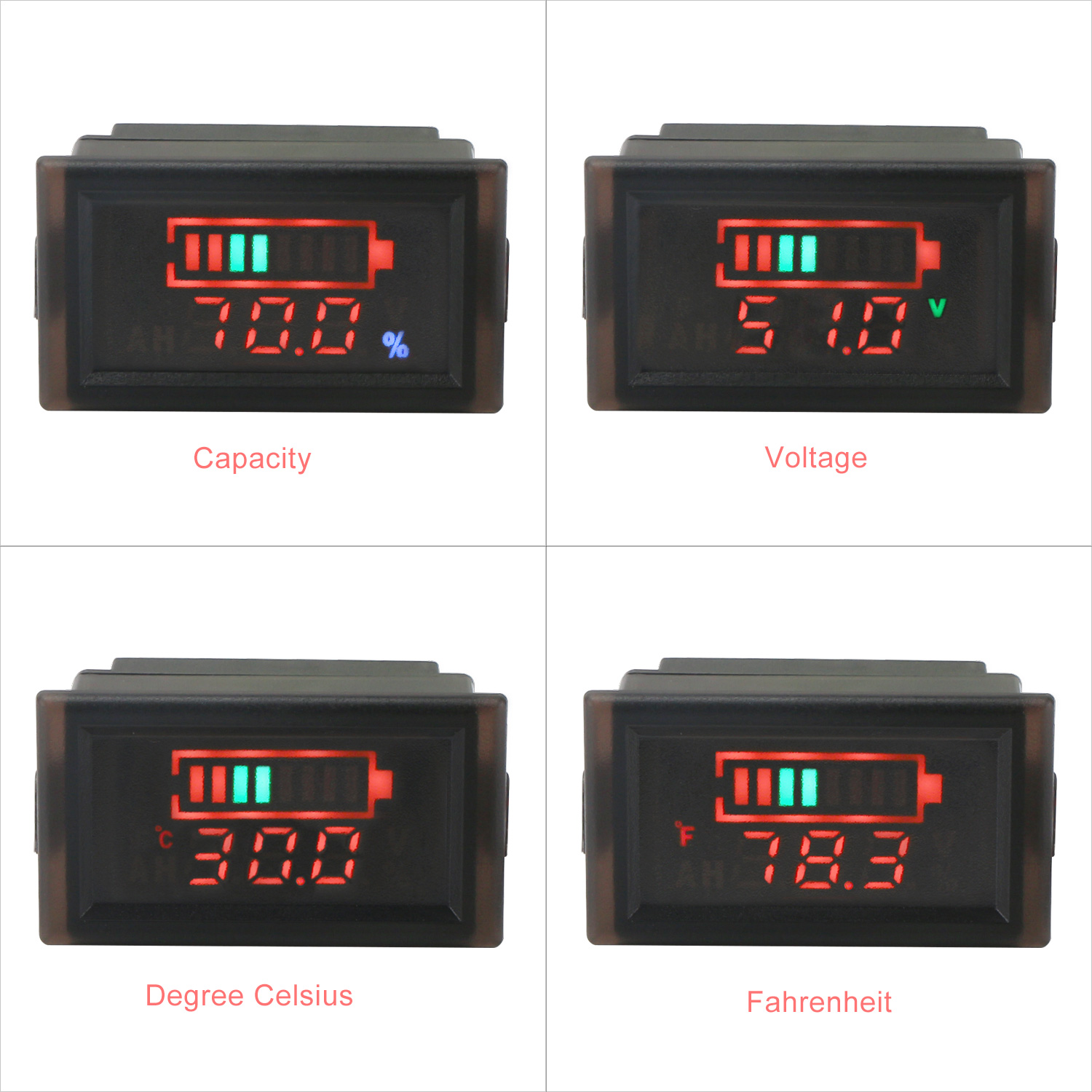

• Function:The multifunctional battery capacity meter can be used to test voltage, capacity, electricity percentage and temperature.
• Battery types:The digital battery monitor is suitable for lead-acid batteries, lithium batteries, nickel-hydrogen batteries.
• Special design:The waterproof voltmeter has flashing alarm function and anti-reverse protection.
• Application:The battery checker gauge is a good device for 24V, 36V, 48V, battery pack, balance car, inverter, electric forklift, sightseeing car, electric car, car battery and battery power mobile equipment.

Package Includes:

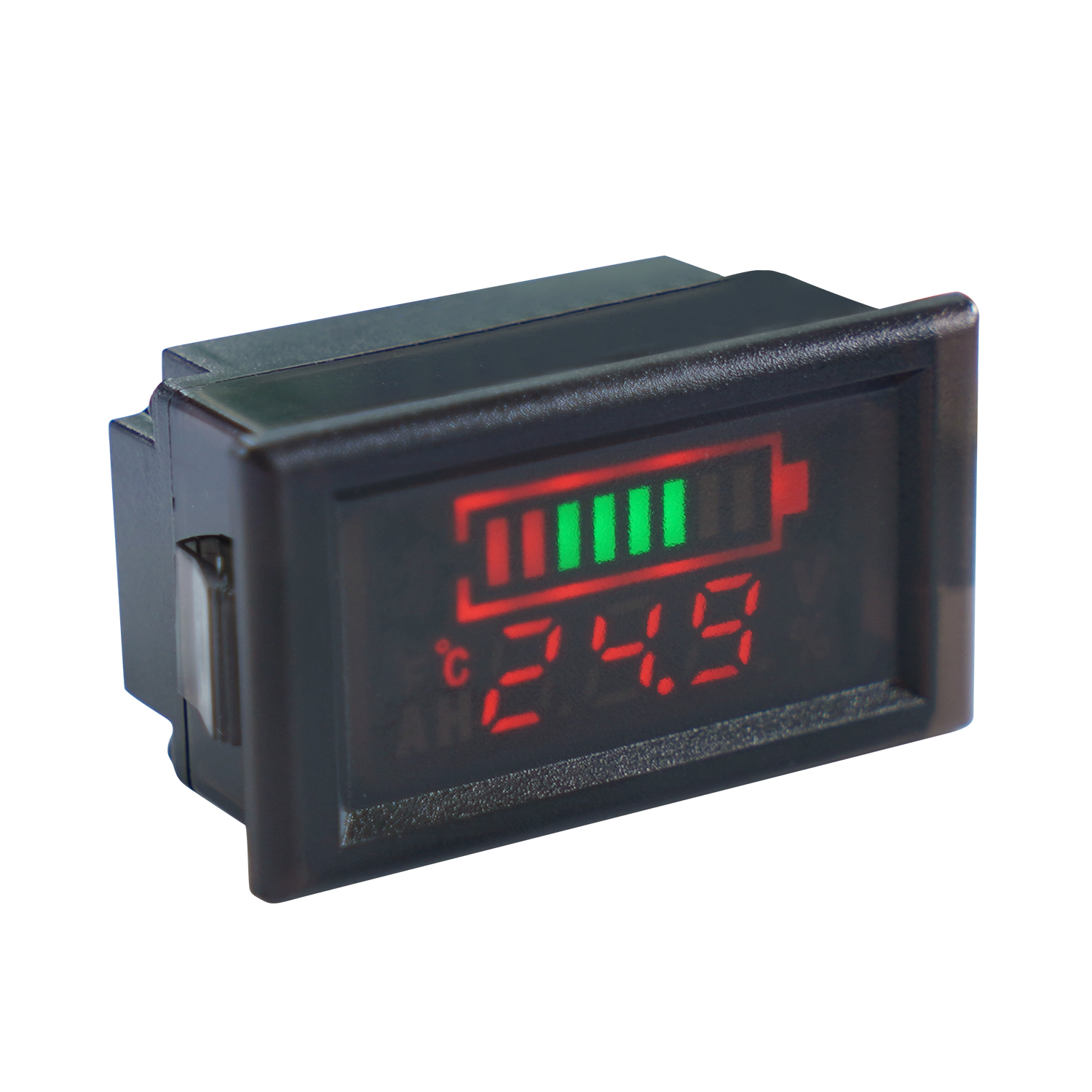

1* Digital Waterproof Multimeter
