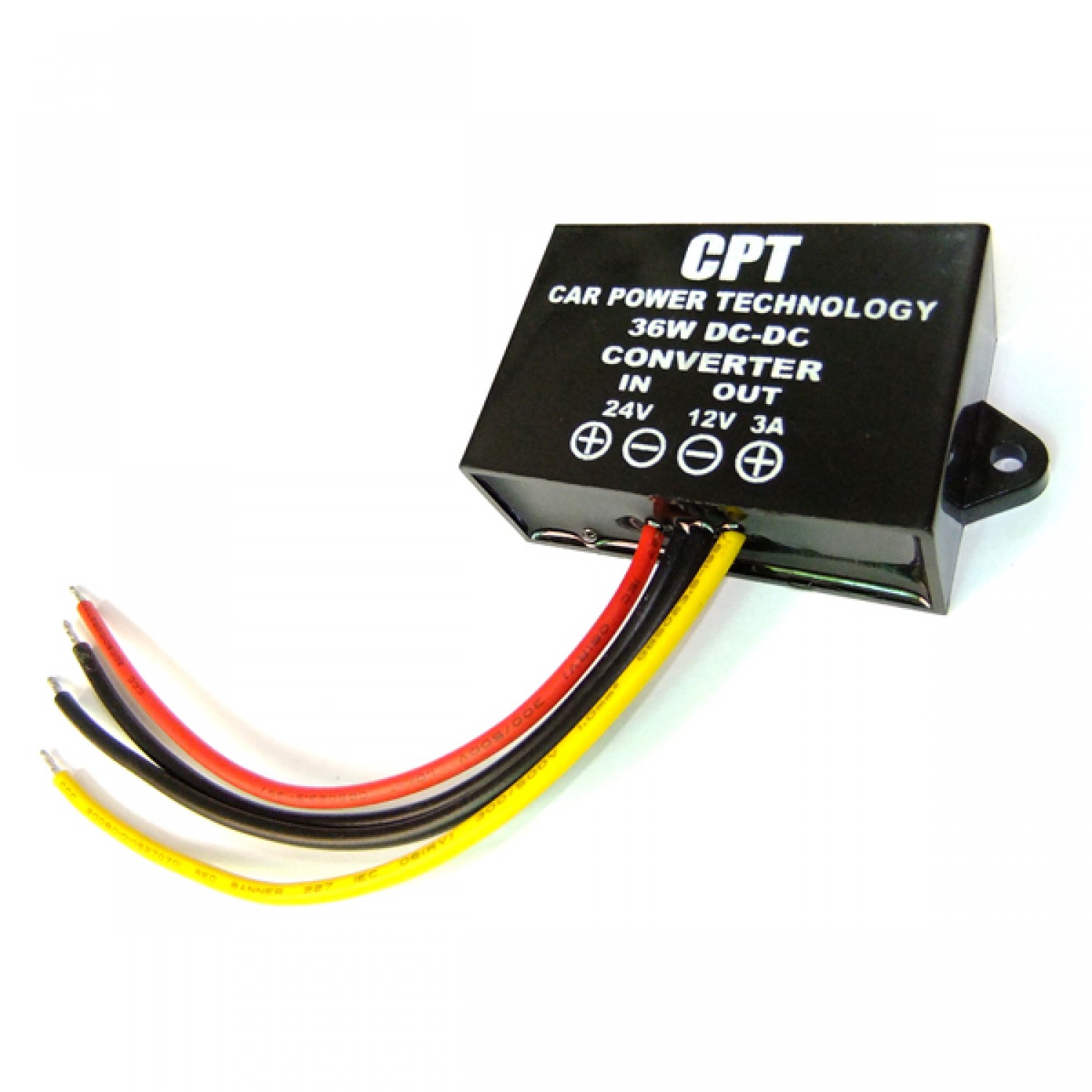

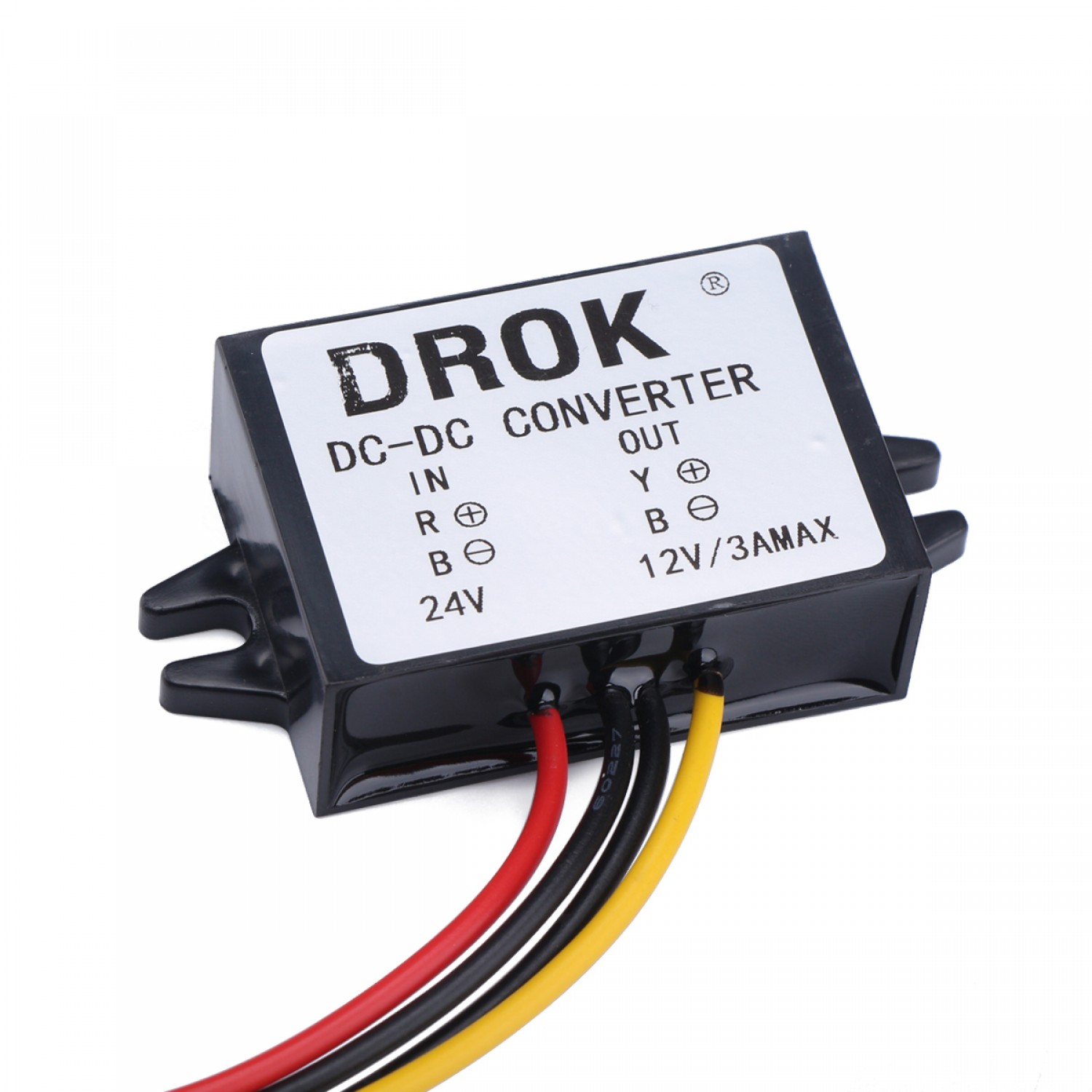

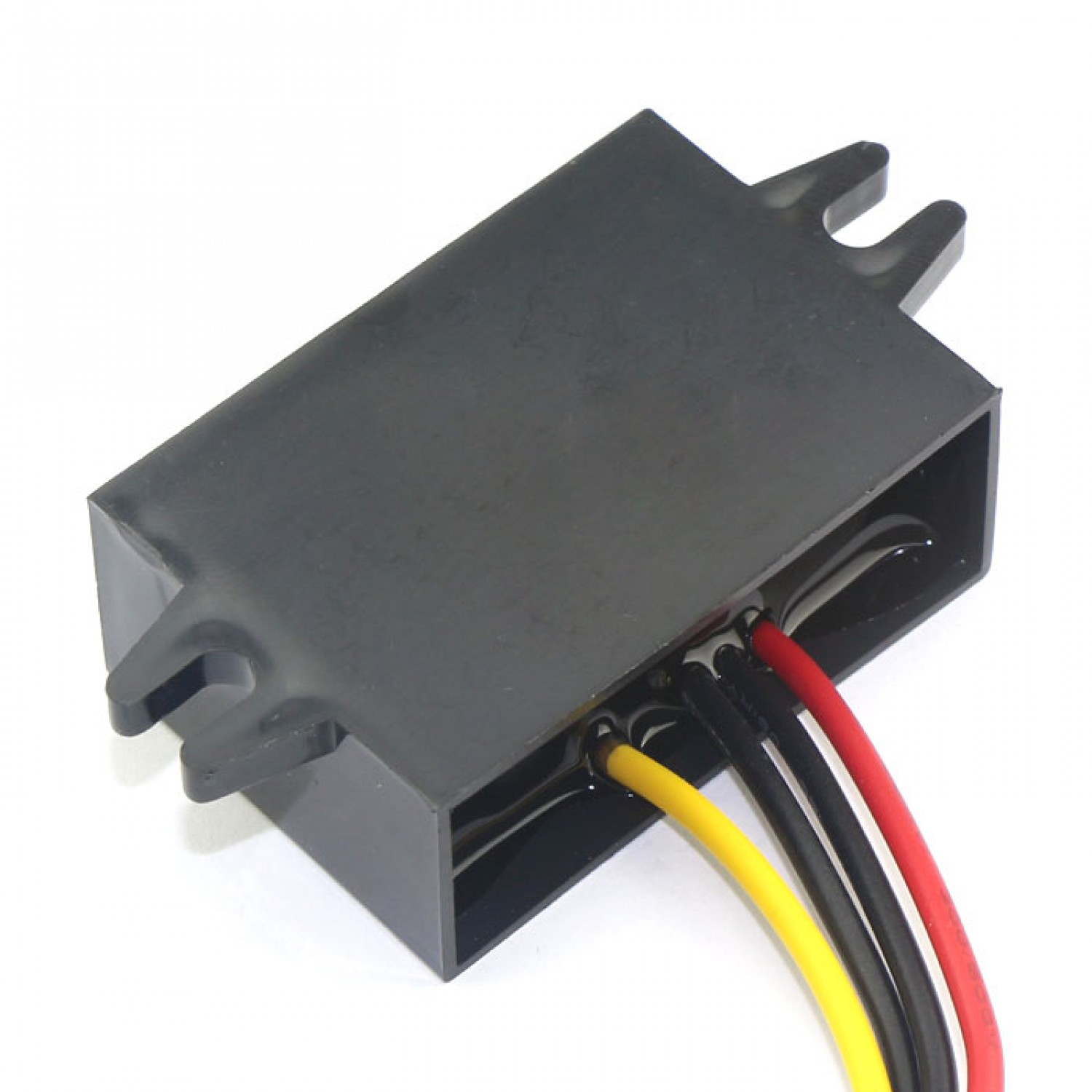

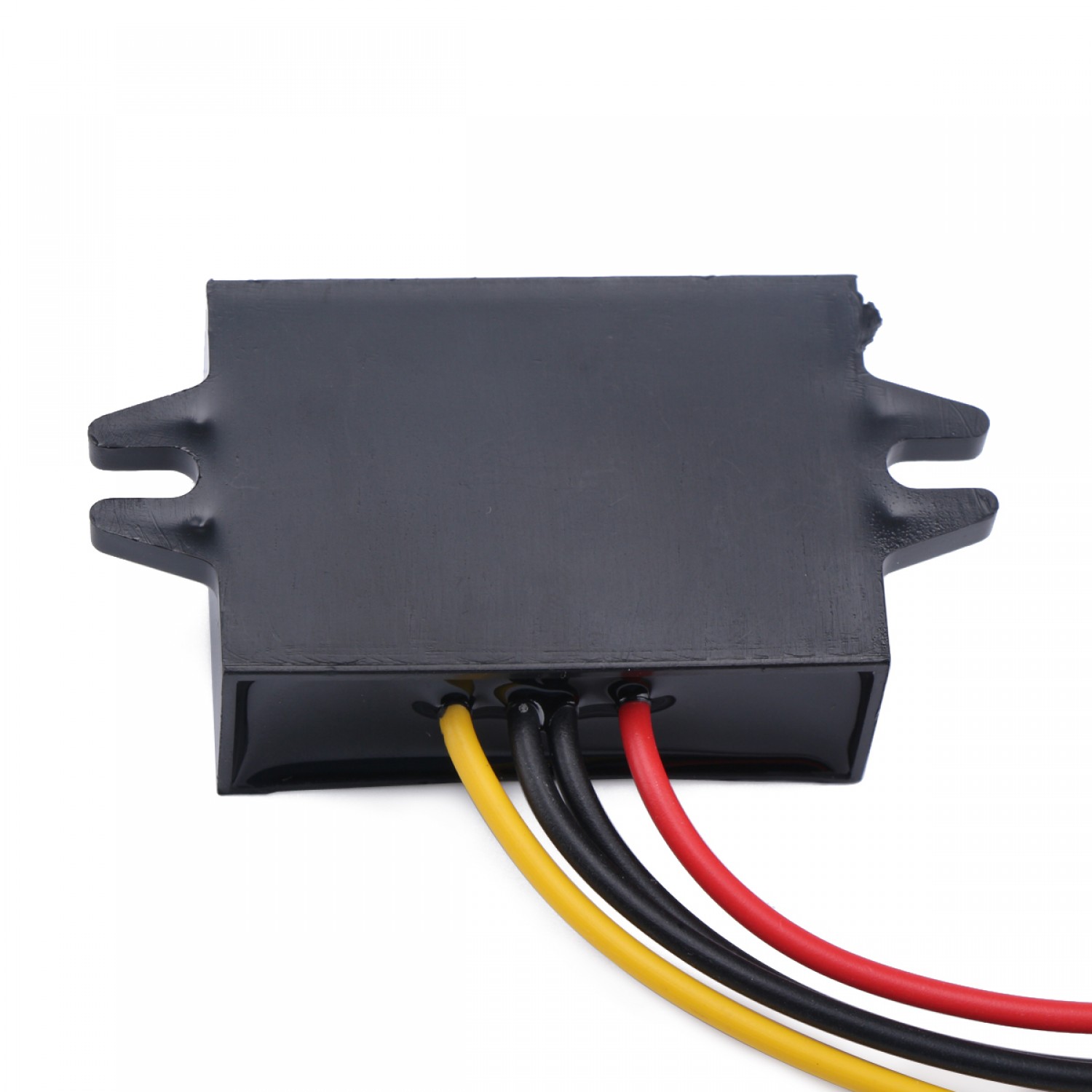

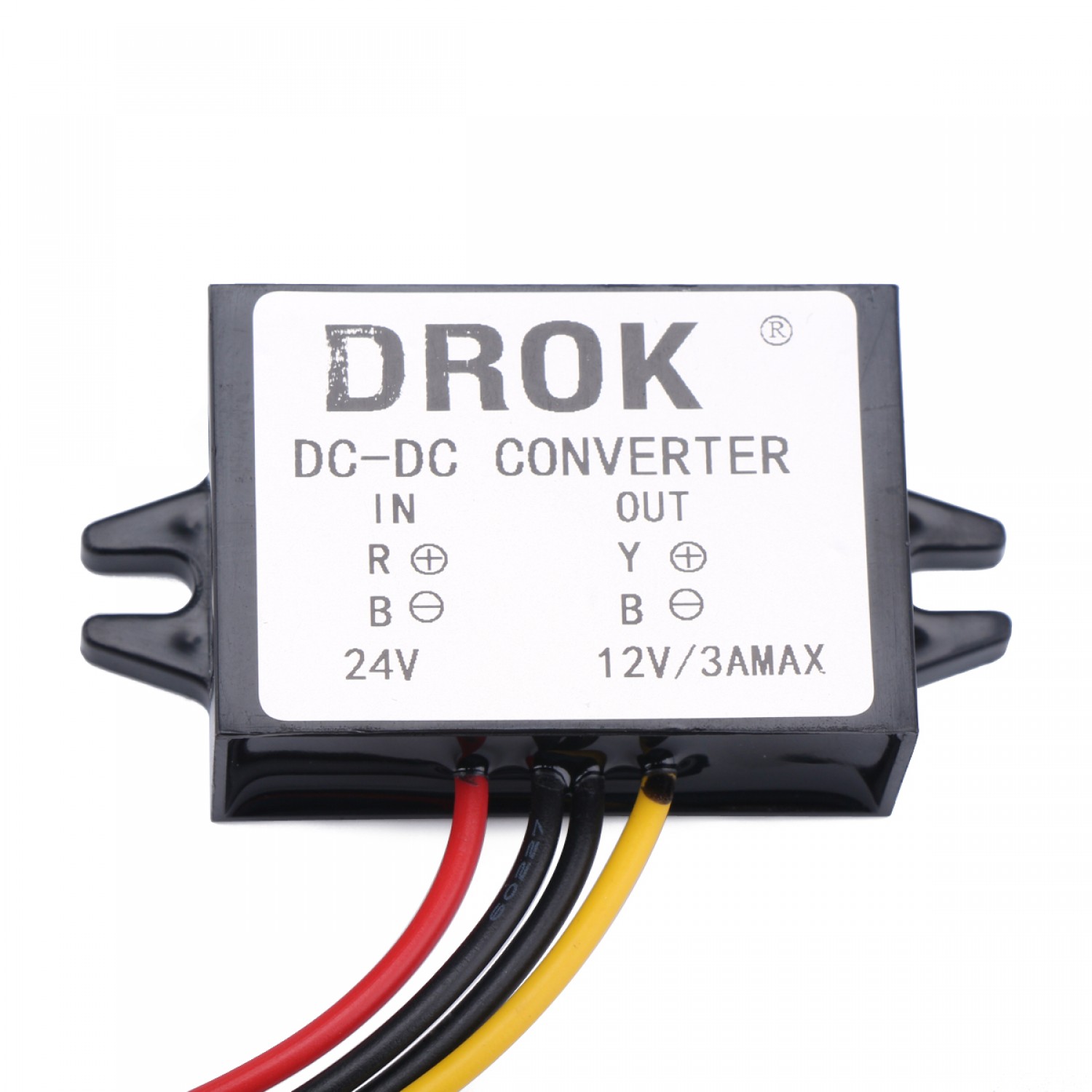

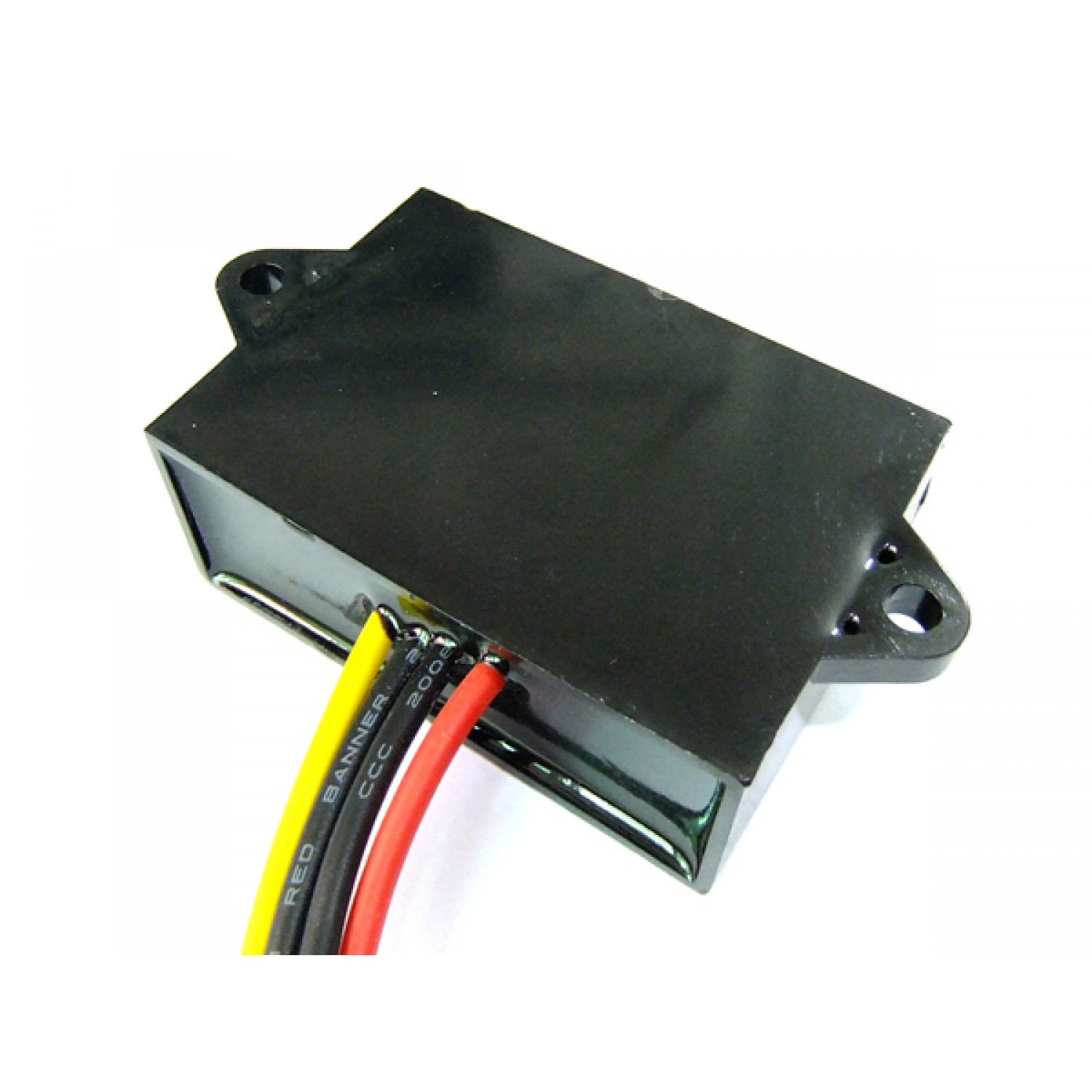

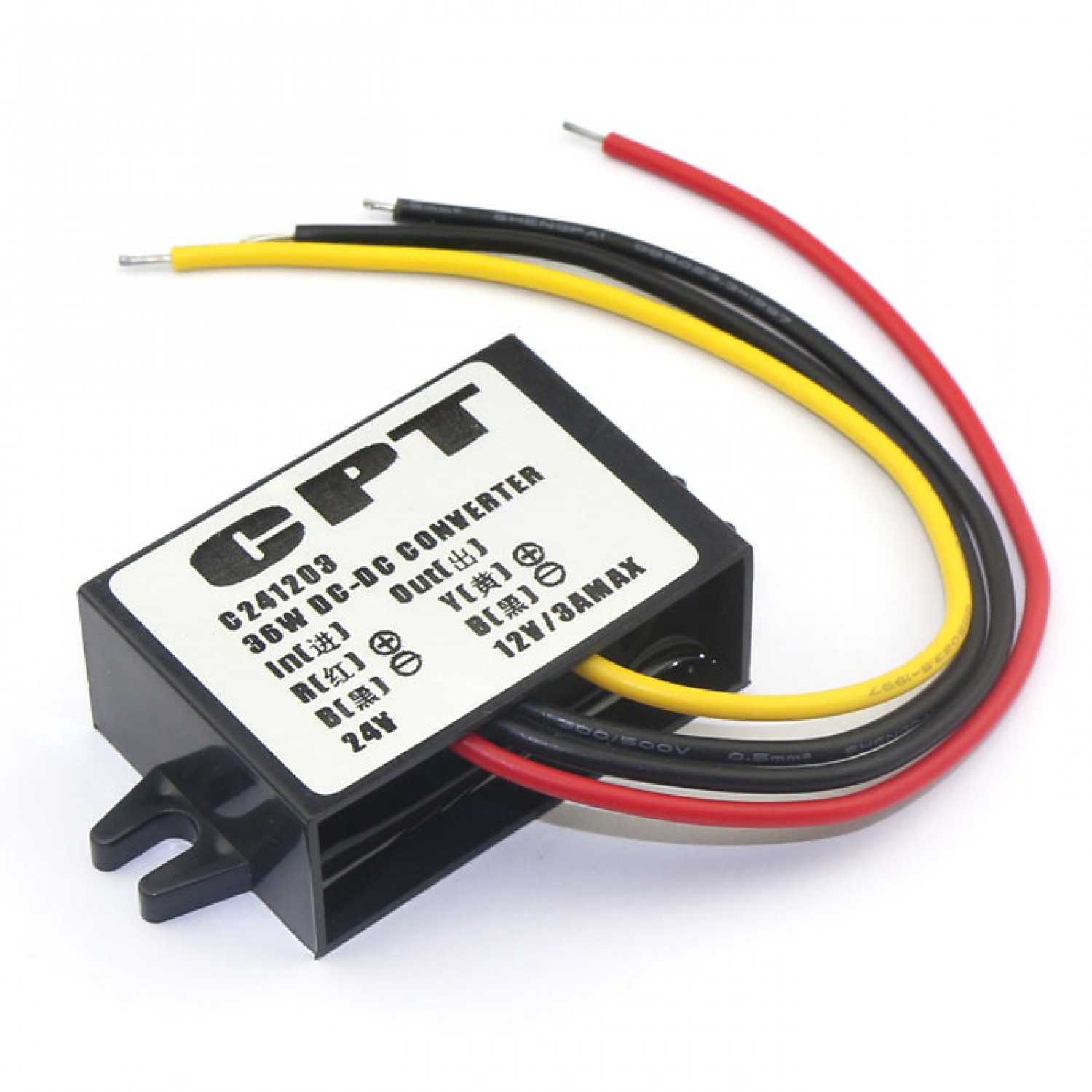

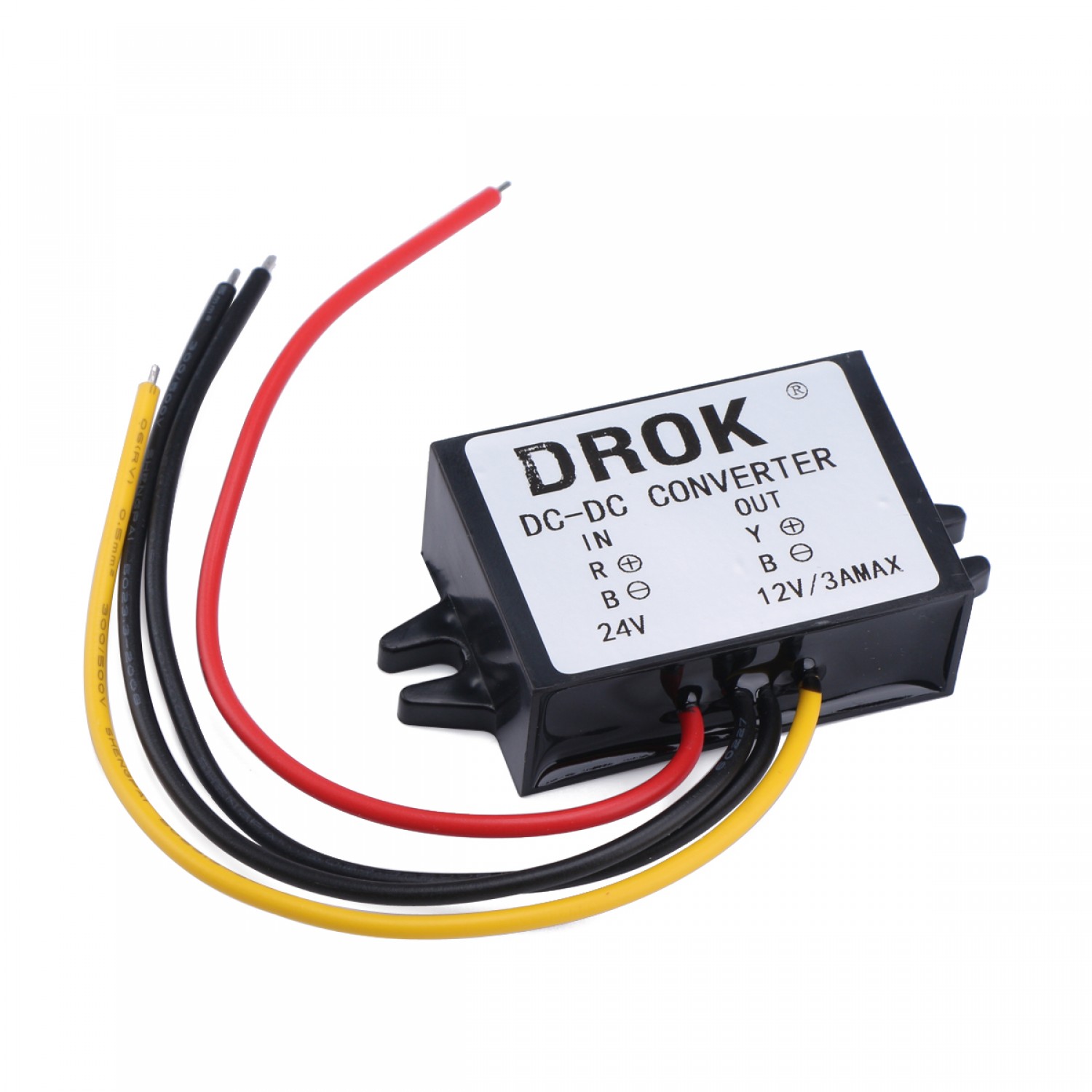

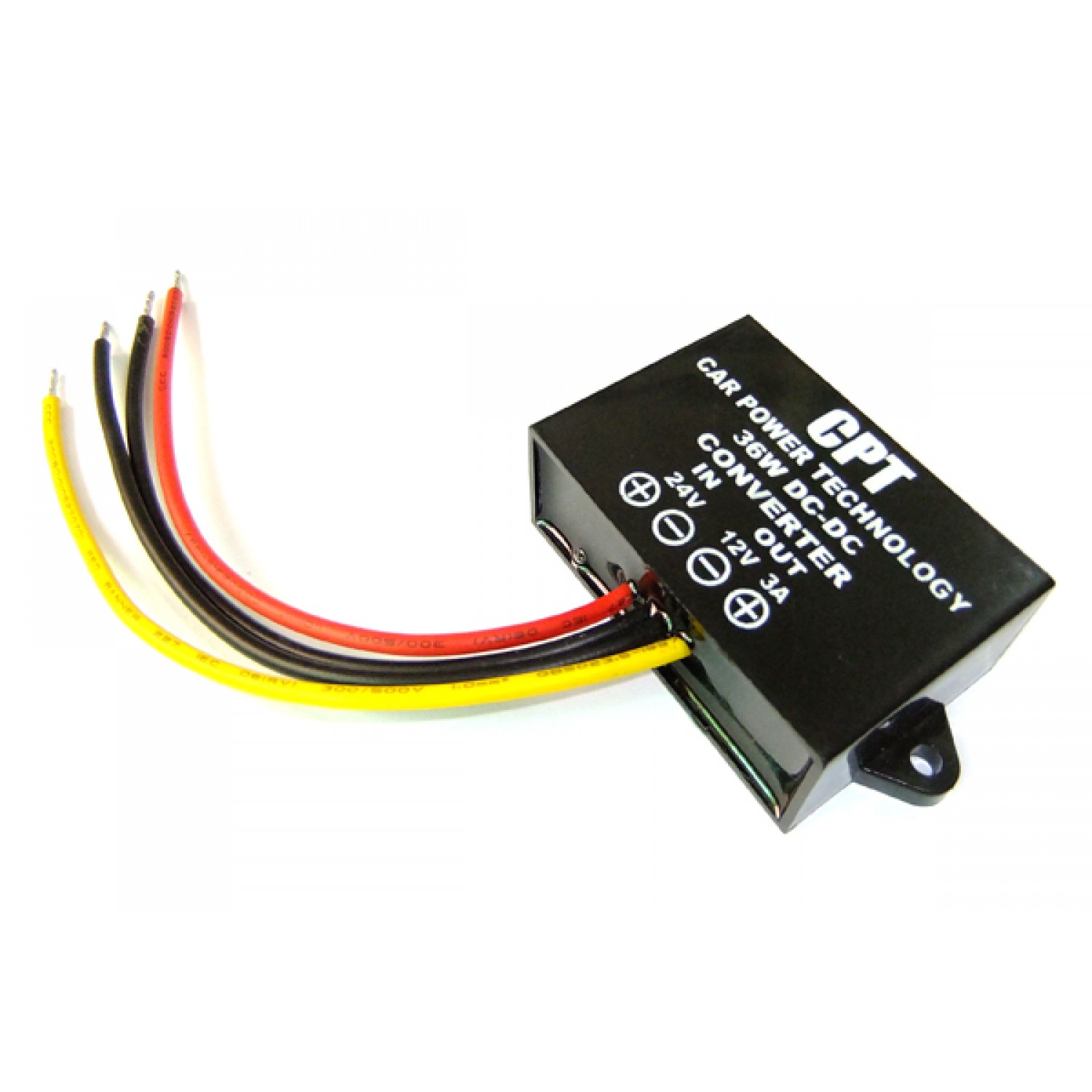

This is a DC-DC Power Supply Converter Buck Module, voltage range 15-35V to 12V, output power 36W, conversion efficiency more than 90%, to hair the calorie very low, it has short circuit, overcurrent protection.
Specifications:- Module Properties: non-isolated buck module (BUCK)
- Rectification: synchronous rectification
- Minimum pressure: 2V
- Input voltage: DC 24V (17V-35V)
- Output voltage: 12V
- Output Current: 3A
- Output Power: 36W
- Conversion efficiency: 90%
- Output ripple: 50mV (MAX) 20M-bandwidth
- Full load temperature rise: 50 ℃
- Load regulation: ± 1%
- Voltage regulation: ± 2%
- Dynamic response speed: 5% 200uS
- Operating Temperature: Industrial (-40°c to +85°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
- Overcurrent protection
- Short-circuit protection
- Input Reverse Polarity Protection: None (Please Series diode at the input port.)
- Waterproof design
- Waterproof full-potting

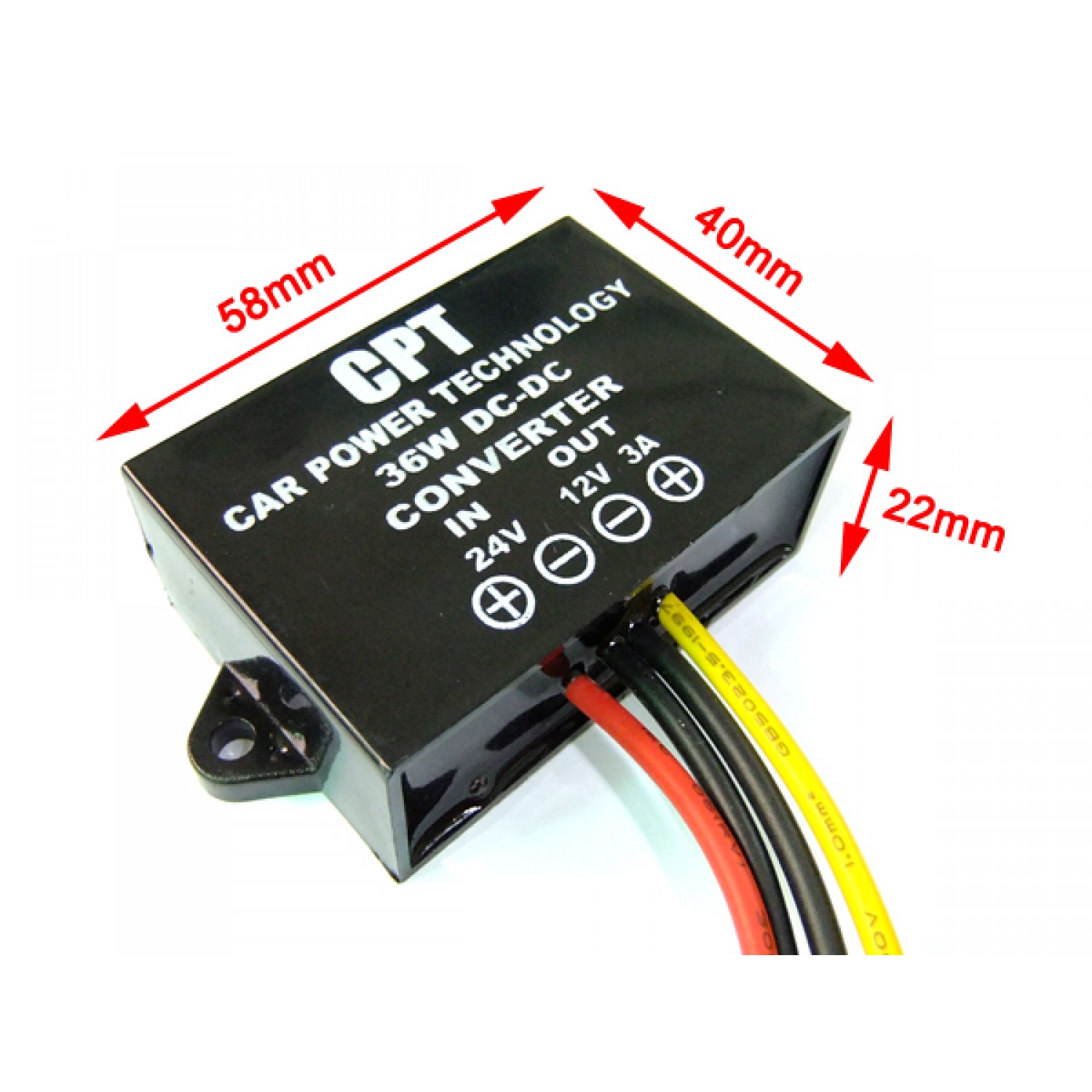

- Small size: 58x40x22mm
- 1 x DC/DC Converter
Attributes | |
input voltage | 24V |
output current | 3A |
output power | 36W |
output voltage | 12V |
output ways | 1 |
