Parameter:

Input Voltage: DC 10V~40V (12V/24V)

Output Voltage: 5V

Output Current: 15A

Output Power: 75W

Conversion Efficiency: >90%

No Load Voltage Range: Set voltage ±3V

Load Regulation: ±3%

Quiesent Power Dissipation: <10mA

Operating Temperature: -25~65℃

Storage Temprature: -40~85℃

Operating Humidity: 10%~90%

Waterproofing Grade: IP67

Over-current Protection: Yes

Over-temperature Protection: Yes

Short-circuit Protection: Yes

Cooling Method: Nautral cooling

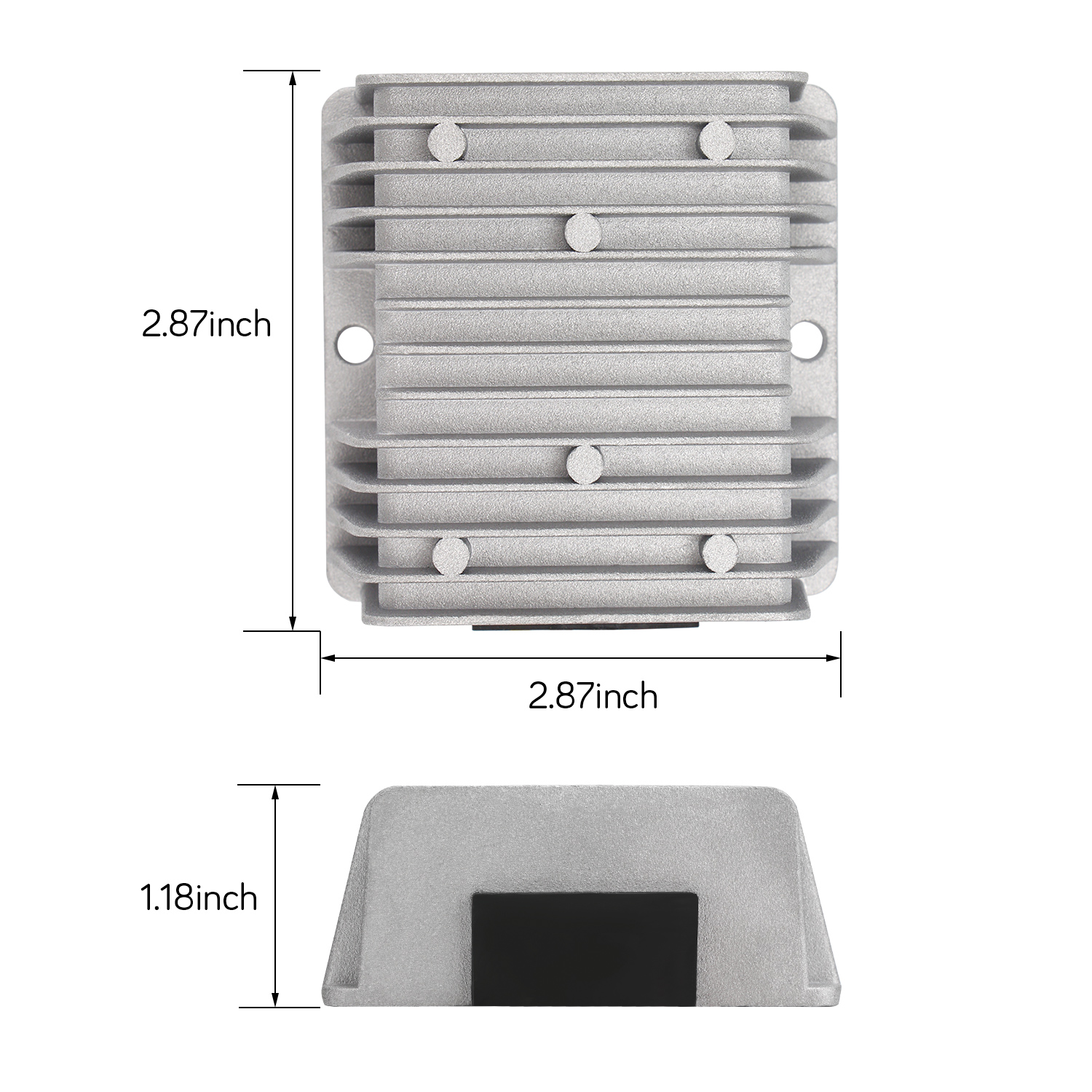

Dimension: 2.87*2.87*1.18 inch

Installation Hole Distance: 2.56 inch

Installation Hole Diameter: 0.20 inch


Features:

  • PARAMETER --- DROK DC-DC buck converter module input voltage is DC 10V~40V (12V/24V); output voltage is DC 5V; output current is 15A; output power is 75W.
  • APPLICATION --- the DC power module can be used in cabling system for monitoring fire alarming system; bus, minibus, truck display screen, taxi advertising screen; automotive audio system, speaker, LCD television, LED; solar power generation system; interphone and monitoring system, etc.
  • PROTECTION --- this voltage regulator comes with over-temperature protection, over-current protection short-circuit protection and IP67 waterproofing grade.
  • FEATURE --- this power supply module adopts synchronous rectification technology, with conversion efficiency of over 90% and low heat generated; high-integrated chip, stable and reliable.
  • NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.


Note:

1. Connect the wiring in strict according with the wiring instruction.

2. Use short and thick input & output wire to ensure output enough voltage and power.

3. If there are multiple output wire, do not combine the load.

4. Leave a margin for the power supply to ensure it can long-term stably working.


Package Included:

1x Car Voltage Regulator Module
