Product Description - DROK DC Coulombmeter

DROK DC 8-100V Coulombmeter 100A

Explore the versatile and high-precision DROK DC Coulombmeter, ideal for monitoring voltage, current, and capacity with multiple advanced functions.

Parameter

VoltageDC 8-100V
CurrentDC 0.05-100A
Capacity0.1-99999AH
Power50KW
Voltage Precision±1% + 2 digits
Current Precision±0.5% + 2 digits
Measure Speed20 Times per Second

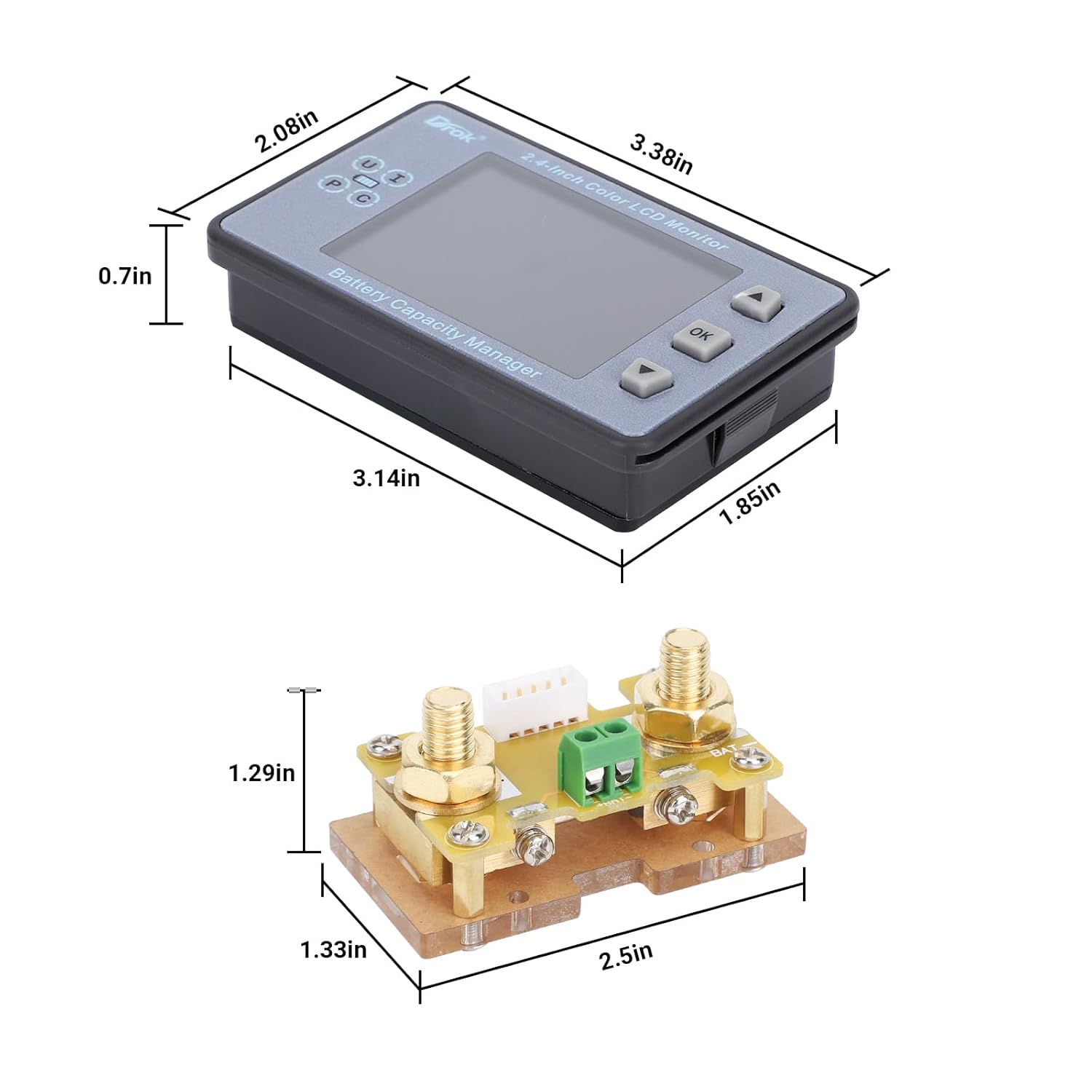

Meter Size86*53*17mm / 3.39*2.08*0.67in
Measure Board Size56*36*34mm / 2.20*1.42*1.34in

Features

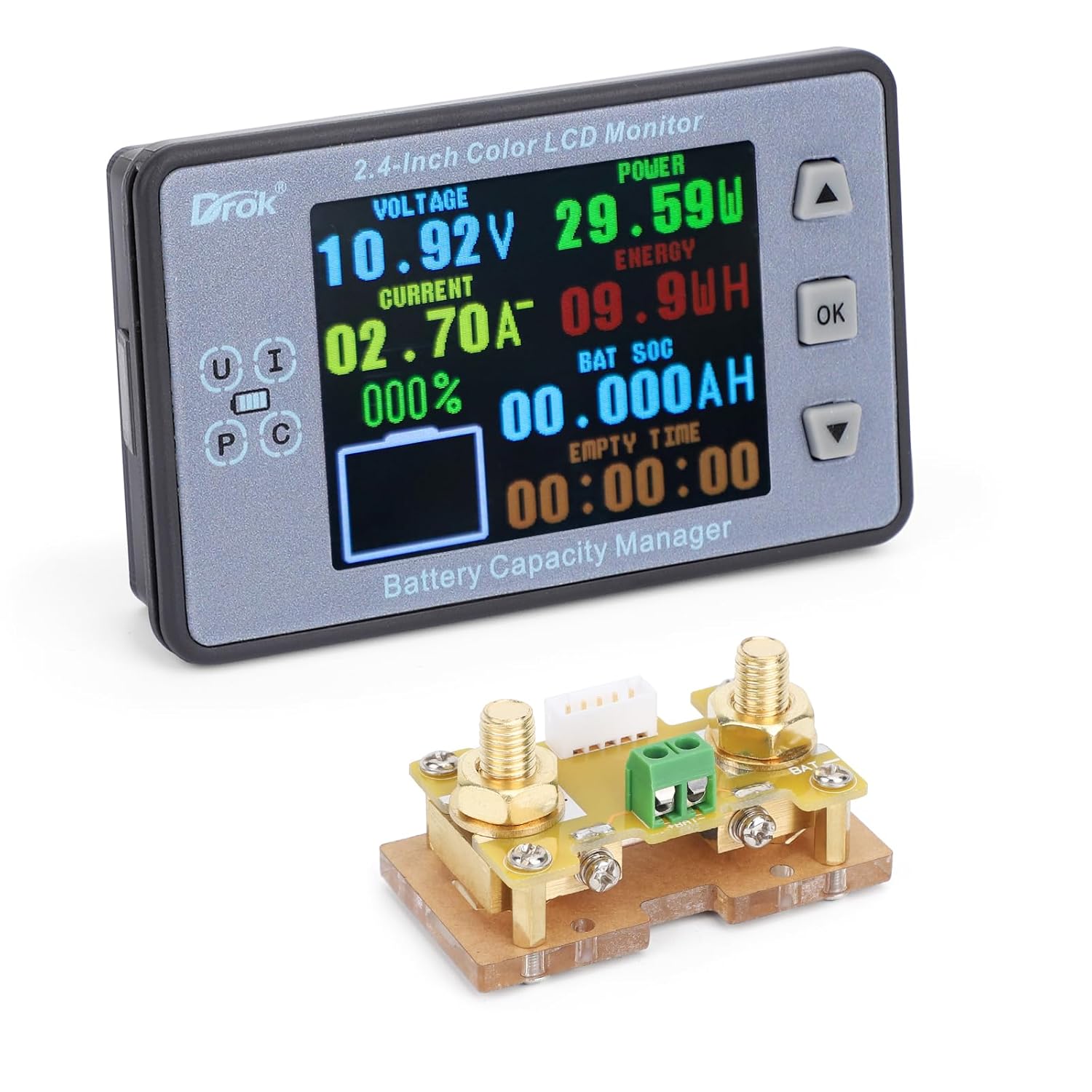

  • LCD Display: This coulometer is equipped with a 2.4-inch LCD high-precision color screen. Bigger size and higher contrast make it easy and clear to read the parameters anytime, whether at night or day, indoors or outdoors, even under the sunshine.
  • Backlight Alarm: After turning on the LBR function, when the remaining capacity is lower than 20% or voltage is lower than LVP, the backlight will flash to alarm. The backlight will also flash when the charging current is higher than STI (the current value for turning off the screen).

Functions

  • CLR: Current clear function. Clears no-load current.
  • BAT: Set battery total capacity.
  • BPC: Set available capacity percentage.
  • LED: Adjust LCD backlight brightness (Level 0-10).
  • STE: Set screen turn-off time for inactivity.
  • STI: Set current threshold for screen auto on/off.
  • BKC: Set screen display colors (black-white/colorful).
  • LAG: Set language (English/Chinese).
  • LVP: Low voltage alarm and capacity auto-clear.
  • LBR: Backlight alarm for low capacity/voltage.
  • ADS: Communication address setup.
  • PAI: Adjust current zero threshold.
  • OVP: Set maximum capacity voltage threshold.
