It is a LCD Digital Ammeter,DC 8 ~ 12V Powered,Measuring rang: DC 0~50A,Operating current: <15mA,with blue backlight.
Technical parameters:
- Operating voltage: DC 8 ~ 12V
-
Measuring rang: DC 0~50A
- Operating current: <15mA
- Display: LCD, blue backlight, character height 20mm
- Dimensions: 79 × 43 × 25 mm
- Installation hole: 76 × 39 mm
- Weight: about 60g
- Measuring rate: ≥2 times / S
- Over-range display: the first shows "1" or "-1"
Extreme working conditions:
- Working temperature: -10 ~ + 50 ℃
- Operating Humidity: 10 ~ 80% (non-condensing)
- Working pressure: 80 ~ 106 kPa
- Sun exposure: no direct exposure
Package include:

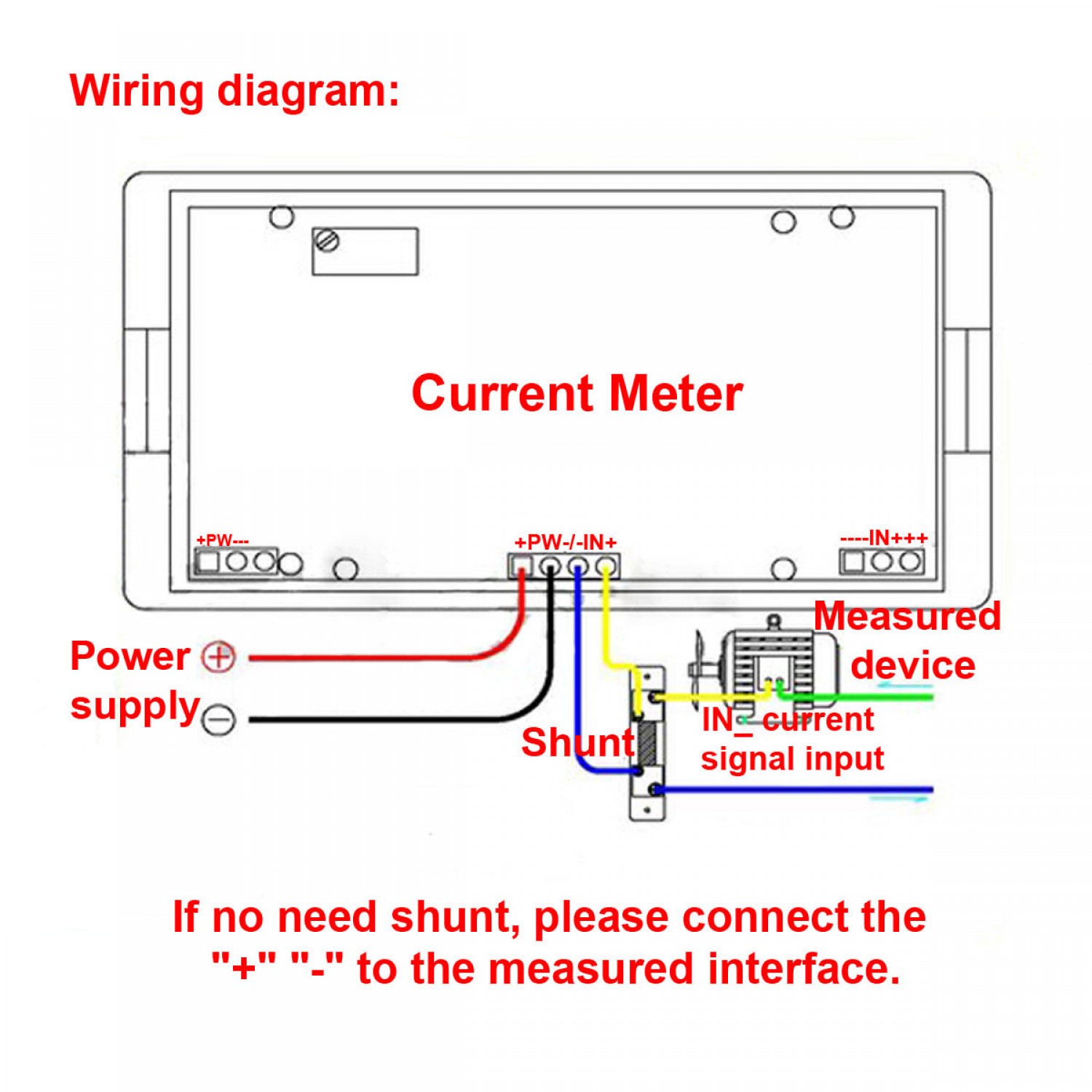

- LCD Digital Ammeter+ 50A/75mv Shunt
| Attributes | |
| input voltage | 8~12V |
| output current | 0~50A |
| output power | -- |
| output voltage | -- |
| output ways | 1 |
Digital Ammeter Gauge DC 0-50A amp Ampere Meter Current Panel Meter LCD Monitor
- Brand: Drok
- Product Code: 300114
- Availability: In Stock
- $15.83
- $7.90
-
Bulk Buy Discounts. Buy more please contact us
Qty 5 10 20 30+ Price $6.76 $7.11 $6.72 $6.32
 |  |
