Parameters:
- Input Voltage: 24V
- Applicable Battery: 24V Lead-acid battery
- Detech Value: battery level; electric quantity percentage; voltage; tempetature
- Working Consumption: 5mA typically, 6mA max
- Voltage Accuracy: ±0.1% typically, ±0.5% max
- Temperature Accuracy: ±0.5°c typically, ±1°c max
- Dormant Mode Consumption: 6~12uA, 10uA typically
- Working Temperature: -10~55°c
- Reverse Protection: Yes
- Display: LCD color screen
- Buzzer Alarm Volume: 70~80dB, 75dB typically
- Buzzer Alarm Voltage: 11.5~100V adjustable
- Auto Power-off: Yes
- Auto Power-off Time Value: Adjustable
Features:
- Wide input voltage of 0~100V
- With reverse protection
- Delay power-off ON/OFF & adjustable delay time
- Built in a 70dB buzzer
- The red indicator flashes as a reminder of low battery
- Real-time detection of the battery temperature

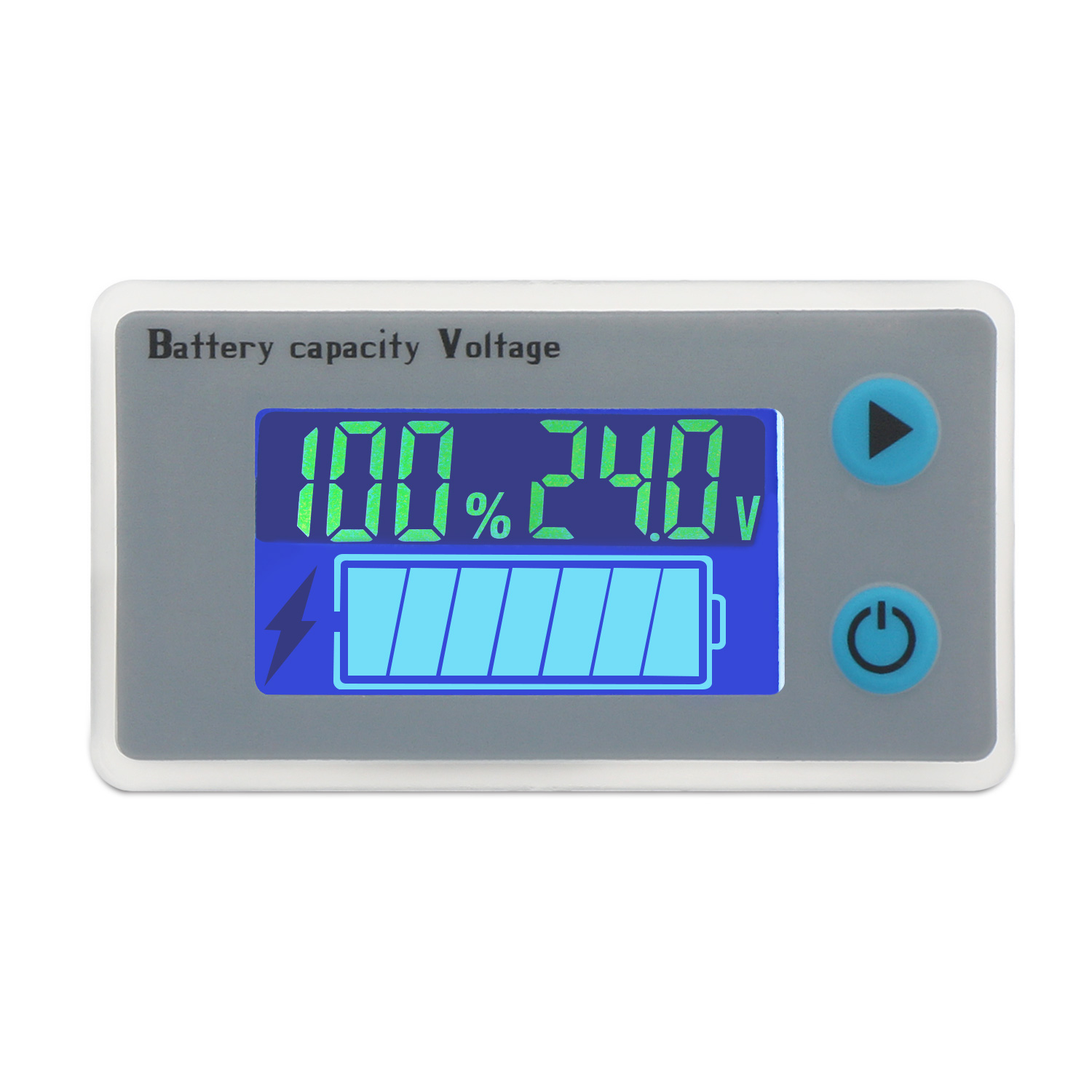

- Adopts color LCD display, can display clearly and softly at night

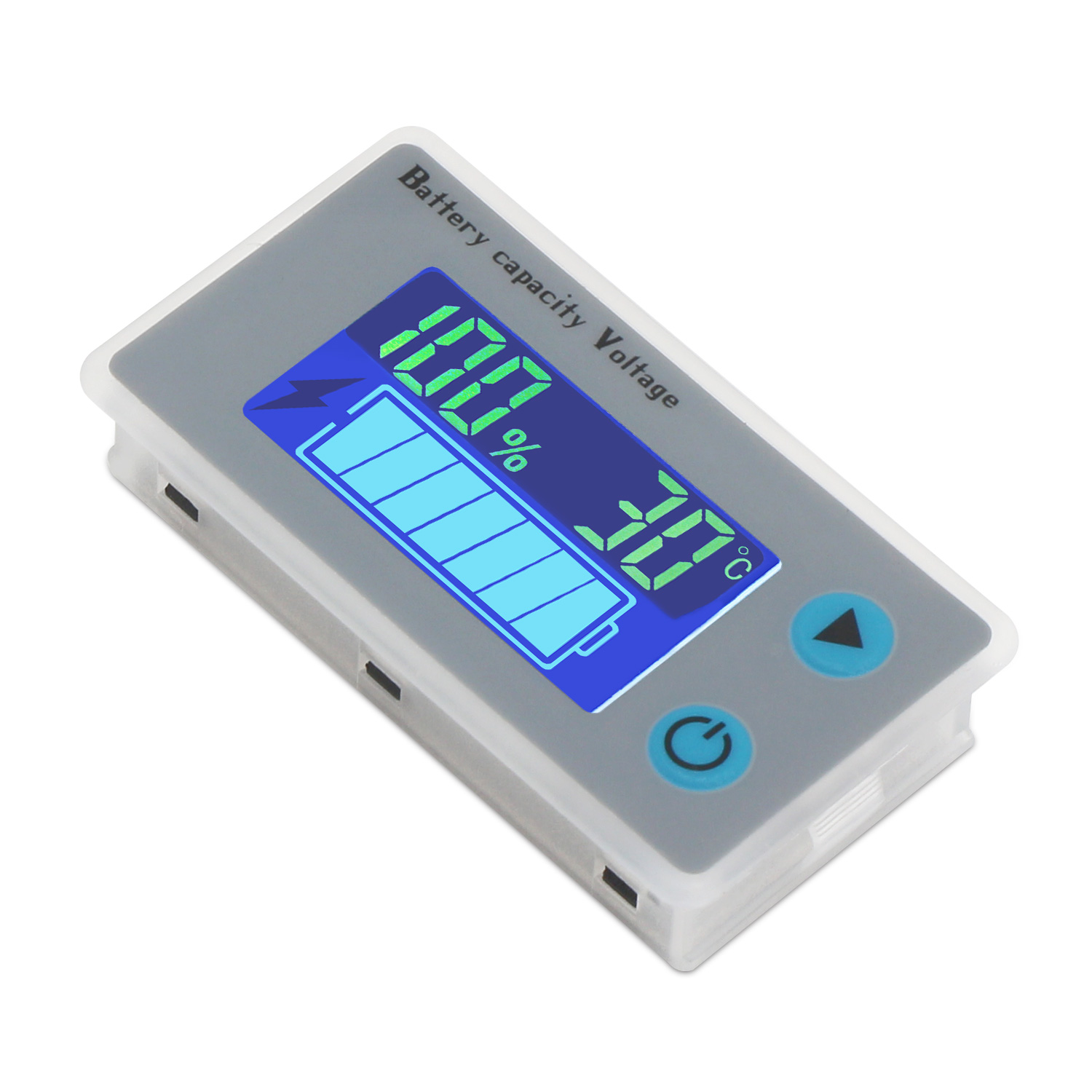

- Display voltage, temperature and the battery capacity percentage in one interface.
- With a buckle, easy to install without screws
- Designed with turn on/off switch, is convenient for your daily using.
- Ultra-low power consumption when it is at dormant mode.

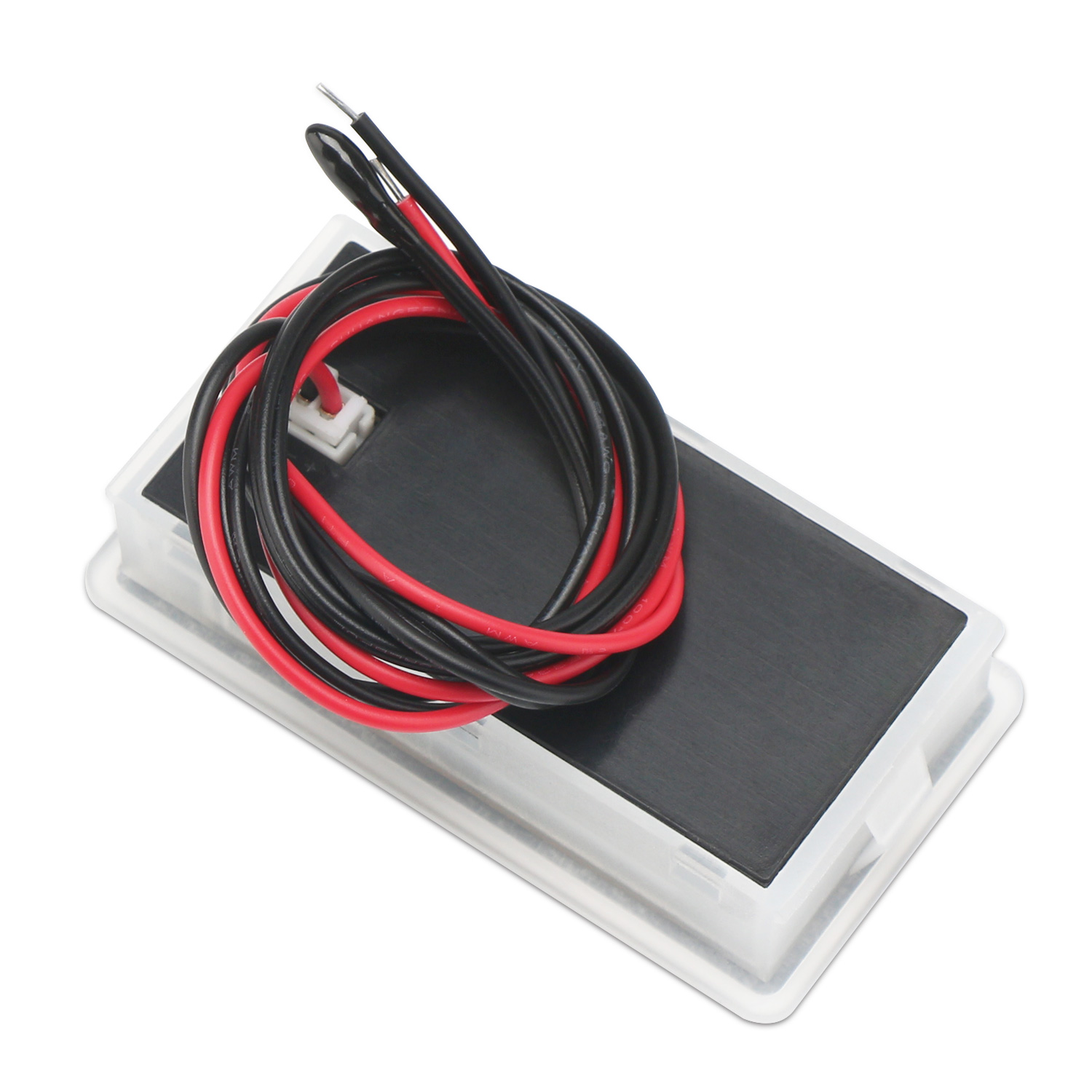

- Designed with a protective back cover, hardtop and simple dust-proof and waterproof surface

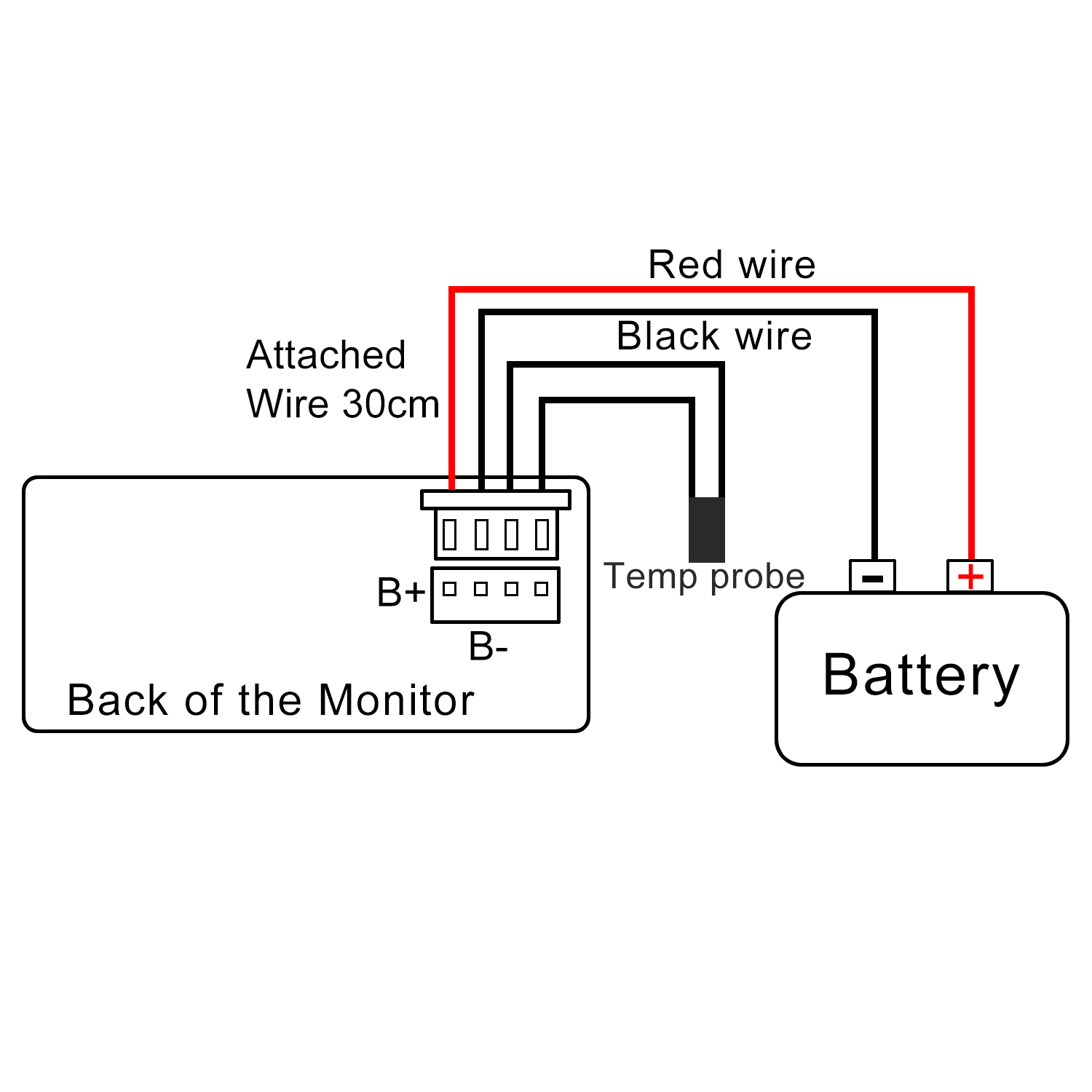

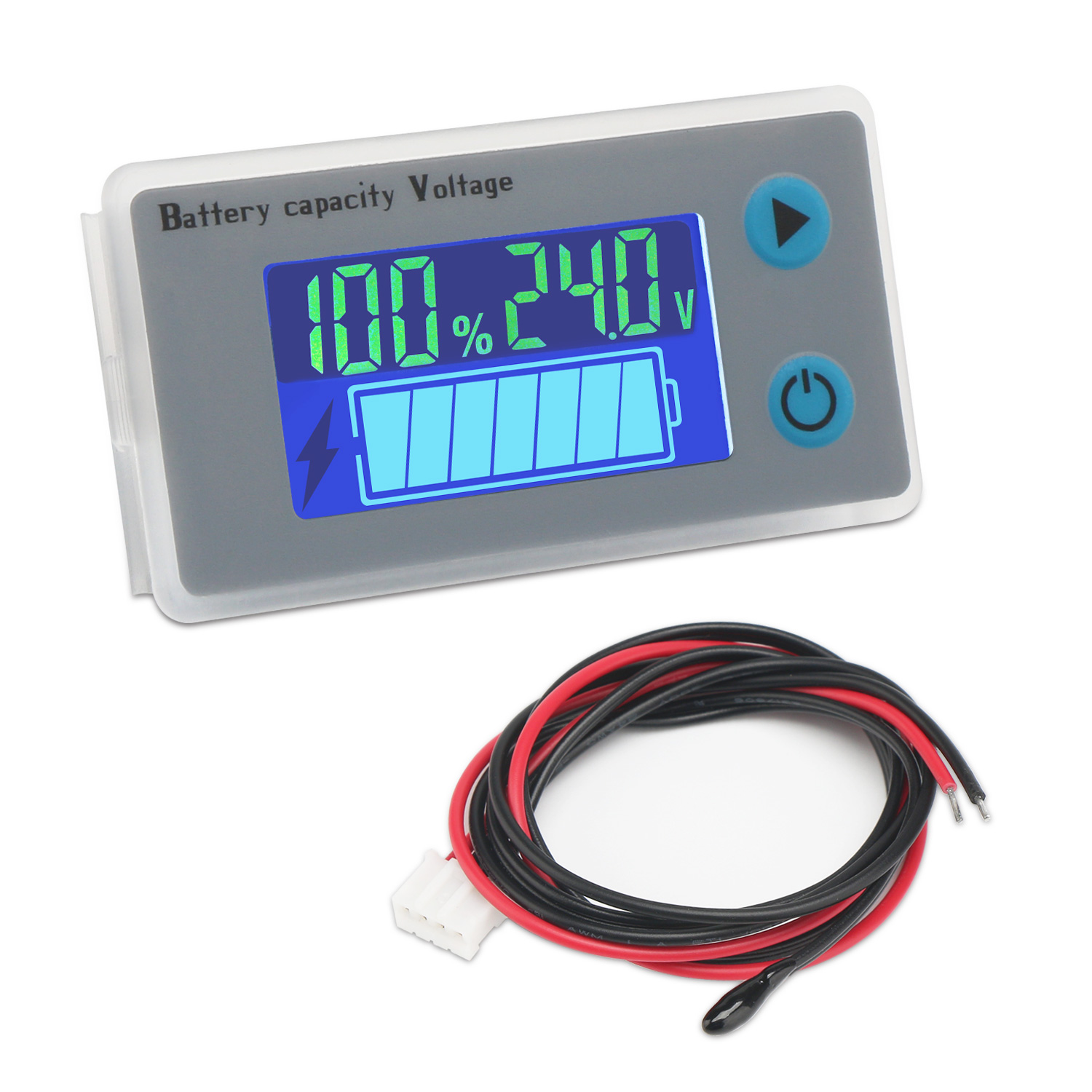

- Come with a 30cm wire and an external 30cm temperature sensor.
Package Included:
- 1 x 24V Digital Tester
Attributes | |
input voltage | 24V |
