Parameter:

--- Input Voltage: 10-100V

--- Defaulted Applicable Battery: 12V lead-acid battery

--- Detect Value: battery level; electric quantity percentage; voltage; temperature

--- Working Consumption: 5mA typically, 6mA max.

--- Voltage Accuracy: ±0.1% typically, ±0.5% max

--- Temperature Accuracy: ±0.5℃ typically, ±1℃ max

--- Dormant Mode Consumption: 6-12uA, 10uA typically

--- Working Temperature: -10~55℃

--- Reverse Protection: Yes

--- Display: LCD color screen

--- Auto Power-off: Yes

--- Auto Power-off Time Value: Adjustable

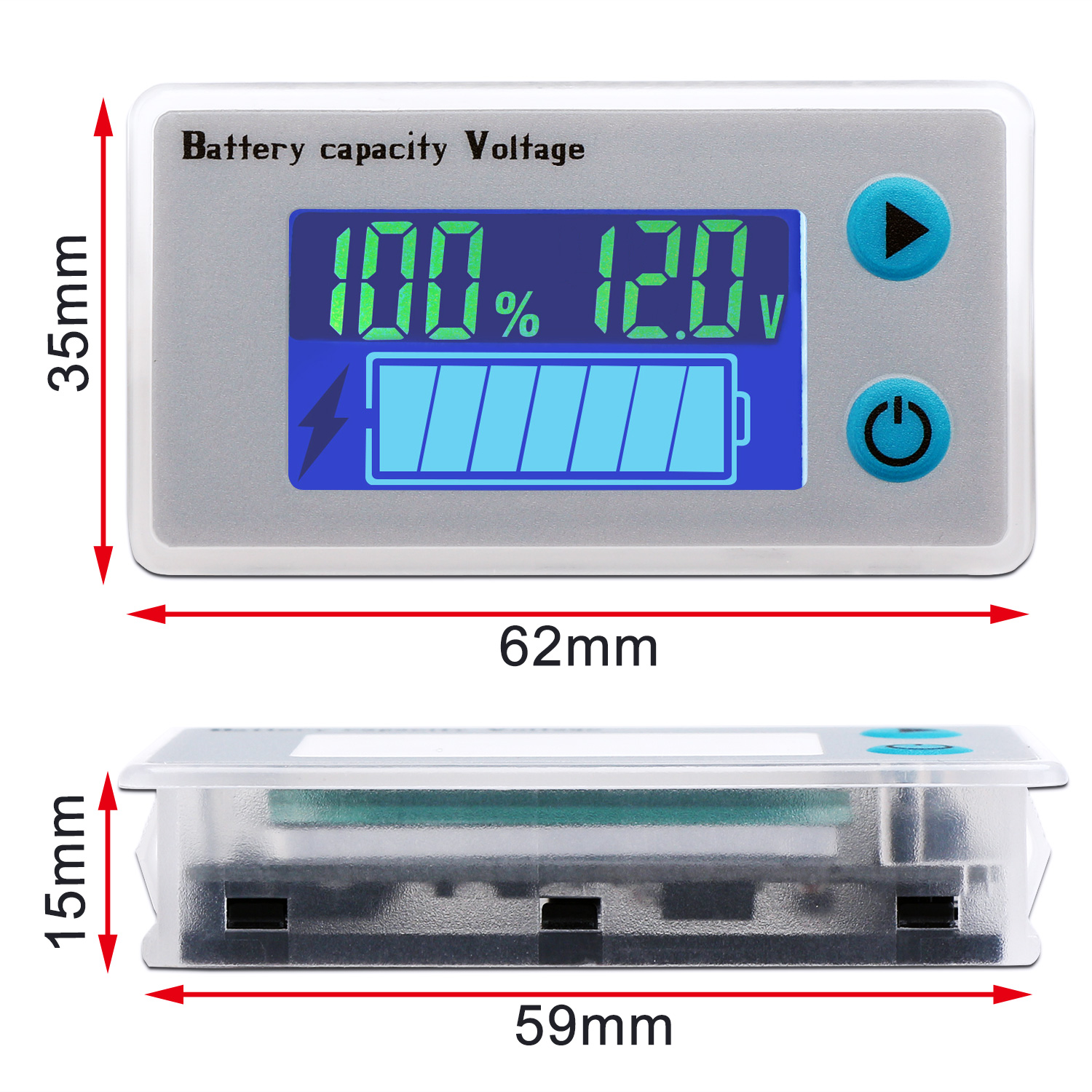

--- Product Size: 61.5*33.5*13.5mm

--- Installation Size: 58.5*28.5mm

--- Display Size: 36*19.5mm

Features:

1. APPLICABLE BATTERY --- DROK battery status indicator is suitable for 10-100V (12V) lithium battery, lead-acid battery, lithium iron phosphate battery, Ni MH battery. Default 12V lead acid battery.

2. APPLICATION --- this multimeter can be used as a battery voltage meter, battery capacity indicator, temperature detector for car, marine, RV, boat, etc.

3. PROTECTION --- the battery power detector comes with protective shell, dustproof waterproof surface; input reverse connection protection.

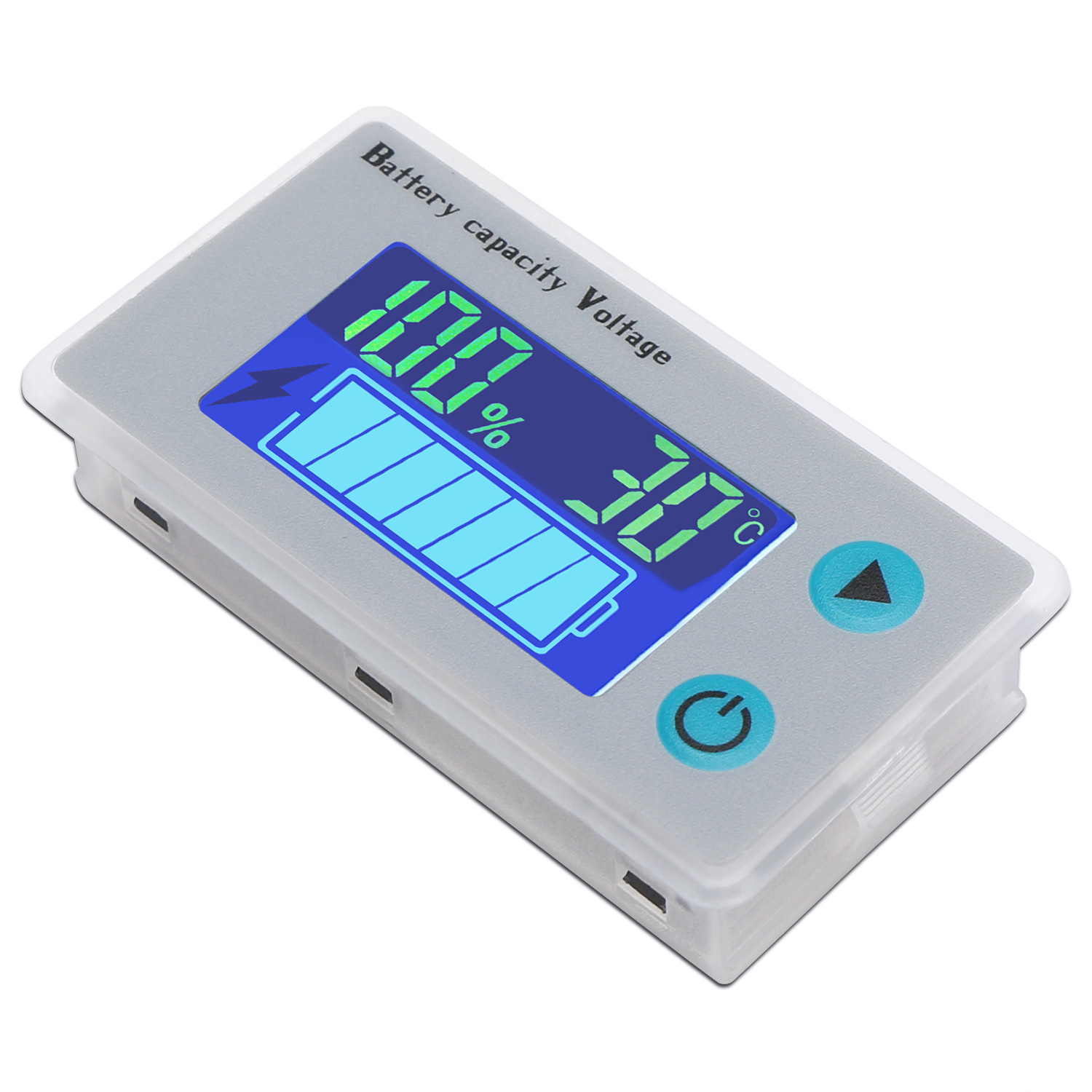

4. DISPLAY --- the battery voltage tester adopts clear LCD color screen, displays batery capacity, voltage, temperature value (switched by button).

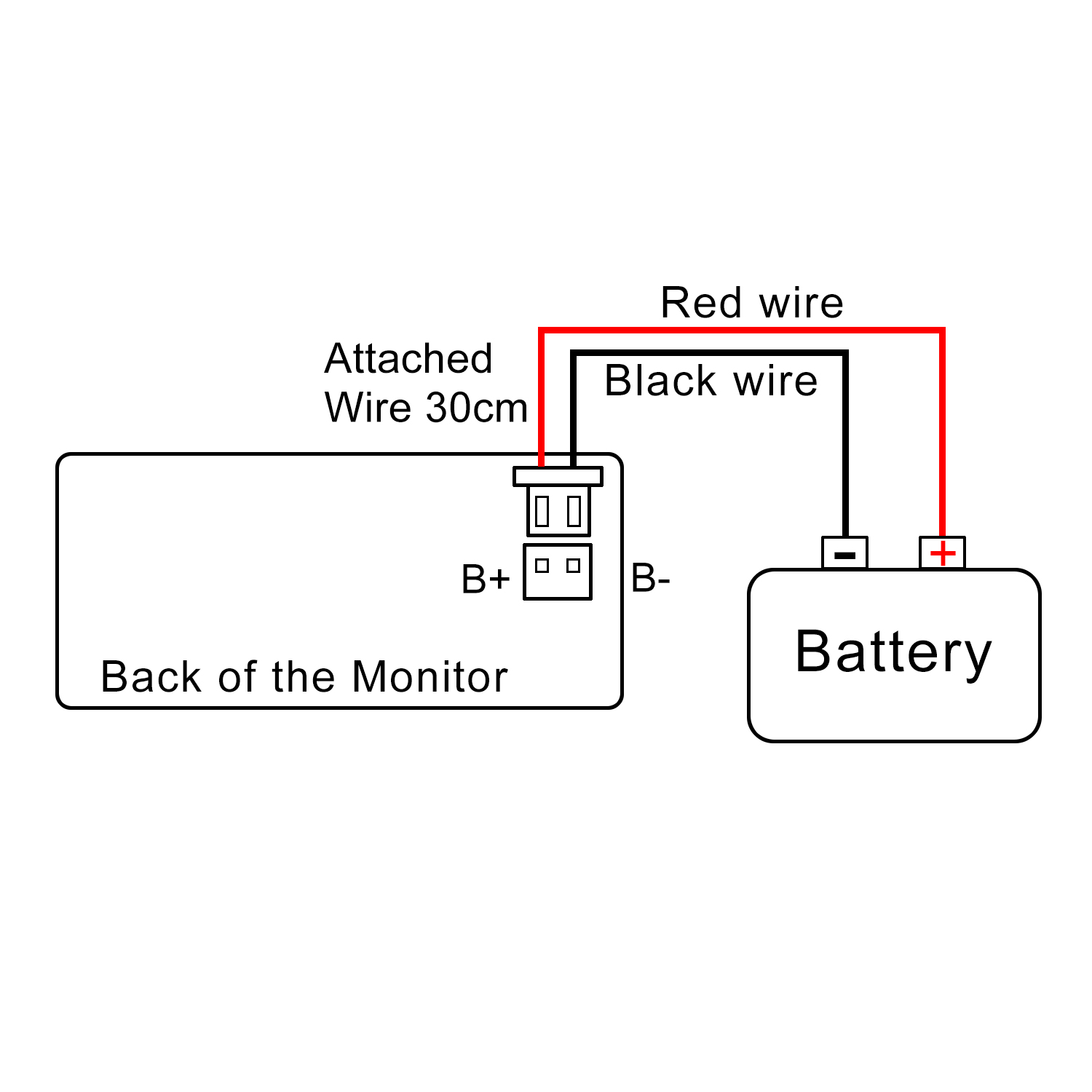

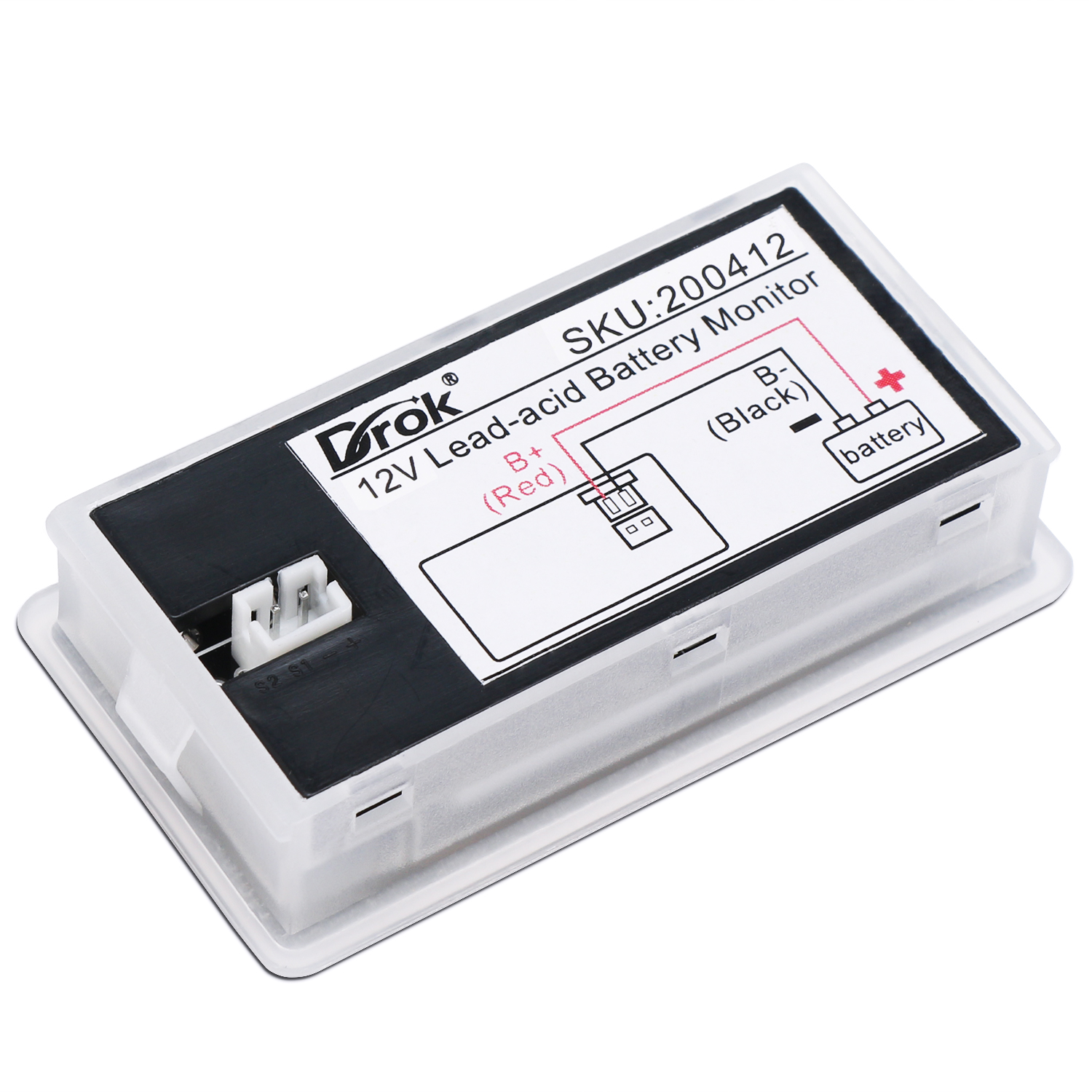

5. INSTALLATION --- red wire for the positive, black wire for the negative.

Package Included:

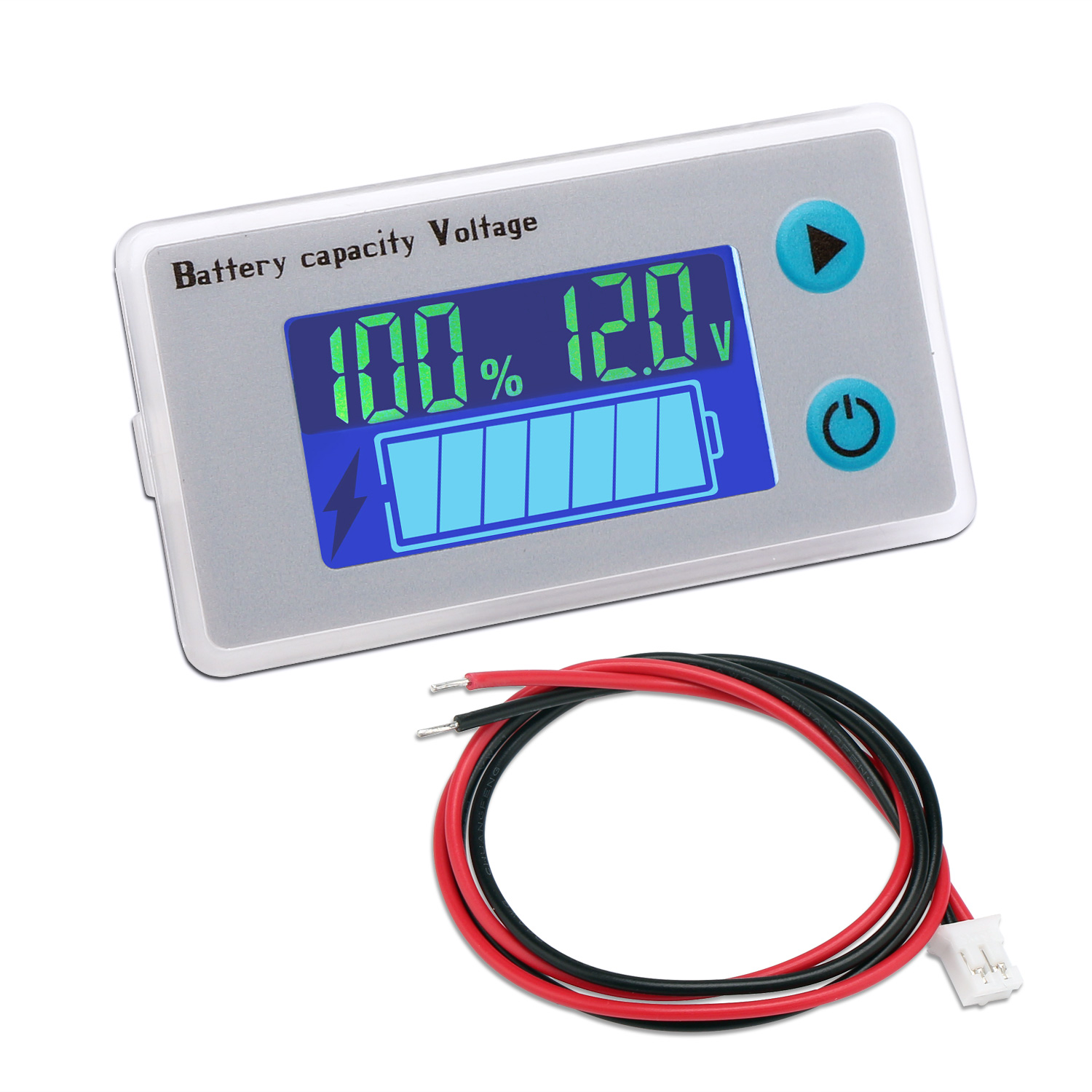

1x 12V Lead-acid Battery Status Indicator
