Parameters:


  • Voltage measuring range: AC 60.00~500.00V
  • Voltage resolution: <100V: 0.01V; >100V: 0.1V
  • Current measuring range: AC 0.000~20.00A
  • Current resolution: <10A: 0.001A; >10A: 0.01A
  • Active power: 00.0~9999kw
  • Active Power resolution: 00.0~999.9W:0.1W; 1000~9999W:1W; 010.0 KW~999.9KW:0.1KW; >1000 KW resolution:1KW
  • Frequency: 45.00~65.00Hz
  • Frequency resolution: 0.01Hz
  • Power factor: 0.000~1.000
  • Power factor resolution: 0.001
  • Electric energy: 0.000-9999KWh
  • Electric energy resolution: 0.000~9.999 KWh:0.001KWh; 10.00~99.99KWh: 0.01KWh; 100.0 KWh ~ 999.9KWh:0.1KWh; >1000 KWh:1KW


Product Features:


  • 1. 6 in 1 meter, capable to measure AC voltage, AC current, active power, frequency, power factor, and electric energy.
  • 2. Capacity clearing method: a key for capacity clearing automatically; store data function when power-down.
  • 3. Display type: LCD display; adjustable blue backlight, bright, slightly bright and not bright; 7 display modes in total.
  • 4. Built-in button for calibrating voltage, current difference and setting other functions.
  • 5. Refreshing speed of display is optional, three speed types (fast, standard, slow) are ready to suitable for different working environment; displaying accuracy can be set as 3-digit and 4-digit to meet different need.
  • 6. The decimal point of displaying number will change automatically; with cover on the back, it will be safer and more convenient during using.

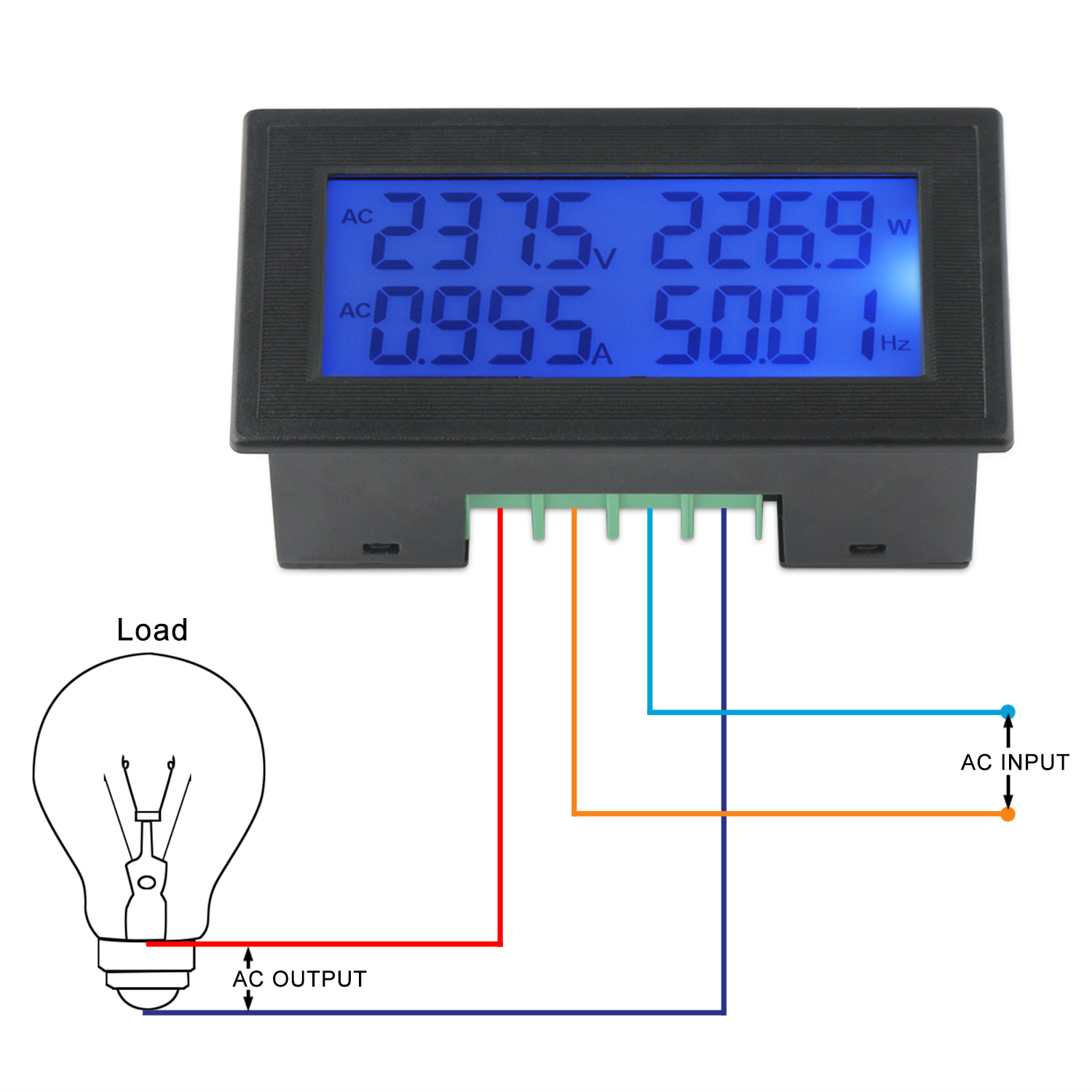

  • 7. Easy wiring work: two wires for input and two wires for output; no need to add extra power supply; built in high accuracy shunt.


Package includes:


  • 1 x Digital Meter


Attributes
output ways 1

Write a review

Please login or register to review
$15.99
  • Stock: In Stock
  • Model: 2001712010
  • Weight: 0.15kg

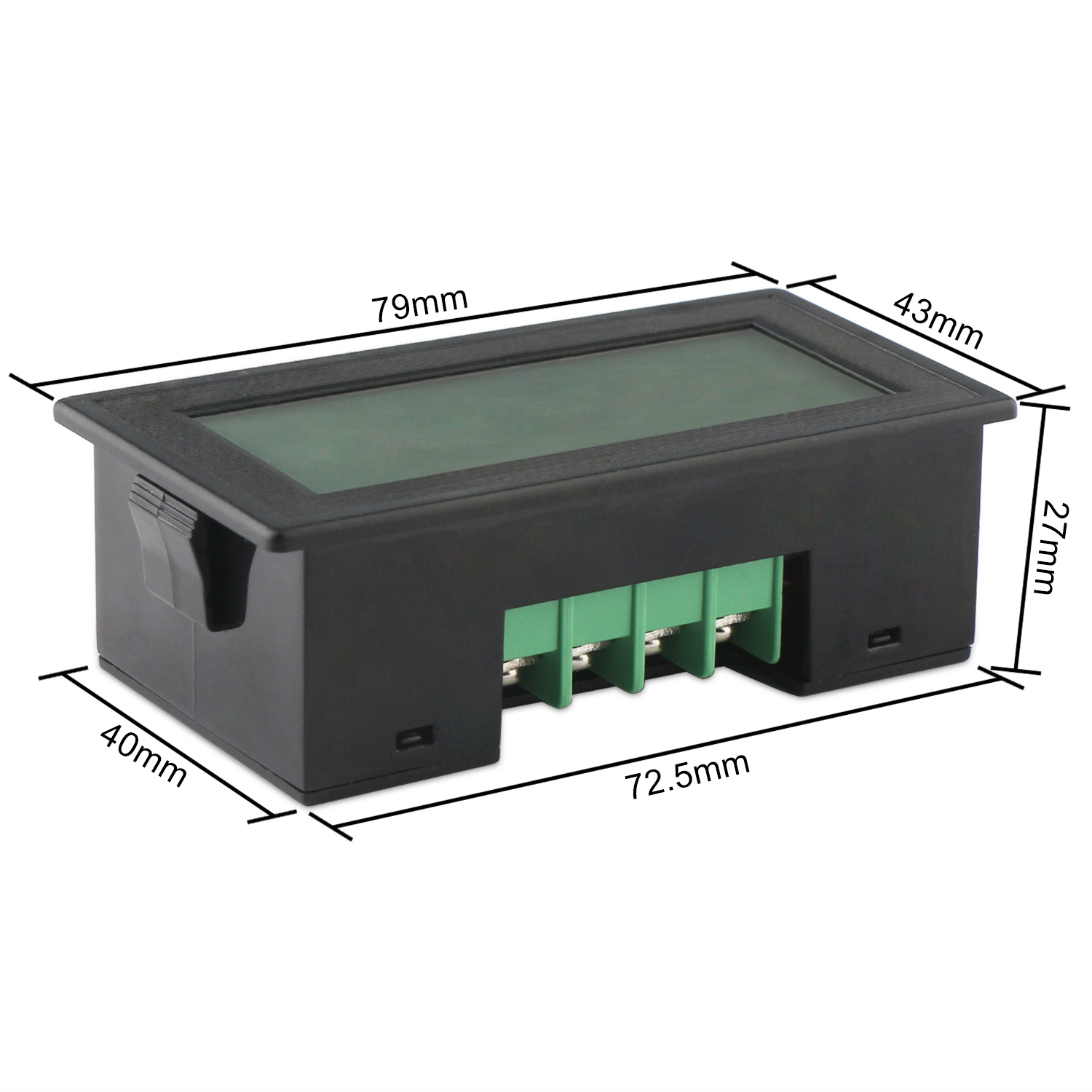

  • Dimensions: 10.00cm x 10.00cm x 10.00cm
  • SKU: 2001712010
