Micro Dual display 2in1 Voltmeter Ammeter, Measure Voltage Range:0.00~99.9V, Measure Current Range:+/- 0.10~9.9A, Measuring accuracy: 1%(+/-2 words), small size, high efficiency, long term stable and reliable quality,easy installation and use. Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Parameter:

• Wiring hole diameter: 8.5 mm
• Transformer dimension : L23.3 x W23 x T9.3 mm
• Testing range: 0.00~99.9V
• Resolution: 0.01(less than 10V); 0.1V(10V-100V)
• Resistance: > 100K
• Measure Current Range: +/- 0.10~9.9A
• Resolution: 0.01
• Power supply voltage: DC 4~30V(Note: the max voltage input should not be larger than 30V, or it will burn out)
• Working current: <30mA

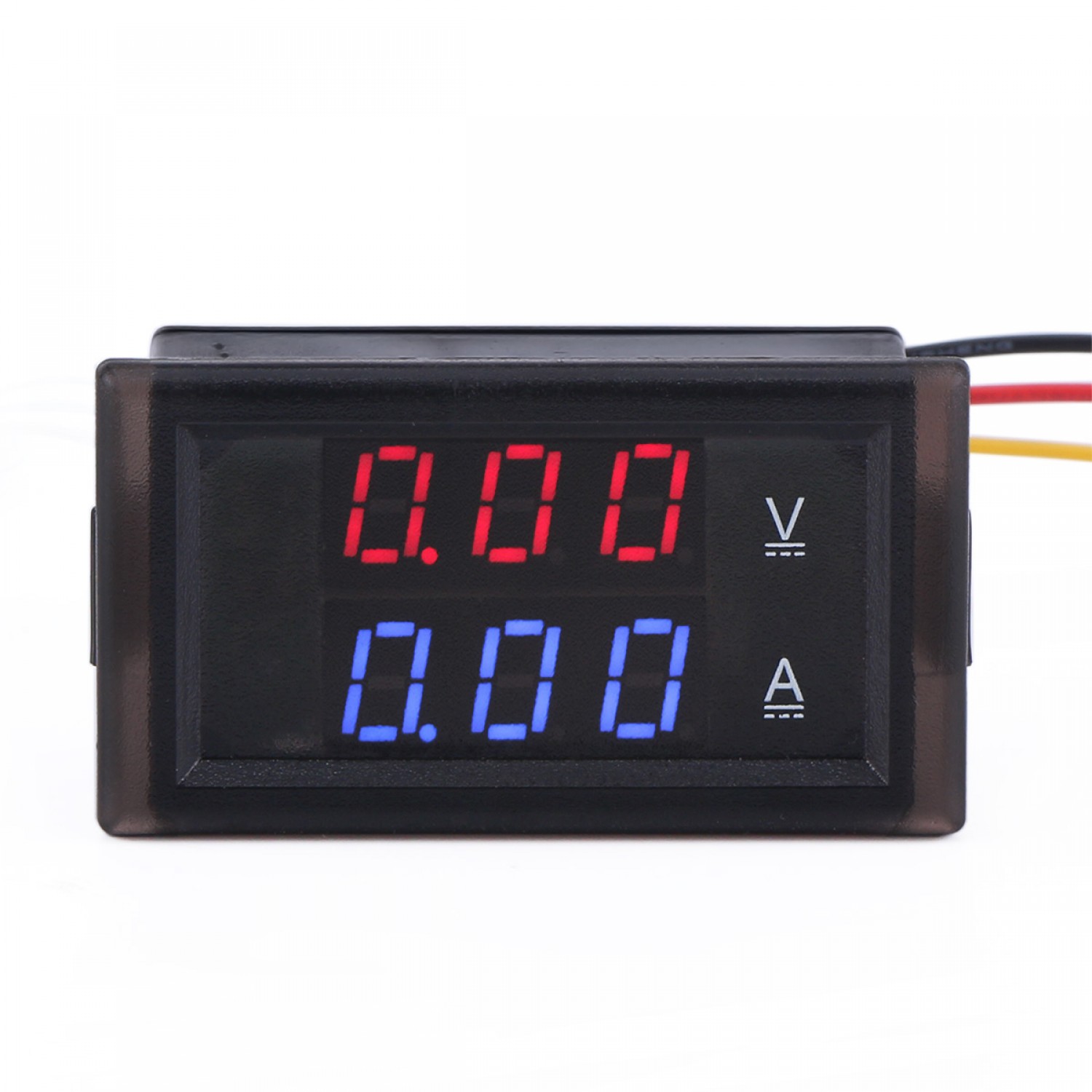

• Display color: red+blue

• Testing rate: ≥500mS/per time
• Measuring accuracy: 1%(+/-2 words)
• Extreme working conditions:
  • Lowest power supply voltage: +4.0V
  • Max power supply voltage: +30V
  • Working temperature: -10 to 65 Celsius
  • Operating humidity: 10 to 80%(No condensation)
  • Working pressure: 80 to 106kPa
  • Direct sunshine: NO(please prevent direct sunshine)

Package includes:

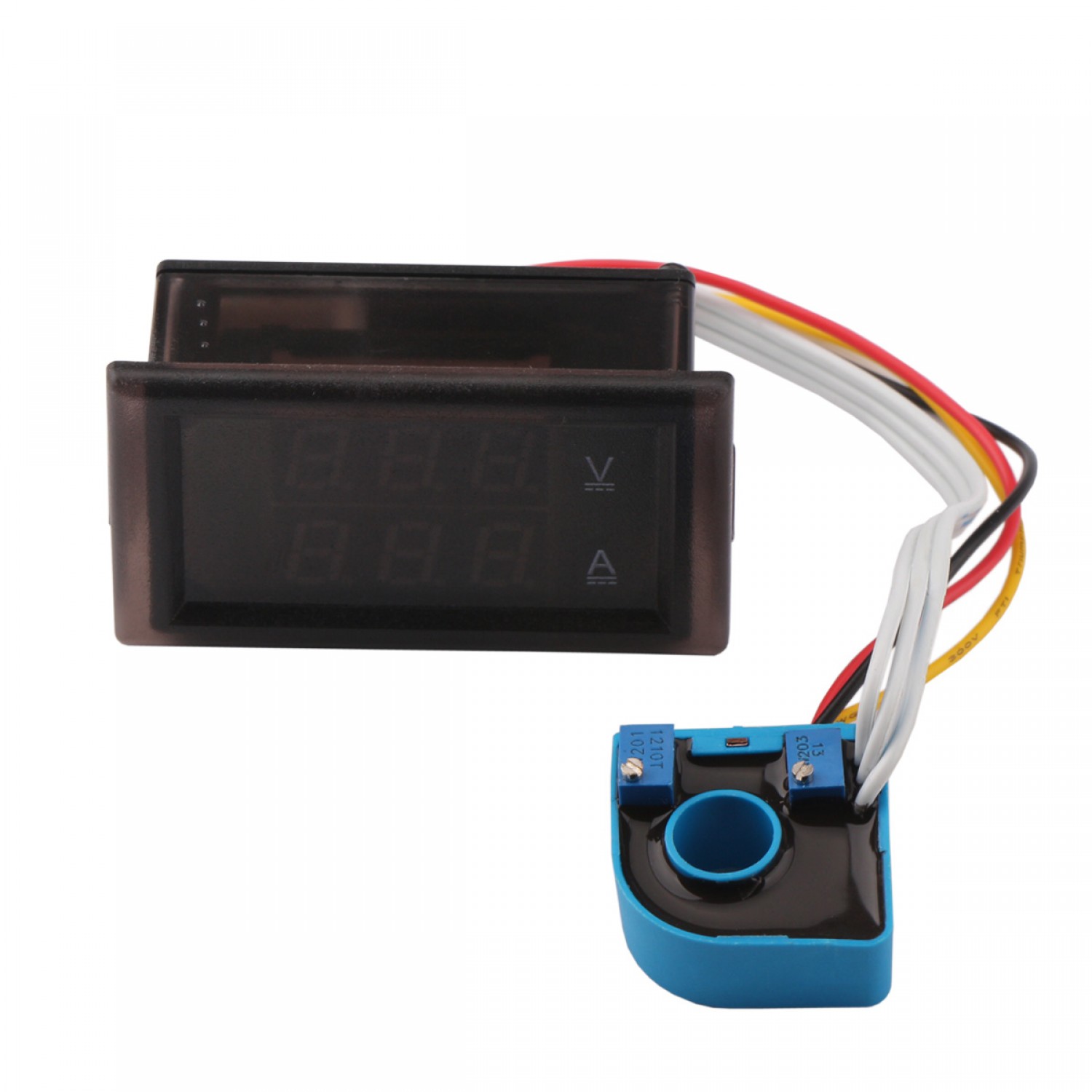

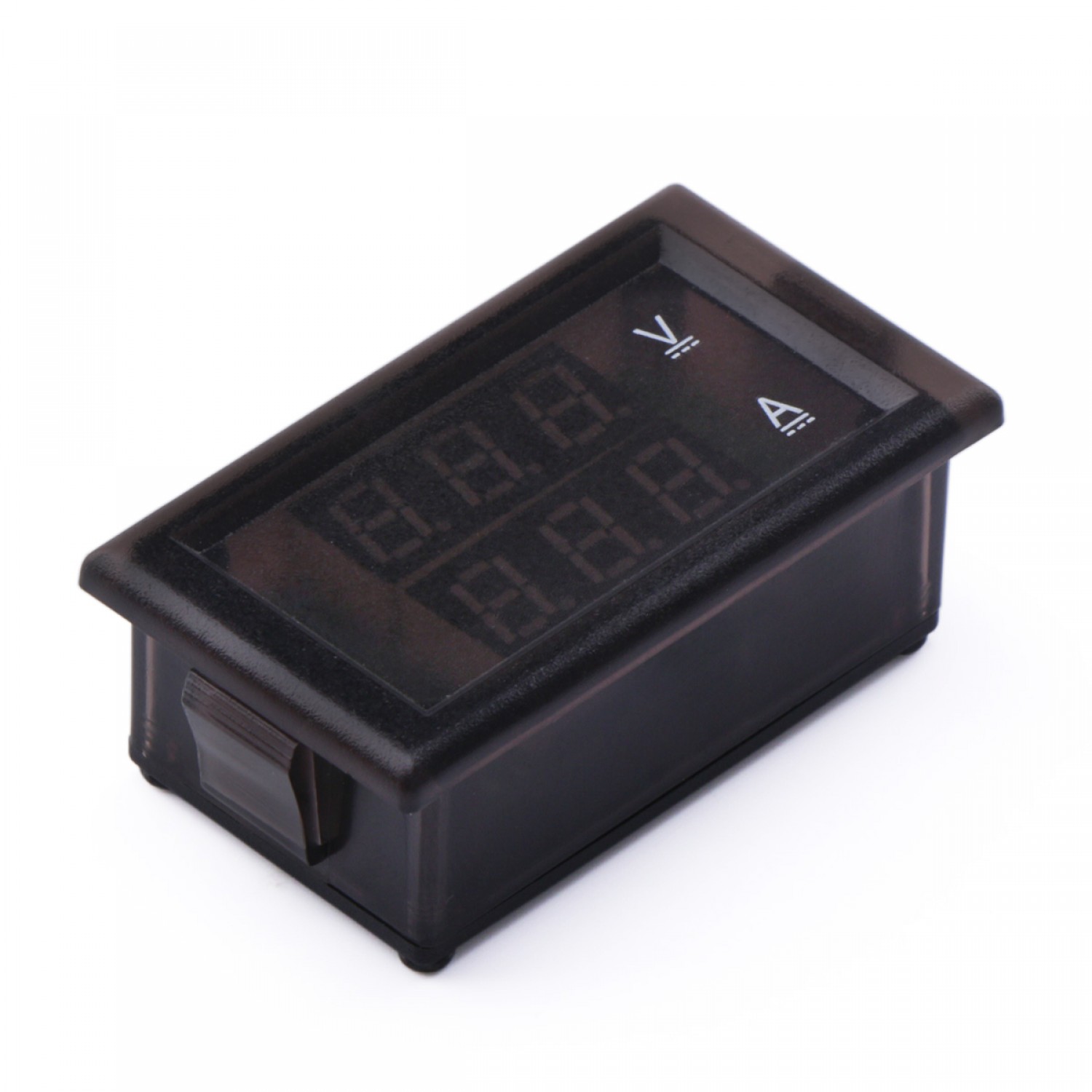

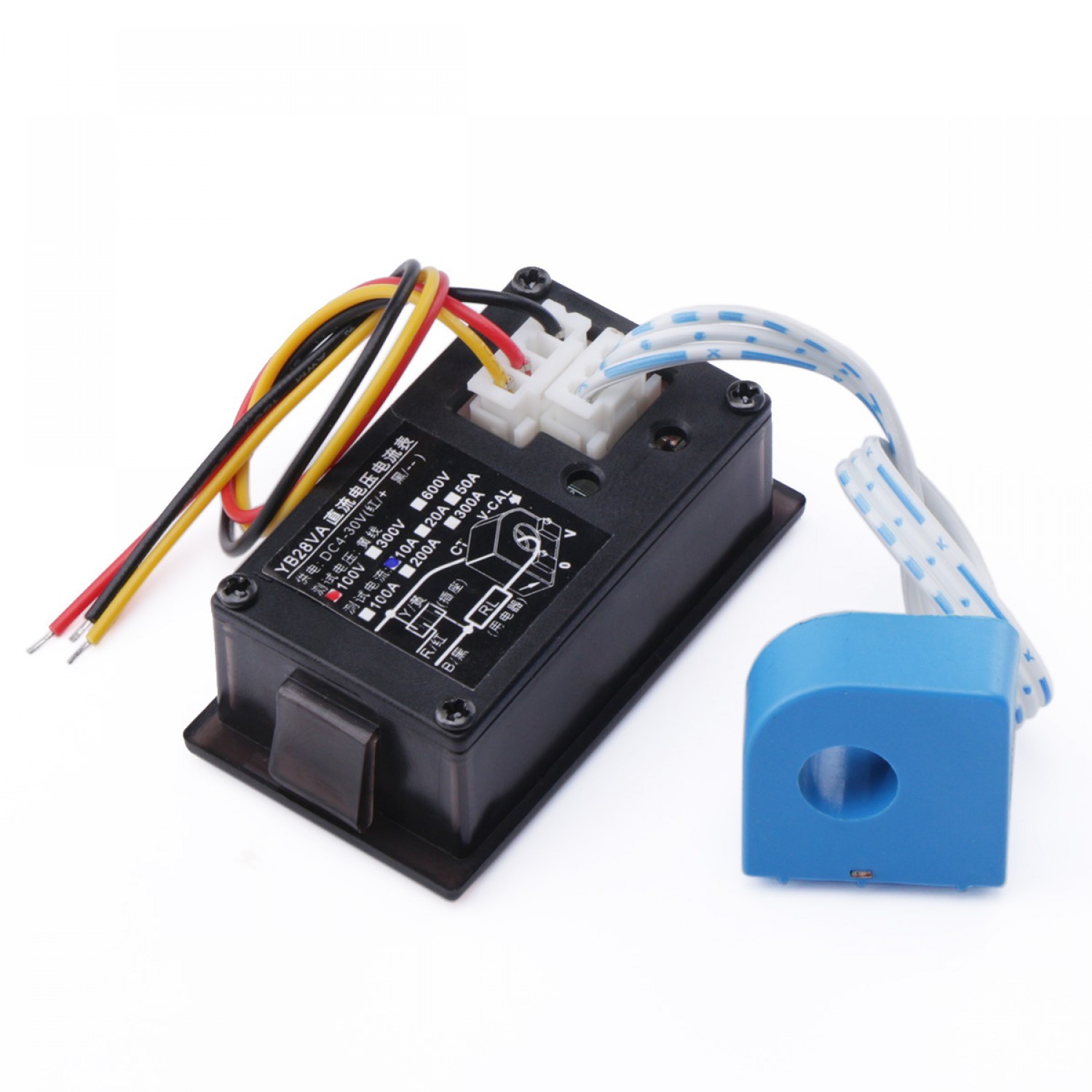

• 1 x Digital Voltage Ammeter (2in1)

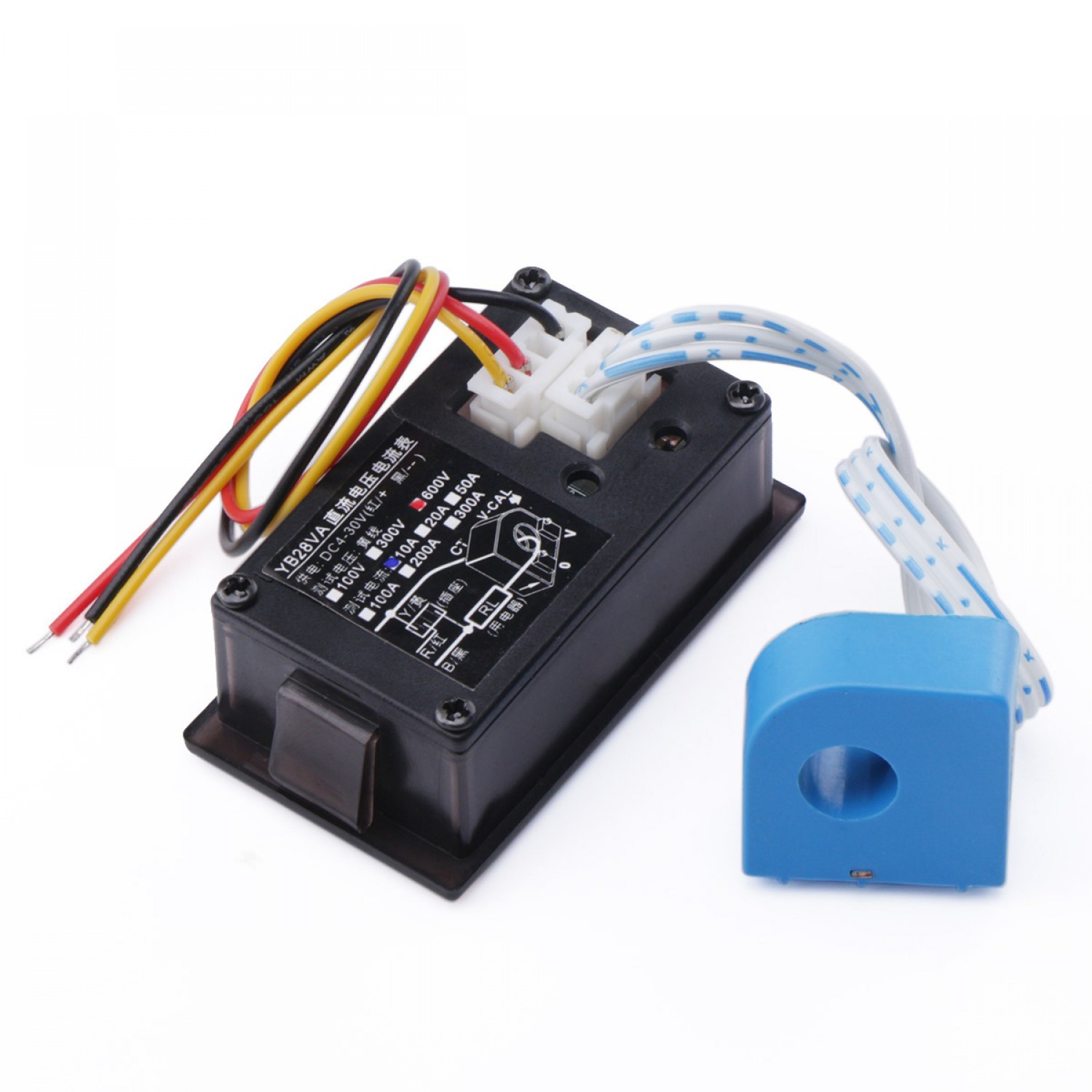

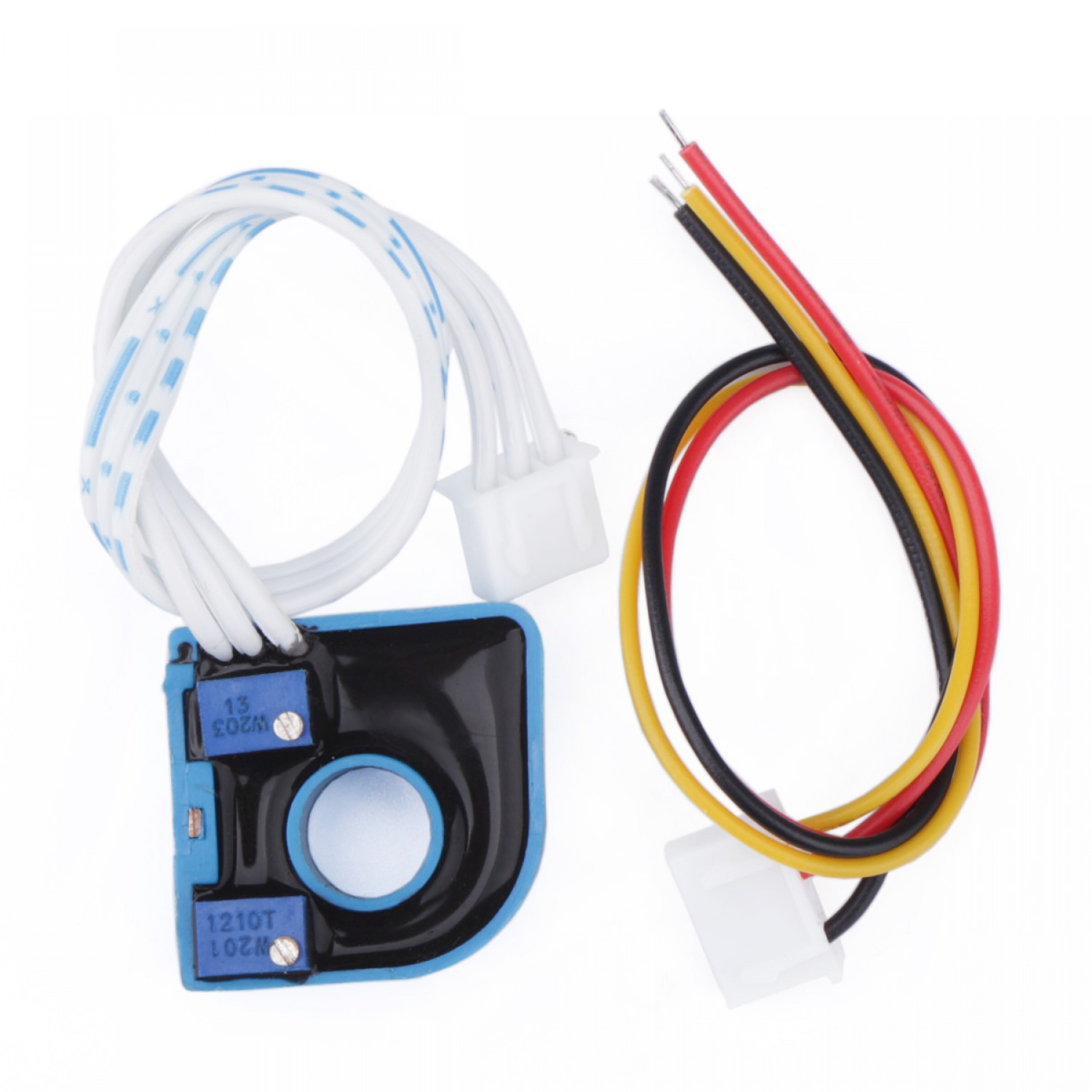

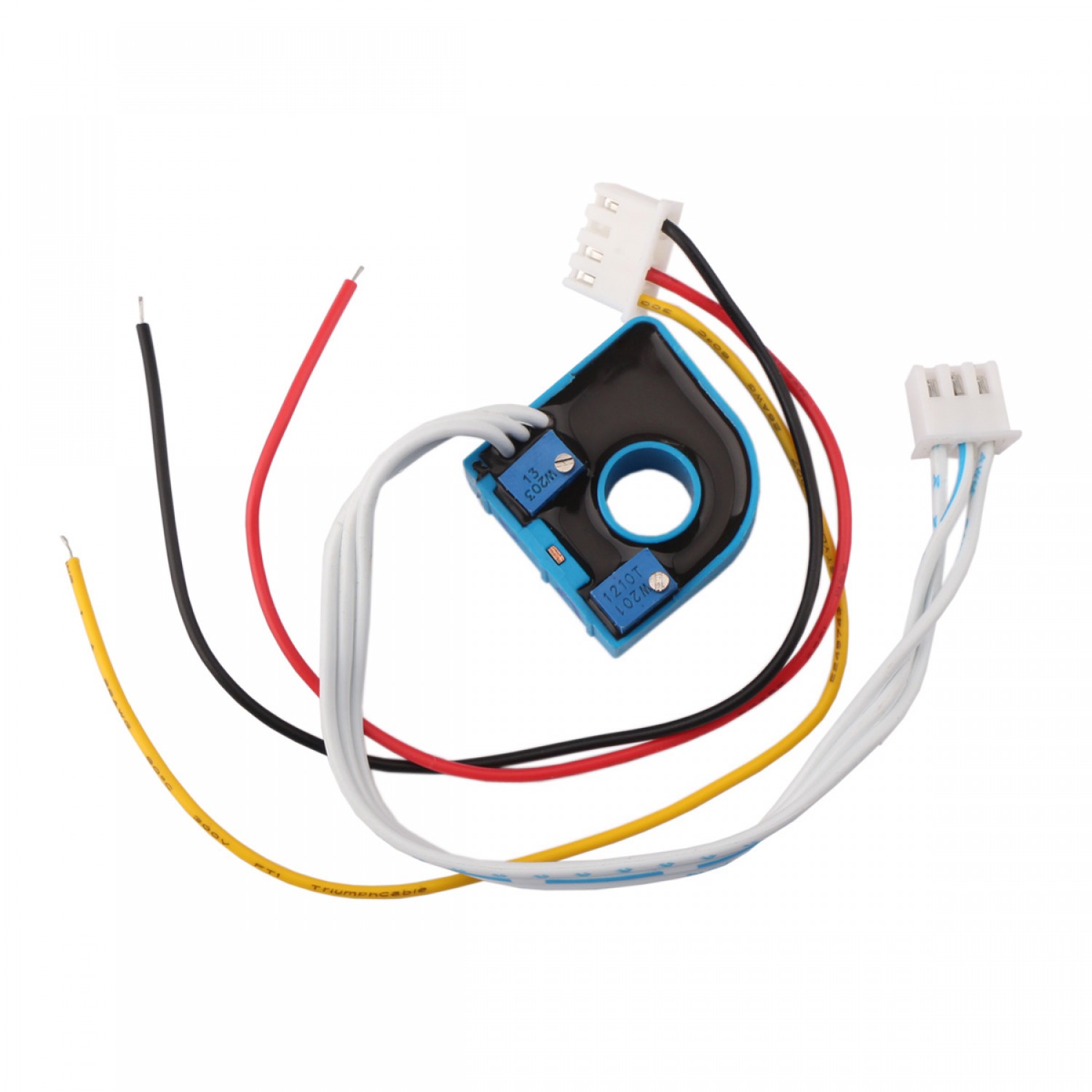

• 1 x 10A Current Transformer
