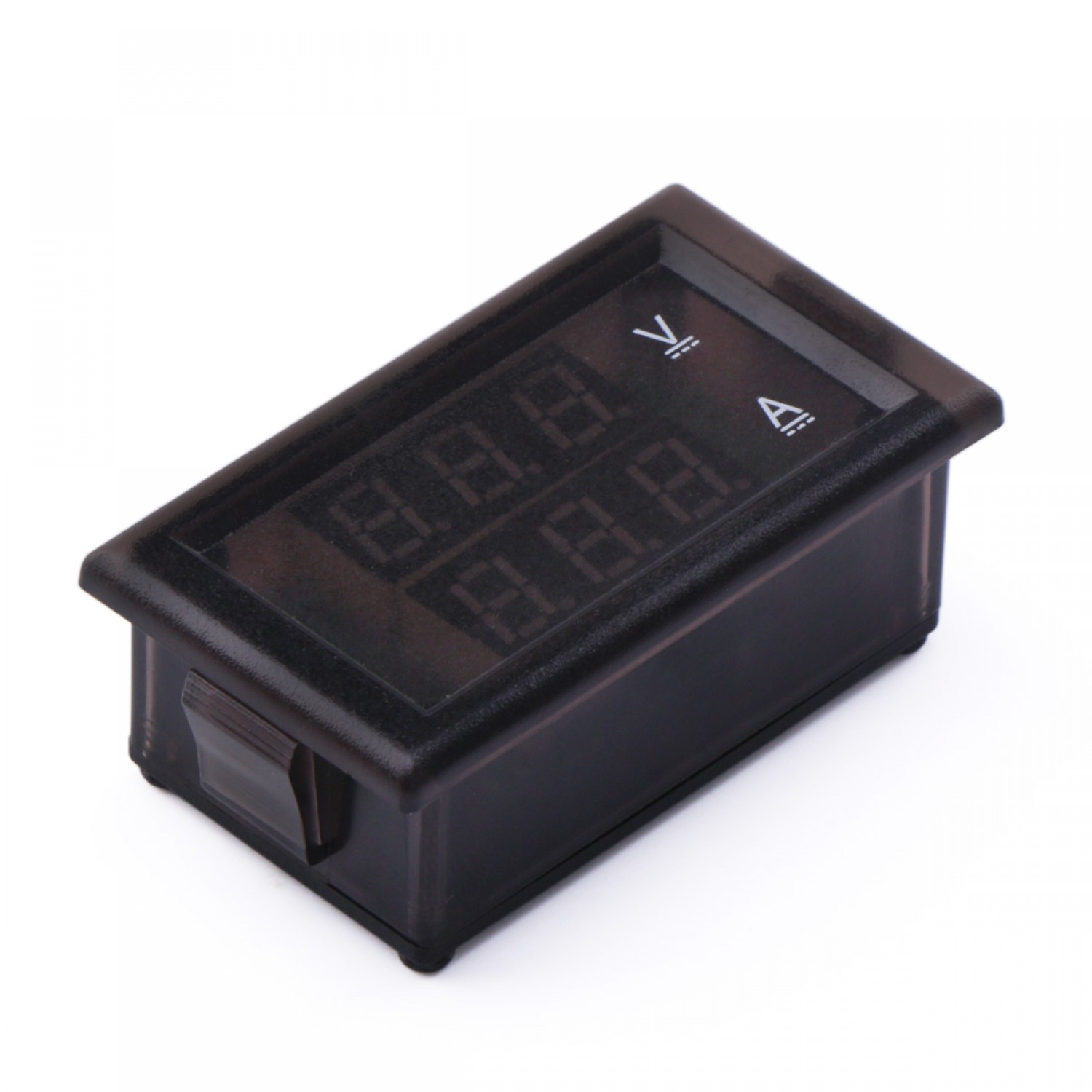

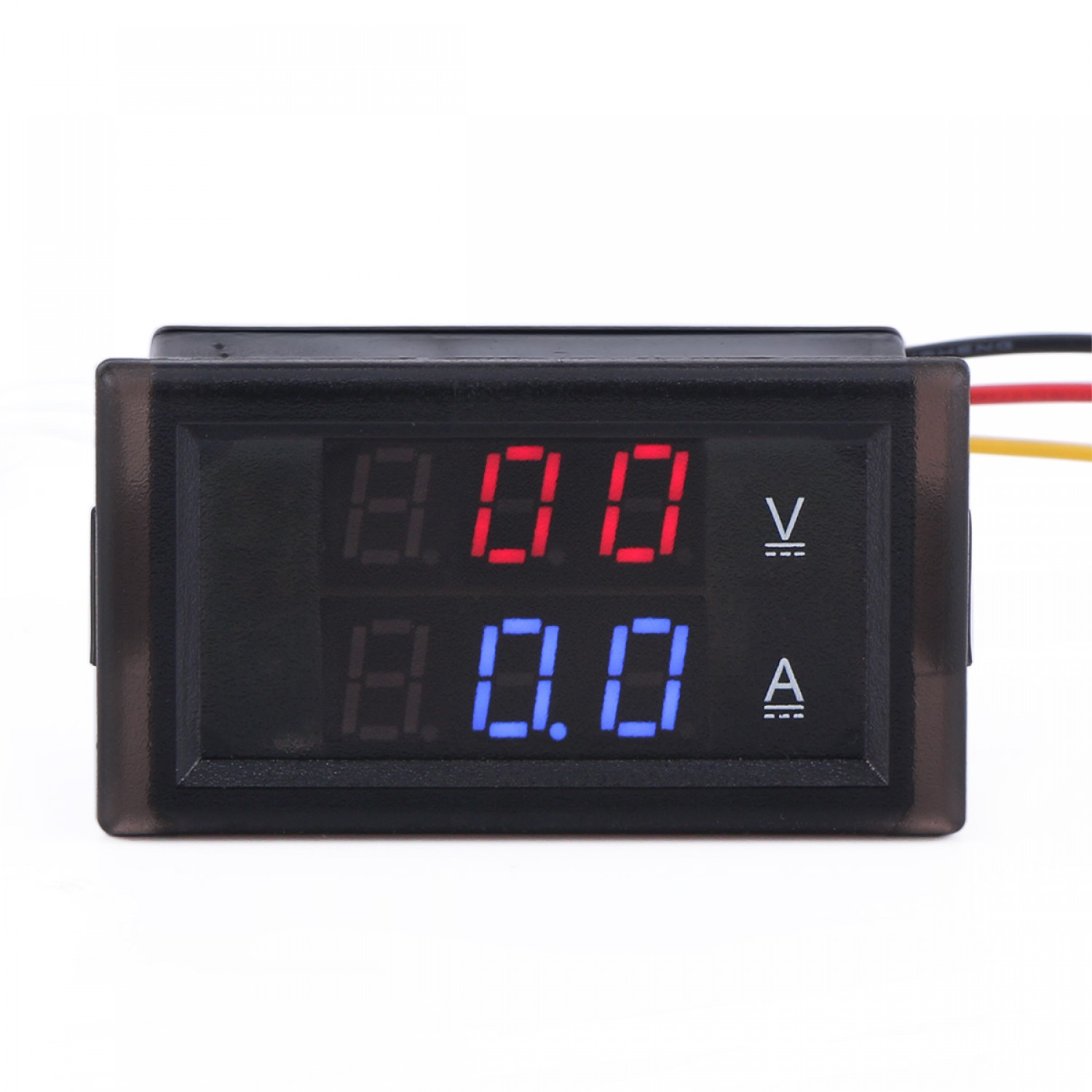

It is a 2in1 Red/Blue Led Display Digital Voltmeter Ammeter, Measure Voltage range: 0.0~600V, Measure Current Range: +/- 0.0~99.9A, Measuring accuracy: 1%(+/-2 words), It has small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:Suitable for Auto,Electric bikes,motorcycles, LED lights, industrial equipment,electronic equipment measurement or other products voltage current measurement.
Parameter:
- Wiring hole diameter: 8.5 mm
- Transformer dimension : L23.3 x W23 x T9.3 mm
- Measure Voltage range: 0.0~600V
- Resolution: 1
- Resistance: >2M
-
Measure Current Range: +/- 0.0~99.9A
- Resolution: 0.1
- Power supply voltage: DC 4~30V(Note: the max voltage input should not be larger than 30V, or it will burn out)
- Working current: <30mA

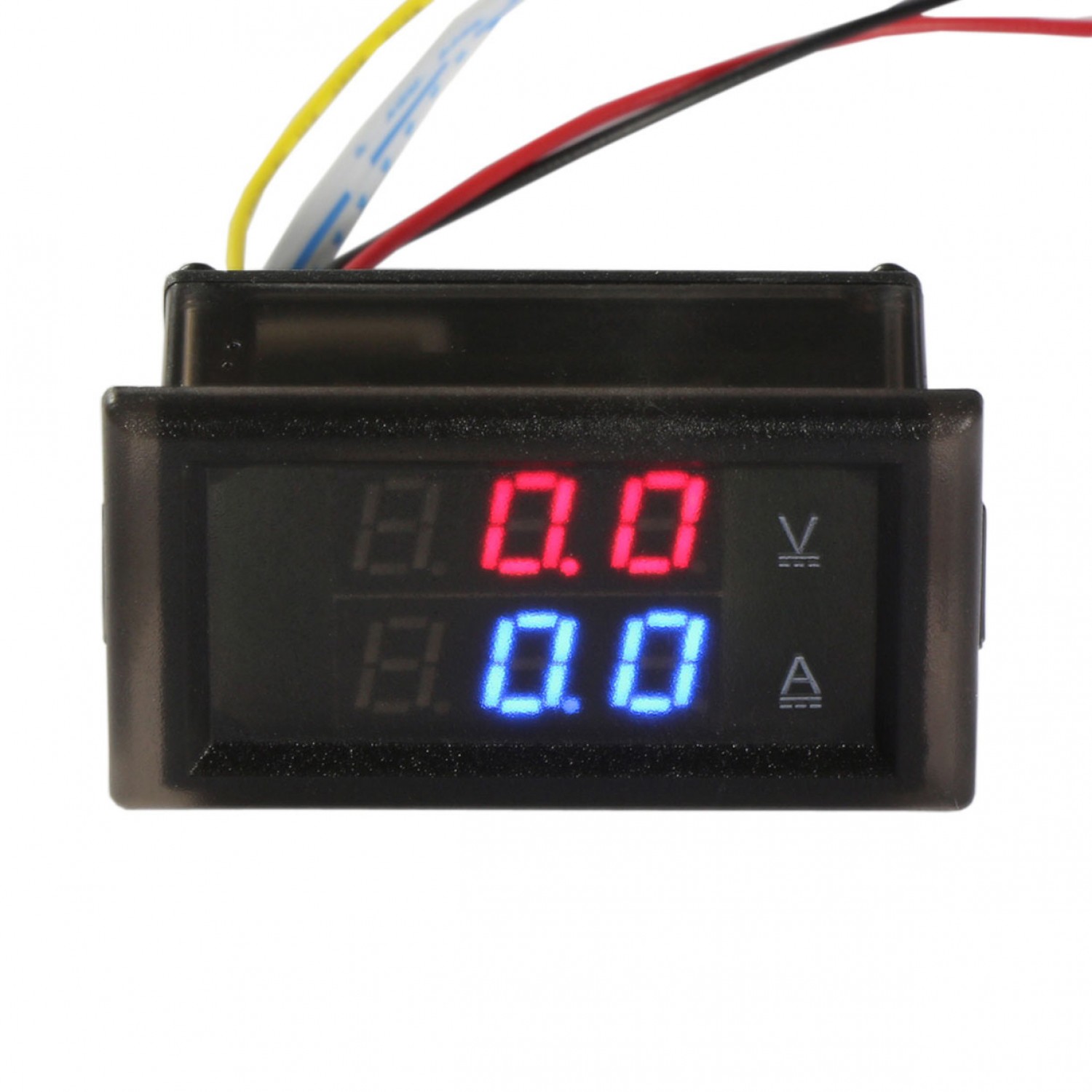

- Display color: red+blue
- Testing rate: ≥500mS/per time
- Measuring accuracy: 1%(+/-2 words)
-
Extreme working conditions:
- Lowest power supply voltage: +4.0V
- Max power supply voltage: +30V
- Working temperature: -10 to 65 Celsius
- Operating humidity: 10 to 80%(No condensation)
- Working pressure: 80 to 106kPa
- Direct sunshine: NO(please prevent direct sunshine)
Package includes:

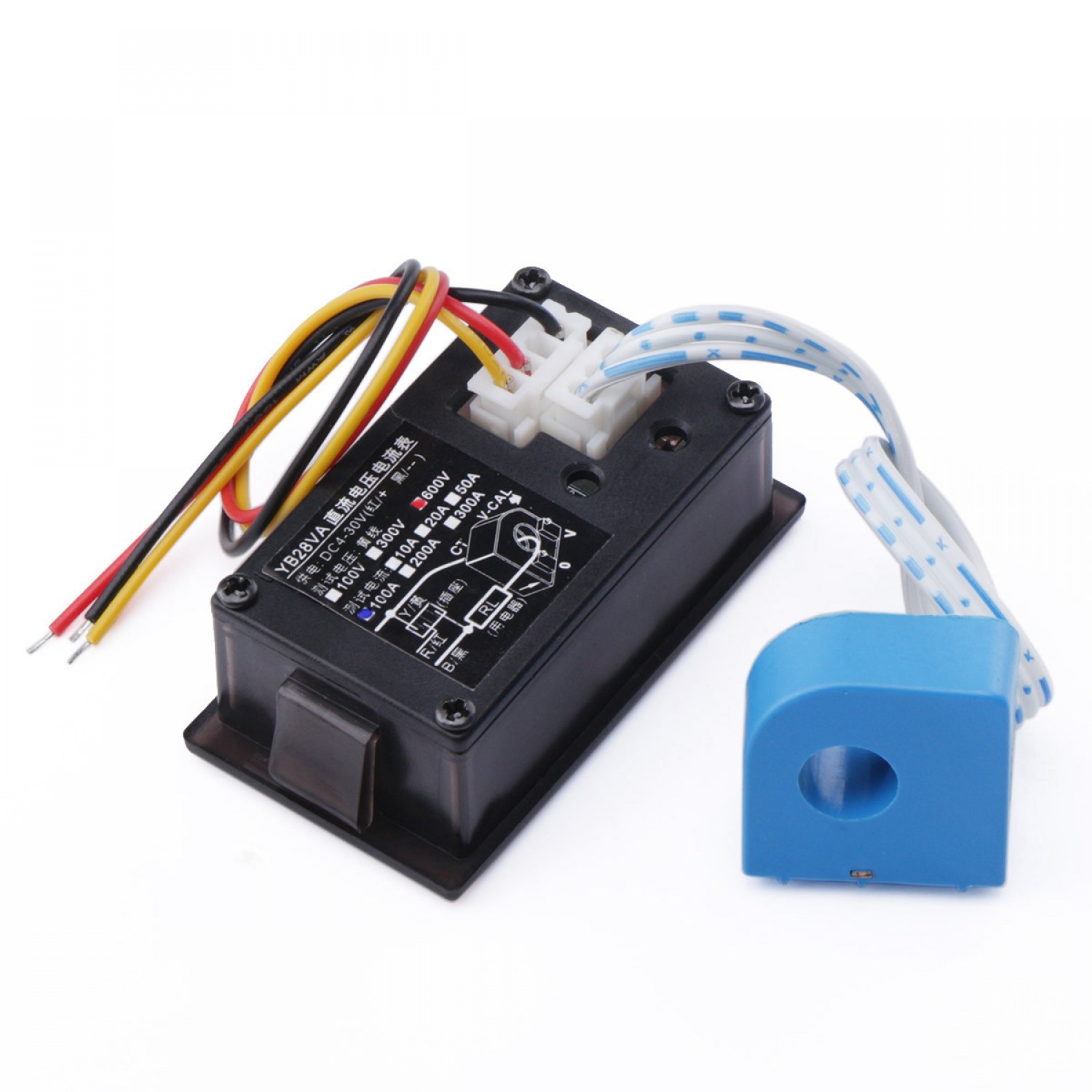

- 1 x Digital Voltage Ammeter (2in1)
-

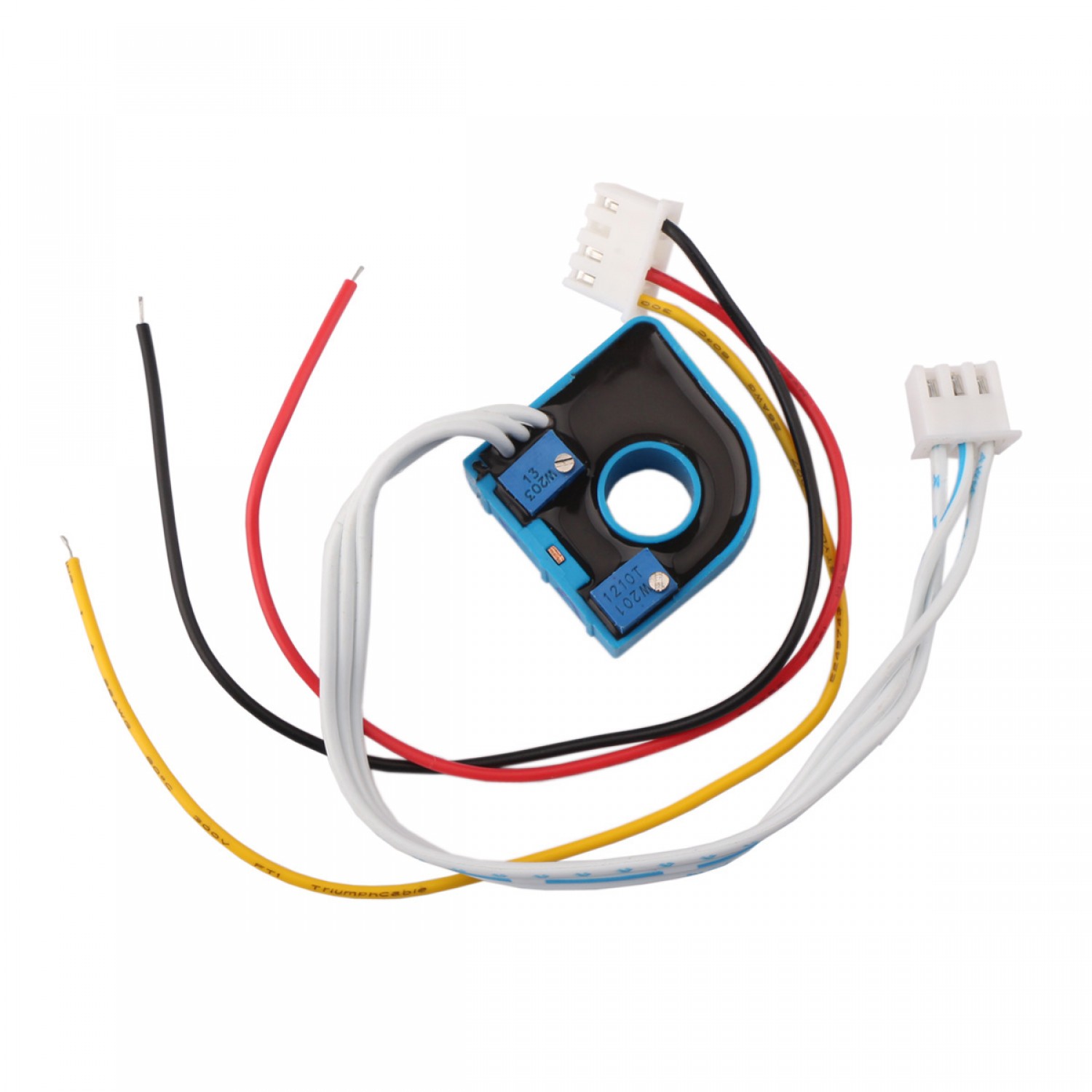

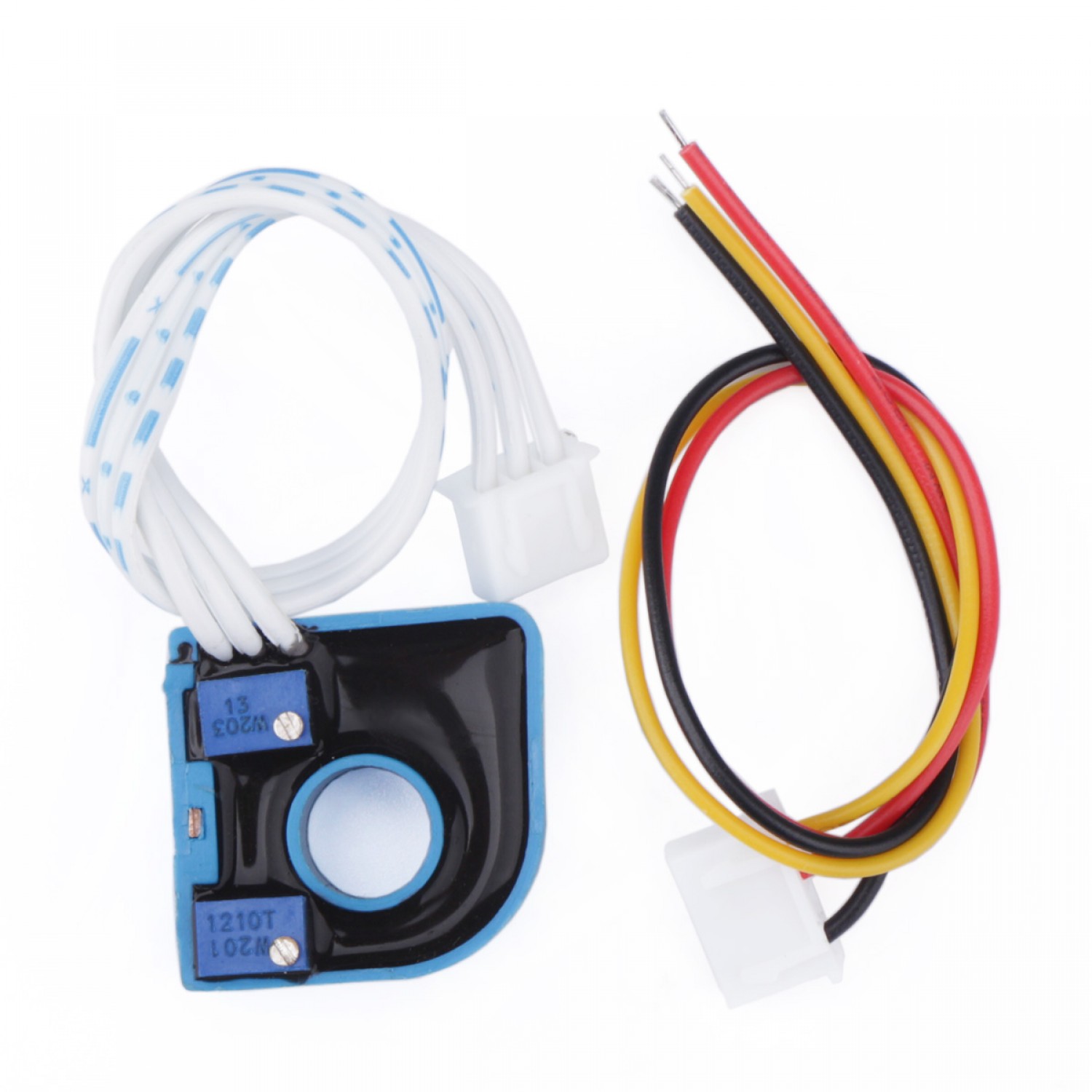

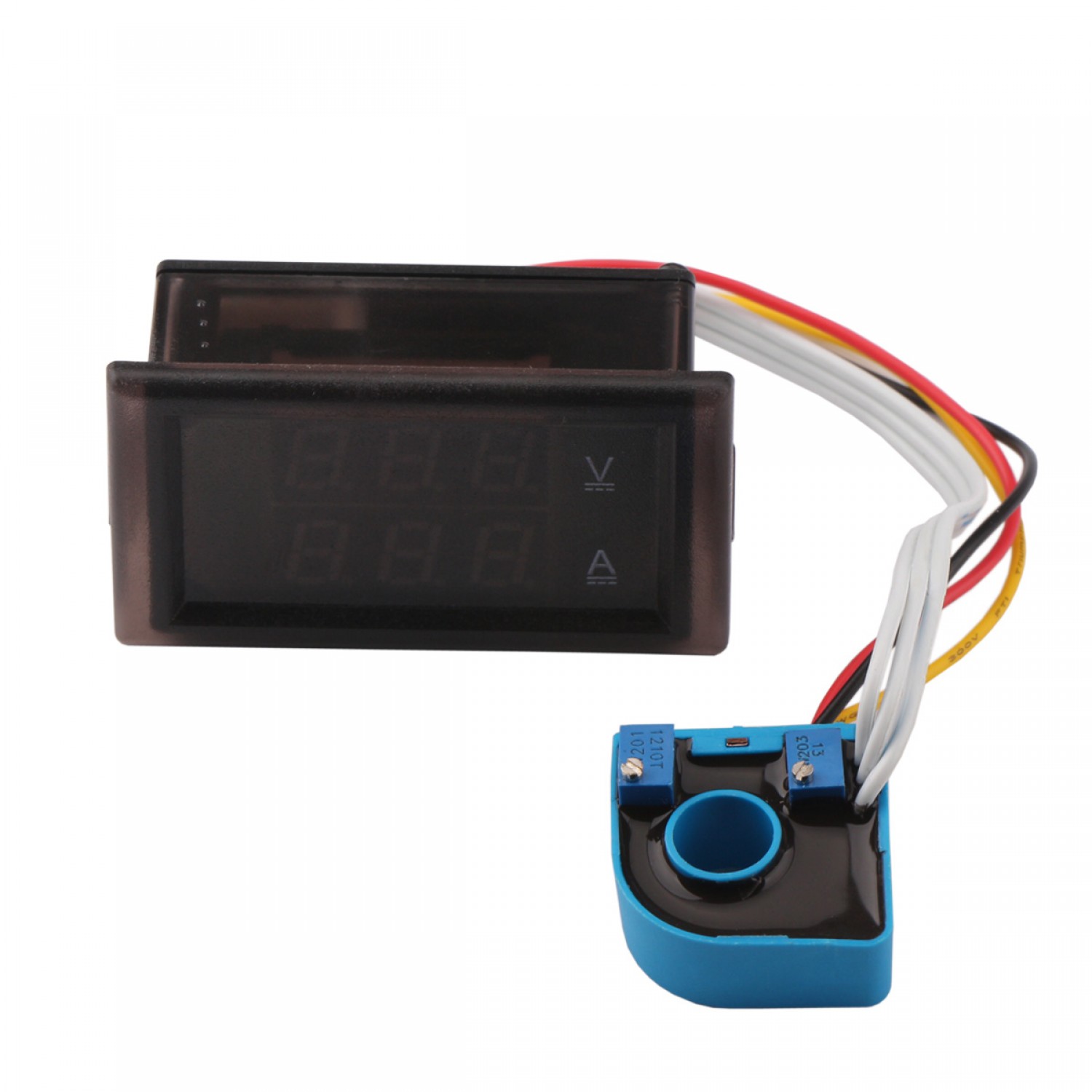

1 x 100A Current Transformer
Attributes | |
input voltage | 4~30V |
output current | 0~100A |
output power | -- |
output voltage | 0~600V |
output ways | 1 |
