It is a 2in1 Digital Voltmeter Ammeter/Digital Tester, Voltage Measuring Range: AC 80.0 ~ 300V, Current Measuring Range: AC 0 ~ 100.0A, Applications:The meter can be used in audio amplifier, power distribution box, distribution cabinet, regulators, teaching aids, household small distribution box, etc.Parameters:
- Voltage Measuring Range: AC 80.0 ~ 300V
- Current Measuring Range: AC 0 ~ 100.0A
- Measuring accuracy: 1% ± 2digits

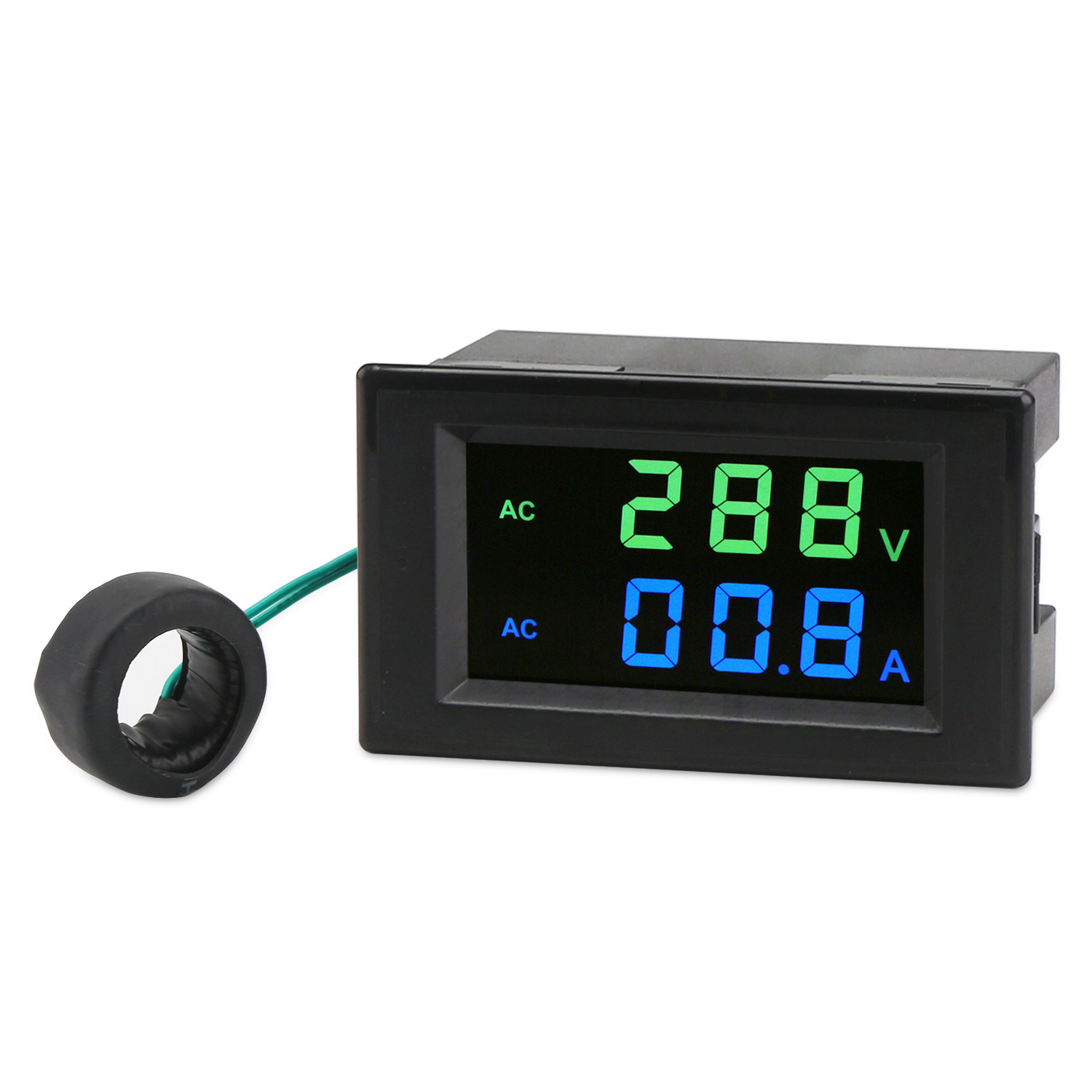

- Voltage display: Yellow LED
- Current display: Blue LED

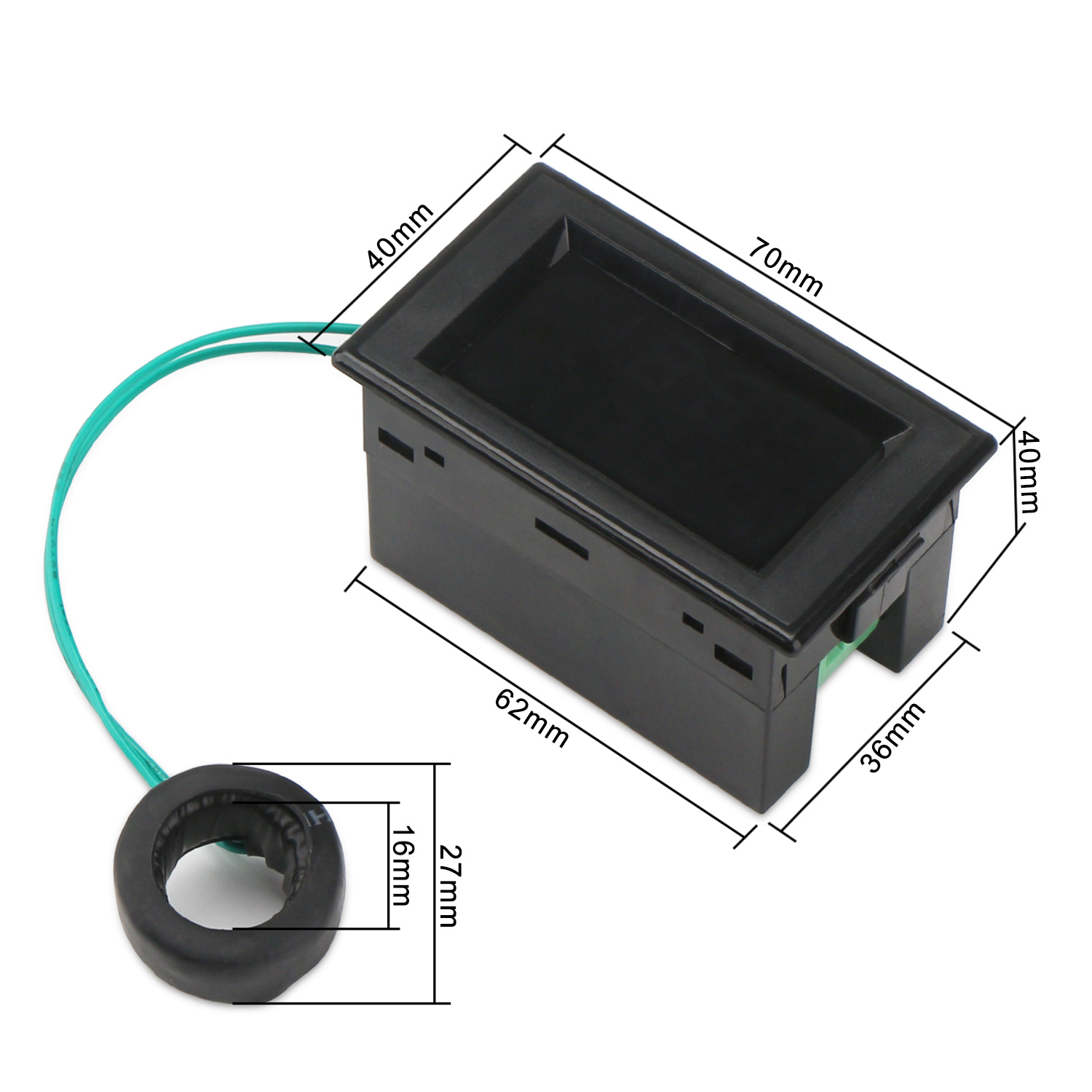

- Size: 70*39*40 mm

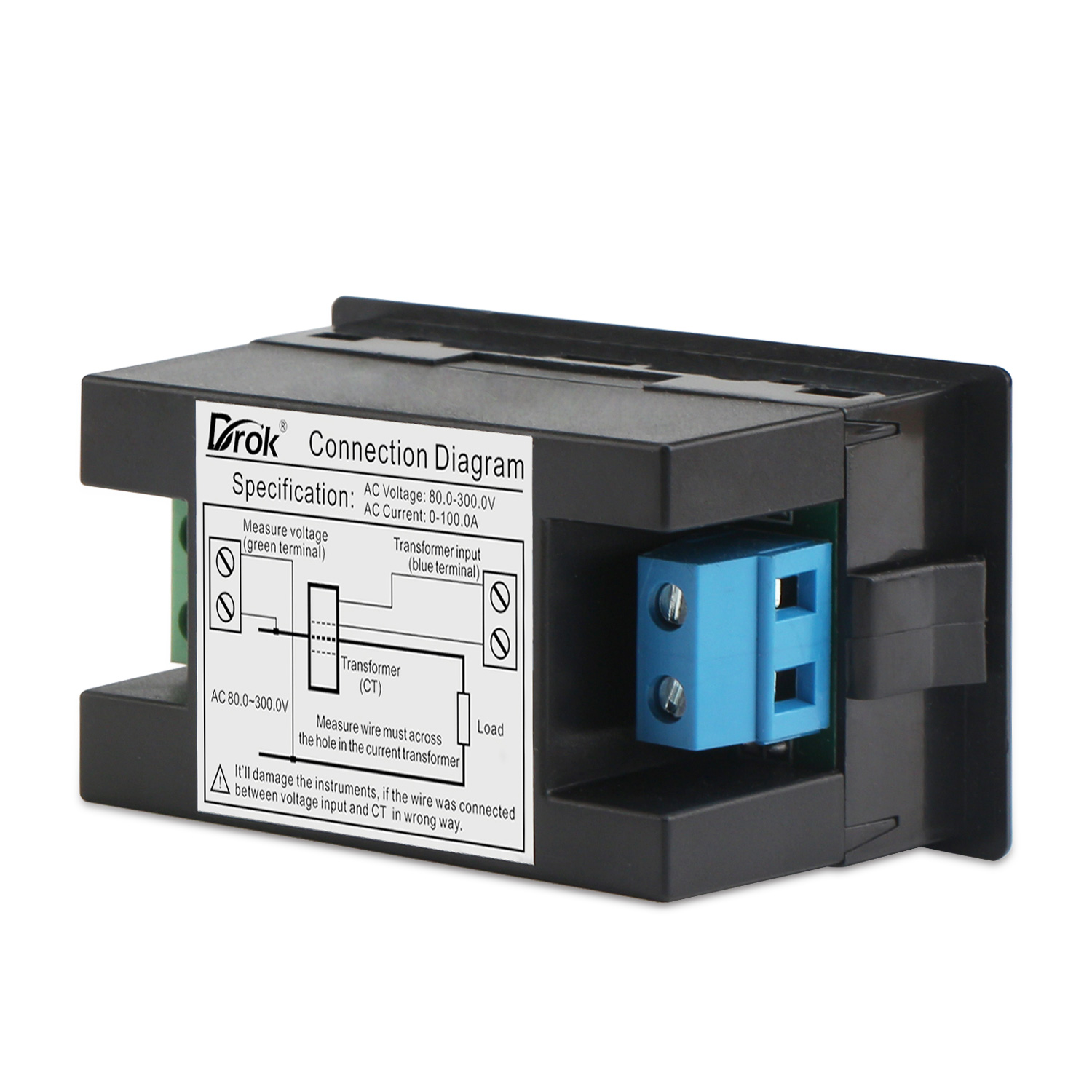

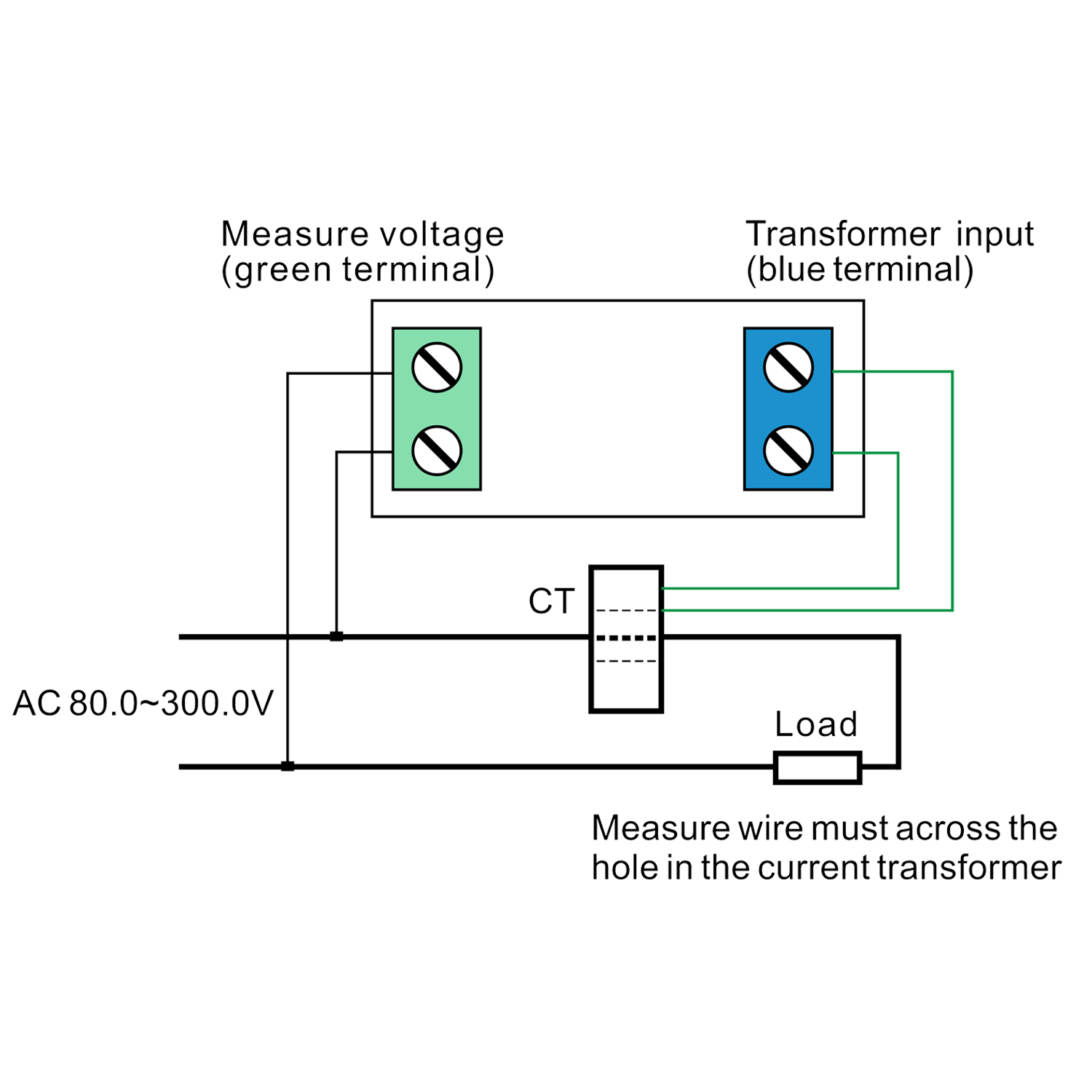

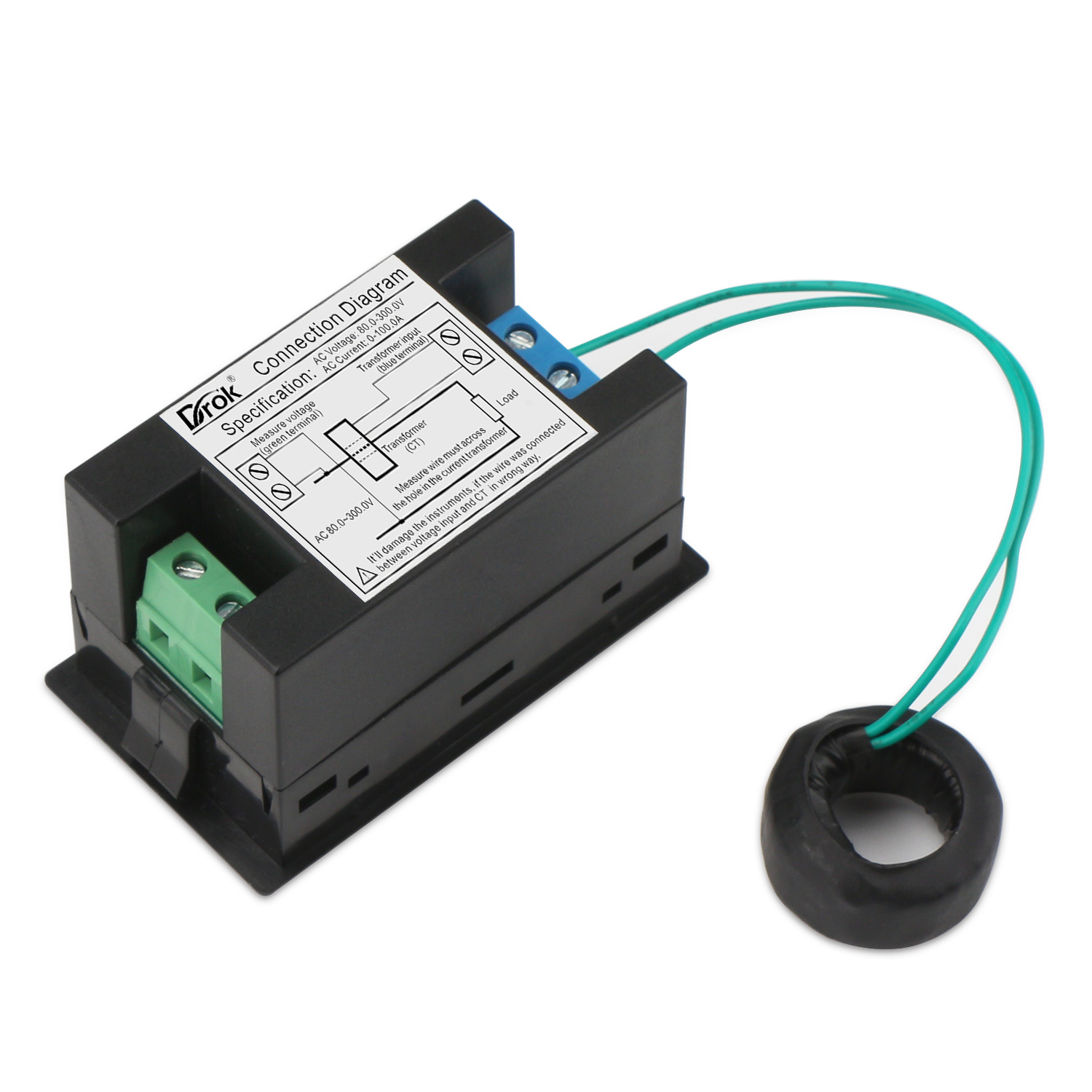

- Green terminal: connect voltage input
- Blue terminal: connect current transformer secondary input
- Note: Please let the wire of the measuring circuit pass through the hole of transformer.
- 1. Voltage input (green terminal) and current transformer secondary input (blue terminal) cannot be connected to the wrong terminals, otherwise the instrument will be burned out.
- 2. Only use for pure AC 50Hz-electric power supply. The meter will get permanent damage if you measure the square wave, dc-to-ac inverter output and modified sine wave.

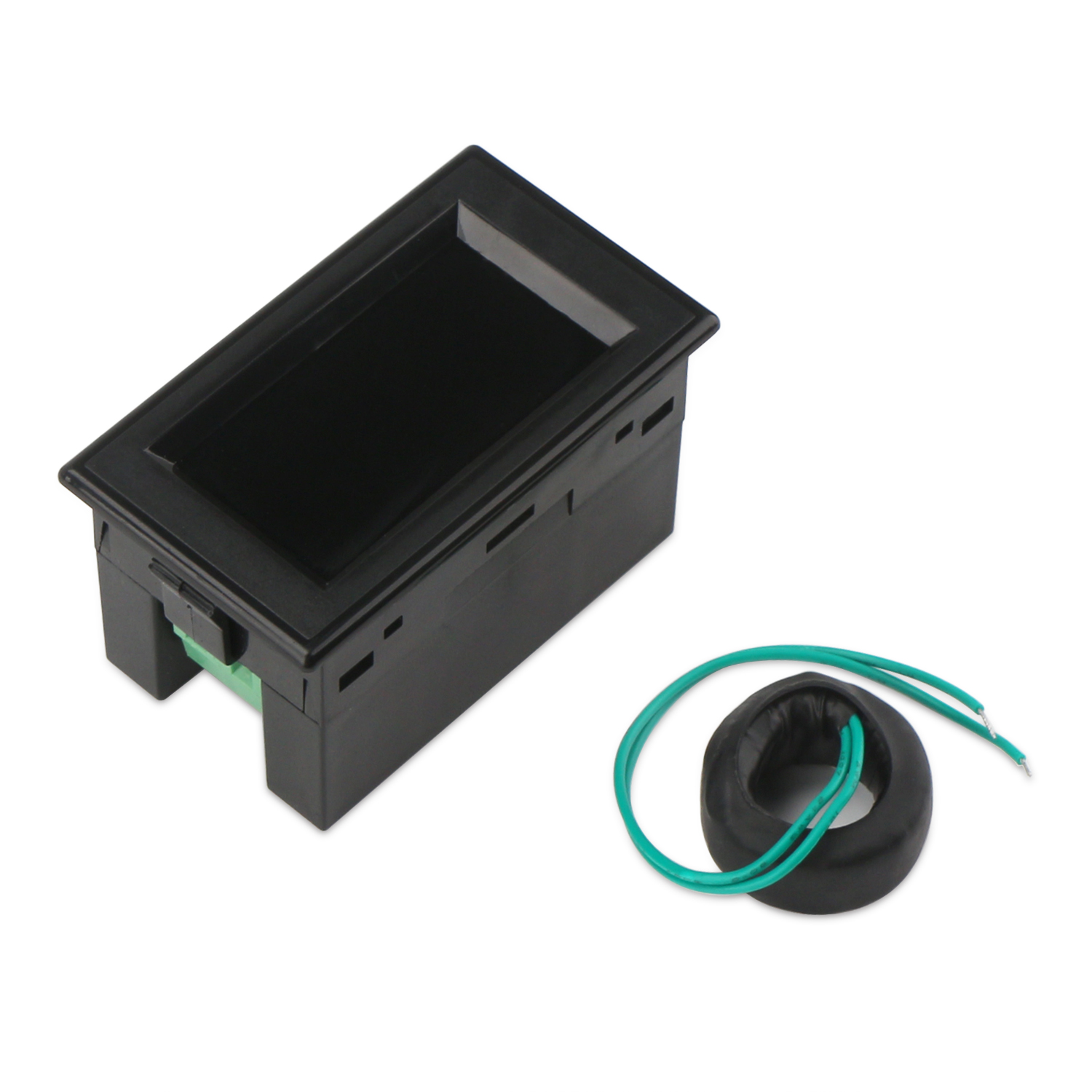

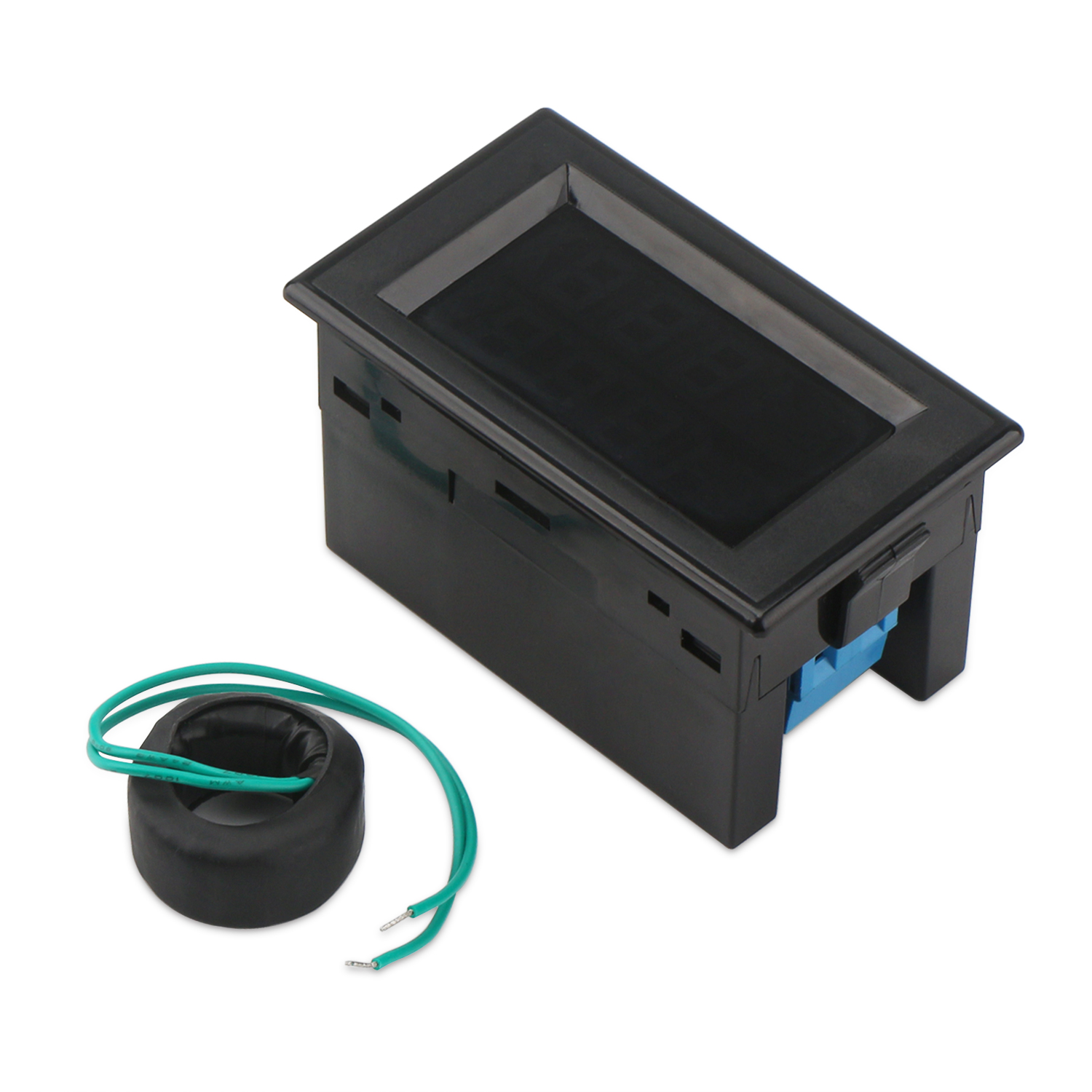

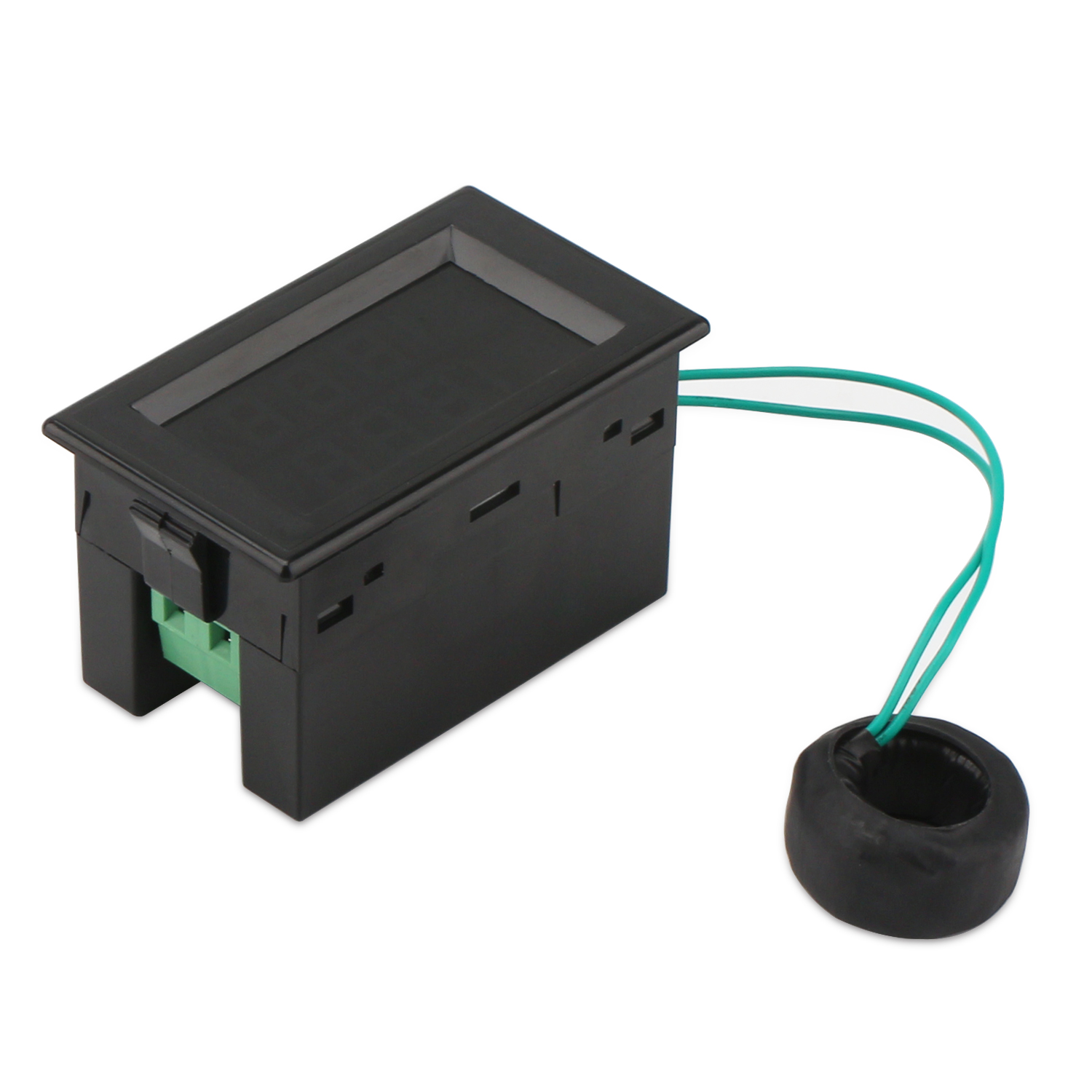

- 1 x Digital Voltage & Current Meter ( 2in1 Digital Meter )
- 1 x Current Transformer
