Features:
1. PROPERTY --- dual-system power supply module, voltage regulation system (PER) & measurement system (VAH).
2. PER SYSTEM PARAMETER --- input voltage 3.5V-12V, output voltage 1.0V-24V.
3. VAH SYSTEM PARAMETER --- voltage measurement range 0-35V; current measurement range 0-3A; power measurement range 0-110W; capacity measurement range 0-9999Ah; time measurement range 0-100 hours; temperature measurement range -20℃~70℃/-68℉~158℉.
4. PROTECTION --- low-voltage protection; over-current protection; over-power protection.
5. APPLICATION --- as a step up/down voltage regulator module; as a voltage, current, power, capacity, time tester multimeter; as a Fahrenheit/Celsius temperature meter.
Description:
Proterty:

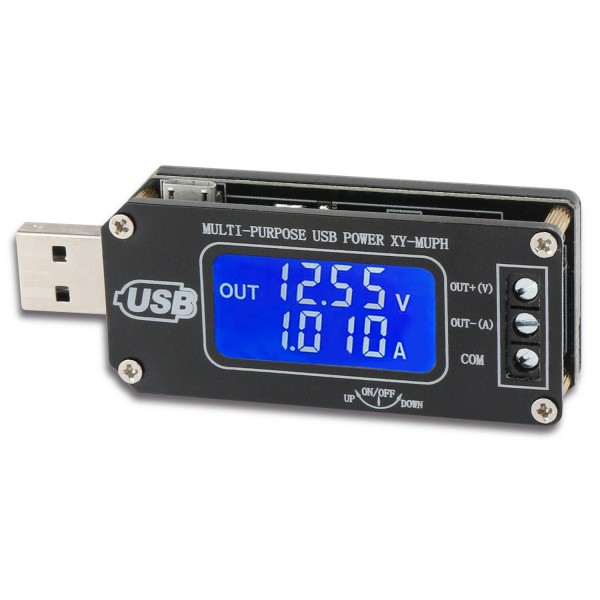

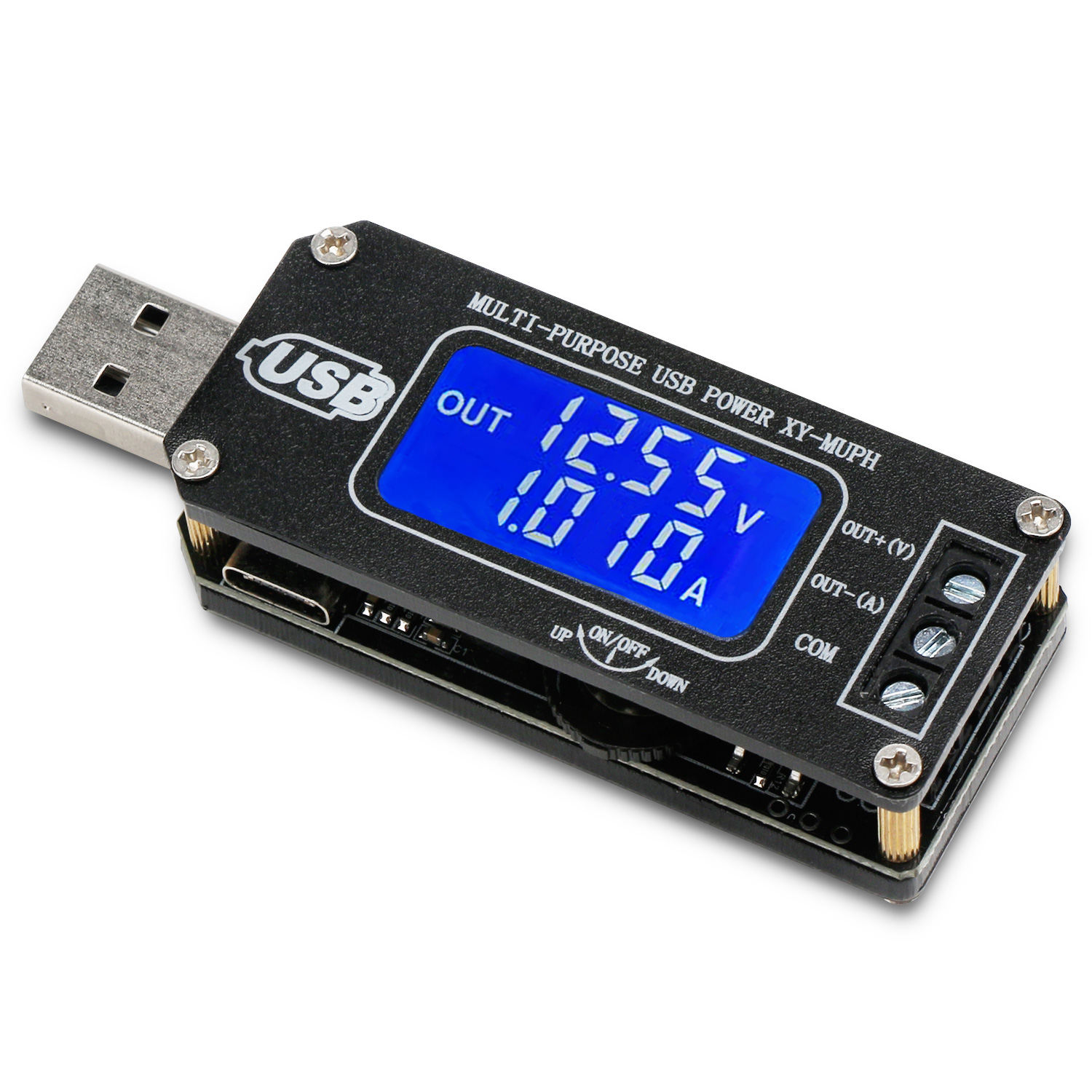

Dual-system multi-purpose power supply module
Two systems of this product:

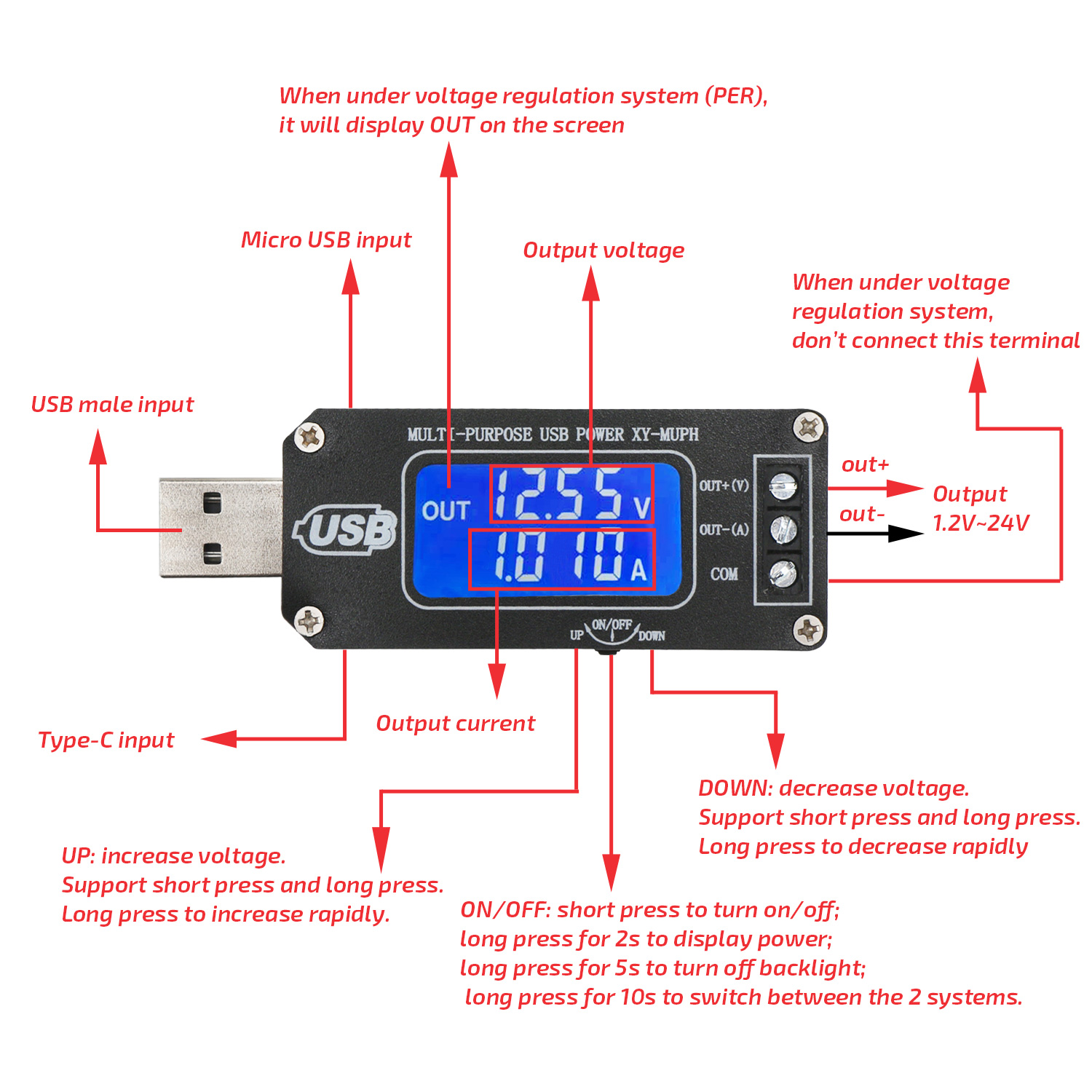

1. Voltage Regulation System (PER)
Parameter:
In voltage regulation system, when plug the USB, micro USB or type-C in, the item can output 1.0-24V adjustable voltage, and the power is 2-3W.
Input voltage: 3.5V~12V
Output voltage: 1.0V~24V
Output power = output voltage * output current
Protection:
low-voltage protection;
over-current protection;
over-power protection.

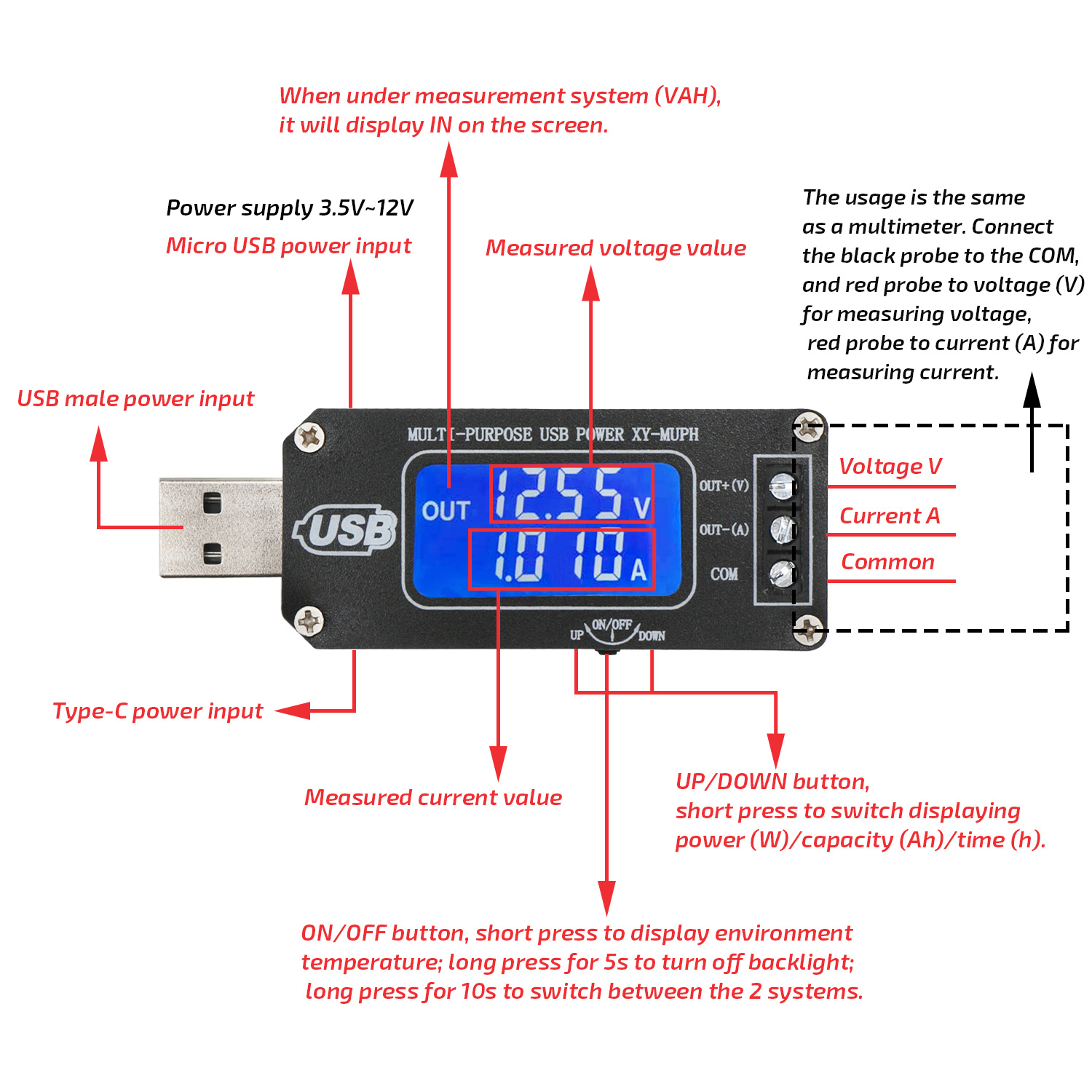

2. Measurement system VAH
Parameters:
In measurement system, the item can measure voltage, current, power, capacity and time just as a multimeter.
Measuring voltage range V: 0-35V
Measuring current range A: 0-3A
Measuring power range W: 0-110W
Measuring capacity range Ah: 0-9999Ah
Measuring time range h: 0-100 hours
Note:
This item can only detect forward voltage and forward current.
Please do not connect the wires reversely. Otherwise it will cause damage to the product.
Temperature Measurement Method:
Measurement range: -20℃~70℃/-68℉~158℉
Voltage regulation system (PER)
At power off status, short press UP/DOWN button to display current temperature.
Measurement system (VAH)
Short press ON/OFF button to display current temperature.
Package Included:
1x USB Voltage Regulator
Attributes | |
input voltage | 3.5V |
output voltage | 1.0V |
