NOTE:

This product has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired.


Technical Parameters:

Rated operating voltage: DC 4-25.0V

Max discharging power: 25W

Rated operating current: 0.25-4.00A (when fan doesn't work, the minimum constant current is 0.05A)

Fan speed: Oil bearing intelligent temperature control fan, speed 5800±10%RPM

Constant current resolution: ±(1%+3digits)

Heat dispatch method: intelligent temperature control fan +Aluminum heat sink

Working temperature: -10℃~+40℃

Adjustable potentiometer: precision multiloop adjustable potentiometer

Display mode: 4 bit LED tube

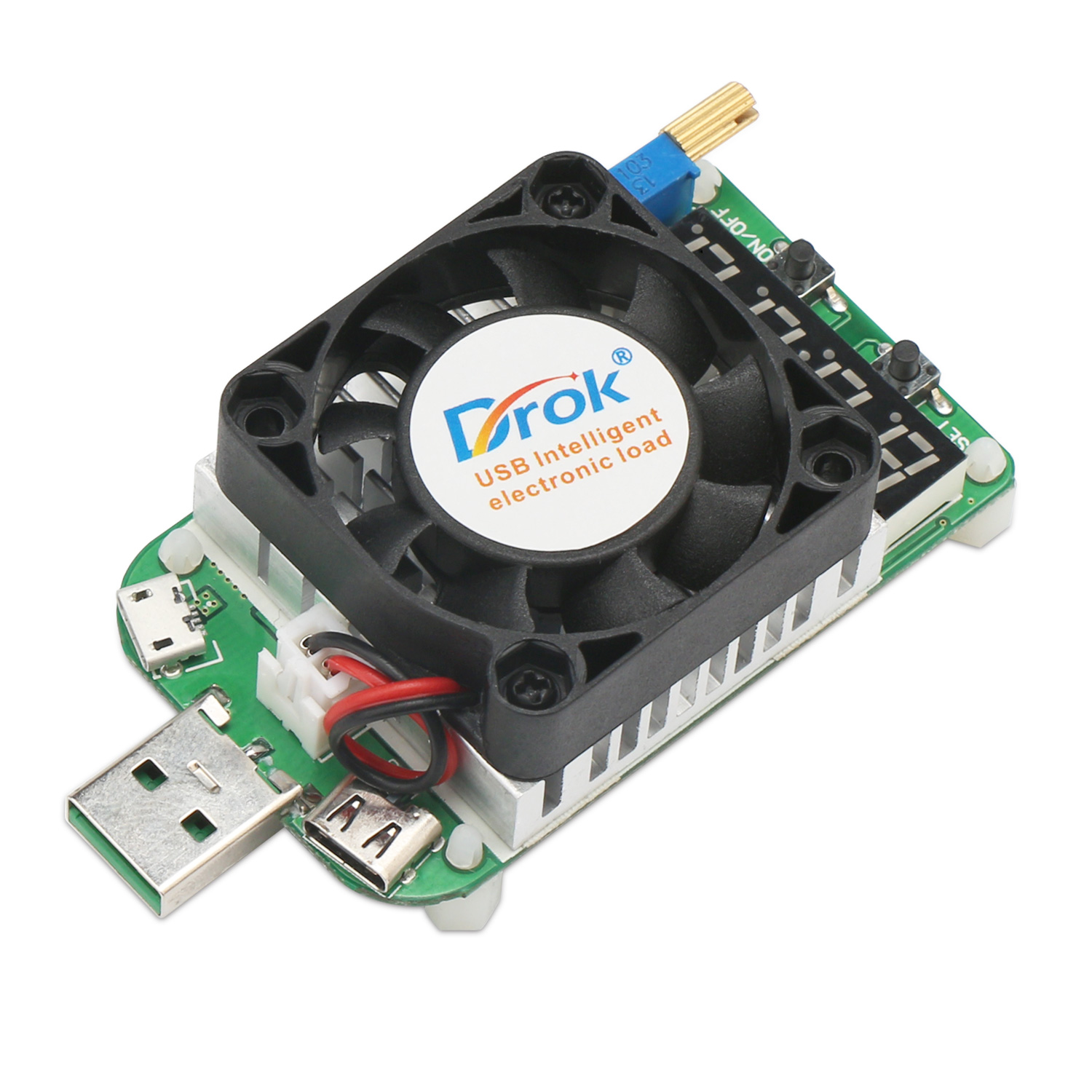

Expansion port: Micro USB port, Type-C port

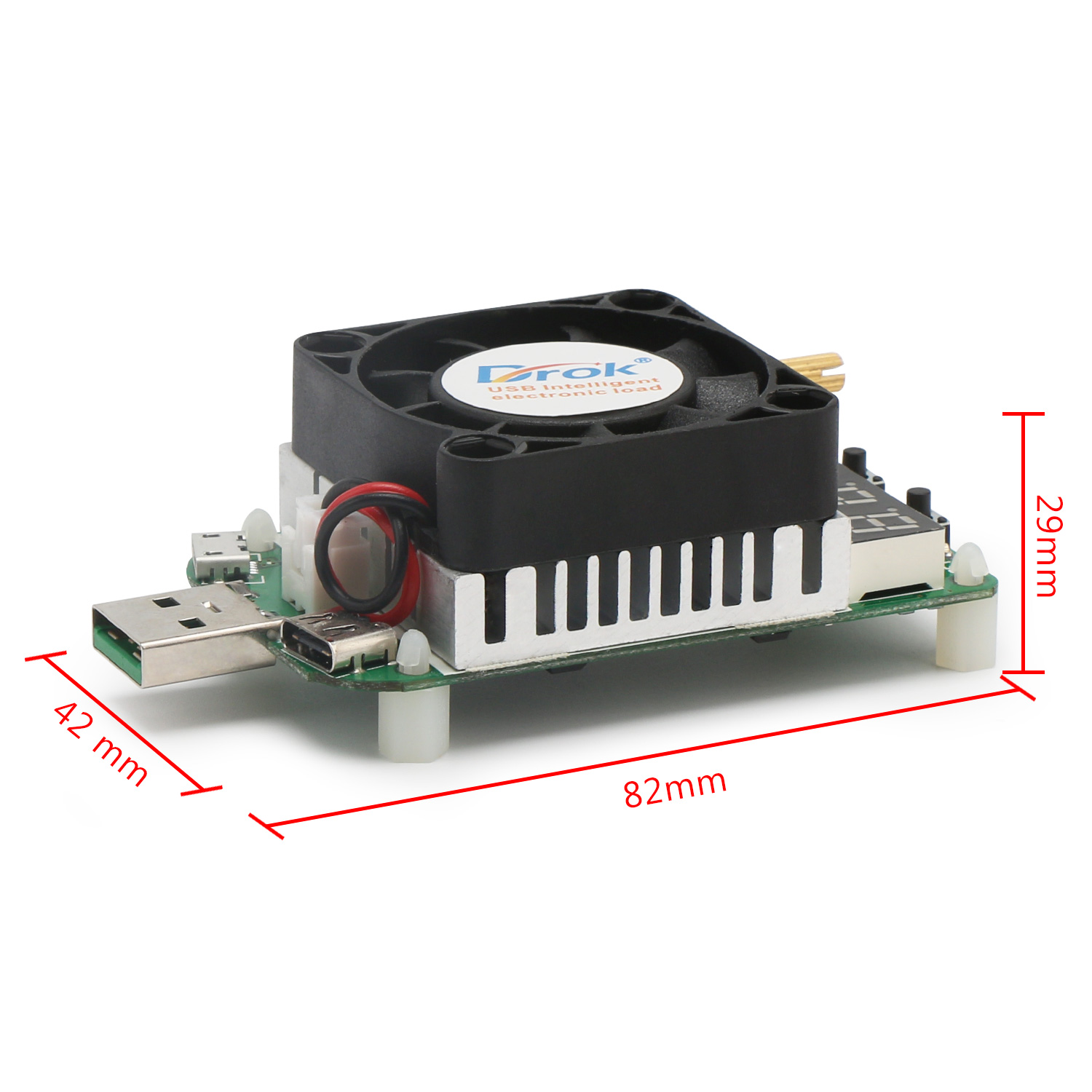

Product size: 84x41x28mm


Application

Assist to test whether the Micro USB cable is good or not

Assist to test whether the Type-C cable is good or not

Assist to test output current capacity of the charger


Package Including:

1x Load Tester
