Parameters:

Property: non-isolated power supply step-down module

• Input voltage: DC 8v~35v

• Output voltage: 3v~24v adjustable (output should be at least 2V lower than input)

• Output current: 5A max

• Conversion Efficiency: > 95% max.

• Over-current protection: 7A

• Working temperature: -40~85°c

• Operating Frequency: 300KHz

• ​Protection: over-current protection; over-temperature protection

Features:

 > Synchronous Rectification

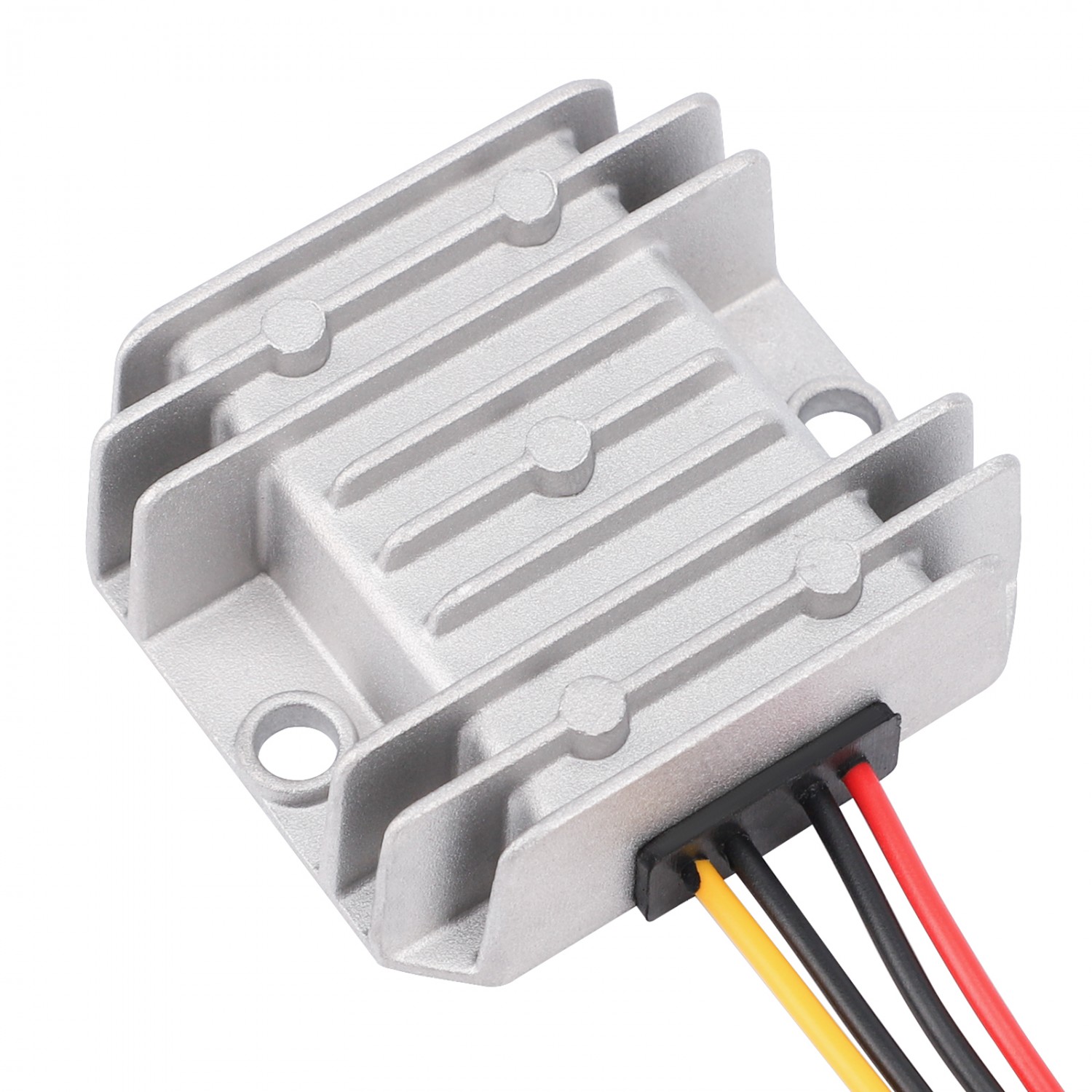

 > Aluminum shell, with better heat dissipation, safer
 > Organic silicone packaging technology, waterproof, IP67 Protection Level
 > U-shape fixing card slot
 > Anaerobic copper core wire, less resistance, better conductivity.

Package Includes:

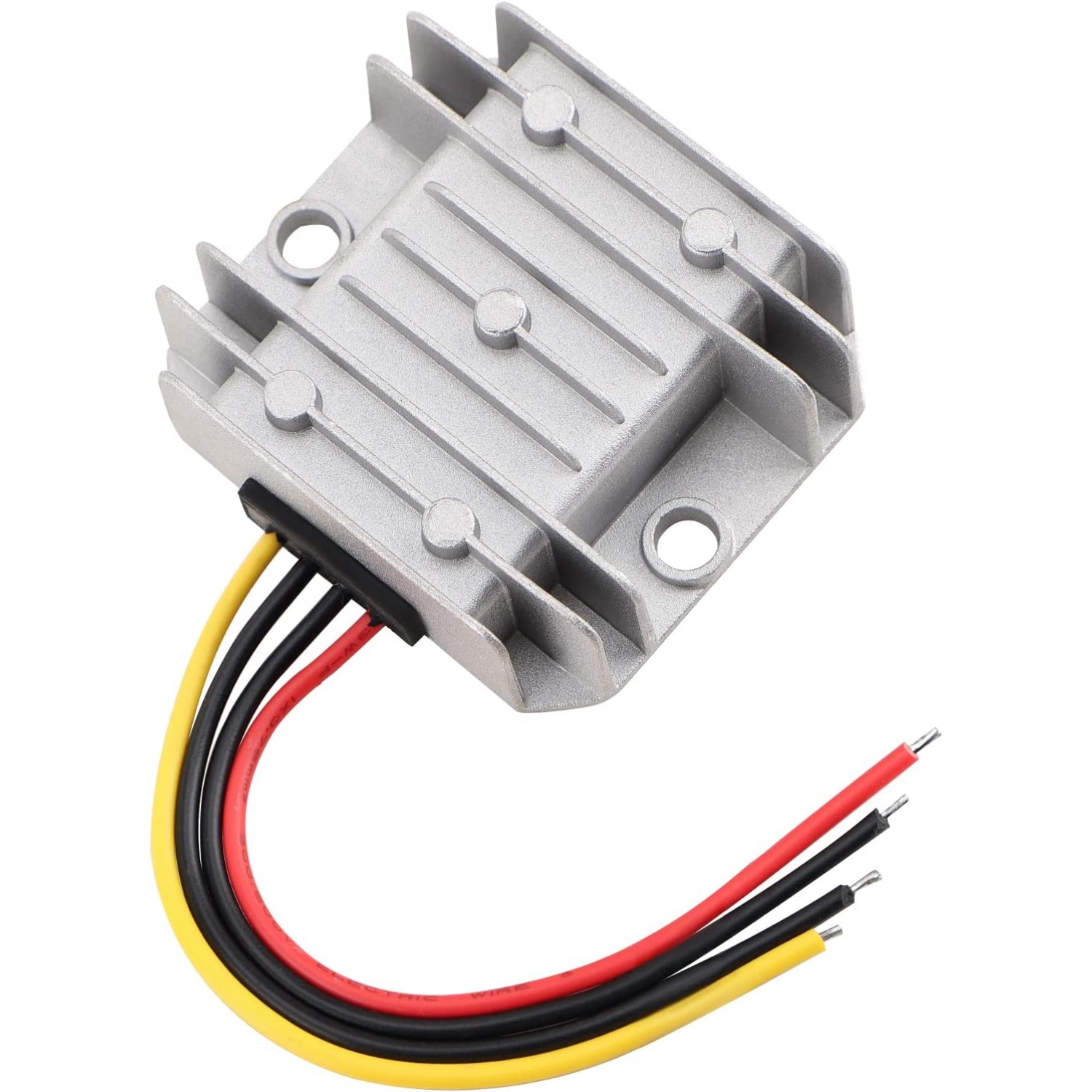

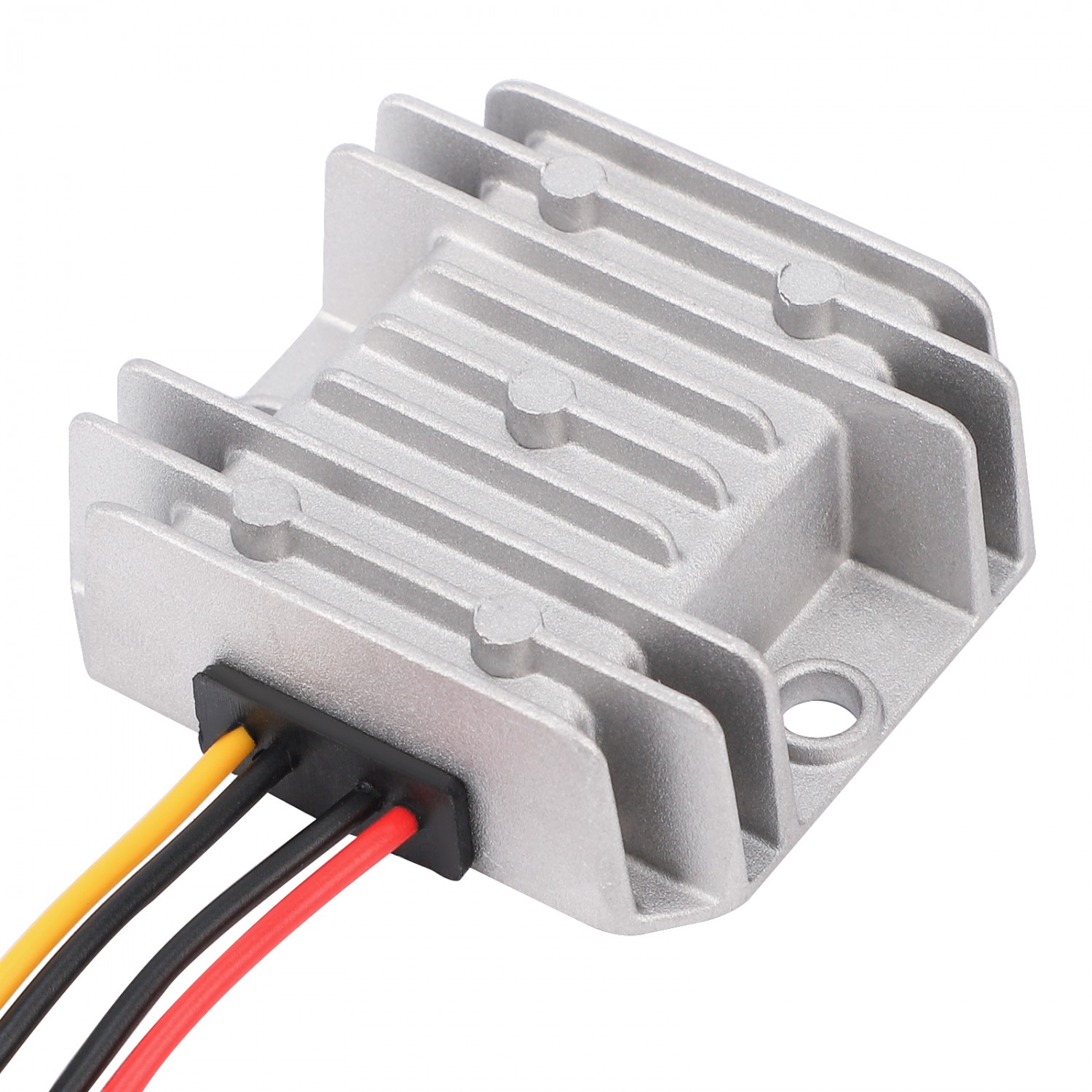

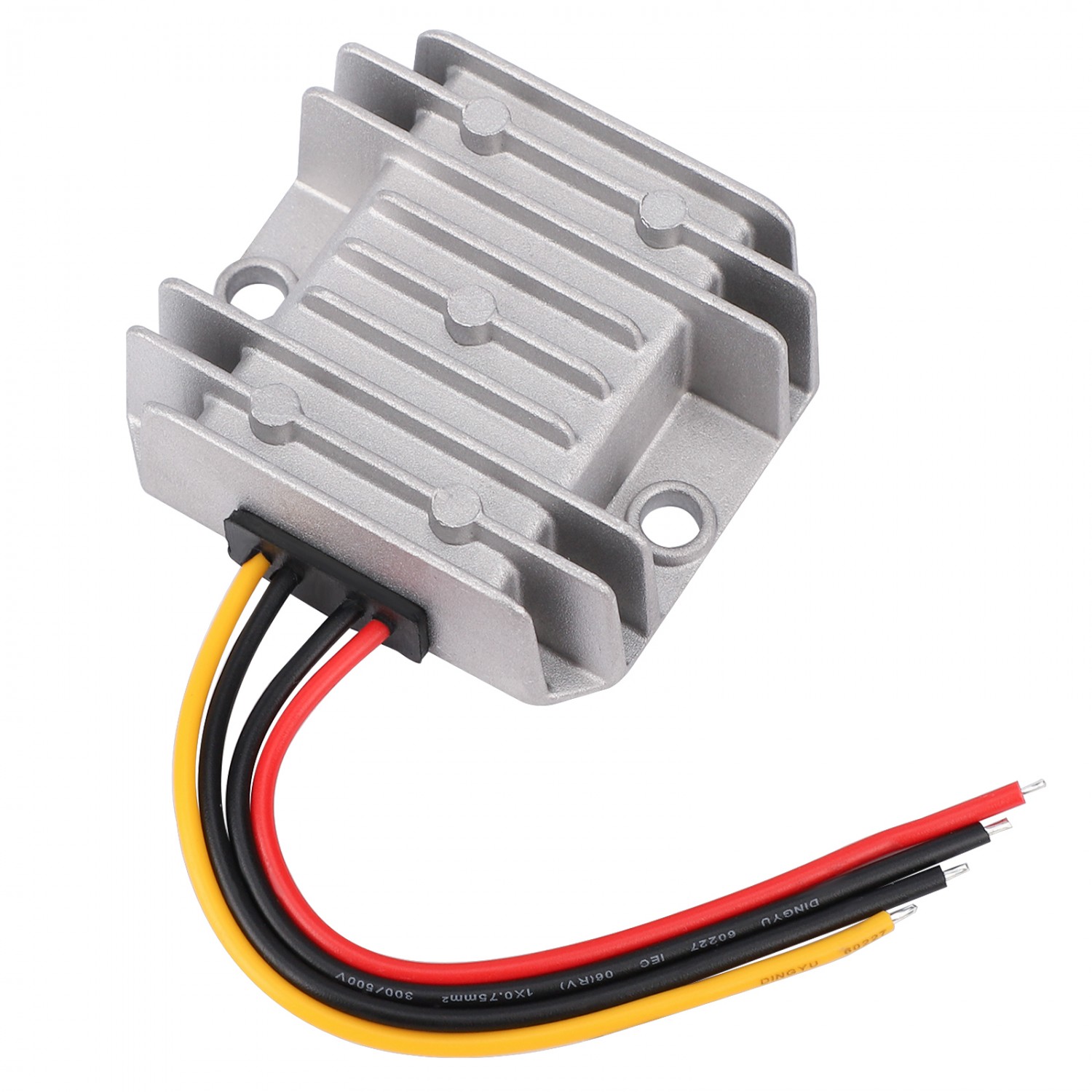

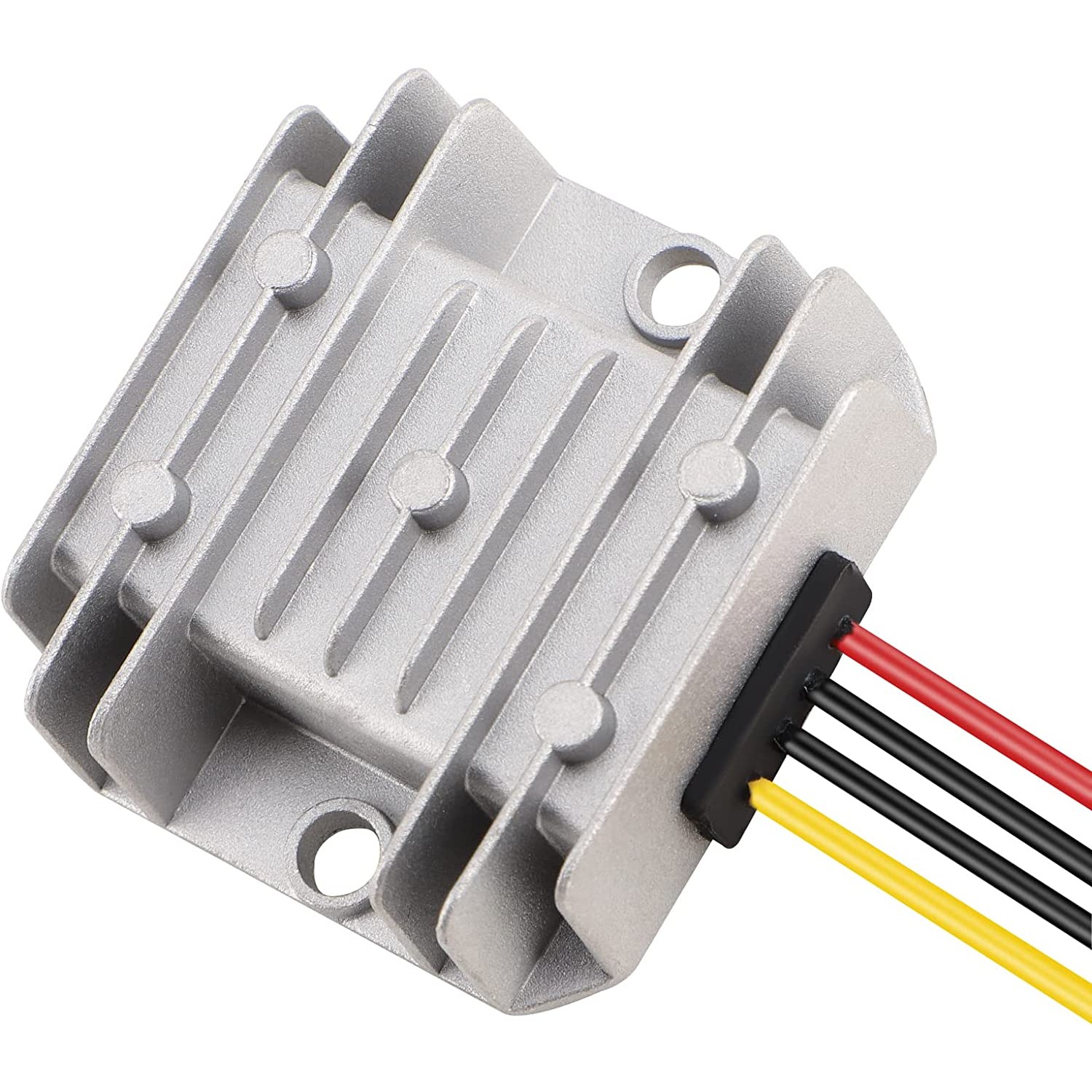

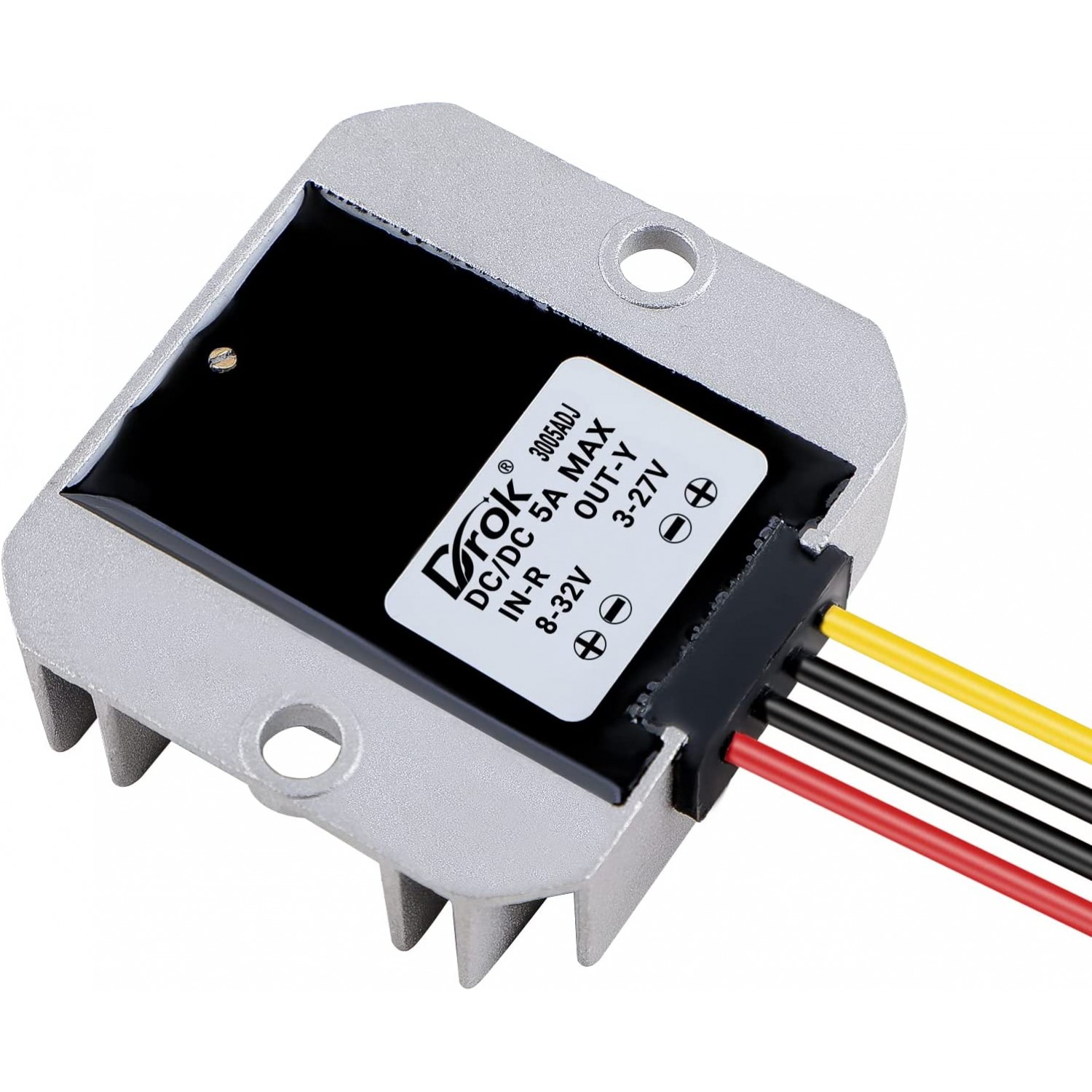

1 x DC Buck Converter Module
