- This instrument is widely used in voltage stabilizer, distribution cabinet, distribution box, timing device, transformer substation and all grid equipment meter.
- The stability of the product is good, has the features of high measuring precision, high anti-interference ability.
- Adopt the standard size, easy to install.
- Only two wires, the wiring is simple.
- Working voltage: AC 60~300V
- The minimum resolution ratio: 1V
- Measuring accuracy: 1% (±2 digits)
- Display way: 0.56"LED Red
- Measuring rate: ≥2times/S
- Working temperature: -10°c～+55°c
- Working humidity: 10 ~ 80% (no frost)
- Working pressure: 80 ~ 106 kPa
- Sun: no directly sunshine

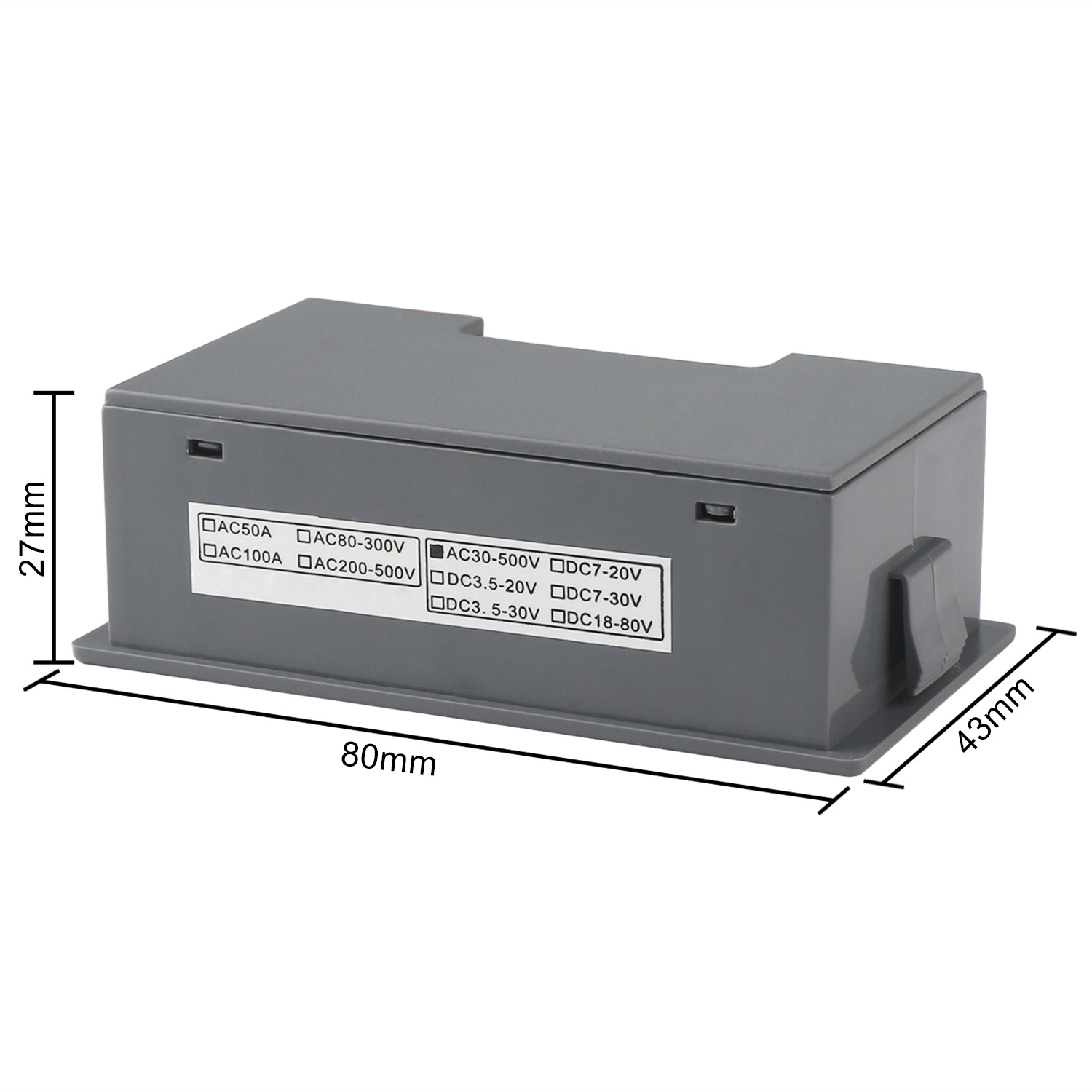

- Size：79 x 43 x 25 mm
- Hole size：75 x 39.5 mm
- The voltmeter is designed with the principle of capacitive hypotension, the higher frequency, the smaller the impedance of the capacitor. Therefore, it is not suitable for high frequency electronic speed regulation non - city electric sine wave frequency or other high frequency components; otherwise, it will be easy to burn out.
- 1 x Digital Tester
