Features:

• VOLTAGE MEASURING RANGE --- AC 80V-500V (110V/220V/380V)
• POWER SUPPLY --- Not required. Can be wired directly.
• DISPLAY --- LCD digital display.
• MEASUREMENT ACCURACY --- 0.5% + 2 digits.
• NOTE --- 1). cannot be used for non-sinusoidal wave such as some car inverter; 2). cannot be used for device whose voltage was regulated by voltage converter; 3). if used for electric generator, make sure it is 50Hz/60HZ sine wave circuit.

Description:

1. Voltage measuring range: AC 80V-500V (110V/220V/380V)
2. Power supply: no power supply needed, can be wired directly.
3. Measuring accuracy: 0.5% + 2 digits

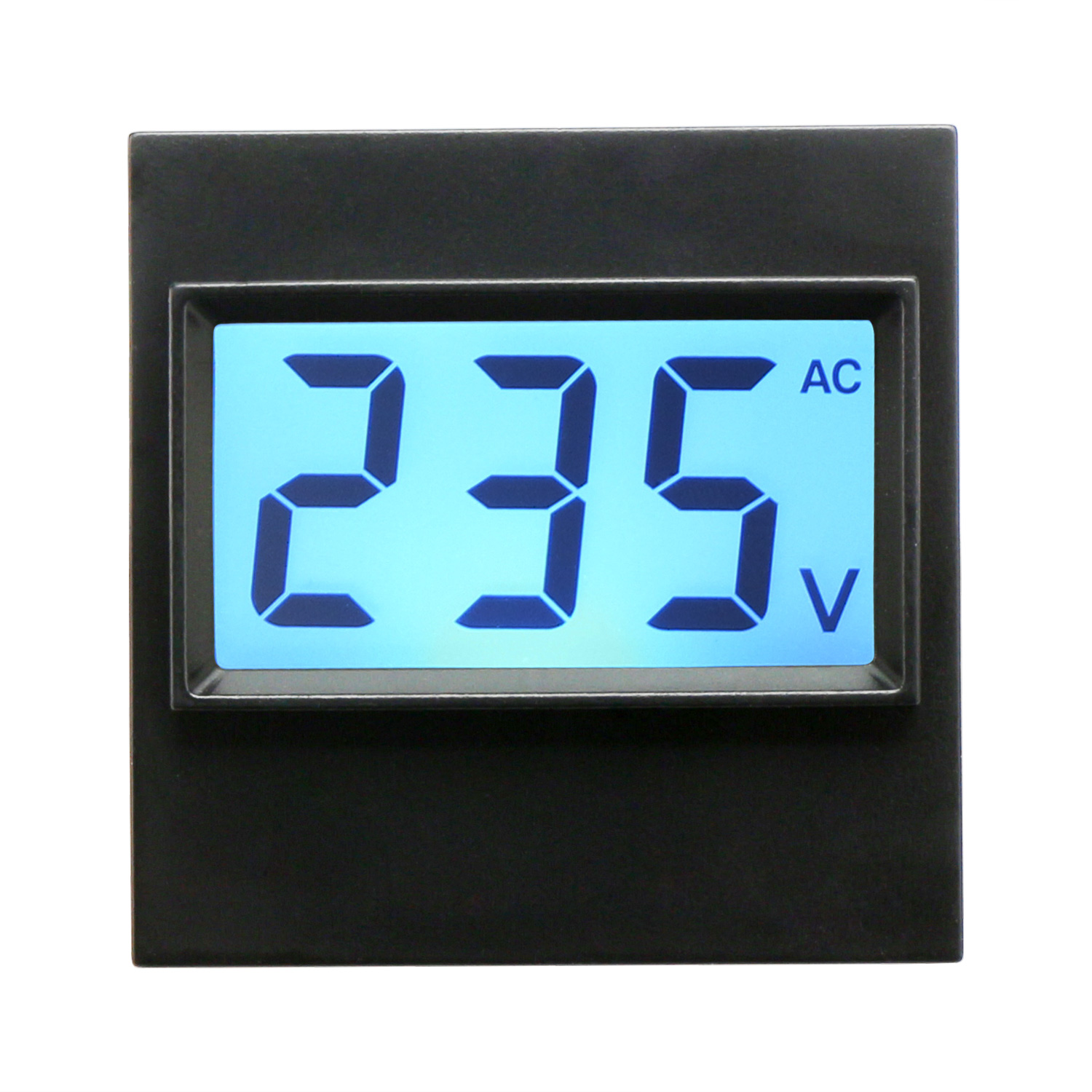

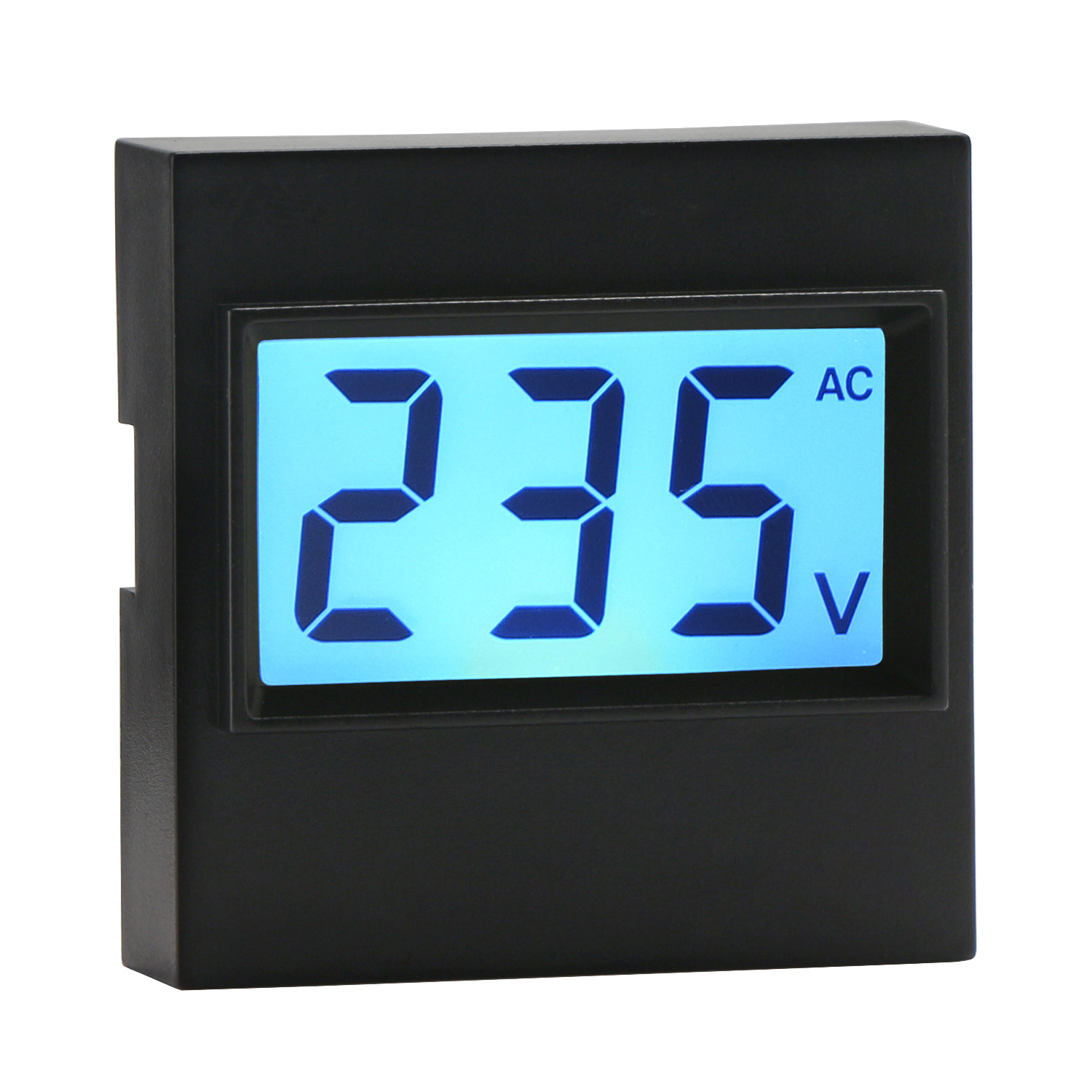

4. Display: Digital LCD Display
5. Font height: 13mm/0.51 inch

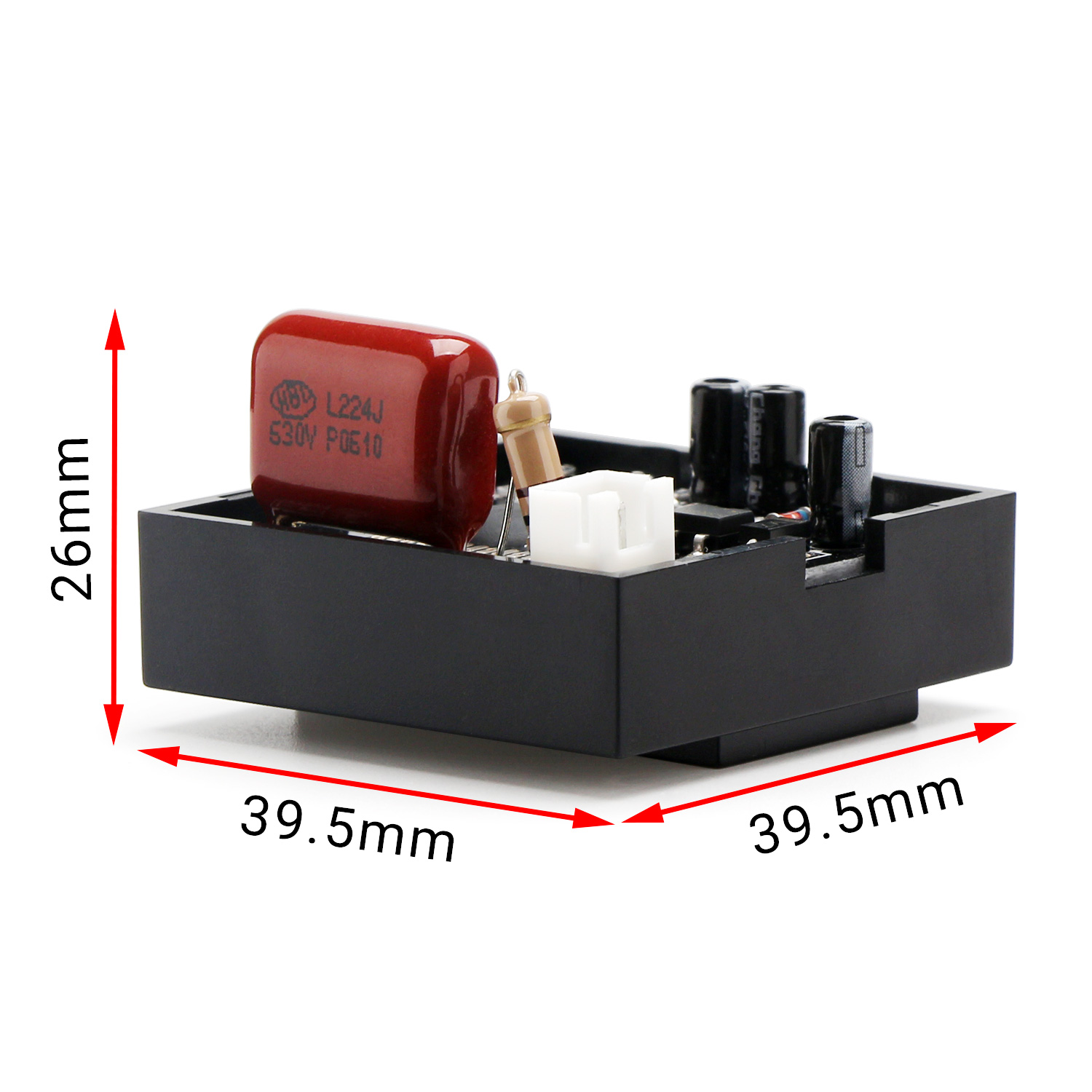

6. Overall dimension: 39.5*39.5*26mm/1.55*1.55*1.02 inch

Note:

1. This AC voltage monitor display meter cannot be used for non-sinusoidal wave such as some car inverter;

2. This AC volt tester meter cannot be used for device whose voltage was regulated by voltage converter;

3. If used for electric generator, make sure it is 50Hz/60HZ sine wave circuit.

4. The AC voltmeter panel can be applied to 110V/220V/380V circuit. If used in 380V circuit, just connect it to the neutral and the line.

Package Included:

1x AC Digital Voltmeter
