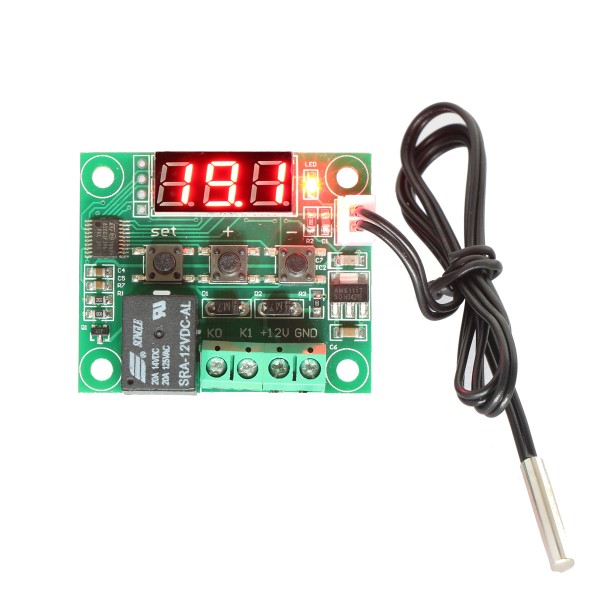

-38% -50-110°c  DC 12V Digital Thermostat Cooling/Heating Temperature Controller with Sensor Probe

Ask Question

It is a Digital Temp Controller,Temperature control range:-50~110 °c,Resolution: 0.1 °c (-9.9°c to 99.9 °c), 1 °c (other range),Measurement accuracy: 0.1 °c.


Technical Parameters:

  • Temperature control range:-50~110 °c
  • Input Power: DC 12V
  • Resolution: 0.1 °c (-9.9°c to 99.9 °c), 1 °c (other range)
  • Measurement accuracy: 0.1 °c
  • Backlash accuracy: 0.1 °c
  • Control accuracy: 0.1 °c
  • Output: 1 relay output, capacity = 10A
  • Measuring inputs: NTC (10K 0.5%) Waterproof sensor
  • Power consumption: Static current: < / = 35MA; Attract current: < / = 65MA
  • Refresh rate: 0.5 s
  • Size: 48.5*40.5

Instructions for use:
  • Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease), press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF.the thermostat output is 10A relay, meet a variety of high-power loads,
  • LED Indicator: LED off indicates the relay off; Lighting,indicates the relay is closed.
  • Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm
  • Long press the "SET" button to enter the main menu settings, press " + or - " to switching between P0-P6,then long press "SET" or 10 seconds without keystrokes to confirm the setting and return.

Buttons:
  • P0 :Cooling / Heating; Range: C/H; Default: C
  • P1 :Hysteresis Setting; Range:0.1-15; Default: 2
  • P2 :Highest Setting Limit; Range:110; Default: 110
  • P3: Lowest setting Limit; Range:-50; Default: -50
  • P4 :Temperature Correction; Range:-7-7°c; Default: 0°c
  • P5: Delay Start Time; Range:0-10 Minute; Default: 0
  • P6: High temperature alarm; Range:0-110; Default: Off
  • When the Thermostat is power off, long press "- or +", you can restore the factory settings

Package Include:
  • 1x Digital Temp Controller

Attributes
input voltage12V
output current10A
output power--
output voltage--
output ways1
