    Hi,

    how can use this product to charge Lithium Ion battery 20V 2.0 Ah ?

    regards,



    Drok
    Keymaster
    Post count: 2971

    Hello,

    If you want to charge battery, please connect diode in series to output port in case backfeed current.

    Please set output voltage and current as per manual, https://m.media-amazon.com/images/I/C1GWoUs-7fS.pdf

    Best regards,

    DROK

    Yahya
    Post count: 0

    Thank you for the support.

    I could not fully understand the manual, would you please help me to set up the module to charge the 20v battery.

    regards,

    Drok
    Keymaster
    Post count: 2971

    Hello,

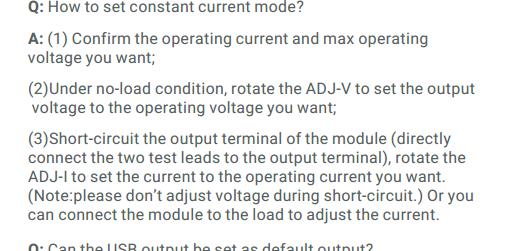

    Please confirm your charging voltage and maximum charging current, then rotate potentioneters as per below steps.
