    I have a 24volt 12ah 6S6P lithium battery.

    How is it best to set up/program the <span id=”productTitle” class=”a-size-large”>DROK 10-100V Digital Battery Capacity Tester (SKU 2001710003)?</span>

    Thanks
    <h1 class=”product-name” data-spm-anchor-id=”2114.10010108.1000016.i0.1ecc5c73jAPRkl”></h1>

    Drok
    Keymaster
    Post count: 2948

    Hello Martin Keogh,

    Thanks for writing in.

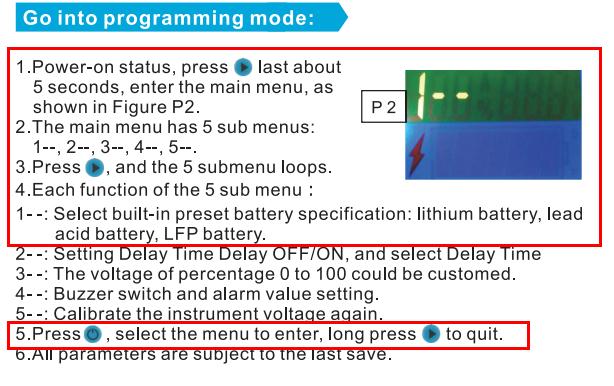

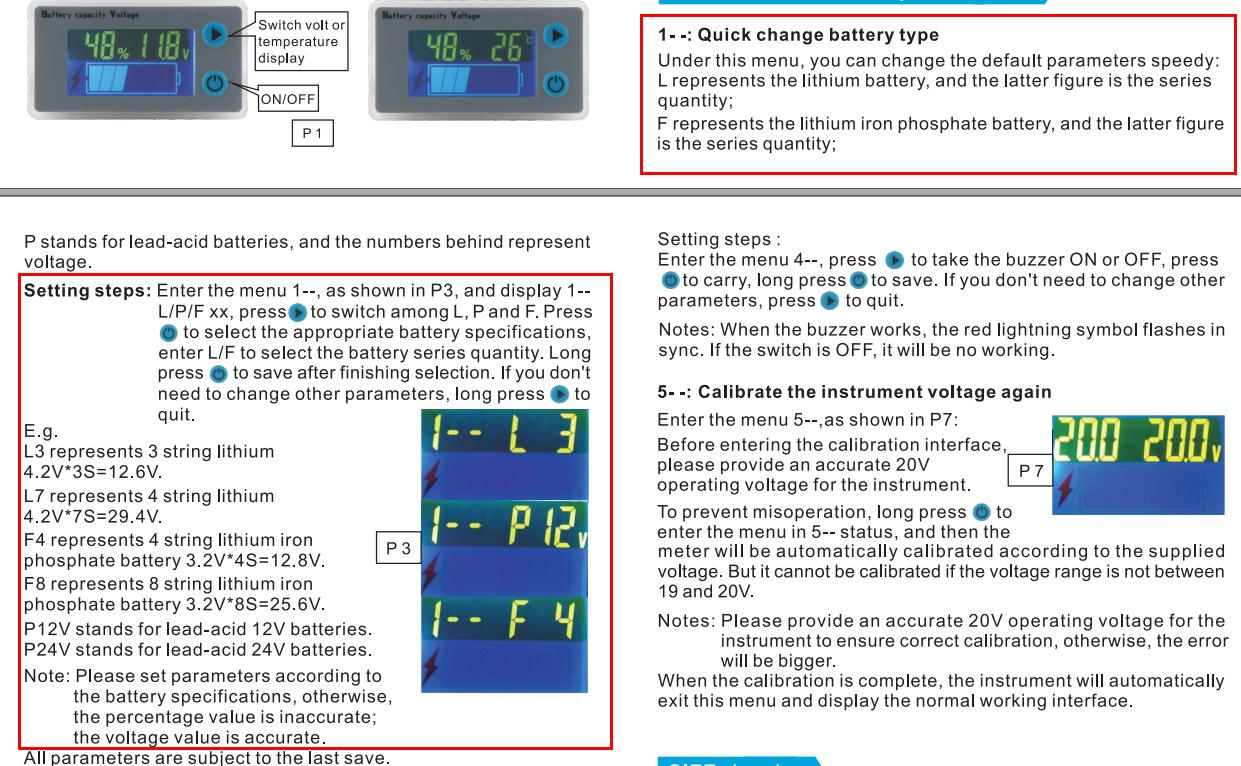

    For lithium battery, please refer to below instruction.  If there are any more questions, please kindy contact us.

    Best regards.

    Christopher Pedersen
    Post count: 0

    How do you save settings. I have this connected to 48v golf cart, and I have to setup the settings in option 3 everytime I turn the screen off and back on. How do I get the settings I setup to save?

    Drok
    Keymaster
    Post count: 2948

    Hello Christopher Pedersen,

    Do you mean you need to reprogram battery specification?

    After programing and hold the on/off button, it should save setting unless  change setting in menu 1 .

    Could you please tell us more details about your operation?

    Best regards,

    DROK

    Chuck Storlie
    Post count: 0

    Please send programing instructions on the 10-100 volt meter. Panel meter.  It’s not very understandable.   Having trouble saving settings and exiting settings to normal on/off position.

    Steven
    Post count: 0
    This reply has been marked as private.
    Drok
    Keymaster
    Post count: 2948

    Hello Steven,

    Are you talking about 2001710003 meter?Could you please tell us more details about your problem?

    Do  you mean you disconnect battery?

    Best regards.

    Thomas Hirte
    Post count: 0

    I have my meter (model 2001710003) connected to a car battery (12V Lead-acid) that I use in my camper to run my CPAP.  What specific settings (e.g. L#, and limits e.g. 12.6V?) should be used to monitor this battery.   Currently it shows 100% capacity, but I have used it for 3 days without charging.

    Drok
    Keymaster
    Post count: 2948

    Hello Thomas Hirte,

    For 12v lead-acid, please select P12V in menu “1–“.  You can refer to the program method in above post.

    Any more questions, please contact us.

    Best regards.

    Scott carpenter
    Post count: 0

    Confused on the programming of 2001710003 for 48v golf cart. Have #1 set to F48v. For the #2 on and off, #3 voltage parameters. and #4buzzer not sure what to set

    Drok
    Keymaster
    Post count: 2948

    Hello Scott carpenter,

    If you program menu 1–, please ignore menu 3–. They both are battery specificatin setting. Meter only save the last setting. Menu 3– is custom setting, you have to set minmum and maximum battery voltage.

    Assume you set alaram value as 12v and enable this feature, when battery voltage reaches 12v, buzzer will sound.

    Best regards.



    Sean Elledge
    Post count: 0

    I properly set-up a lead-acid battery (golf cart) for 48 volts (P-48V).  This is a brand new set of batteries with an overnight fresh charge and the DROK meter registers 48 volts with only 75%  battery life remaining.  Why isn’t it 100%?  Did I do something wrong?

    Drok
    Keymaster
    Post count: 2948

    Hello Sean Elledge,

    Are you talking about this item, #2001710003? https://www.amazon.com/dp/B07759SLYP?ref=myi_title_dp

    Is the voltage reading correct? And is there any device drawing power from battery?

    Best regards.

    MIKE SWILLEY
    Post count: 0

    How do I provide a 20v charge to calibrate?

    Drok
    Keymaster
    Post count: 2948

    Hello MIKE SWILLEY,

    Please connect accurate 20v voltage directly to “B+,B-“and then enter calibration menu.

    Best regards.
