    <p style=”text-align: left;”>I’m trying to connect a 110v solenoid to this drok timer relay part number 2001711005. It’s supposed to be capable of handling and controlling 110/120v devices. But I must be doing something wrong. I can only get power to the drok display but nothing from the outputs at all. Any advice would be great.</p>

    Drok
    Keymaster
    October 28, 2019 at 8:38 am
    Post count: 2971
    #36928 Reply |

    Hello Corey,

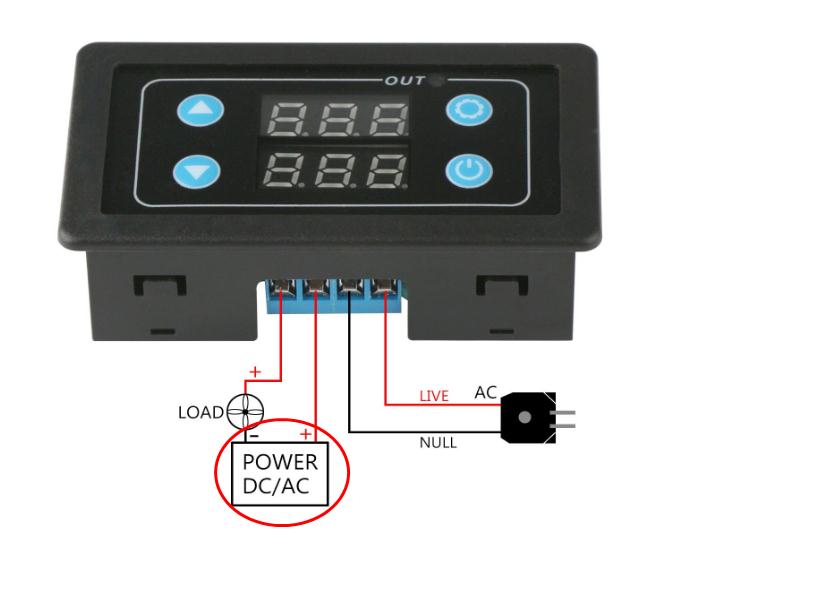

    2001711005 doesn’t offer power for your device. Please kindlycheck below wiring diagram.

    Any more questions, please kindly contact us.

    Best regards.

    2001711005

    Colin Roberts
    January 27, 2020 at 9:37 pm
    Post count: 0
    #37407 Reply |

    So do we feed power through s1 and out s0 then to load?  That’s what I got from diagram?

    Drok
    Keymaster
    February 21, 2020 at 9:34 am
    Post count: 2971
    #37477 Reply |

    Hello Colin Roberts,

    Yes, please connect power supply and load there.

    Best regards.
