    My question is regarding “DROK DC 4.5-100V Digital Voltmeter Ammeter Multimeter Panel”  (B07QVXXGVR).

    The “<span class=”askExpanderContainer noScriptNotDisplayExpander askExpanderExpanded”><span class=”askLongText”>68mmx37.5mm </span></span>” measurement mentioned on the Amazon website doesn’t seem accurate, it is nearly the dimension of the outer part of the panel.

    I’m trying to design a cutout for a laser-cut metal sheet.   Can you give a more precise measurement of the proper opening?   It seems to me that the best opening would not be a simple rectangle  as should allow the “lip” on the front to cover more solid surface instead of the hole.

    Thanks

    -Scotty

    Drok
    Keymaster
    Post count: 2624

    Hello  Scotty,

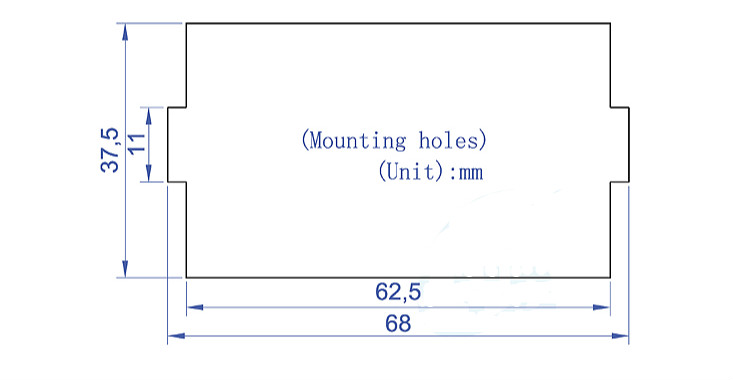

    Here is open size for B07QVXXGVR (#200075)

    200075
