About this item

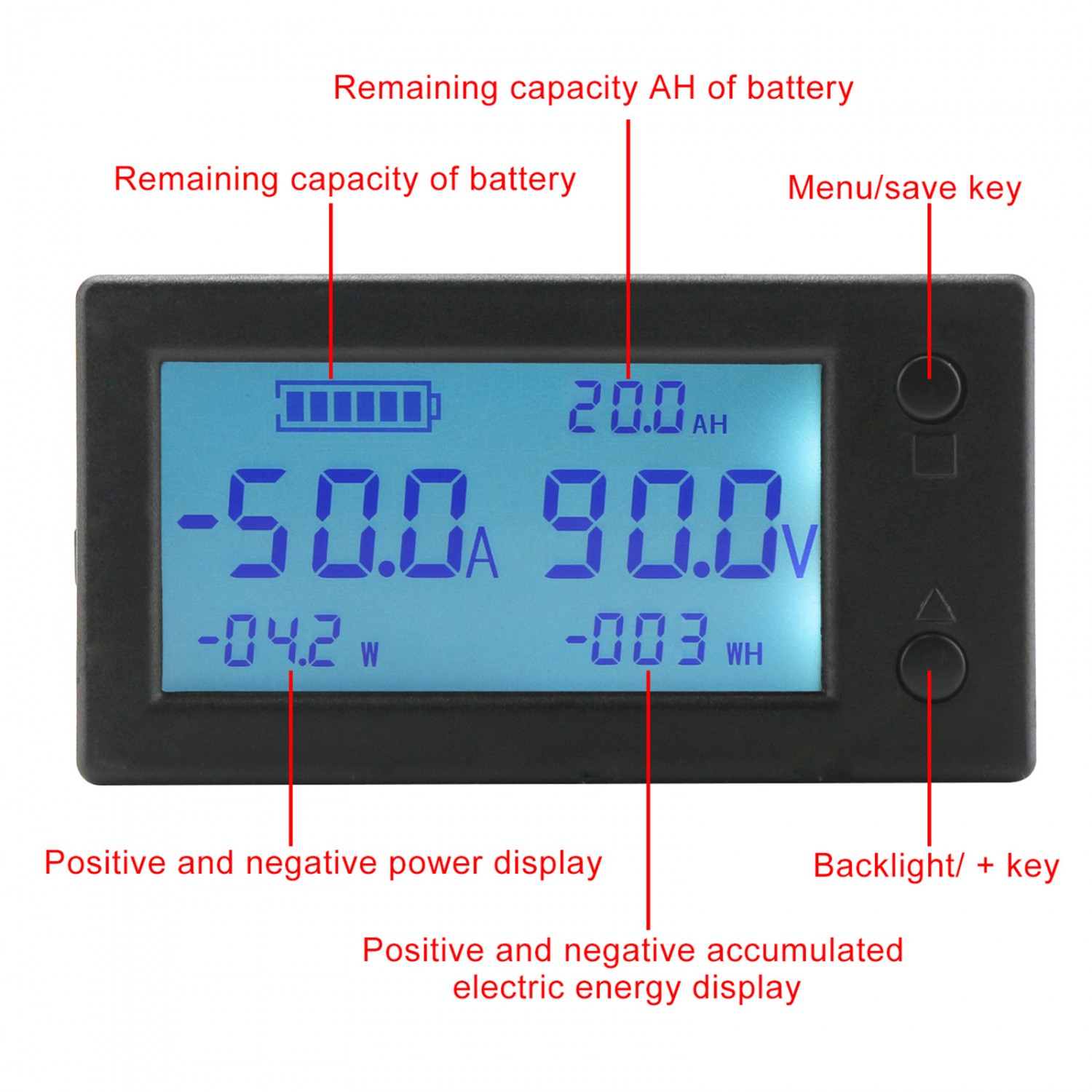

Multifunctional Meter ----battery capacity, DC positive and negative bidirectional current, DC voltage, DC power and DC accumulated electric energy.

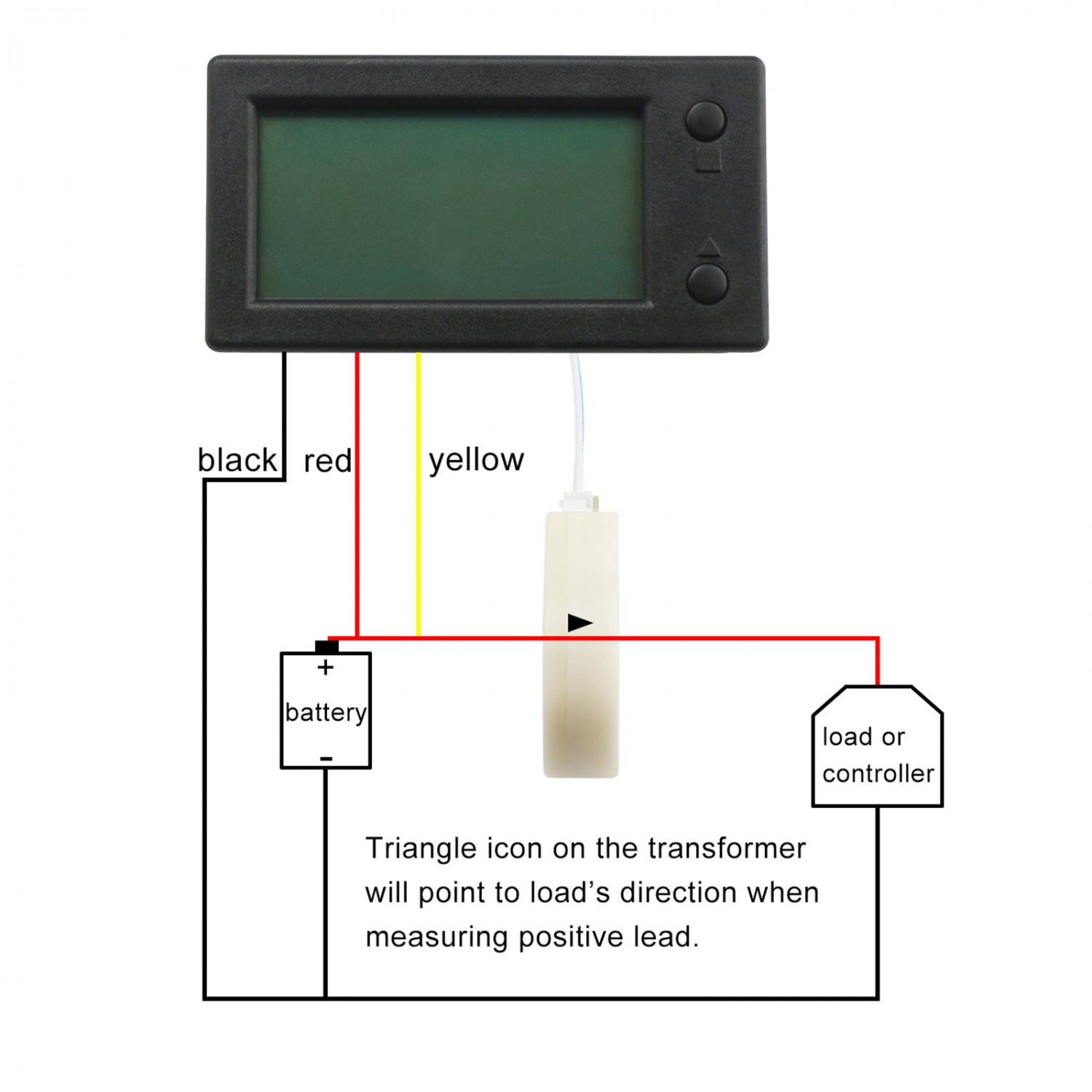

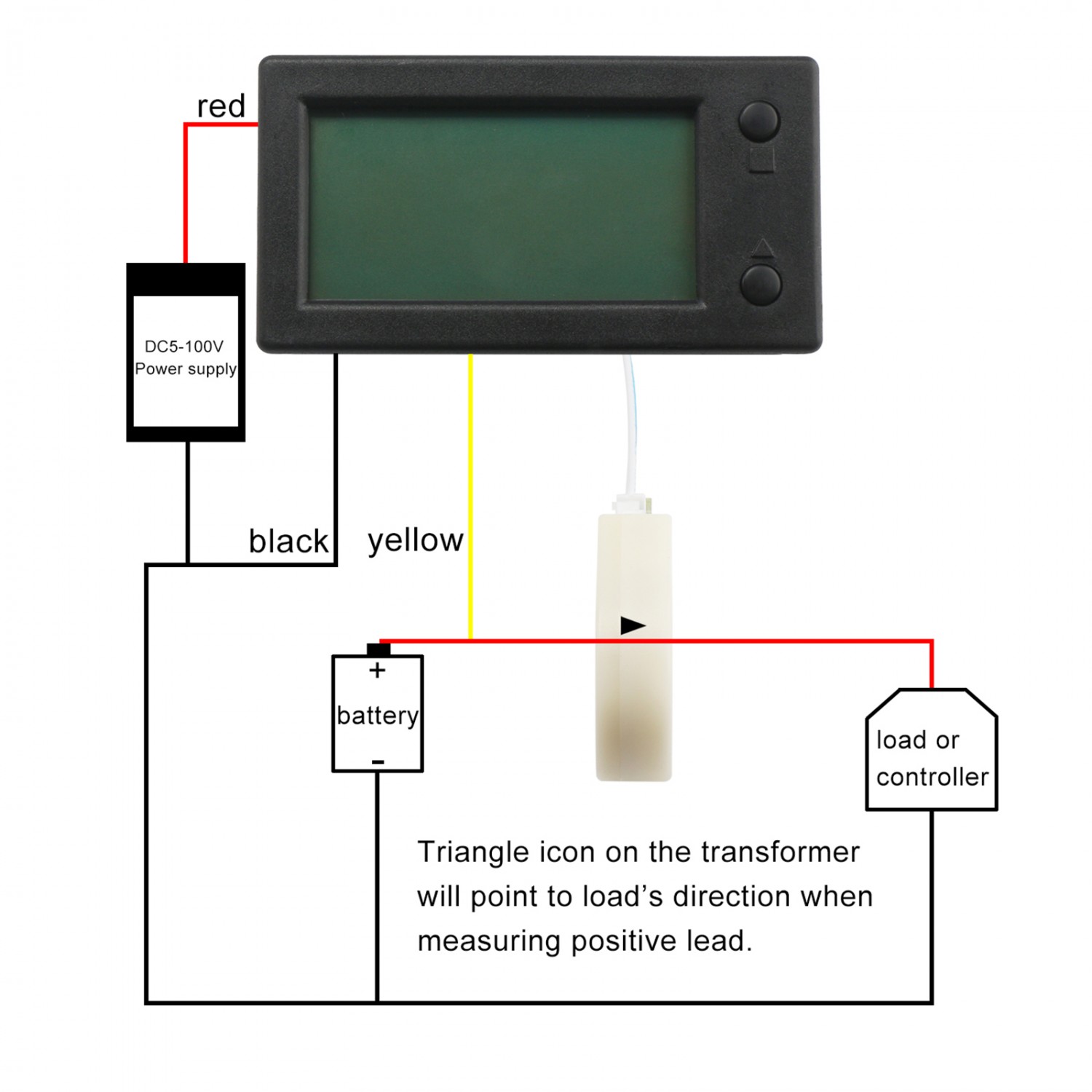

Hall Sensor & Easy Mount ---- The voltage amperage meter is equipped with a Hall transformer for isolated measurement, which is more reliable and safer. Both two-wire and three-wire connection are available, two wires for testing 5-90V, three wires for monitoring 0-300V. Much more convenient with the long 2.5m shielded wire.
STN LCD Screen ---- users could see the display clearly whenever at night and day, indoor or outside, even under the sunshine.
Alarming Function ---- The tester will alarm and flash when the real voltage or current is higher or lower than preset alarming ones, or the remaining capacity of battery is low.
Wide Applications ---- Can be used as dc amp meter, digital volt meter, power meter, battery capacity monitor. Suitable for all kinds of batteries, such as Lead-acid batteries, Lithium Polymer batteries, lithium iron phosphate batteries and etc. With function of storing data when power down, using this meter, no need to worry that your electric data will be lost.
Current measuring range: 200A
Current resolution: 0.2A
Power supply range: DC5～90V
Voltage measuring range: DC0～300V
Voltage resolution: 0.1V
Capacity measuring range: 0～999AH
Power measuring range: 0～999KW
Electric energy measuring range: 0～999KWH
Refreshing speed: 0.5S/time

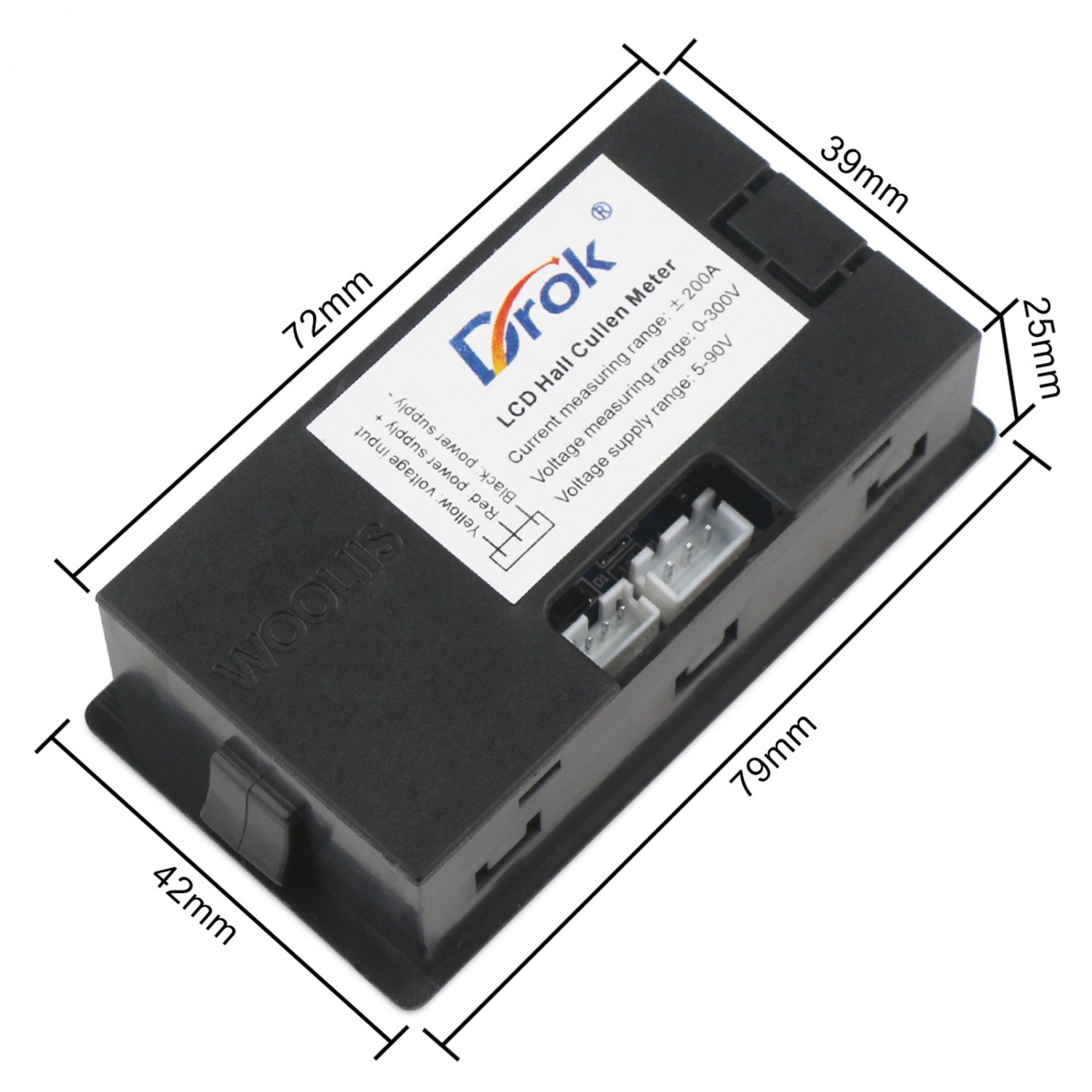

Installing size: 76.0mm * 39.5mm
Diameter of transformer:Φ20mm
Working current: backlight on: 10MA;backlight off：4MA

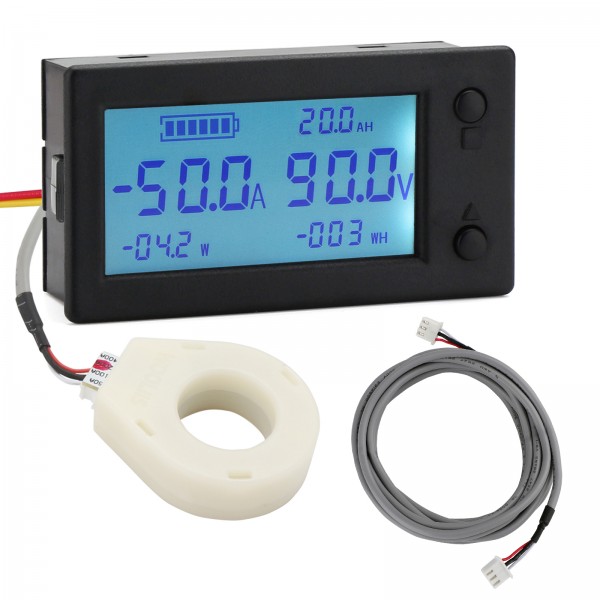

1 X LCD Digital Cullen Meter, 1 X 2.5m Shielded Wire
DC 0-300V 200A Battery Monitor Coulombmeter STN LCD Display Current Voltage Energy Capacity Ammeter Voltmeter Multimeter with Hall Sensor, 2.5m Shielded Wire
