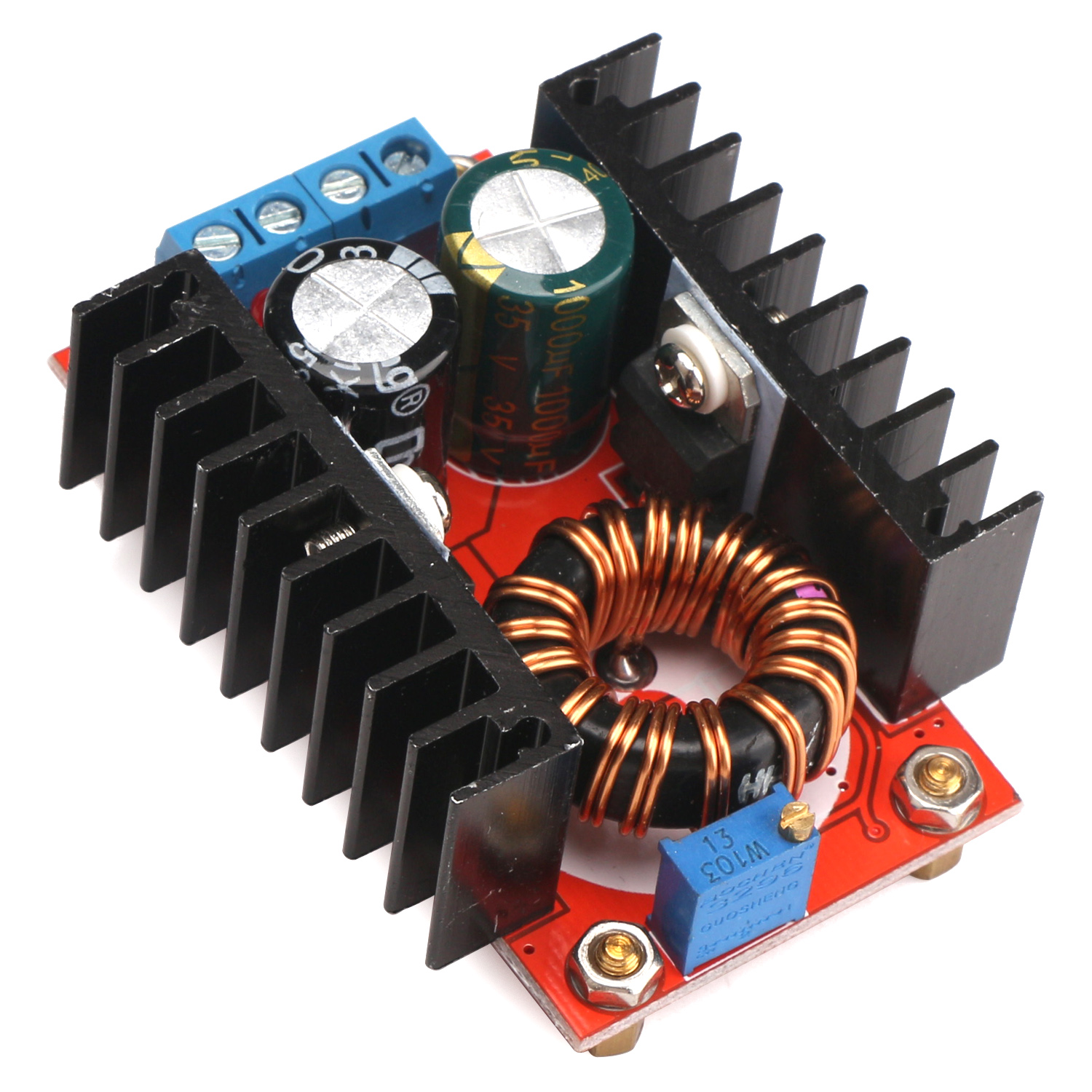

-33% 120W DC/DC 10-32V to 35-60V Boost Converter Laptop Notebook Car Power Supply

Ask Question

120W boost DC to DC boost power converter, input voltage 10-32V, output voltage 35-60V, Maximum output current 5A, Maximum input current16A, can improve the charger the car power converter.

Feature:
  • Module Properties: non-isolated step-up module (BOOST)
  • Input voltage :10-32V

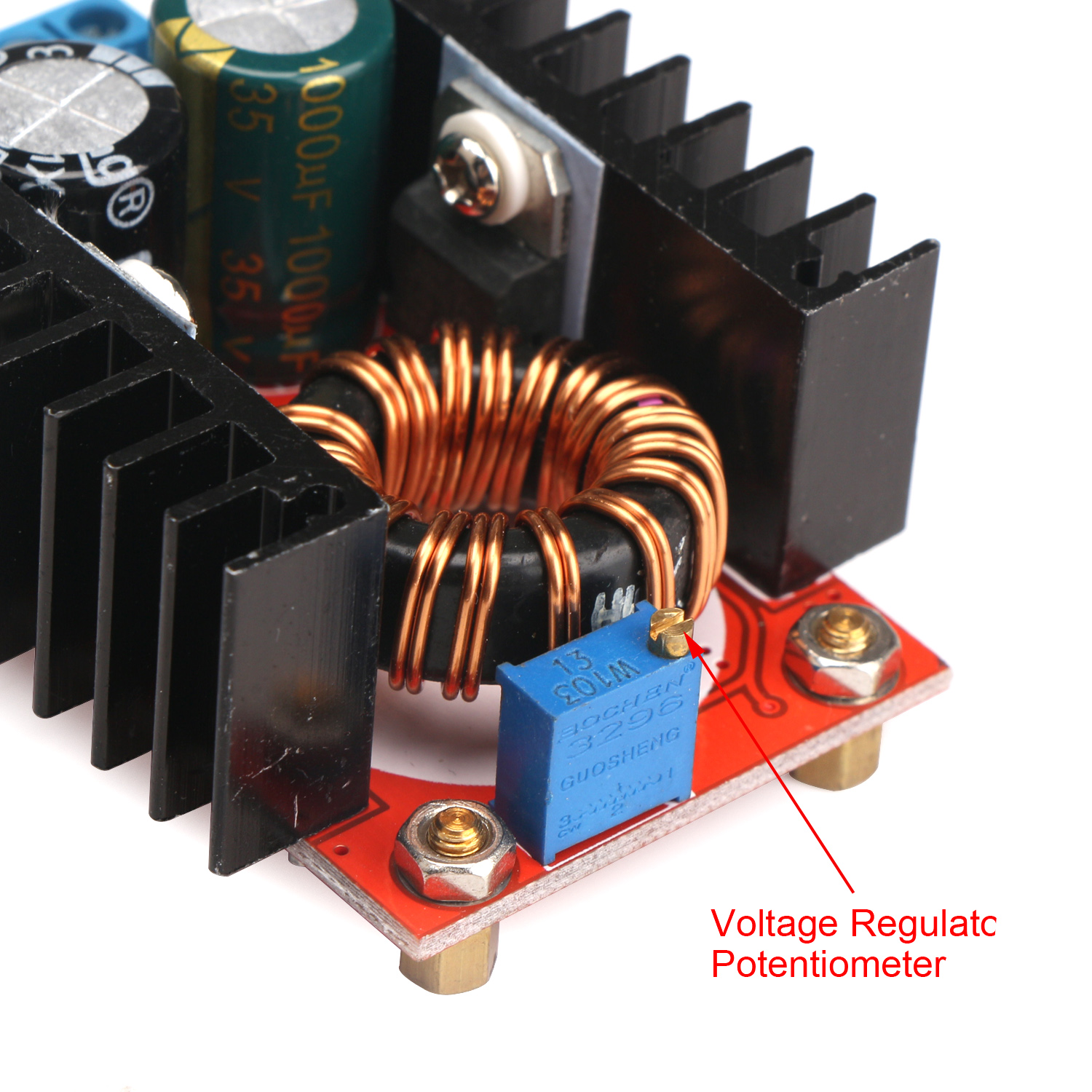

  • Output voltage: 35-60V (adjustable)
  • Output Current: 5A (MAX)
  • Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
  • Output power: natural cooling 80W (MAX), enhance heat dissipation 120W (MAX)
  • Conversion efficiency: 90% typical (reference)
  • Output Ripple: 2% (MAX) 20M-bandwidth
  • Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
  • Full load temperature rise: 45°c
  • No-load current: 25mA typical
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
  • Input Reverse Polarity Protection: None (Please Series diode at the input port.)

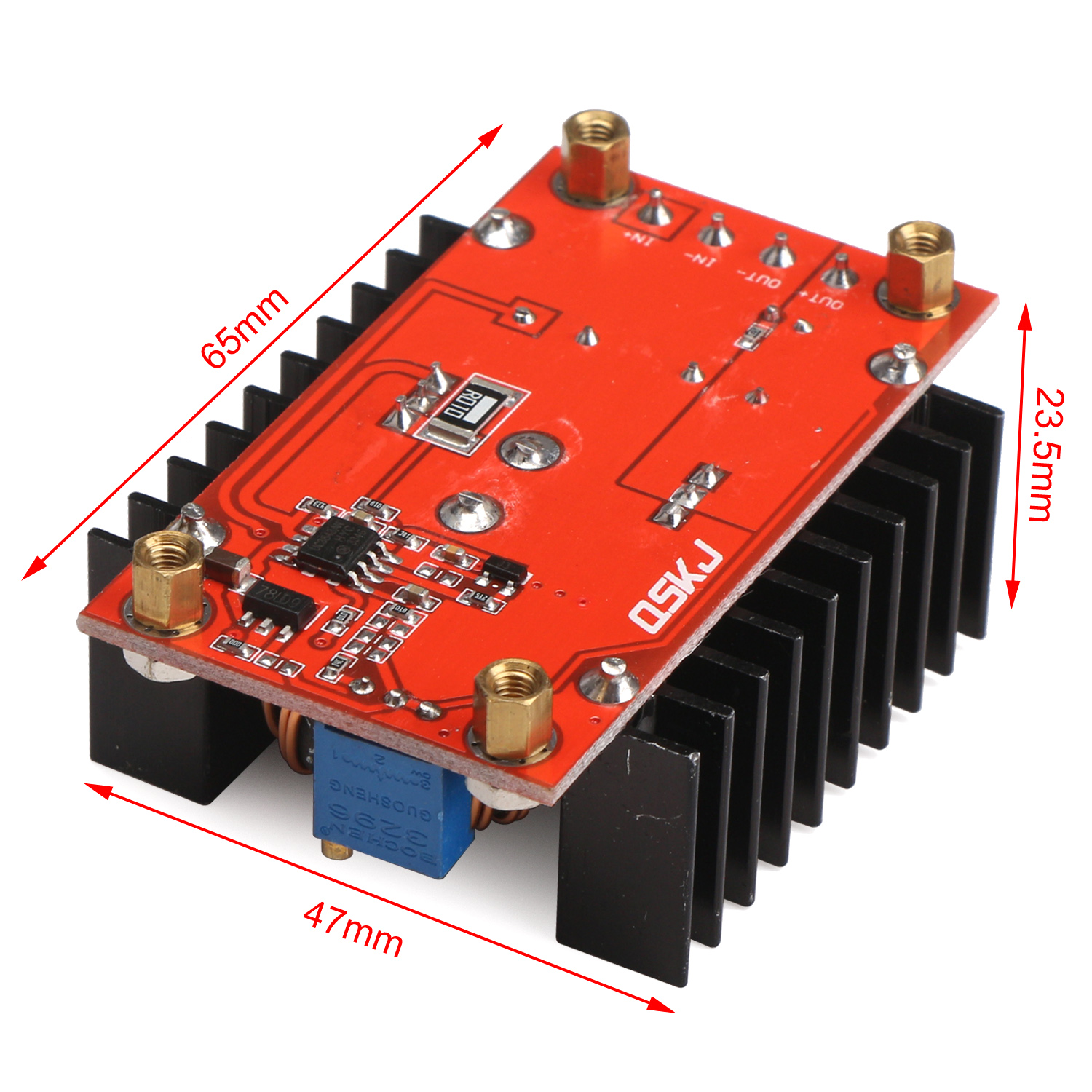

  • Weight: 67g
Some Applications

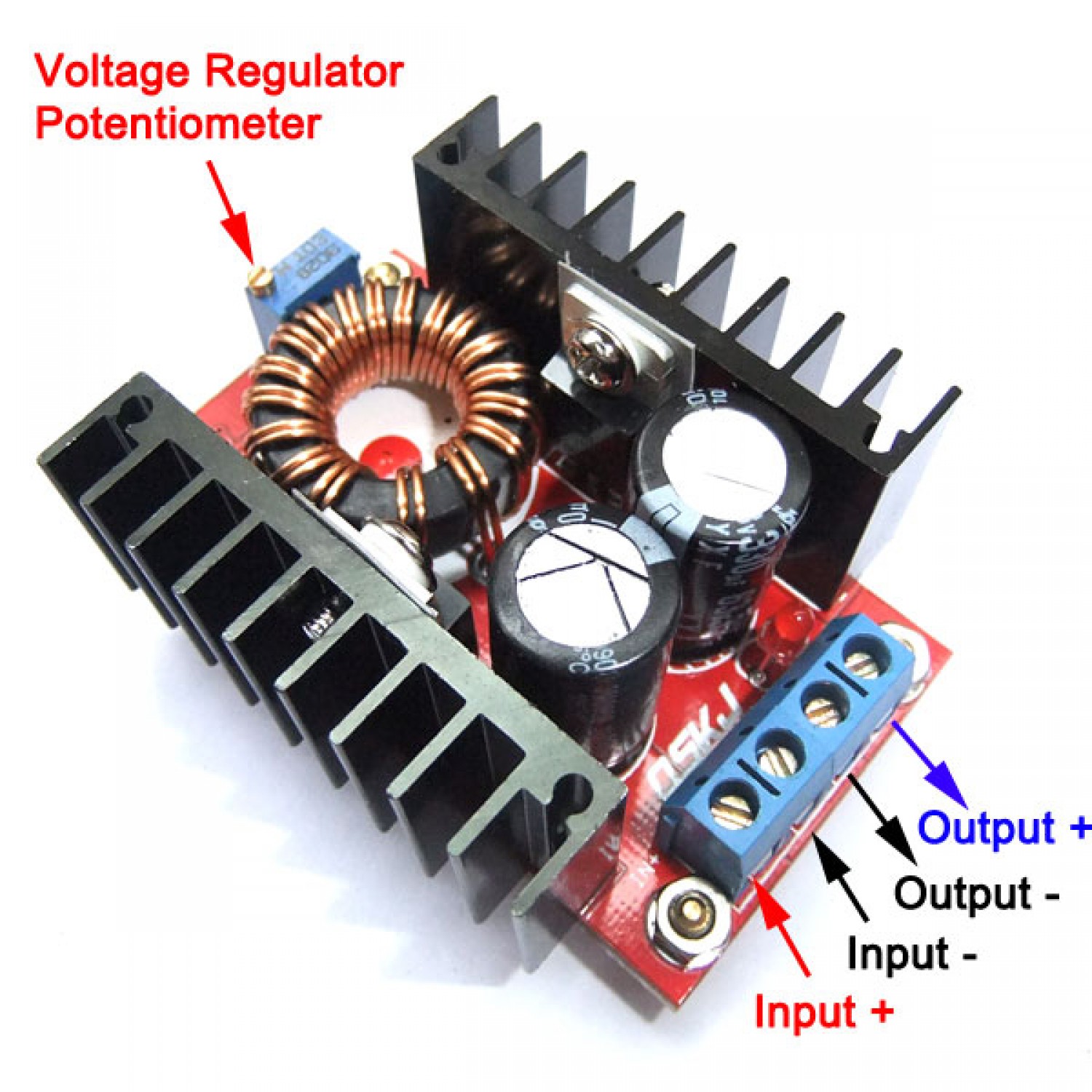

  • 1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 35-60V(adjustable freely), However, the output voltage can not be less than the input voltage.
  • 2. Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 48V battery.
  • 3. Solar battery charger for electric vehicles
Package Includes:
  • 1x 120W Boost Converter
Attributes
input voltage10~32V
output current5A
output power80W
output voltage35~60V
output ways1
