Introduction:

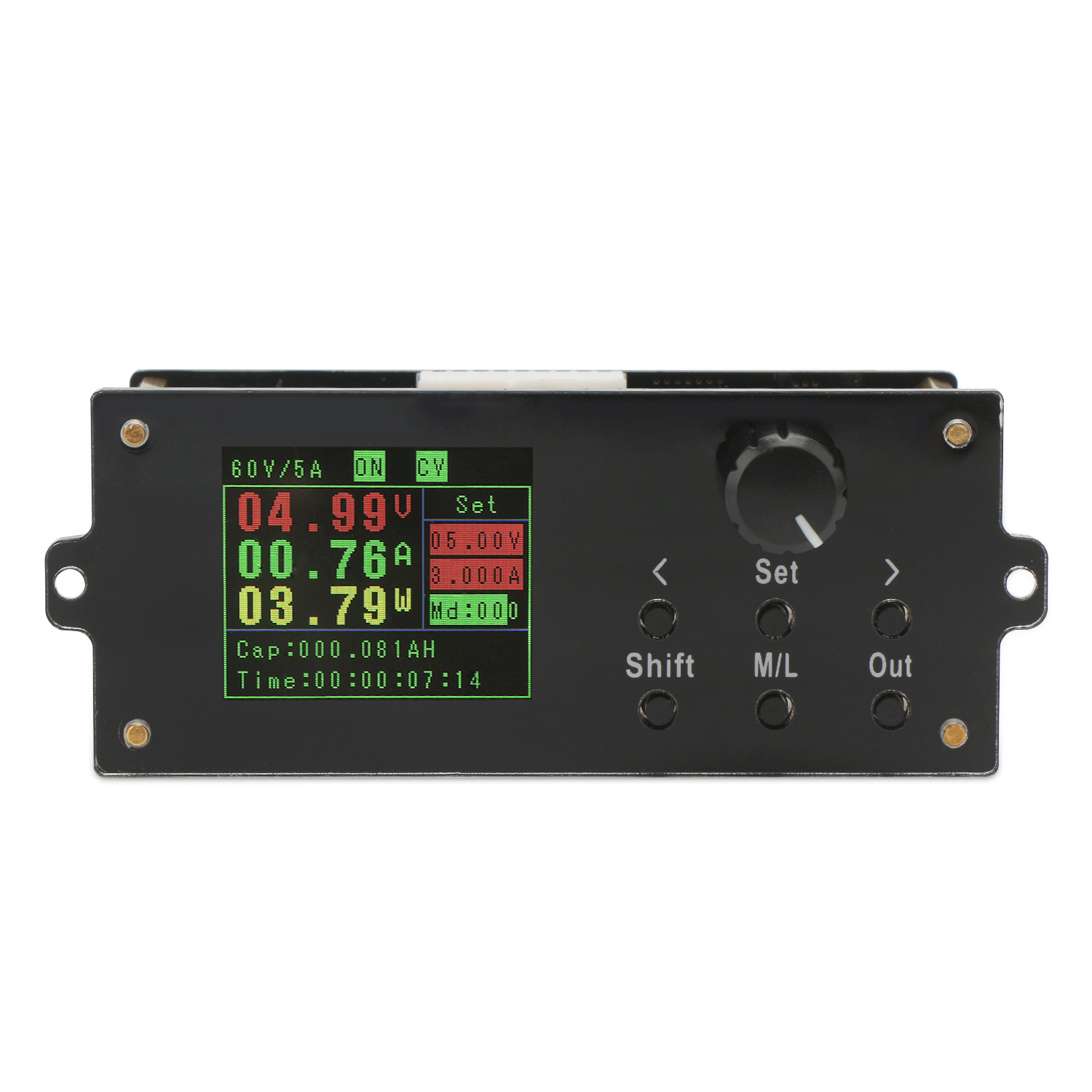

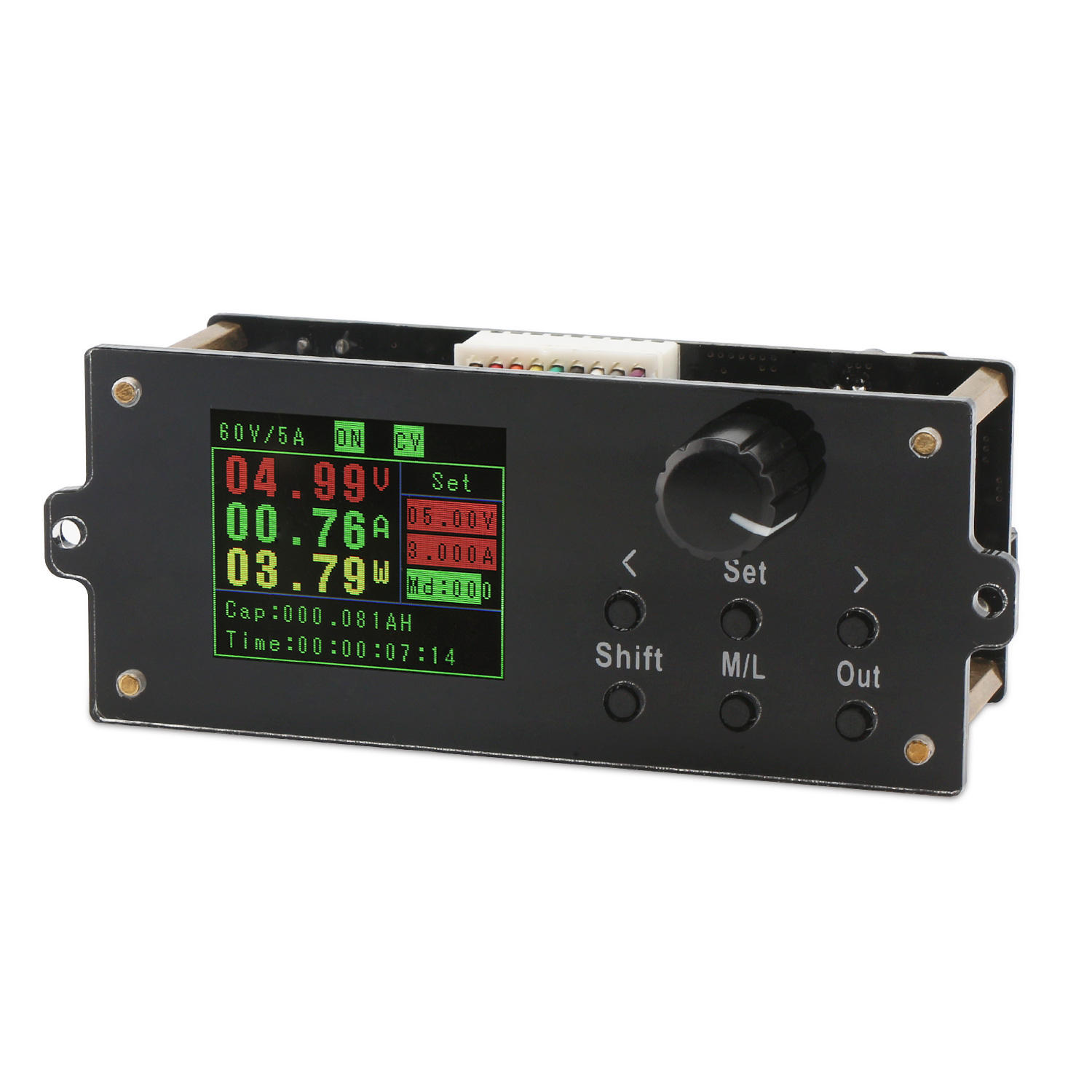

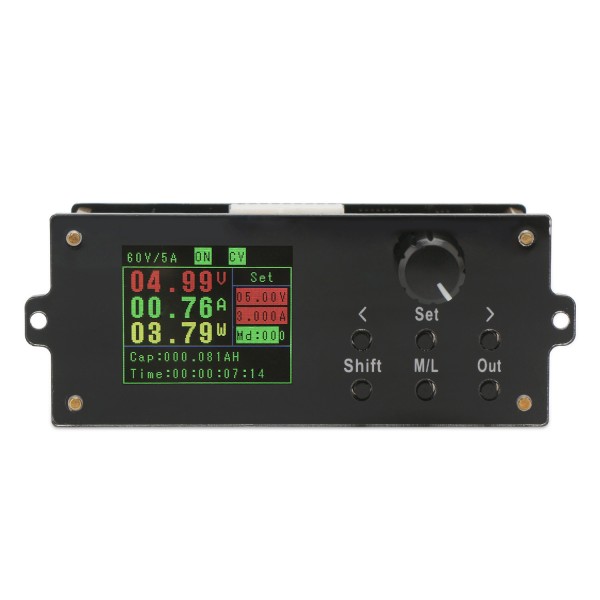

DPX6005 power supply is a full CNC programmable buck converter, small in size, high power, high efficiency and stable operation; 1.8-inch TFT color liquid crystal display, display data is comprehensive and clear; The module is controlled by an advanced microprocessor, which can accurately adjust and display the voltage and current. The setting parameters are convenient and fast, which is very suitable for debugging, maintenance and experimental power supply.


Parameters:

- Input voltage range: 6V-62V

- Adjustable output voltage range: 0-60V (input voltage should be greater than output voltage)

- Adjustable output current: 0-5A

- Input protection: reverse connection protection

- Output protection: OVP(over voltage protection), OCP(over current protection), OPP(over power protection)

- Output power: 0-300W

- Output voltage setting resolution: 10mV

- Output current setting resolution: 10mA

- Output ripple: <100mVpp (input 48V, output 24V, 5A)

- 100Hz wave transmission ratio: <1/10000

- Typical efficiency: 90%(input 50V, output 30V, 3A)

- Voltage, current display precision: 10mV, 10mA

- Voltage display error: ±1%+20mV

- Current display error: ±2%+20mA

- Response time: <50ms

- Data store: M0-M9, total 10 groups data store

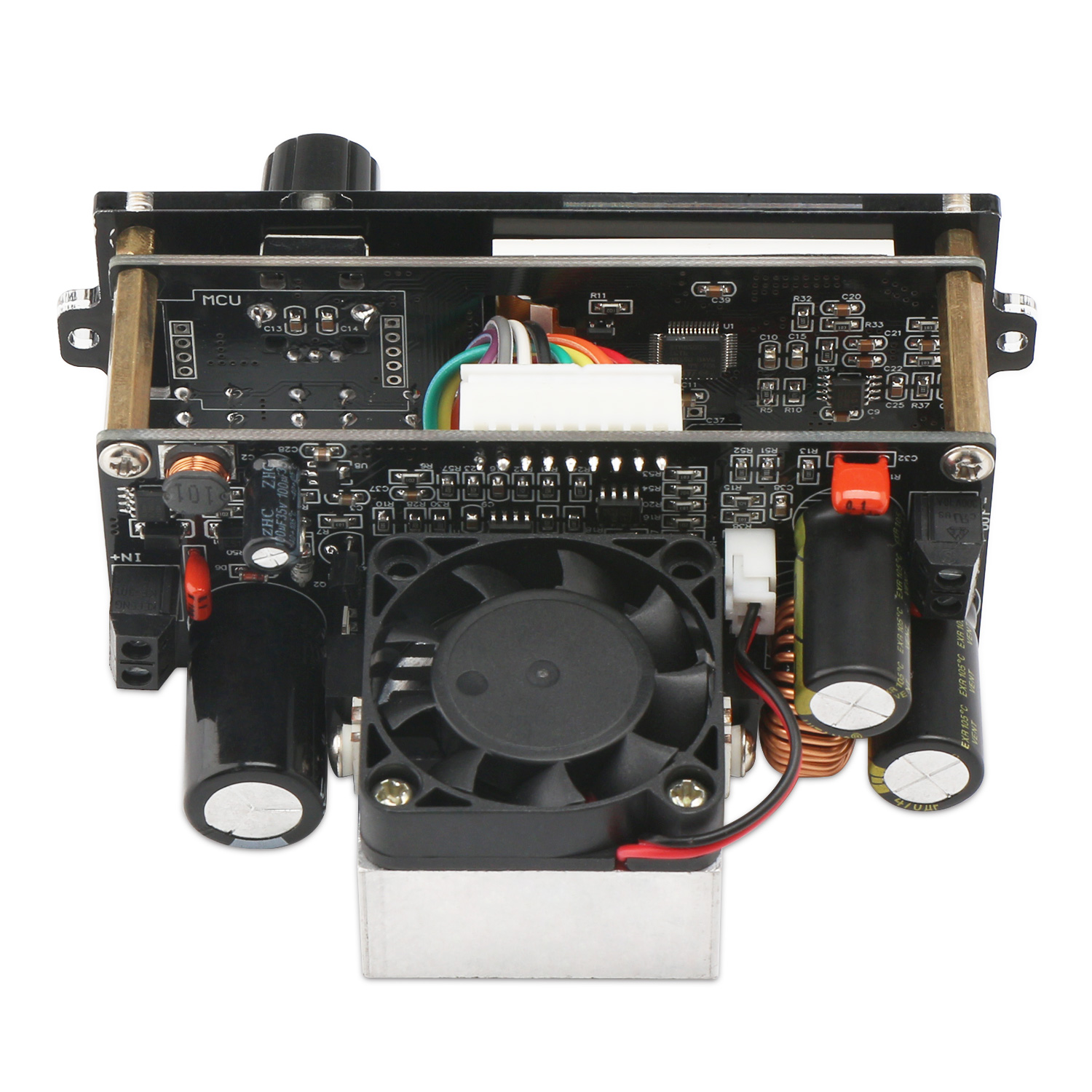

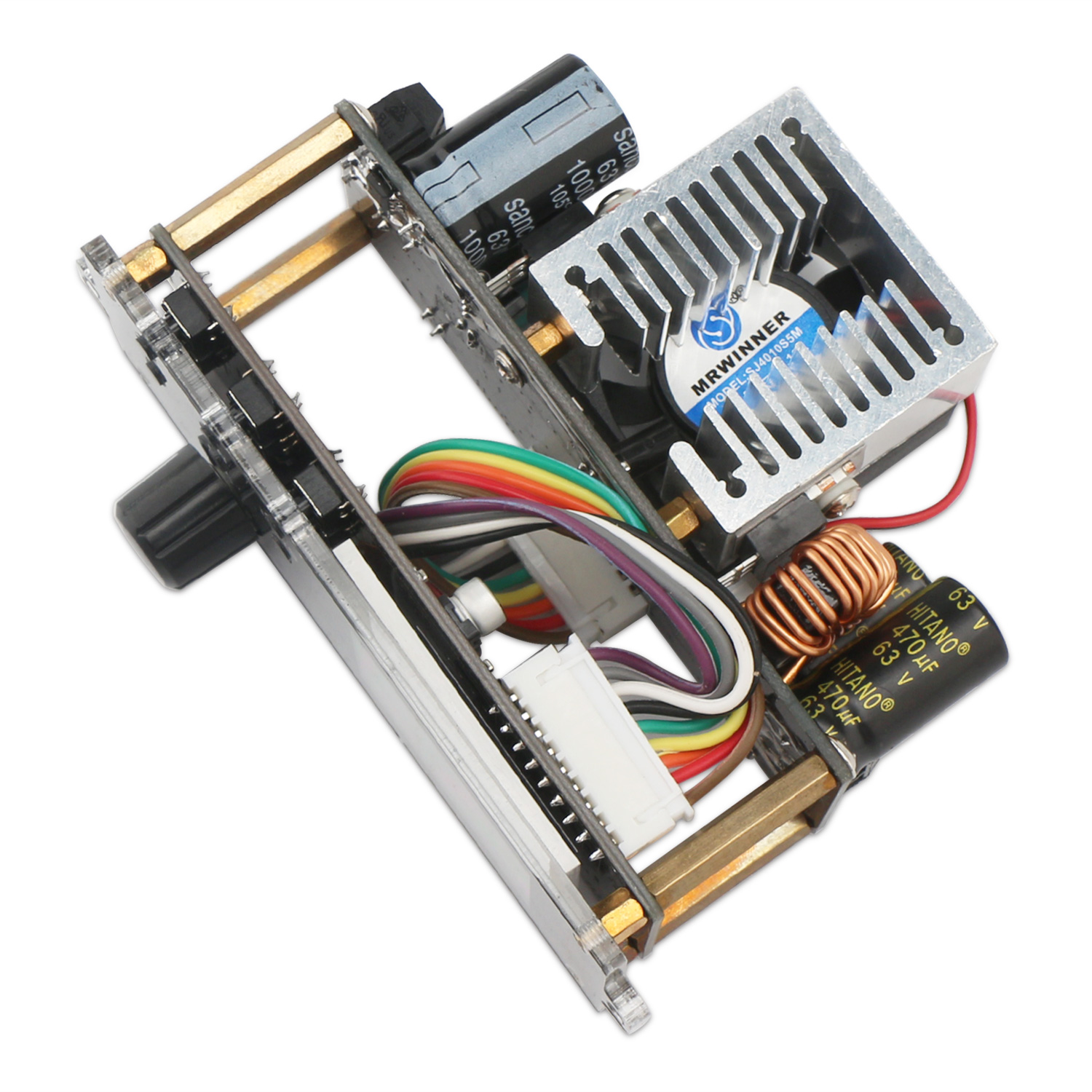

- Heat dissipation method: onboard heatsink and cooling fan

- Cooling fan turns on condition: output current greater than 1.5A or output power greater than 40W

- Operating environment temperature: 0~60℃

- Store environment temperature: -20~70℃

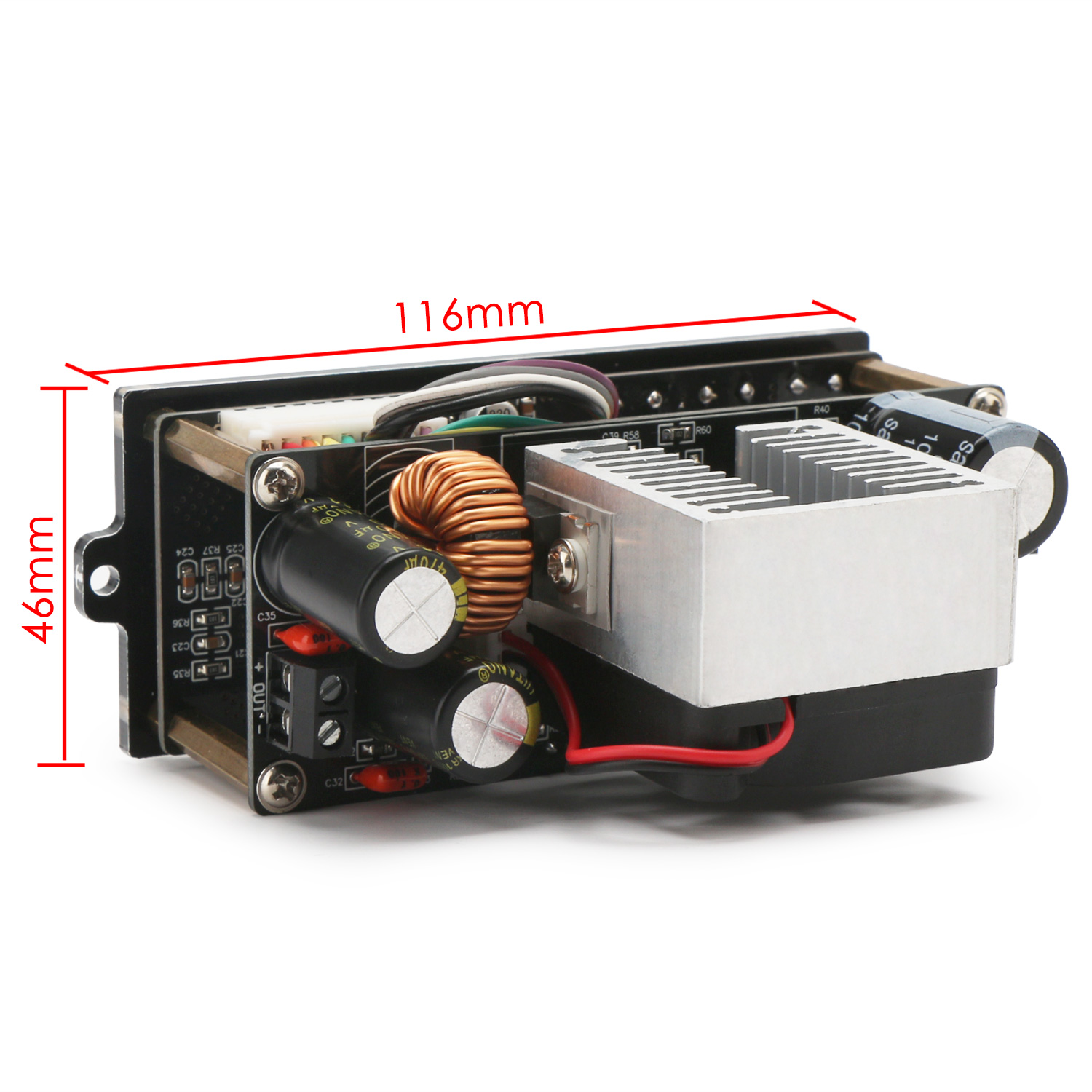

- Dimension(LxWxH): 135x95x38mm


Package Included:

1x Buck Converter

Attributes
input voltage6V~62V
output current0~5A
output power0~300W
output voltage0~60V
output ways1
