Description:
Type: Hi-Fi amplifier
Chip: TPA3116D2 + NE5532 + CSR64215
Power supply: DC 12V-24V
Max output power: 50W*2
Channel: 2.1 channel
Impedance: 4-8 Ohm
Frequency response: 20Hz-20kHz (±3dB)
Bluetooth version: 4.2, support APT-X LL
Control method: potentiometer knob+ toggle switch

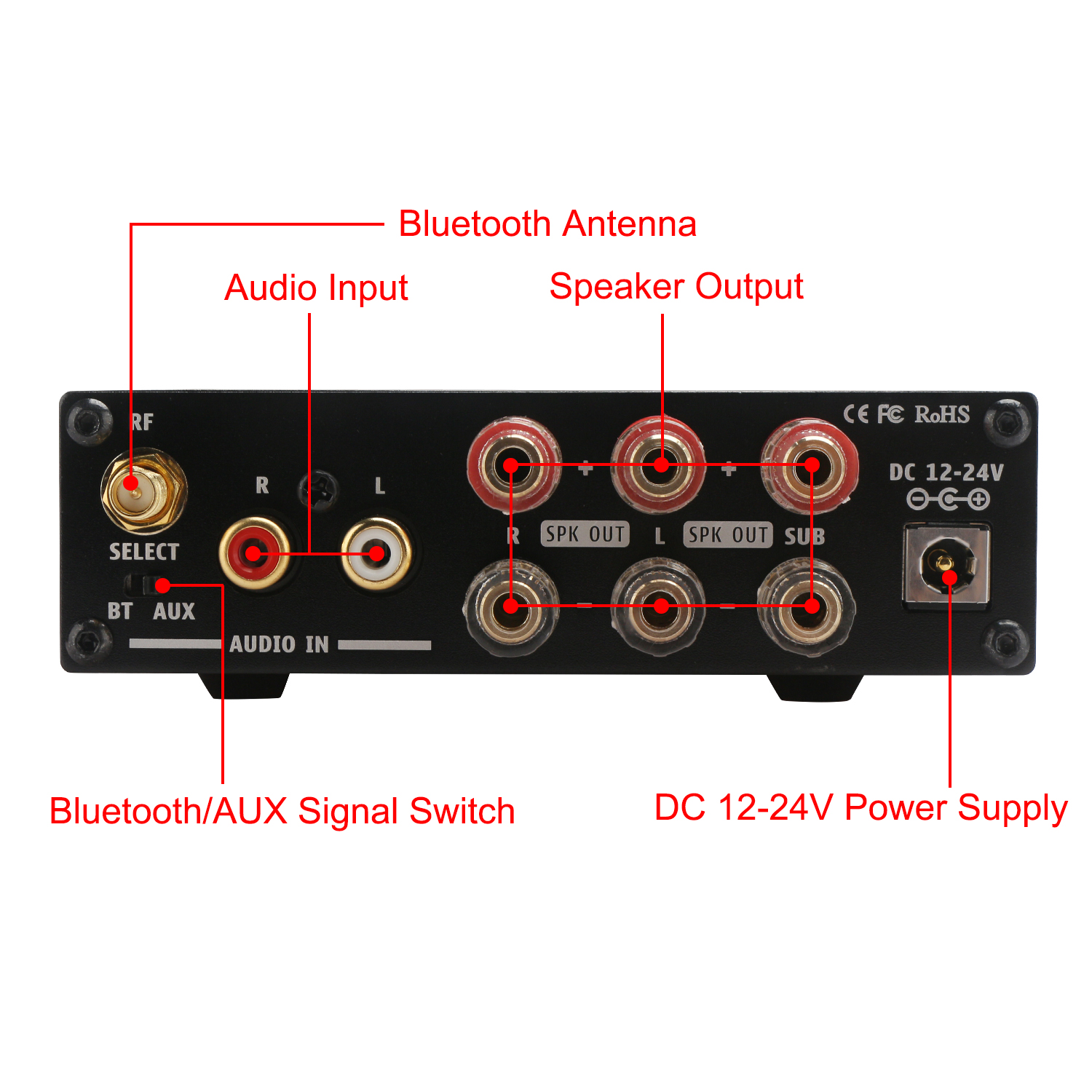

Input interface: Bluetooth (APT-X LL) / RCA interface
Output interface: Gold-plated speaker terminals
Dimension: 118.5x98x33mm
Features:
1. PROPERTY --- 2.1 channel Hi-Fi amplifier
2. PARAMETER --- input voltage DC 12~24V; max output power 50W*2; impedance 4-8 Ohm
3. INPUT METHOD --- Bluetooth 4.2 (APT-X LL) input / RCA interface input
4. KNOB --- bass knob; treble knob; volume knob
5. APPLICATION --- can be applied to iPad, cellphone, MP3 player, CD player, dataplay, computer, decoder, etc.

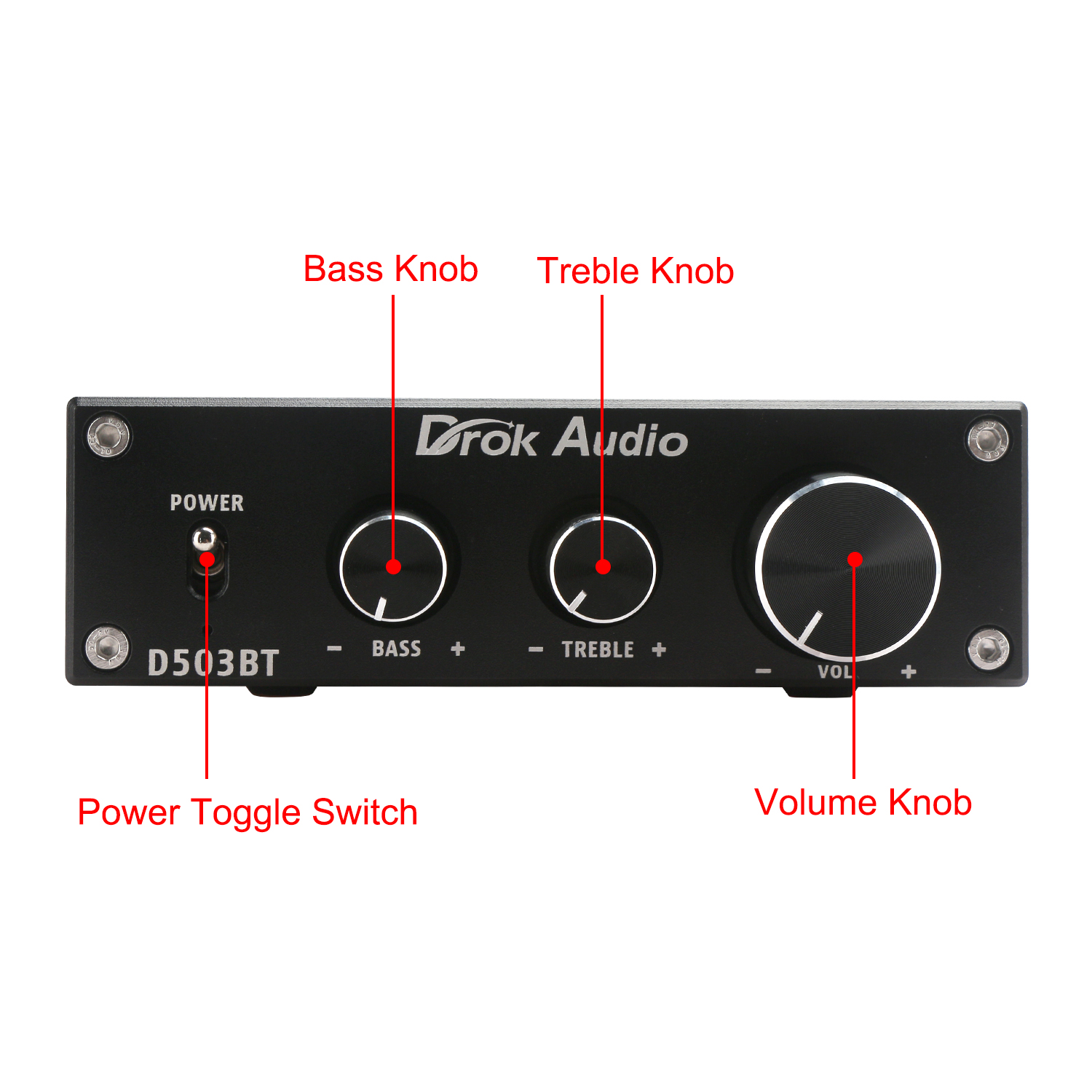

Knob Operation:
1. Power Switch: Long press for 3s to power on; short press to switch between Bluetooth/RCA input.
2. Bass Knob: Clockwise to turn up the bass, anti-clockwise to turn down the bass.
3. Treble Knob: Clockwise to turn up the treble, anti-clockwise to turn down the treble.
4. Volume Knob: Clockwise to turn up the volume, anti-clockwise to turn down the volume.
Package Included:
1x Hi-Fi Audio Stereo Amplifier
Attributes | |
input voltage | 12~24V |
output power | 50W |
