Parameters:


Voltage range: DC 10-25V


Output power: 100W (Max)


Output load: 4-8 Ohm (Recommend)


Frequency response range: 14-100KHz


Signal-to-noise ratio (SNR): not less than 100DB


Switching frequency: 1.2MHz


Chip: TPA3116x2


Reverse connection protection: Yes (Positive and negative reversal is not energized.)


Quantity of channels: one left channel and one right channel (PBTL)



Special Notes:

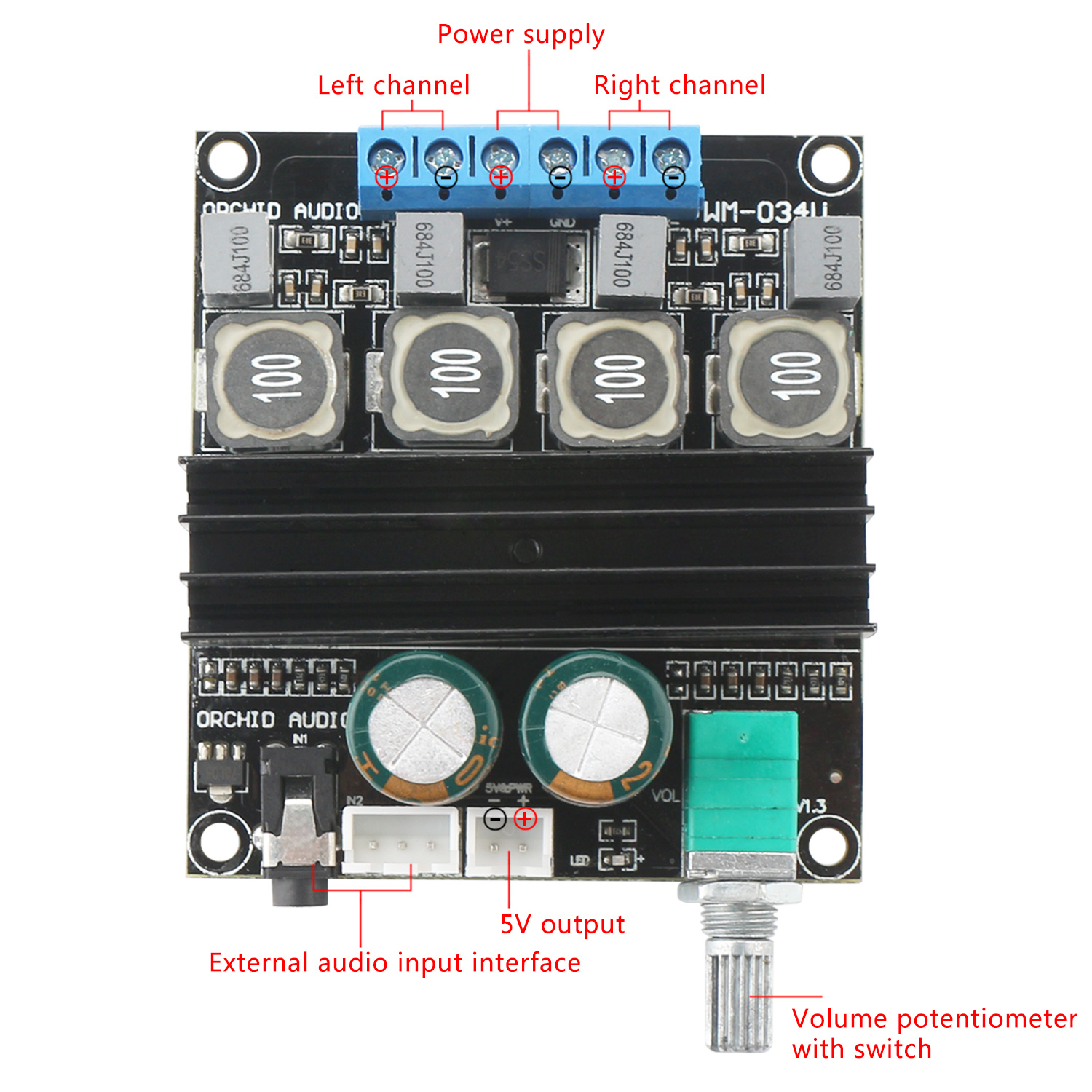

1. The speaker of each channel must be connected in strict accordance with the wiring diagram. If reverse the connection, will seriously reduce the sound efficiency.


2. The current ability of external power supply 5V port is within the limits of 100mA. Super-power use is strictly prohibited.


3. Increasing the power supply voltage appropriately and using relatively low impedance speakers, can be very effective to improve the output power.


4. We recommend for adequate power supply (the current must be large enough), otherwise it cannot give play to the power of amplifier and speaker.


5. Although the product is a digital amplifier, but there still will be heating phenomenon during the use, it is normal.



Package Includes:


1 × TPA3116D2 Amplifier Board
