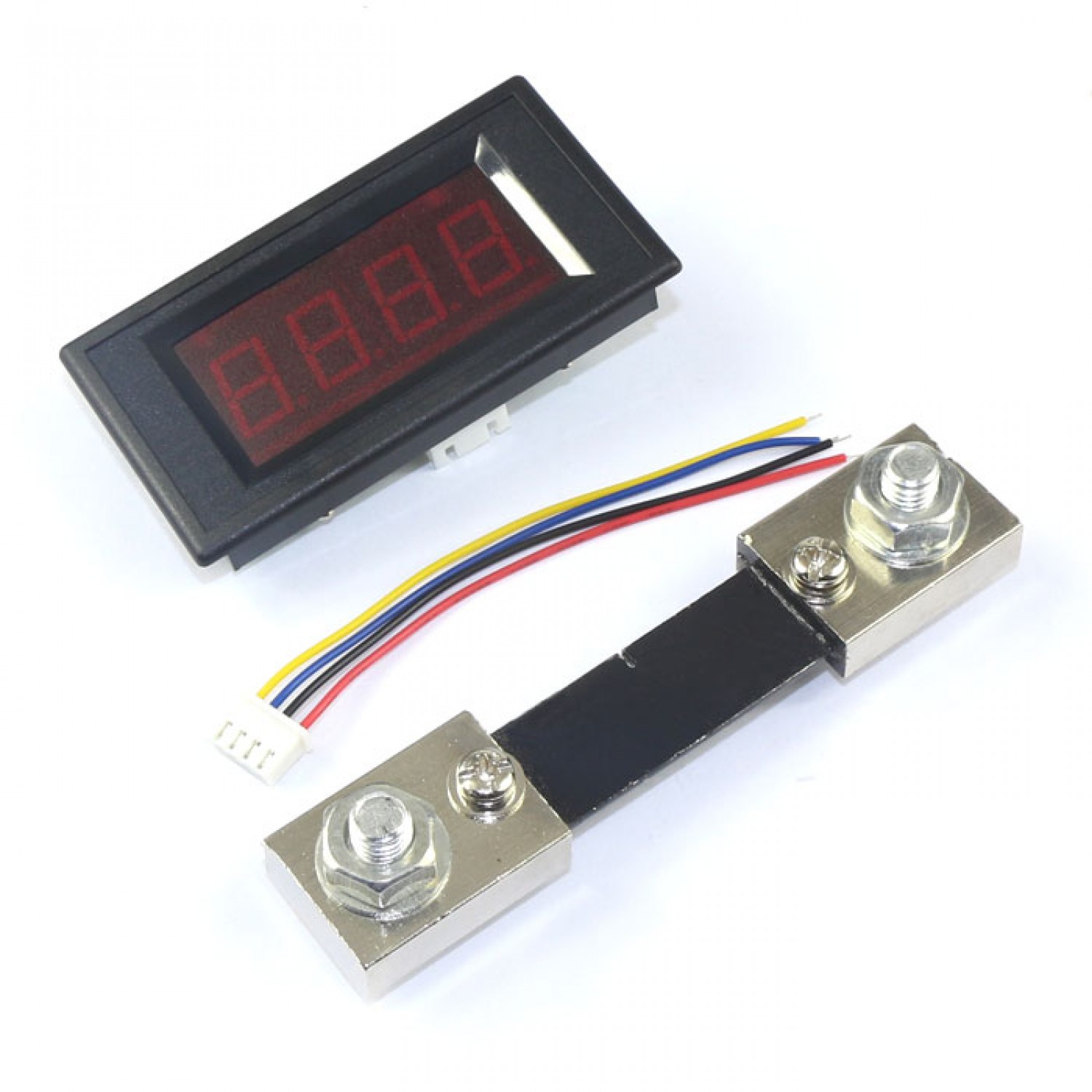

-30% 100A Digital Ammeter Current Panel Meter with Shunt DC Amp Gauge Red LED Tester

Ask Question

It is a Red LED Ampere Meter With Current Shunt Resistor,Measurement Range:DC 0-100A,Power Supply:DC 5V,small size, high efficiency, long term stable and reliable quality,easy installation and use. Application: Battery ,Motorcycle, Car, E-bike, ATV, Scooter, and And other platforms circuit Current measurement.

Features:
  • Dimensions: 79 x 43 x 25 mm
  • Installation size: 75 x 39.5 mm
  • Measure range:0-100A(need extra shunt)
  • Operating voltage: DC +5 V ± 5%
  • Operating Current: <100mA
  • Display: 4 digit 0.56 "LED
  • Display color:Red
  • Input Impedance:> 1 Mohm
  • Measurement rate: ≥ 2 times / S
  • Over-range display: the first shows "1" or "-1", the latter three are not displayed
  • Operating temperature: -10 to +50°c
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 to 106kPa
Note:
  • Please use independent power supply
  • Multiple tester needs isolation powered
  • The length of leads does not exceed 30 cm, the diameter more than 0.5 mm ²
Package Include:
  • 1x Digital Ammeter
  • 1x Shunt Resistor


Attributes
input voltage5V
output current0~100A
output power--
output voltage--
output ways1

Write a review

Please login or register to review

100A Digital Ammeter Current Panel Meter with Shunt DC Amp Gauge Red LED Tester

  • Brand: Drok
  • Product Code: 100032
  • Availability: In Stock
  • $15.30
  • $10.71
  • Bulk Buy Discounts. Buy more please contact us
    Qty5102030+
    Price$10.17$9.64$9.10$8.57
