LCD Digital Coulometer, Digital Meter DC 0~300V 200A/999AH/999KW/999KWH Coulometer Precision Battery Tester for Lead-acid/Lithium batteries etc
- Model: WLS-PVA200
- Current measuring range: 200A
- Current resolution: 0.1A
- Power supply range: DC5～90V
- Voltage measuring range: DC0～300V
- Voltage resolution: 0.1V
- Capacity measuring range: 0～999AH
- Power measuring range: 0～999KW
- Electric energy measuring range: 0～999KWH
- Measurement error:±1%
- Refreshing speed: 0.5S/time

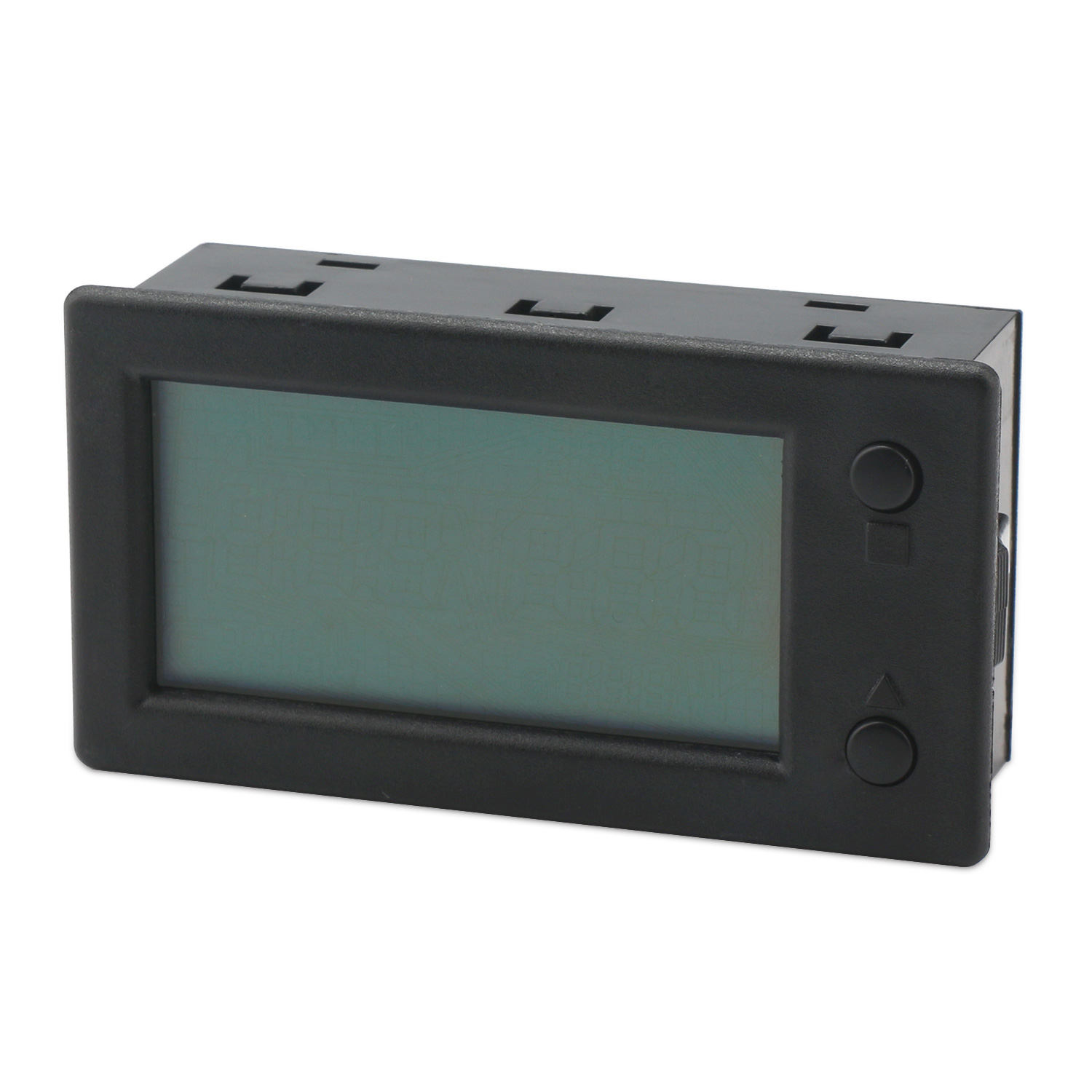

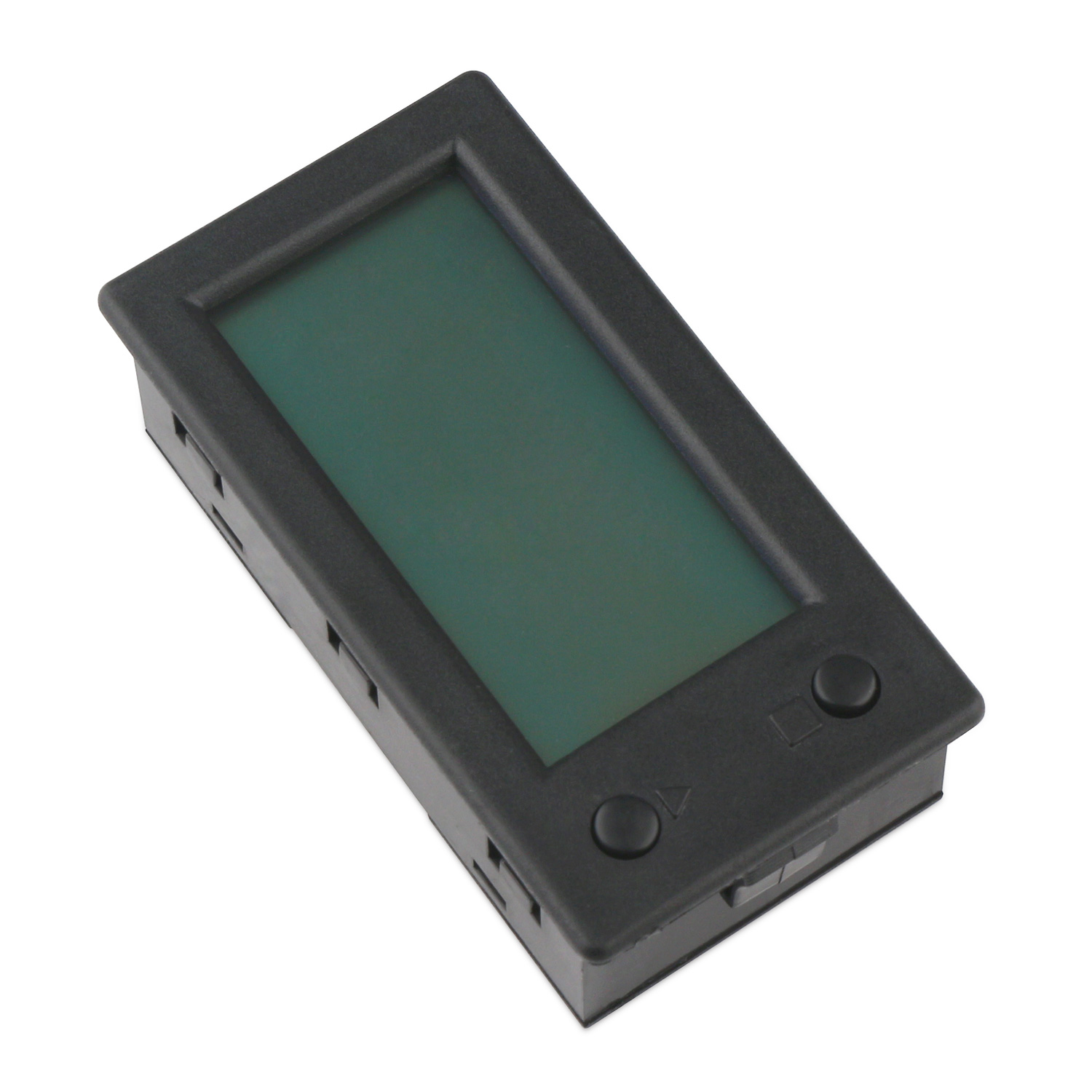

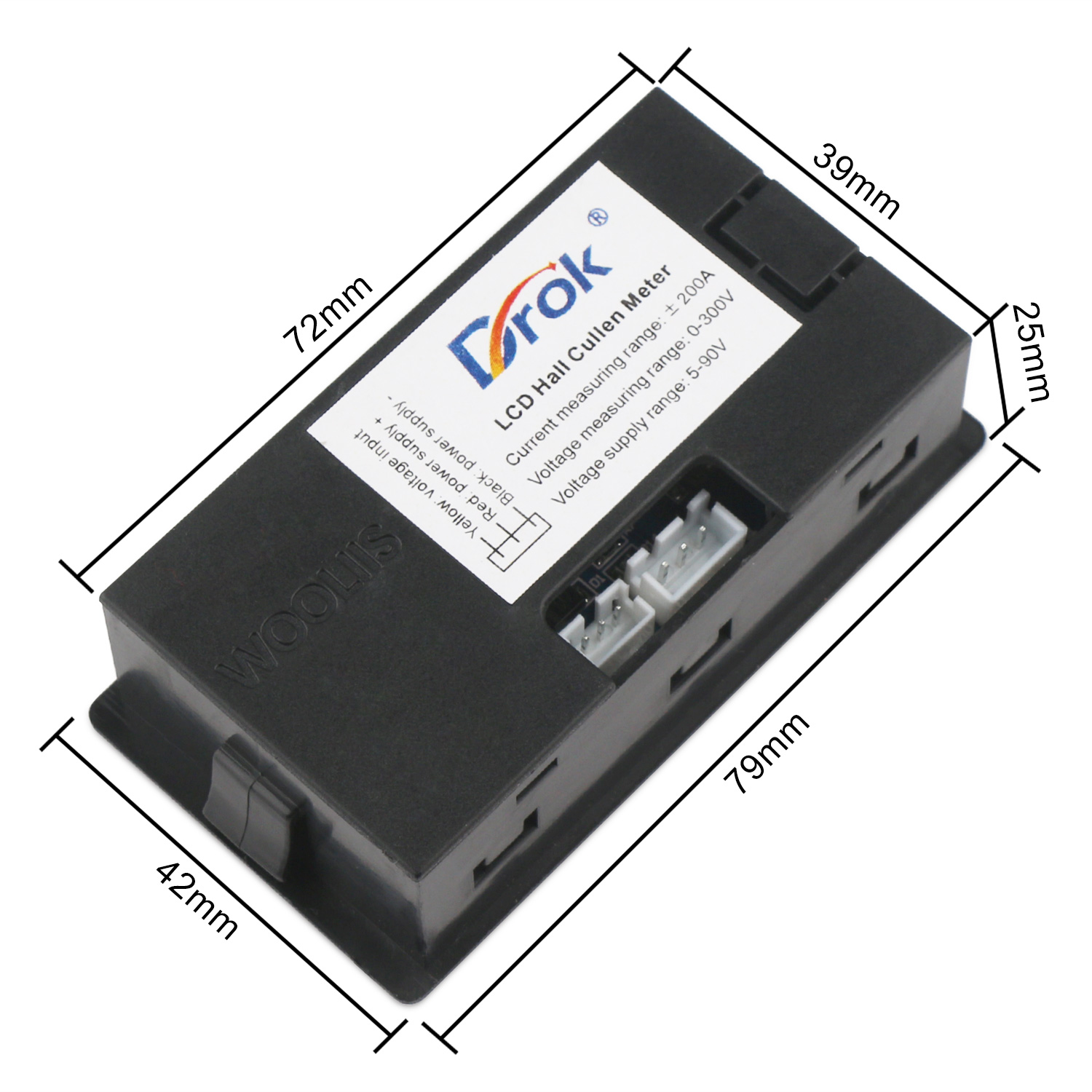

- Installing size: 76.0mm * 39.5mm
- Diameter of transformer:Φ20mm
- Working current: backlight on: 10MA;backlight off: 4MA

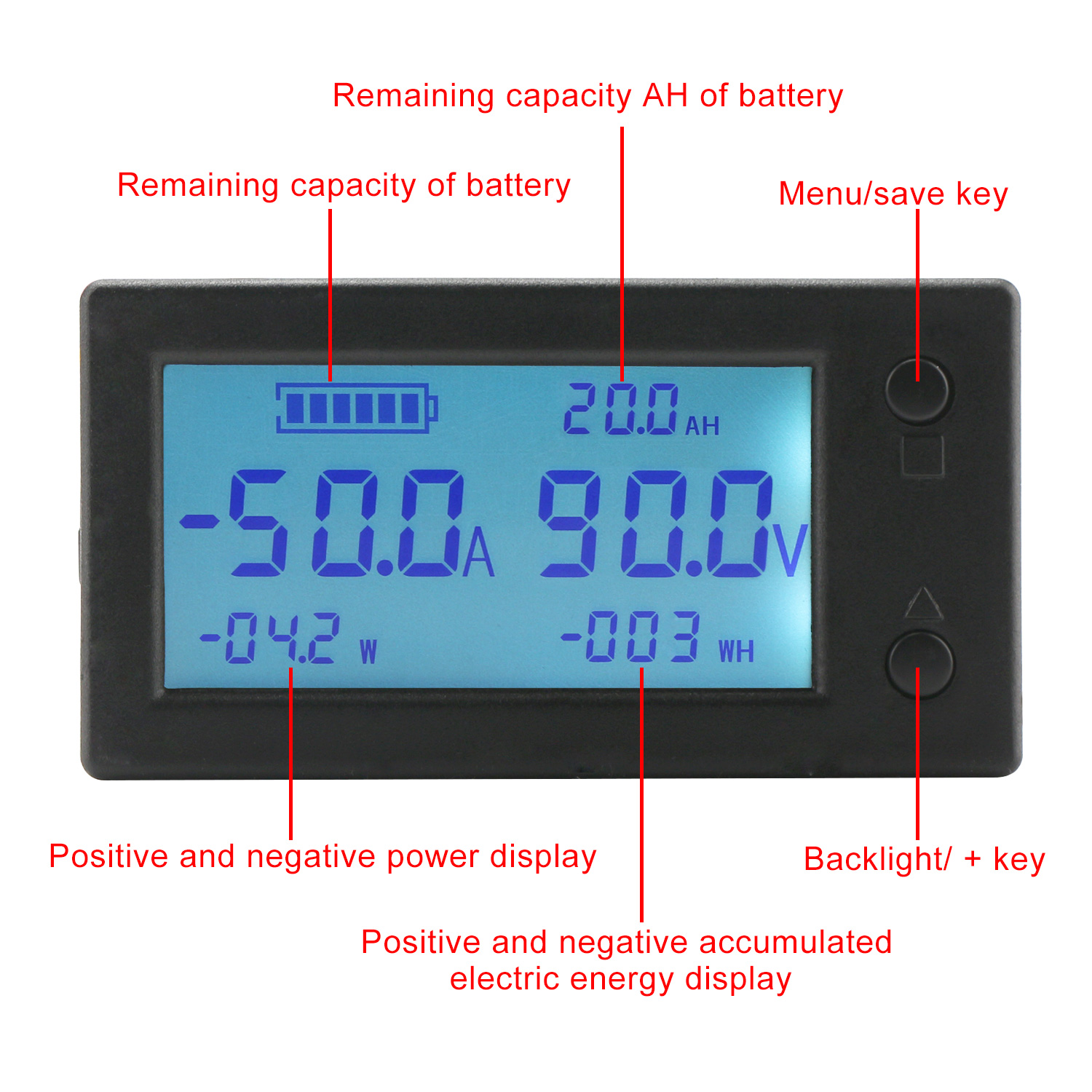

- Available to measure percentage and AH of remaining capacity, DC positive and negative bidirectional current, DC voltage, DC positive and negative power, DC positive and negative bidirectional accumulated electric energy.

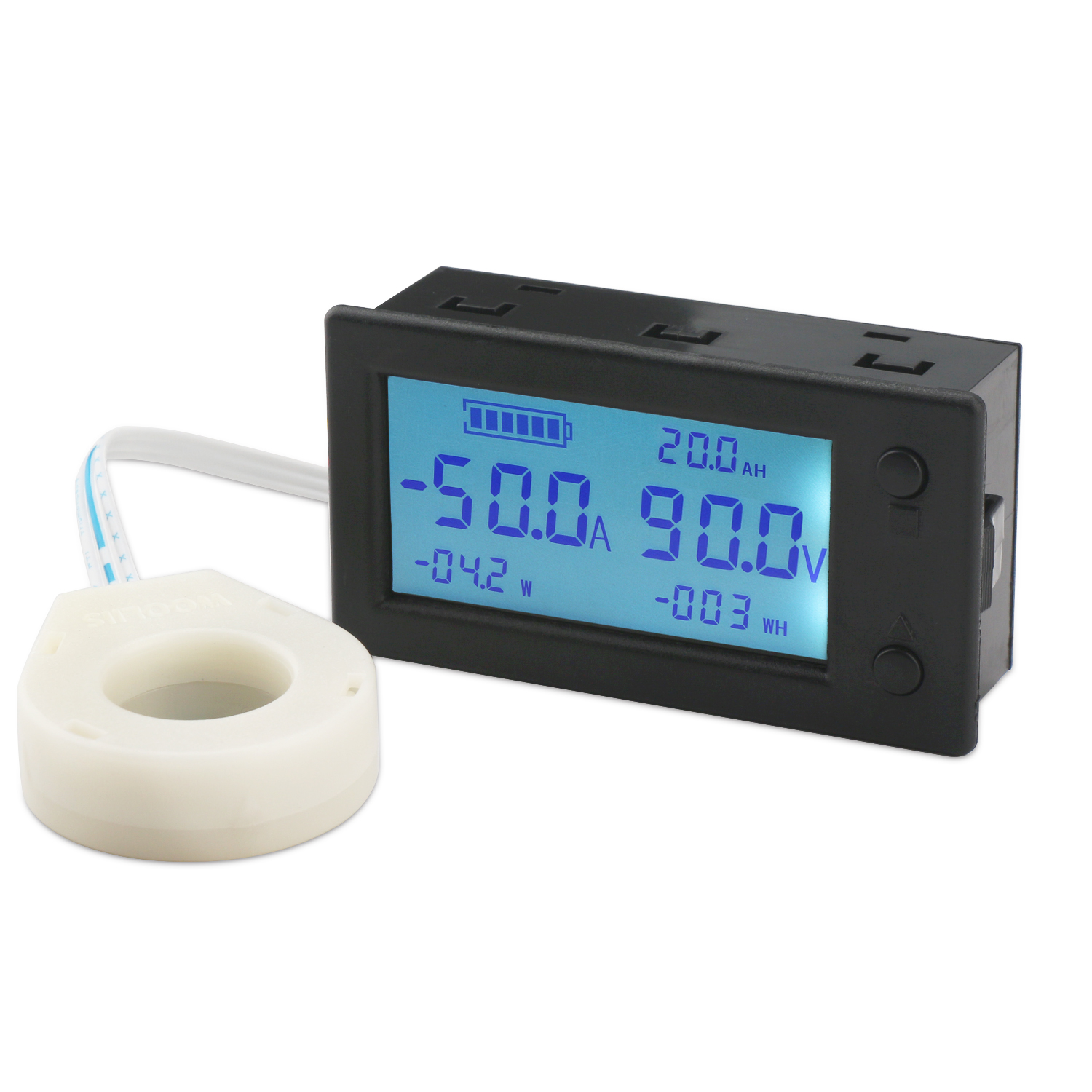

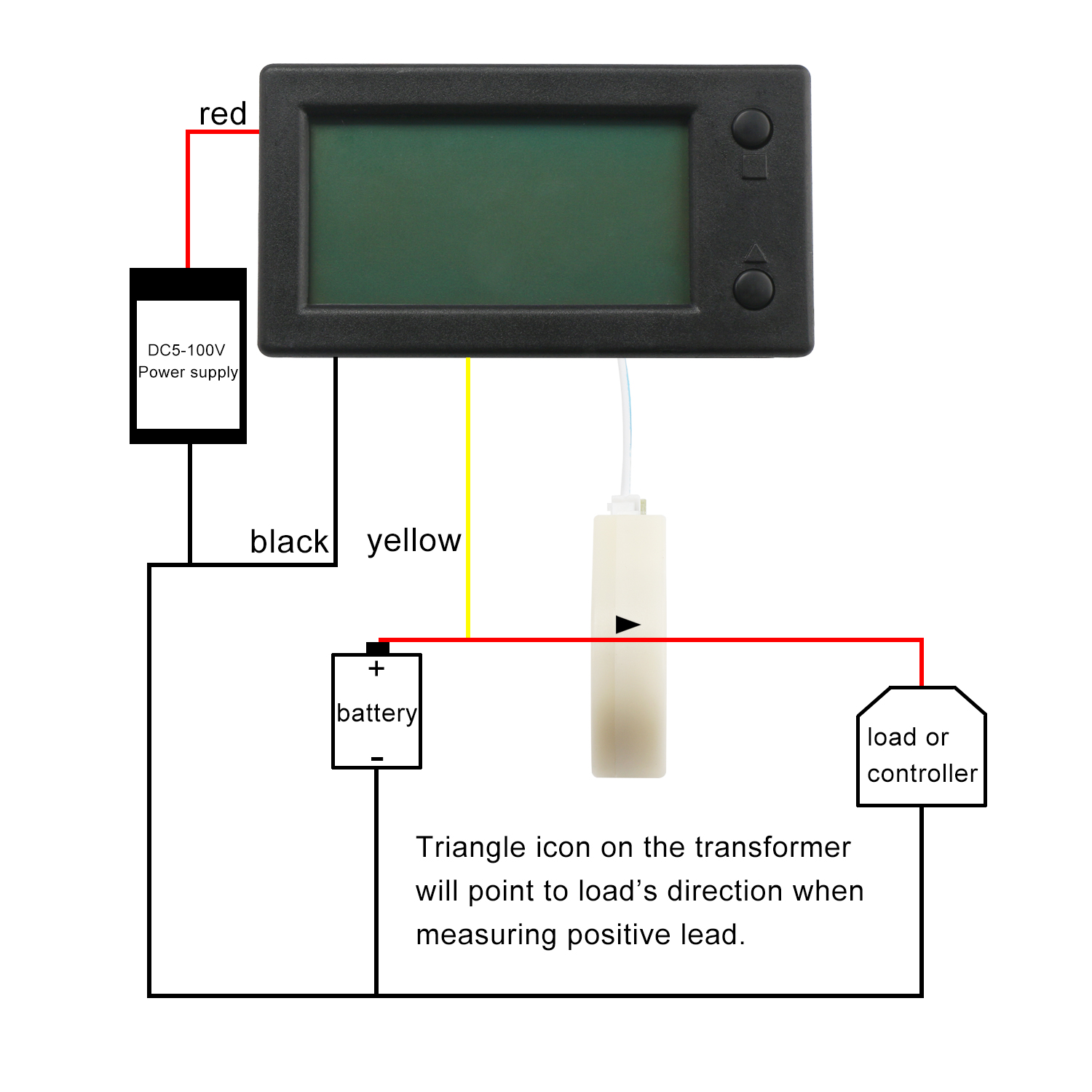

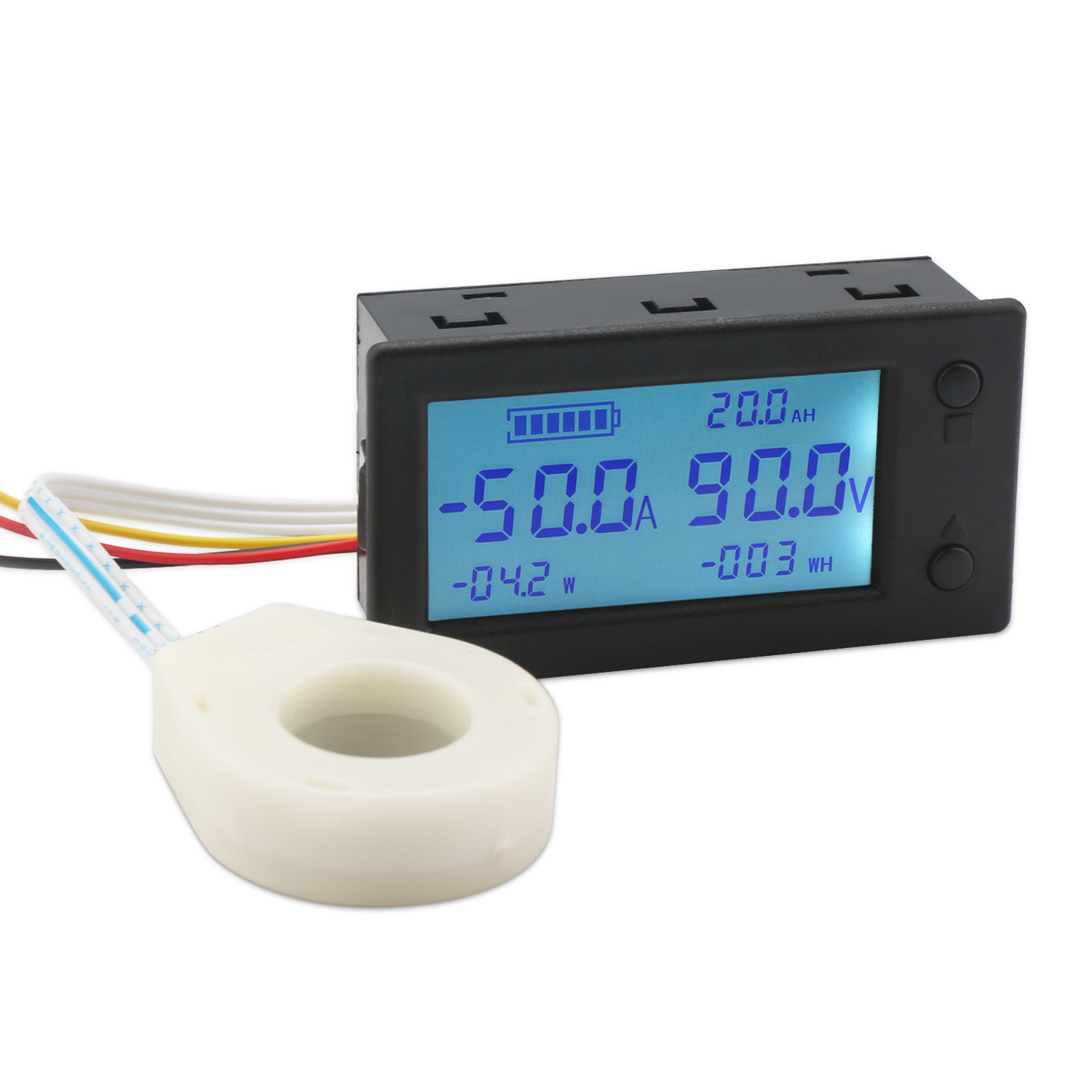

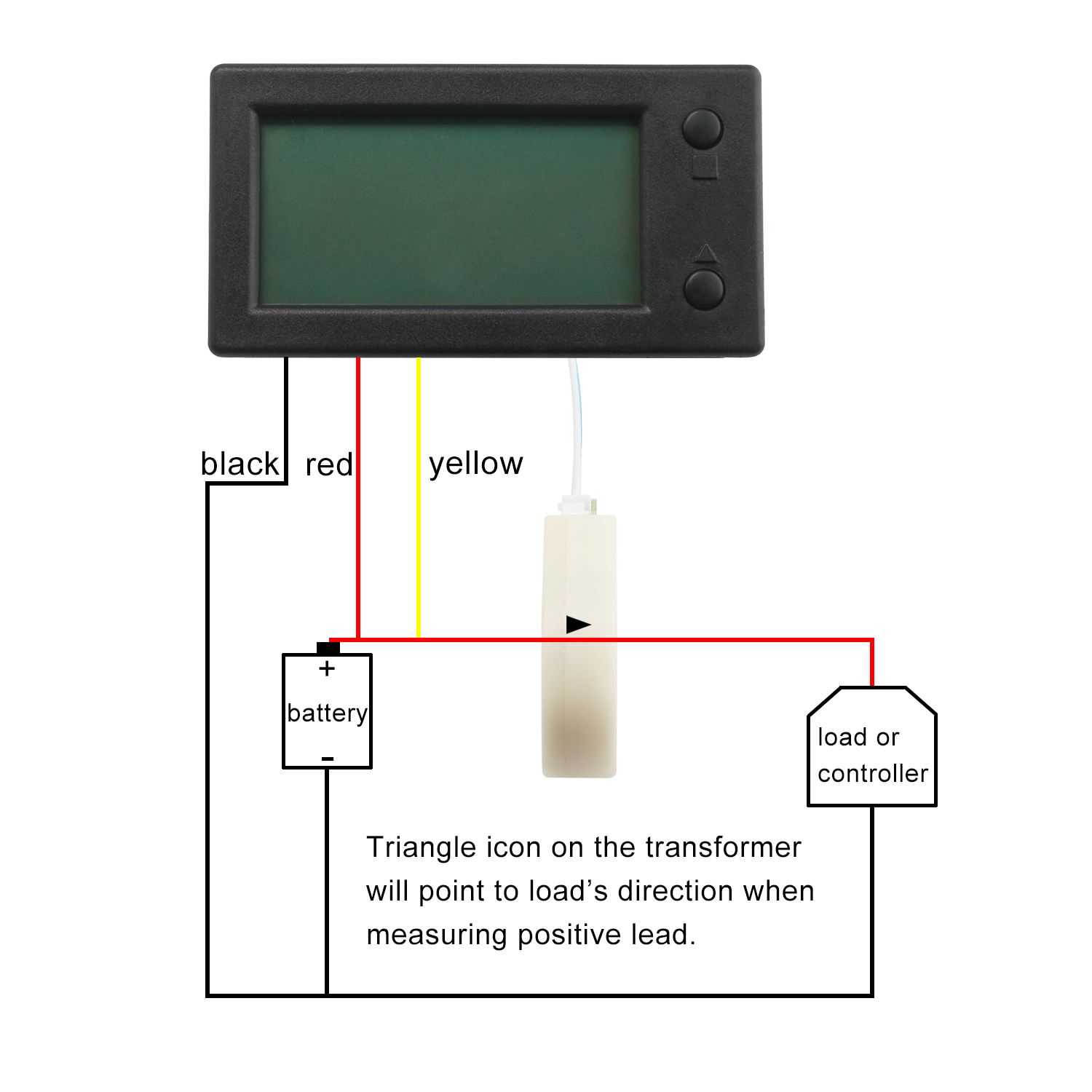

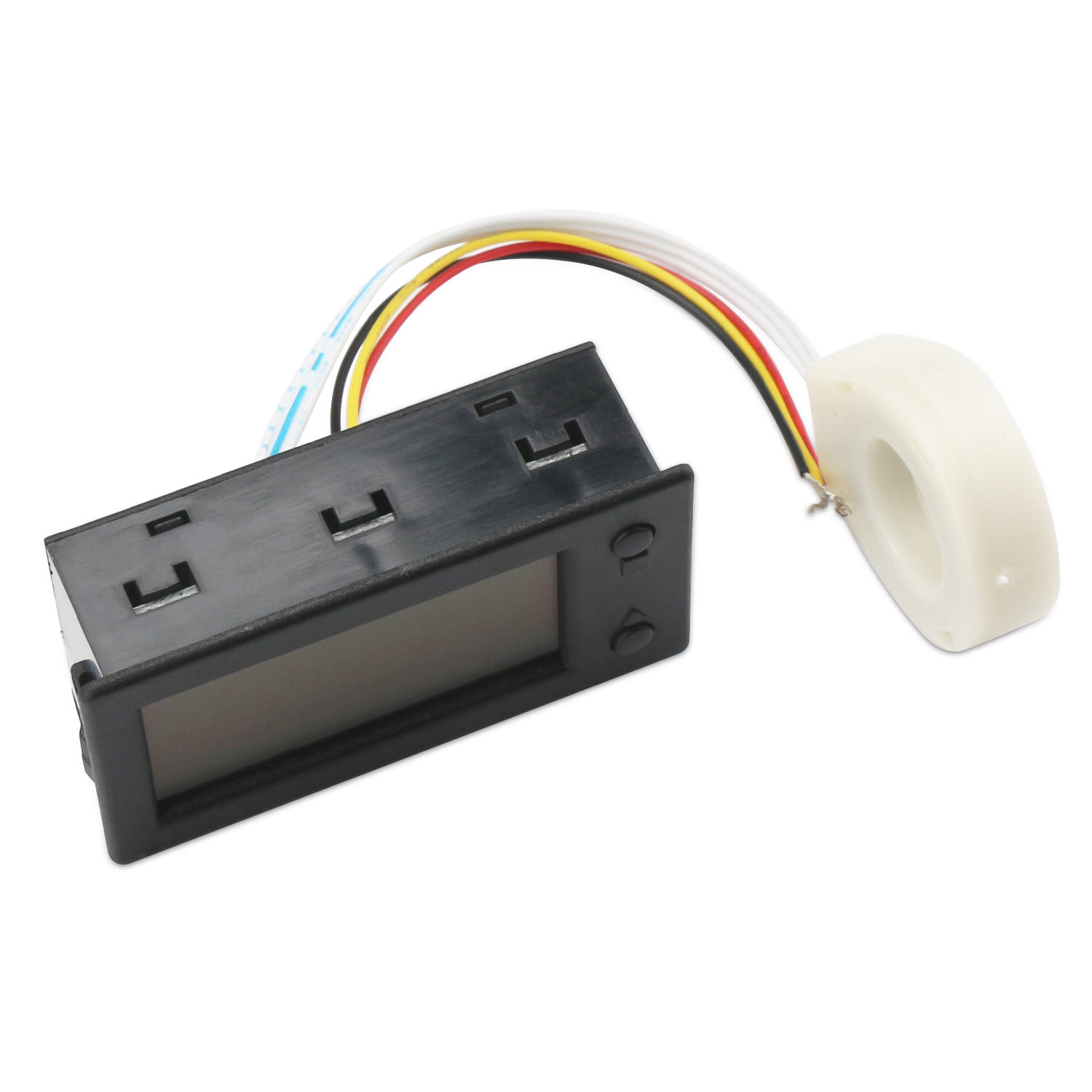

- Coming with a Hall transformer to for isolated measurement, reliable and safe; accepting two-wire system connection and three-wire system connection, could be powered DC5~90V, easy and simple to wire this meter up.

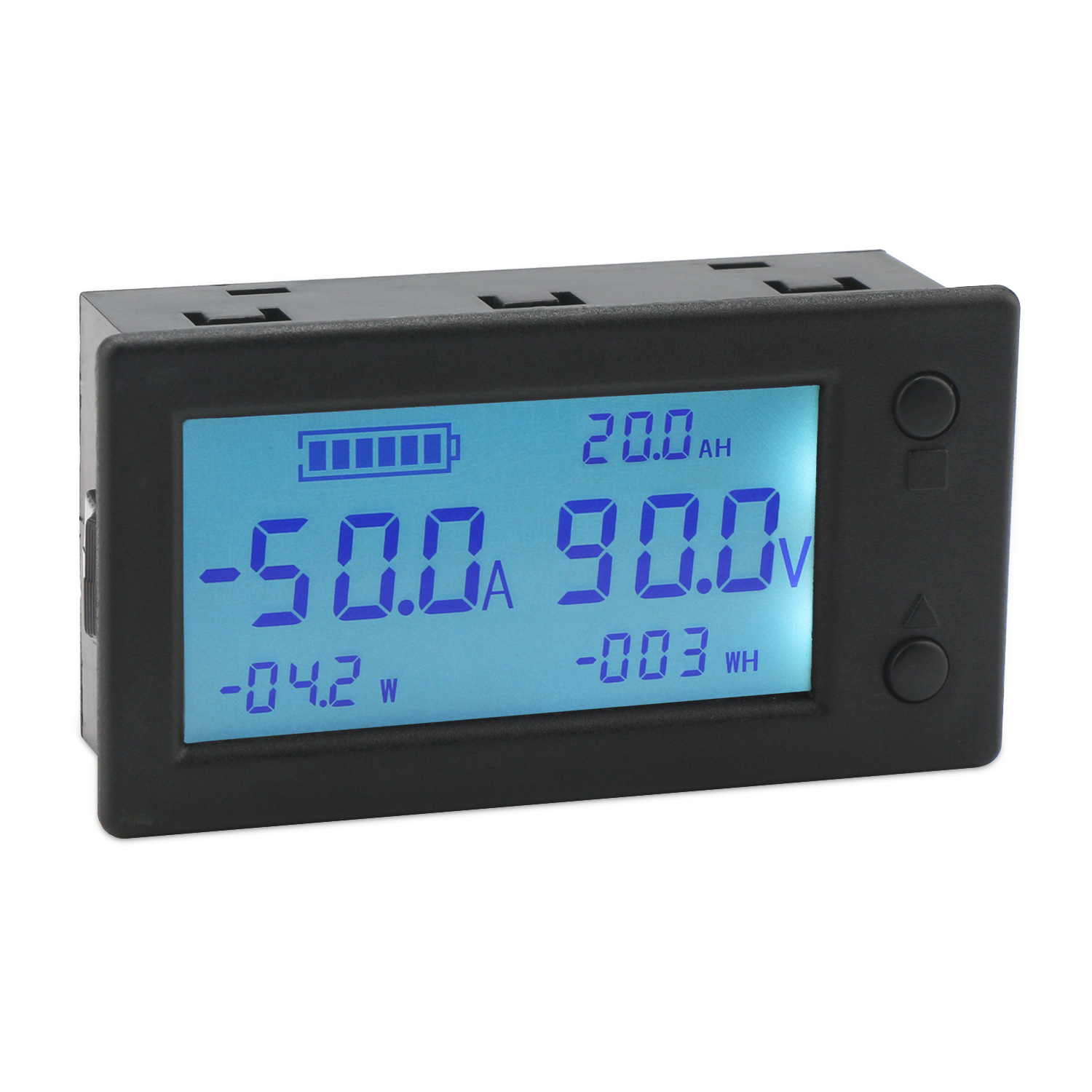

- Backlight can be controlled to be ON or OFF as user’s need; Equipped with full angle of view LCD screen, users could see the display clearly whenever at night and day, indoor or outside, even under the sunshine.
- Alarming Function: it will alarm and flash to draw your attention when the real voltage is higher or lower than preset alarming voltage and real current is higher than preset current; It will also alarm and flash to remind you to charge for your device when the remaining capacity of battery is low.
- Wide Applications: Suitable for all kinds of batteries, such as Lead-acid batteries, Lithium Polymer batteries, lithium iron phosphate batteries and etc. With function of storing date when power down, using this meter, no need to worry that your electric data will be lost.
1 x LCD Digital Coulometer
- Stock: In Stock
- Model: 2001712003
- Weight: 0.18kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 2001712003
