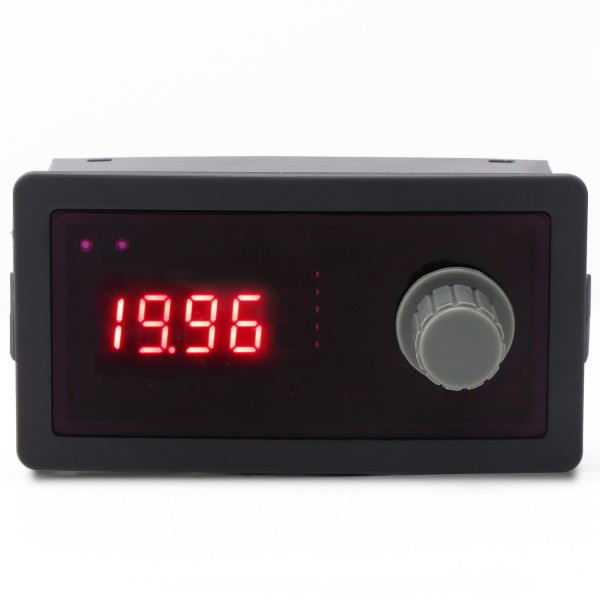

-55% 4-20mA Signal Source DC 12V 24V Signal Generator Constant Current Source 0.01mA Function Generator Stepless fine Adjustment

Ask Question

It is a 4-20mA Signal Source Signal Generator, Power supply: DC12 ~ 30V, The product can be used: signal source, valve adjustment, inverter control, PLC debugging, instrumentation test, analog transmitter output.

Technical Parameters:
  • Multi-ring (5 * 360) potentiometer knob operation, stepless fine adjustment,in response to the output immediately,no delay
  • Potentiometer to adjust the actual fineness of up to 0.01 mA
  • Power supply: DC12 ~ 30V,DC 12V or 24V, current 18mA, power port has a polarity protection, power reverse does not work, do not burn components.
  • 4-bit 0.36-inch LED, the display range: -1999 ~ 9999, can be set to the number of  0,1,2,3 decimal points
  • 20mA output: the maximum output current of 24mA.
  • 12V DC power supply: output load impedance range between 0-350 ohms
  • 24V DC power supply:output load impedance range between 0-800 Ohms
  • The test output is normal, you can use a multimeter (DC current file) short "4-20mA output" terminal value and the comparison shows that the multimeter readings are the same.
  • Easy to install, standard 7943 shell, panel size: 79mm * 43mm * 25mm,hole size: 76.5mm * 39.2mm
  • The product can be used: signal source, valve adjustment, inverter control, PLC debugging, instrumentation test, analog transmitter output.
Redefine the display function:
  • If the menu requires a password, the default password is 1234, flashing display.
  • Such as, if it is used to control a device for -90 degrees to +90 degrees action.
  • The default display is Current.
  • It can also be redefined as: 4mA display -90.00, 20mA display +90.00 (2 decimal point), this can be displayed as 4-20mA -90.00 to 90.00 (2 decimal point).
Package included:
  • 1 x 4-20mA Signal Source Signal Generator
Attributes
input voltage 12~30V
output current 0.024A
output power --
output voltage --
output ways 1

Write a review

Please login or register to review

4-20mA Signal Source DC 12V 24V Signal Generator Constant Current Source 0.01mA Function Generator Stepless fine Adjustment

  • Brands Drok
  • Product Code: 300425
  • Availability: In Stock
  • $25.50
  • $11.50
  • Bulk Buy Discounts. Buy more please contact us
    Qty 5 10 20 30+
    Price $10.93 $10.35 $9.78 $9.20
