It's a Boost Buck Regulate Power Supply,Input Voltage :5-32V,Output voltage :1.25-20V,Conversion efficiency: up to 96%.Fpr DIY a regulated power supply, provide a stable operating voltage, LED driver.


Module Parameters:

  • Module Name: 5A automatic step up/down constant voltage/current module
  • Module Properties: non-isolated synchronous rectifier automatic boost buck module
  • Input Voltage :5-32V
  • Input Current: 8A (MAX) peak 10A (6A long-term work)
  • Quiescent Current: 4mA
  • Output voltage :1.25-20V continuously adjustable, the default output is 12V
  • Output Current: 5A (MAX) (3A long-term work)
  • Output Constant Current: 0.2-5A
  • Working temperature: -40 to +85 degrees
  • Operating Frequency: 150KHz
  • Conversion efficiency: up to 96%
  • Overcurrent protection: Yes
  • Short-circuit protection: (enter 10A fuse) double circuit protection
  • Over-temperature protection: Yes, automatic reduces the output voltage if over temperature
  • Input Reverse Polarity Protection: No, (if necessary , please connect diode with input in series )

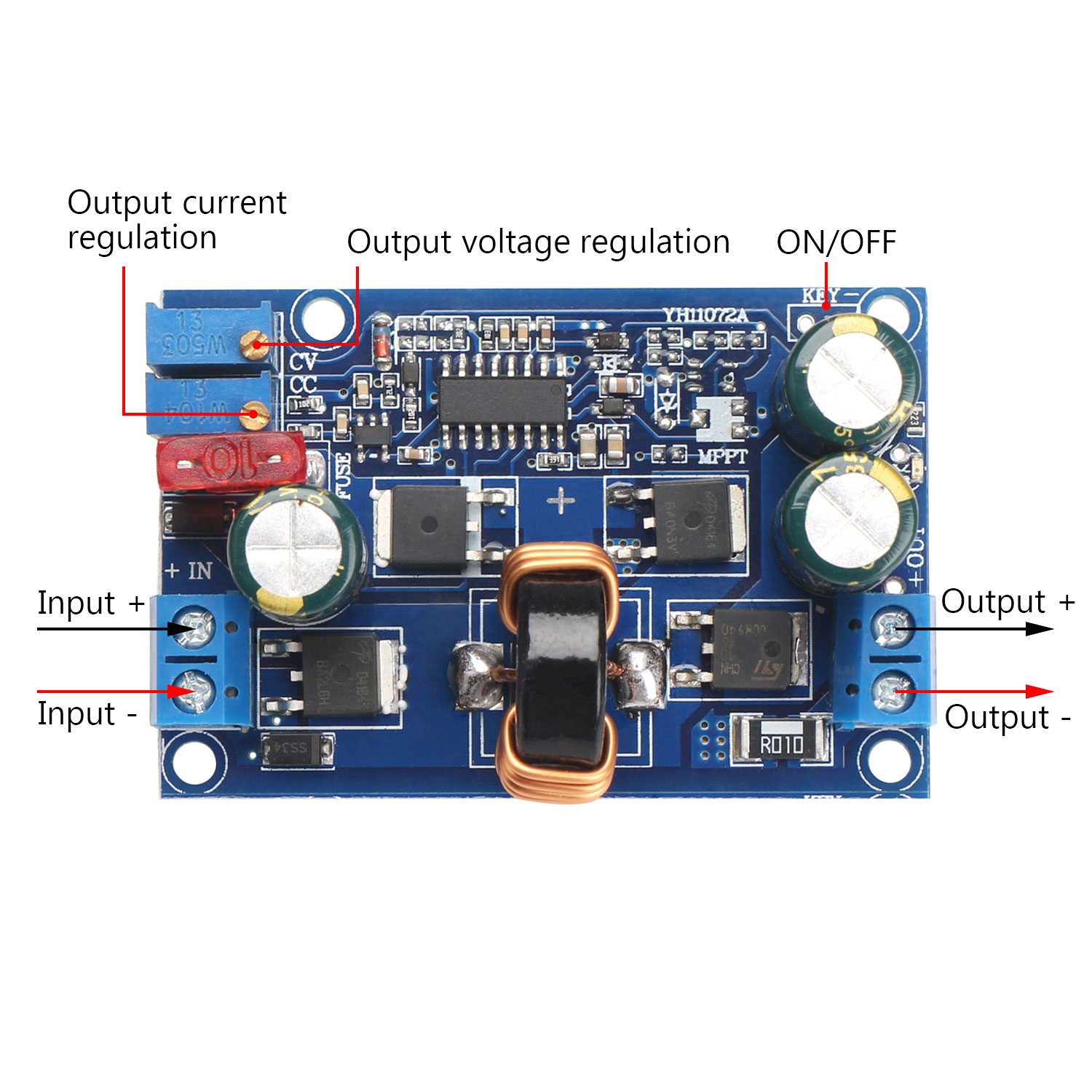

  • Wiring: free soldering wire terminal output

Application:
  • DIY a regulated power supply, provide a stable operating voltage, LED driver

Package include:
  • 1x Boost Buck Converter


Attributes
input voltage 5~32V
output current 3A
output power --
output voltage 1.25~20V
output ways 1

Write a review

Please login or register to review
$10.50
$22.50
5 or more $9.98
10 or more $9.45
20 or more $8.93
30 or more $8.40
  • Stock: In Stock
  • Model: 090747
  • Weight: 0.05
  • Dimensions: 10.00 x 10.00 x 10.00
  • SKU: 090747
