6pcs Mini Voltage Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Board 3A 10W Fixed Adjustable Volt Output Step-Down Transformer Power Supply

Ask Question

Parameters

  • Type: Non-isolated step-down module (synchronous rectification)

  • Input voltage: DC 4.5-20V

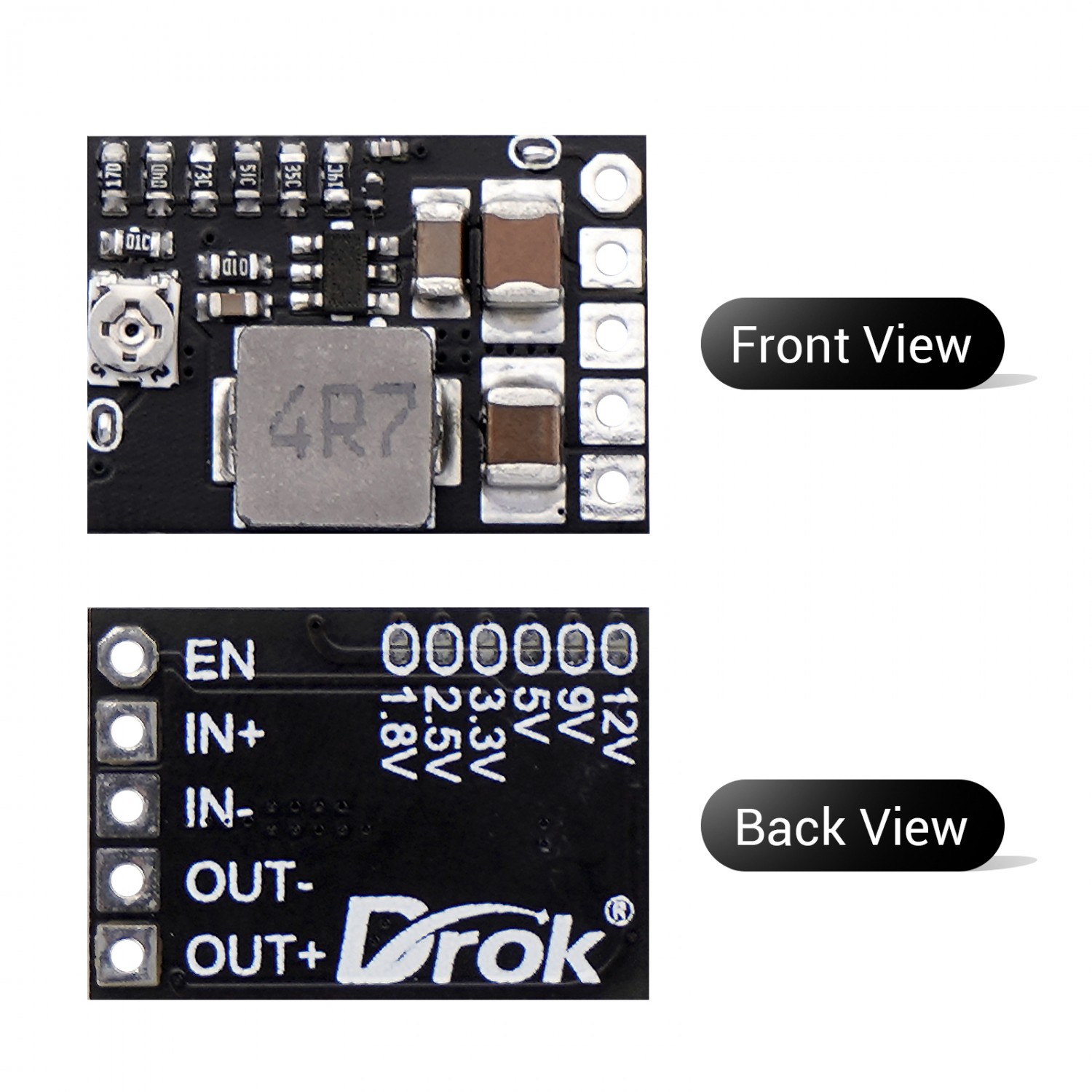

  • Output voltage: Integrated adjustable and fixed output, fixed output voltage can be selected on the back

    Adjustable range: 1-16V; Fixed voltage: 1.8V, 2.5V, 3.3V, 5V, 9V, 12V

  • Output current: Max 3A (peak: 3A, long-term: within 2A)

  • Power: 10W

  • Conversion efficiency: Up to 97% (typical value: >90% when 12V turns to 5V 2A)

  • Switching frequency: 800KHz

  • Output ripple: typical value 20mV

  • Working temperature: -40℃ to +85℃ (the higher the ambient temperature, the smaller the output power)

  • Output overvoltage protection: None

  • No-load current: <1 mA

  • Load regulation rate: ±2%

  • Voltage adjustment rate: ±2%

  • Dynamic response speed: 5% 200uS

  • Output short circuit protection: Yes, but please do not keep short circuit for a long time

  • Input reverse connection protection: None

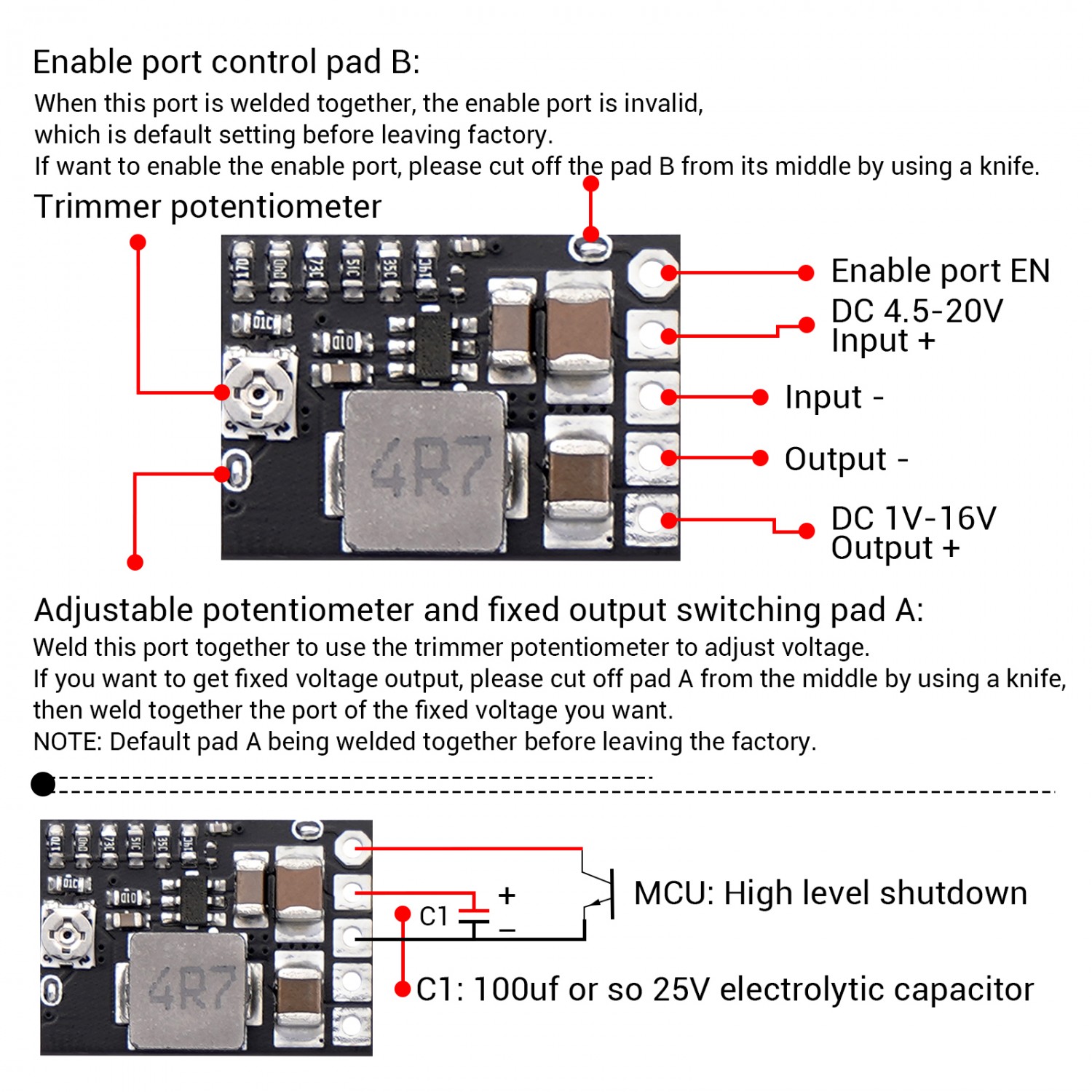

  • Enable control: Yes, high level work, low level stop work, high level is 2-5V, low level is about 0V. Default internal with pull - up to input positive pole.

  • Wiring method: Welding

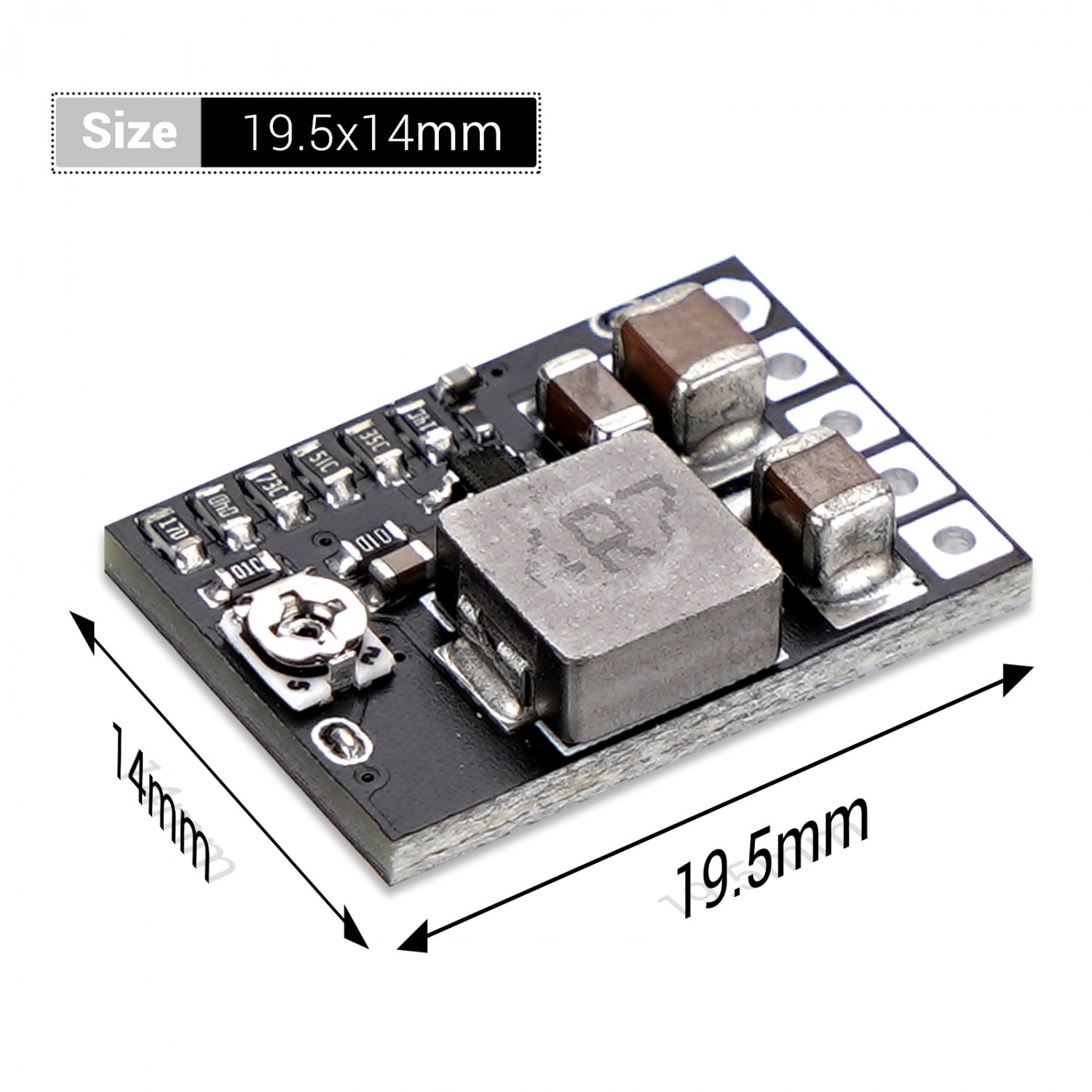

  • Welding hole spacing: 2.54 mm


Package Includes:

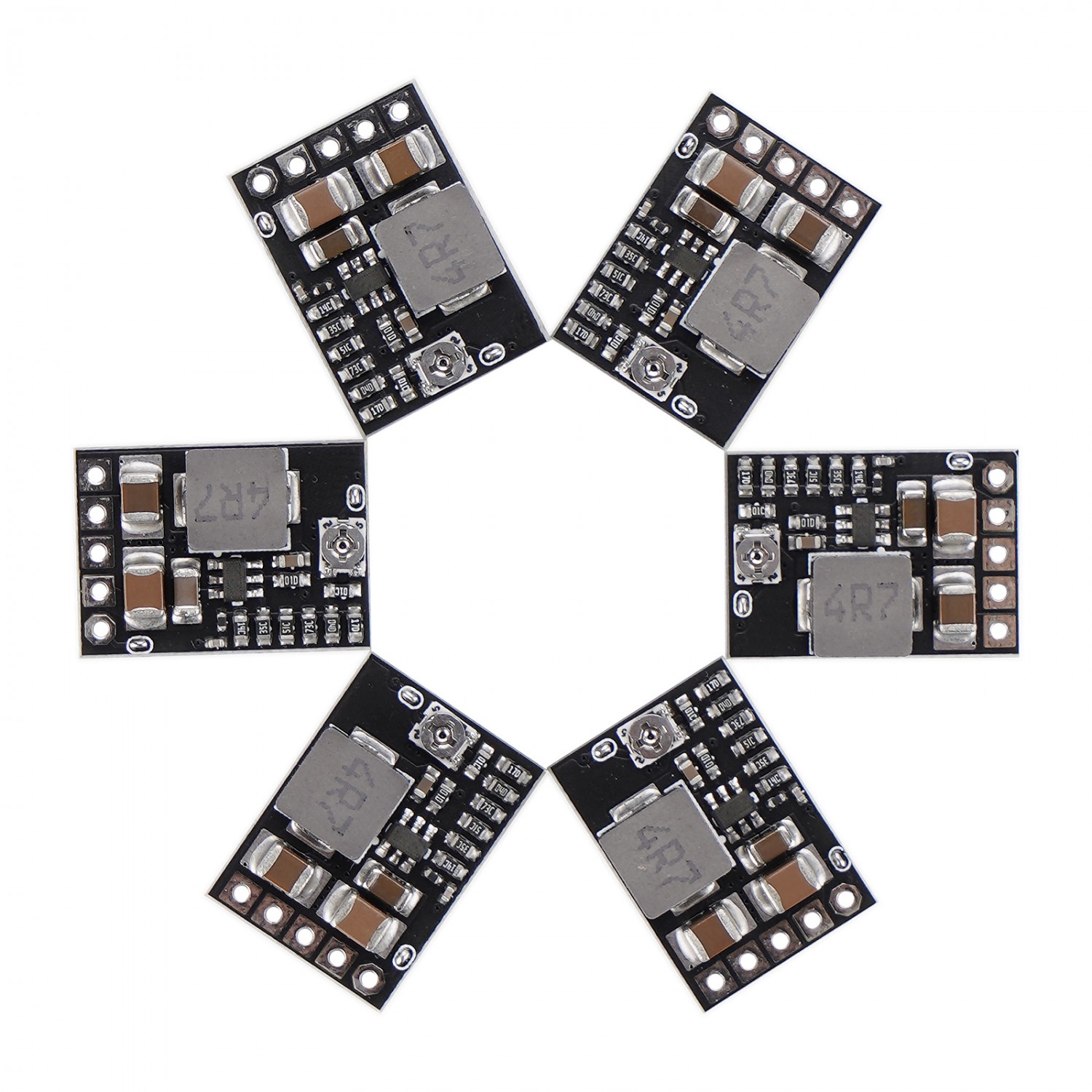

6 x mini 5v regulator

Write a review

Please login or register to review

6pcs Mini Voltage Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Board 3A 10W Fixed Adjustable Volt Output Step-Down Transformer Power Supply

  • Product Code: 200548_6x
  • Availability: In Stock
  • $10.90
