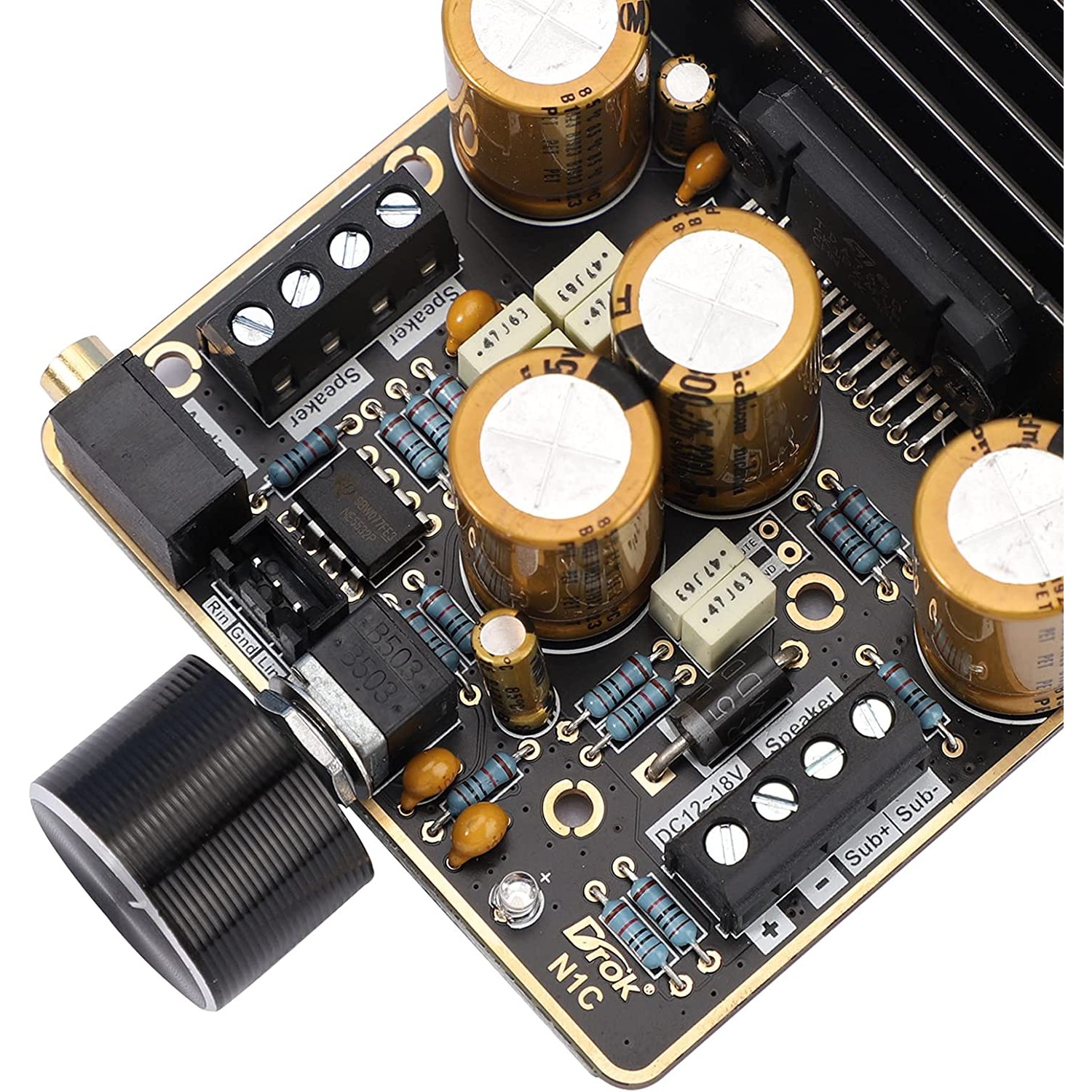

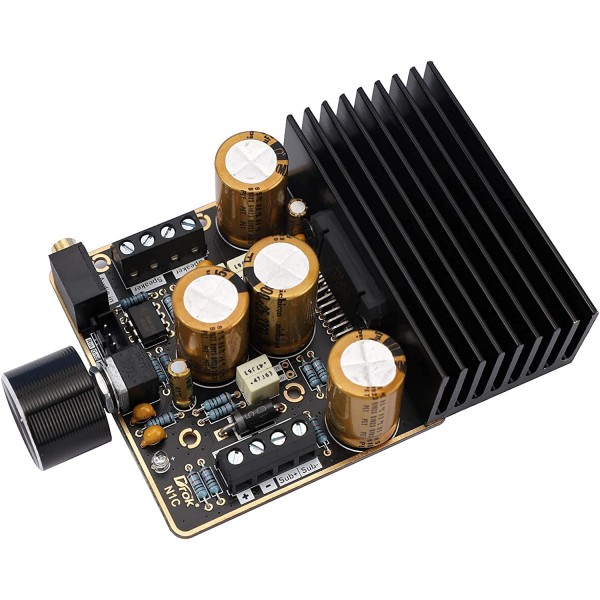

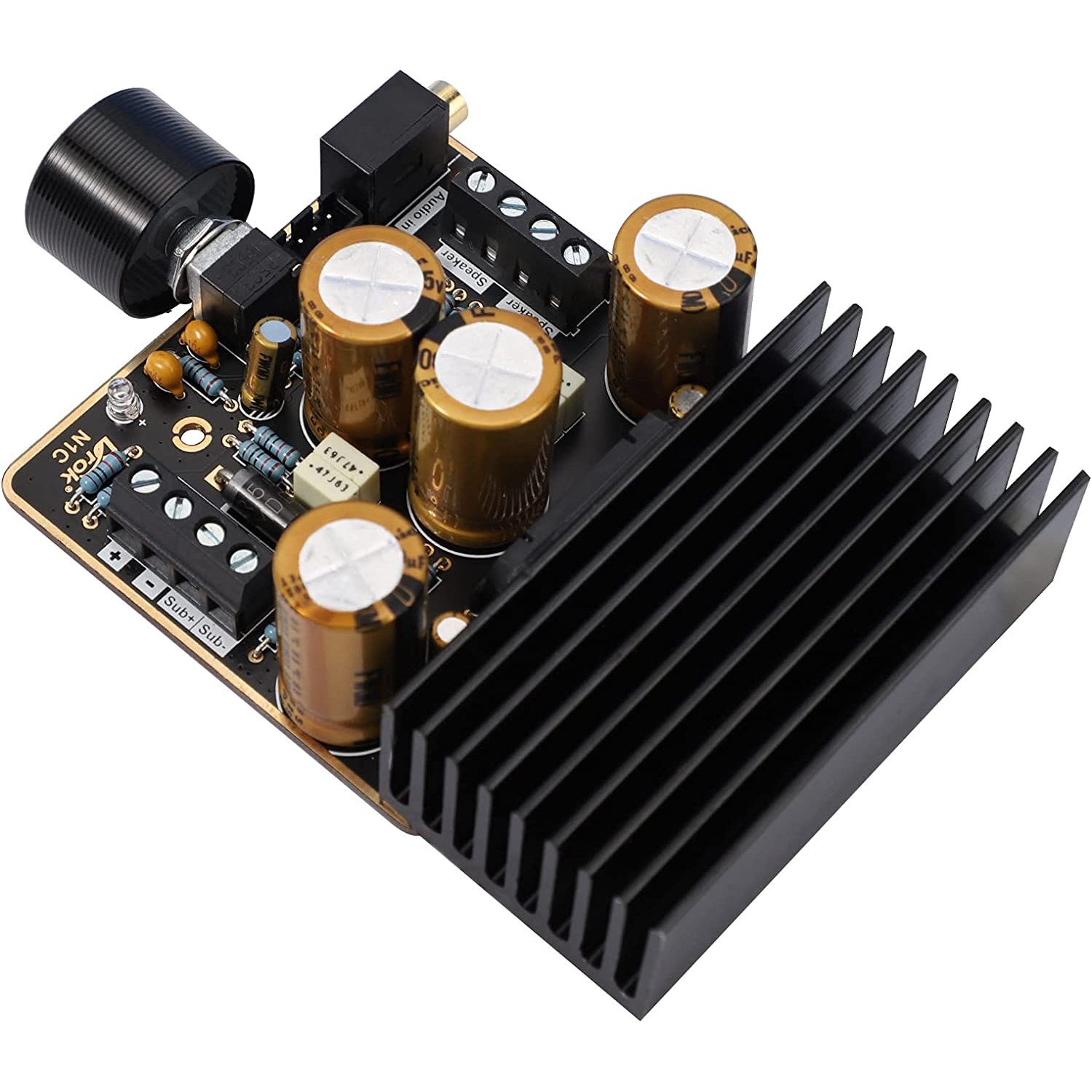

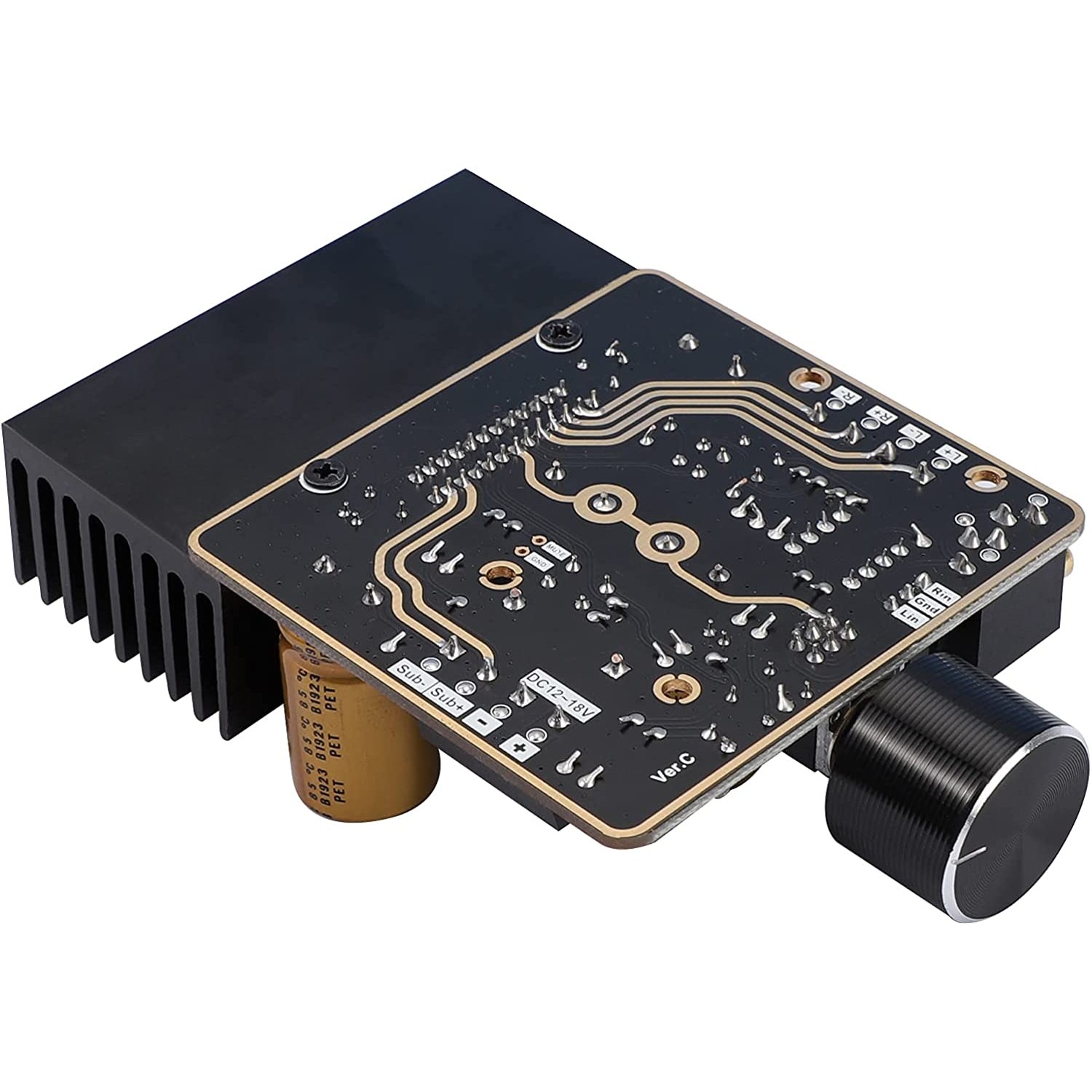

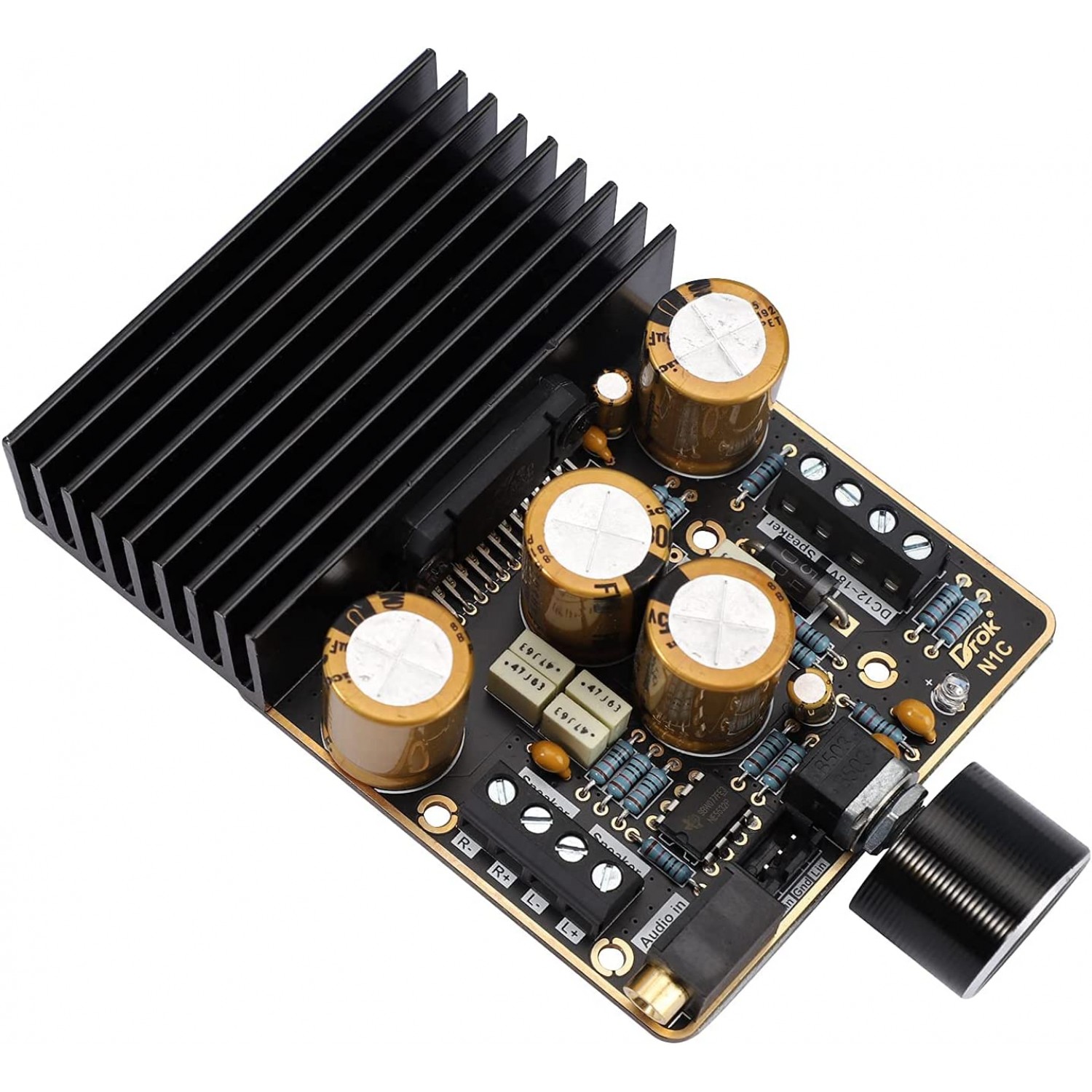

New -10% Class AB Amplifier 2.1 Channel 80W+80W Stereo Pure Bass 120W 9-18V 4Ω Audio Amplifier Board

Ask Question

Parameters:

Working Voltage: DC 9 - 18V

Output Power: Max 2x80W stereo(18V/4Ω), or 1x120W pure bass(18V/2Ω)

Speaker specification: 2/4/6/8Ω speaker

Input Method: 3.5mm audio input or 3P_2.54mm terminal input

Protection: input anti reverse-connect protection, output short circuit protection, over current protection (OCP), over temperature protection (OTP).

PCB Size: 72.36mm*66.65mm (length*wide)

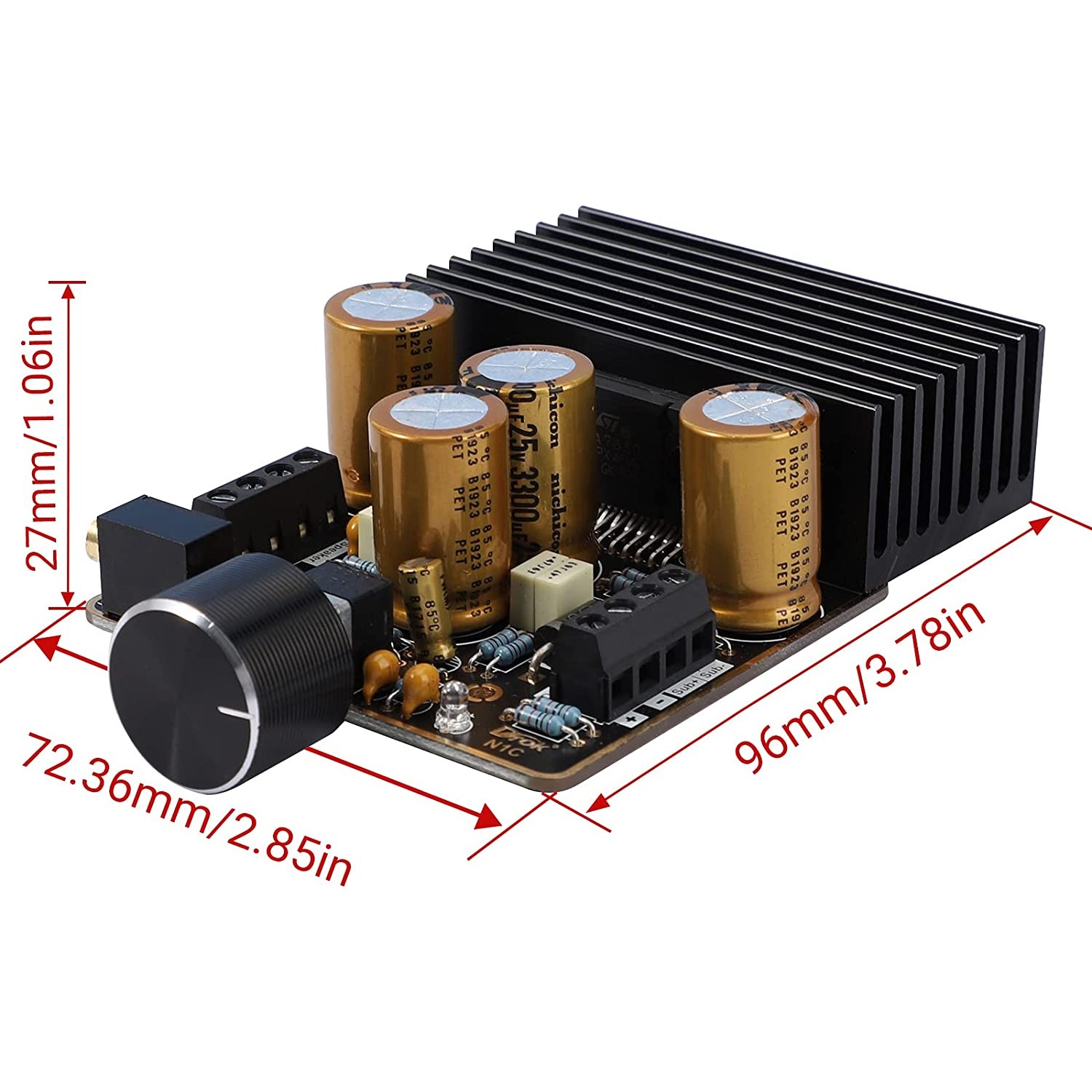

Overall Size(Cooling Fin included): 72.36mm*96mm*27mm

Potentiometer Rotating Handle Opening: 7mm
Installing Hole Spacing: 25.4mm*48.26mm (compatible for blue-tooth module spacing)
Installing Hole Size: M3

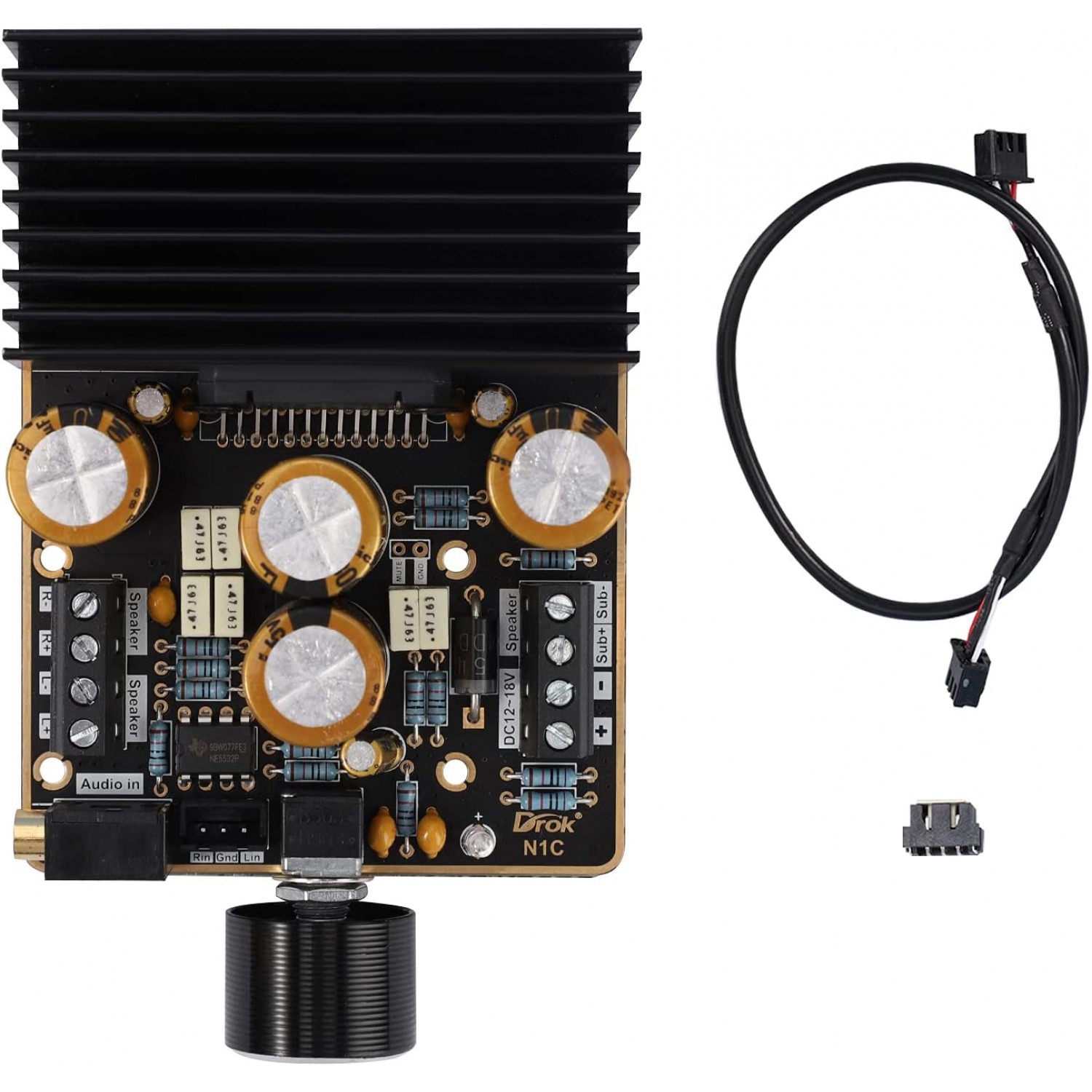

Package Including:

1 x Amplifier Board

Write a review

Please login or register to review

Class AB Amplifier 2.1 Channel 80W+80W Stereo Pure Bass 120W 9-18V 4Ω Audio Amplifier Board

  • Brand: Drok
  • Product Code: 200540
  • Availability: In Stock
  • $19.99
  • $17.99
  • Bulk Buy Discounts. Buy more please contact us
    Qty25102030+
    Price$17.09$16.55$16.01$15.47$14.93

Tags: Class AB Amplifier, DROK 2.1 Channel 80W+80W Stereo and120W Pure Bass 9-18V 4Ω Audio Amplifier Board: Amplifiers
