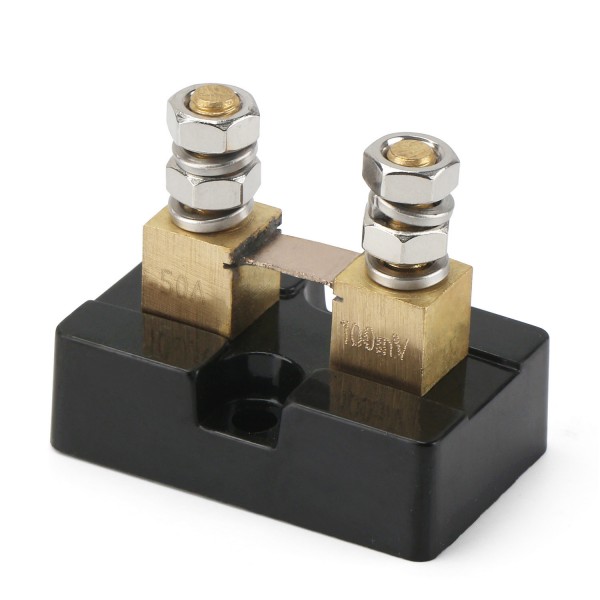

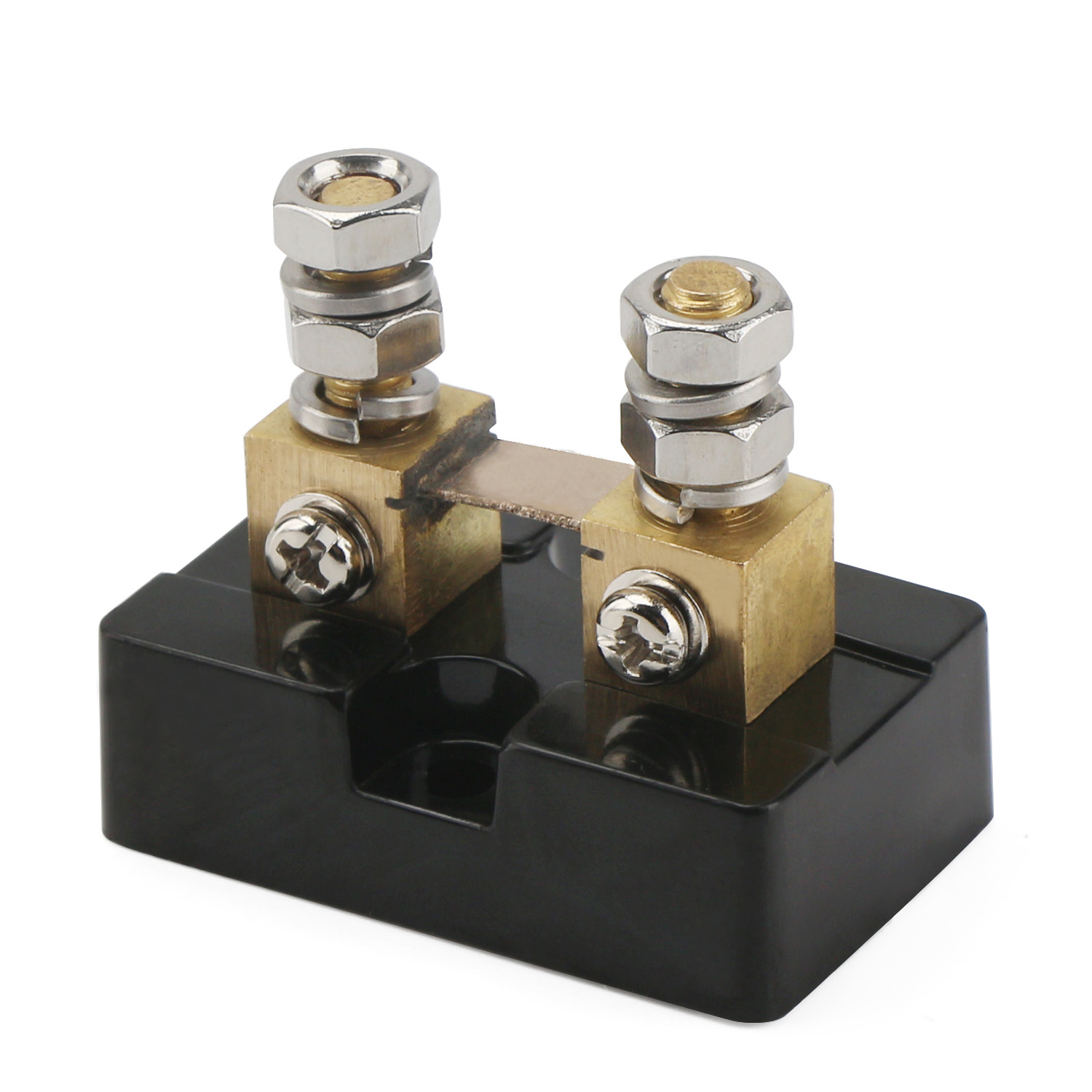

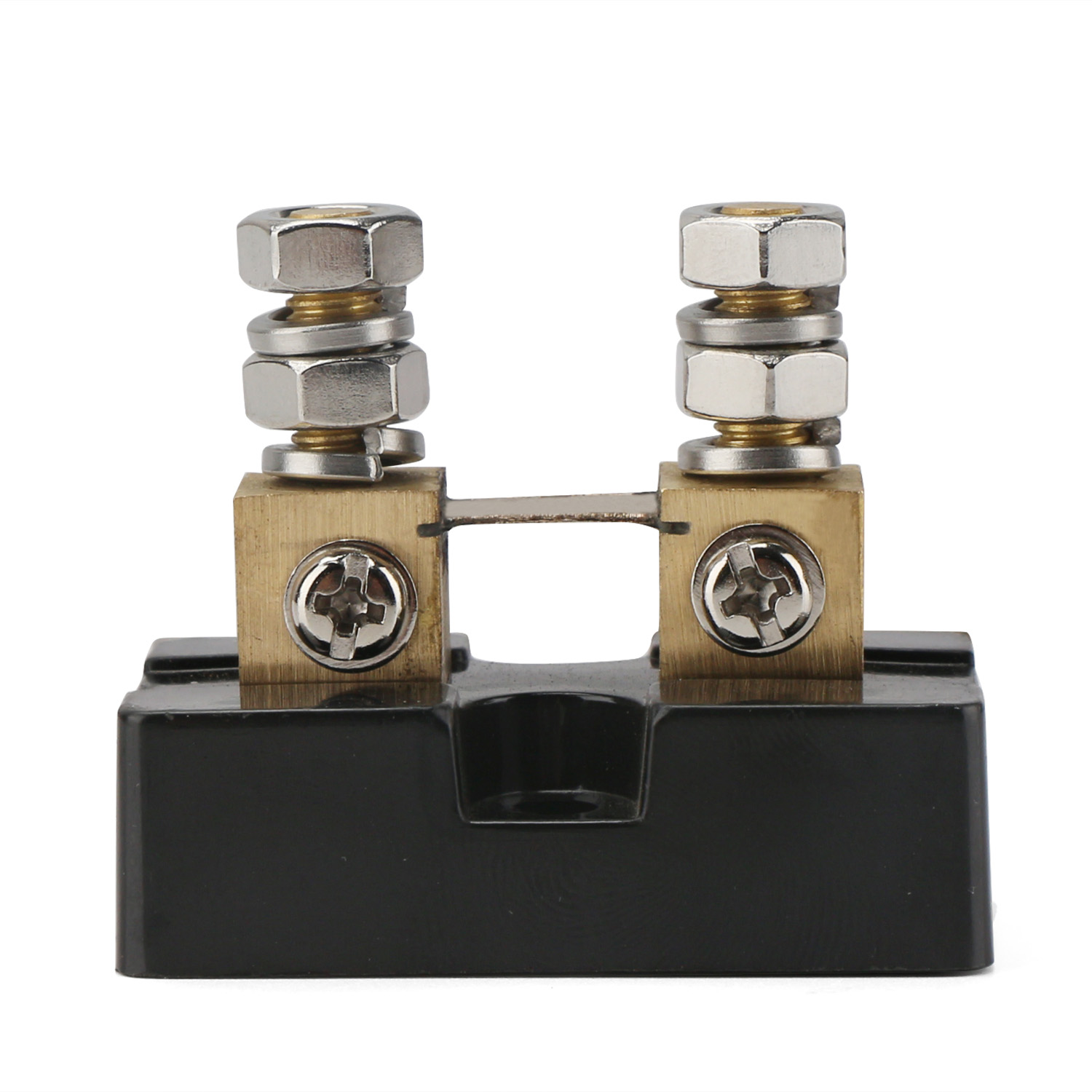

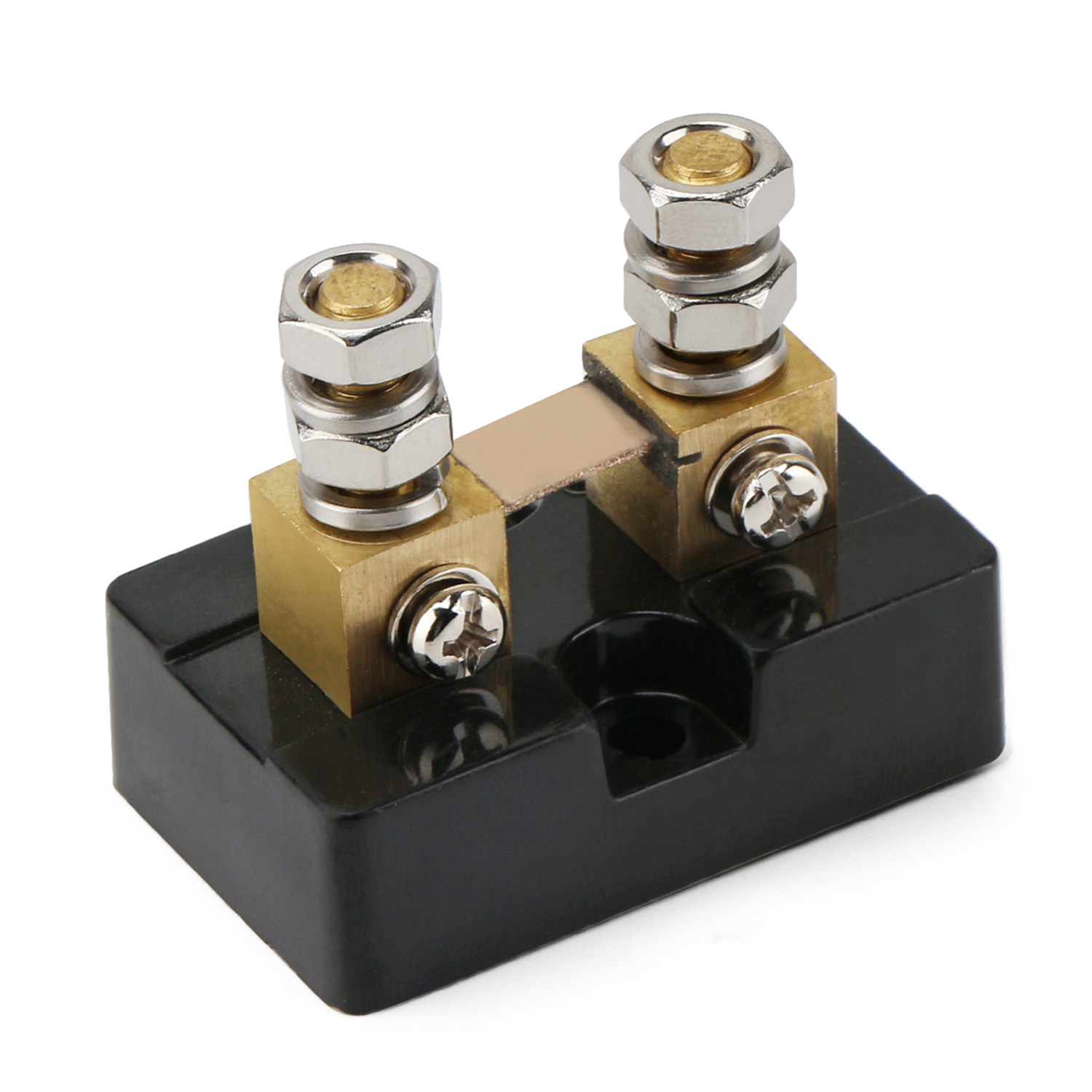

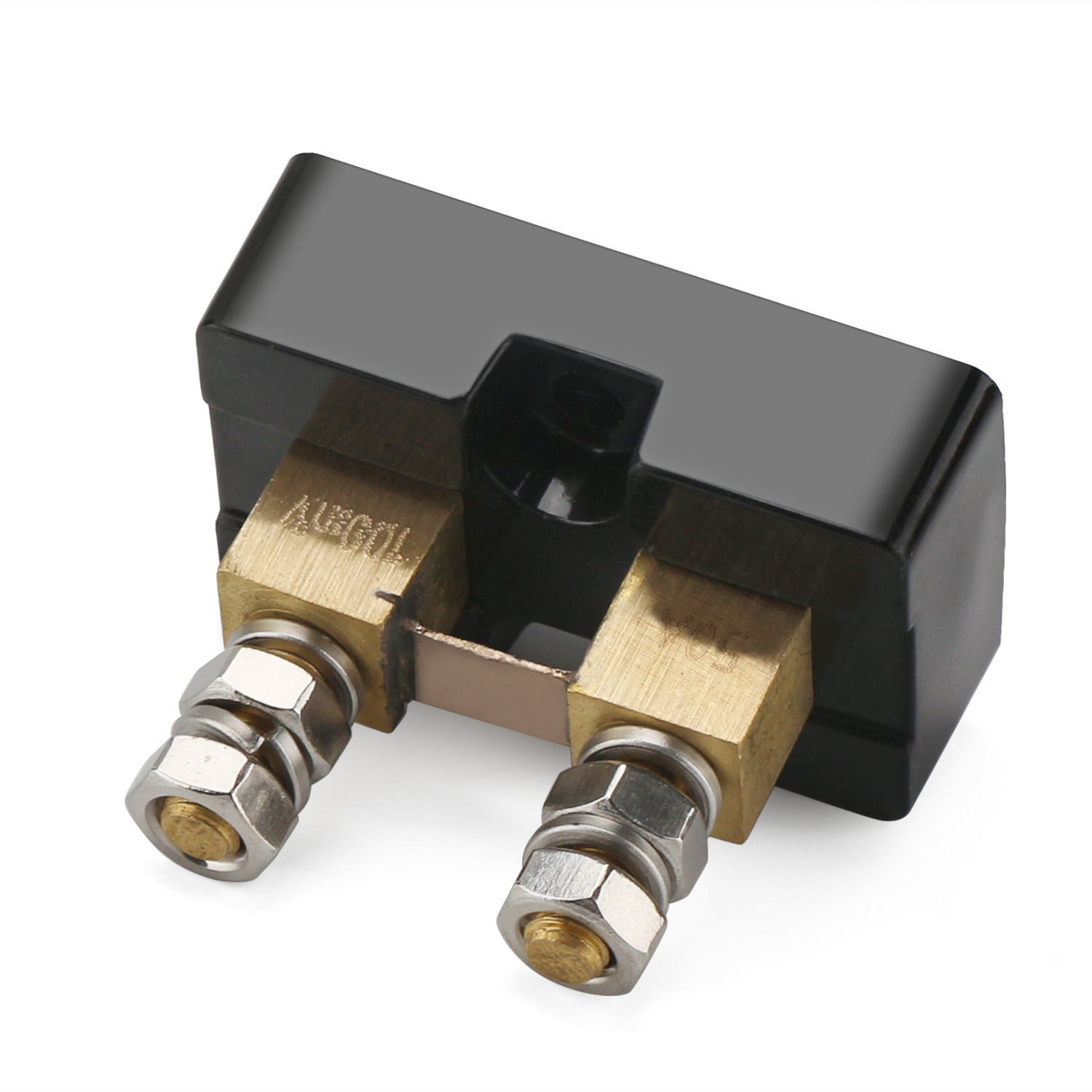

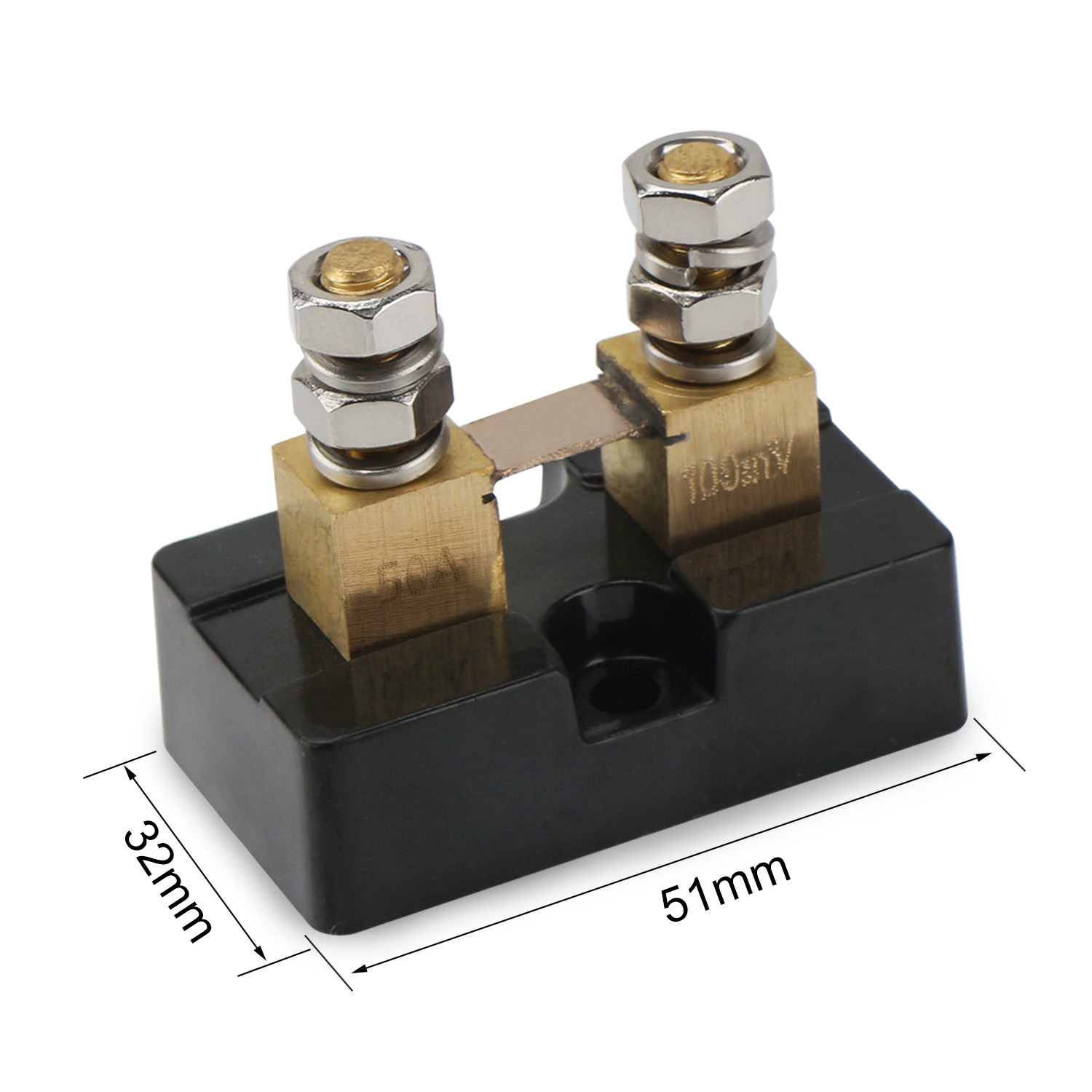

It is a Ammeter Shunt, Product name: 50A 100mV shunt, Voltage drop: 100mV, Suitable for Digital Ammeter Amperimetro AMP Ampere Wattmeter
Product Parameters:- Product name: 50A 100mV shunt
- Accuracy level: 0.5
- Working temperature: -40 to +60℃, relative humidity: less than or equal to 95% (35℃)
- Over-load ability: rated current 120%, 2 hours
- Voltage drop: 100mV
- Temperature rise with load: When the change of temperature tends to be stable, if rated current is below 50A, the temperature will be not higher than 80℃;
- if rated current is above 50A, the temperature will be not higher than 120℃.
- It is not allowed to connect an artificial contact resistance between the primary circuit (or copper) and the connection of the shunt.
- The secondary sampling point cannot be sampled form the non-sampling point.
- It is not recommended that the practical used current over the 80% of rated current (for a long time).
- 1 x 50A/100mV current shunt
Attributes | |
output ways | 1 |
