It is DC MCU Power Supply Module Voltage range AC 90~240V to 5V 600mA 3W DC Electronic Voltage Regulator Switch Power Converter,It has Compact,Performance Stable, Shortage Protection,Temperature protection,Overcurrent protection. Applied to the power adapter,industrial equipment,microcontroller,LED lighting power supply,and DIY etc

Features:

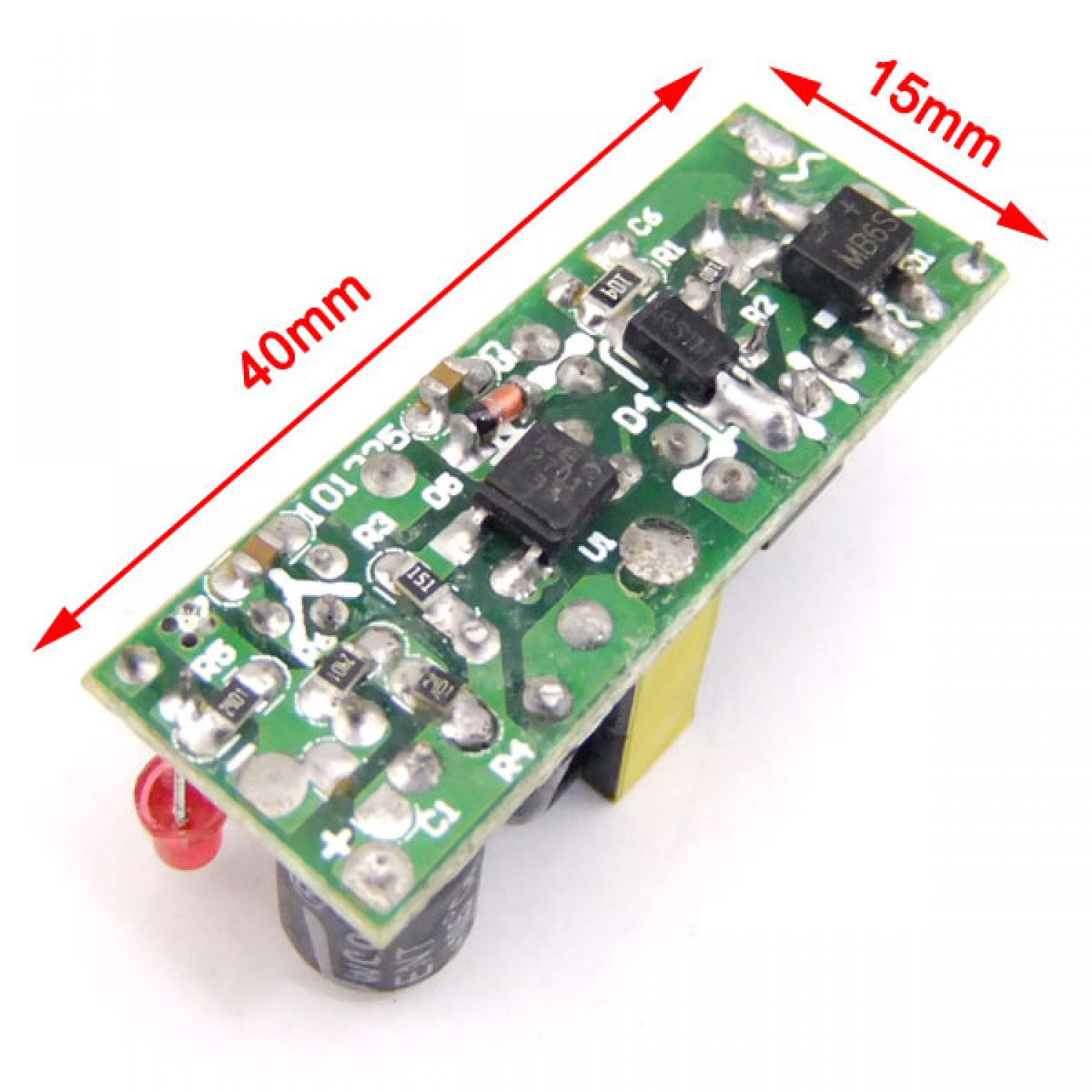

• Mounting dimensions: 40mm x 15mm
• Input voltage: 90V to 240V AC (full load)
• Input Current: 0.0273 (AC 110V) 0.014 (AC 220V)
• Input surge current: 20A (full load)
• Output voltage: 5V (±0.1V)
• Output Current: 0A to 650mA, peak 800mA
• Output power: 3W  Maximum 3.5W
• Output efficiency: 85%
• Output ripple: 150mv
• Output Rise Time: 100ms
• Switch machine overshoot: 10%
• Operating temperature: -20 to 60 °c
• Relative humidity: 40 to 90% RH

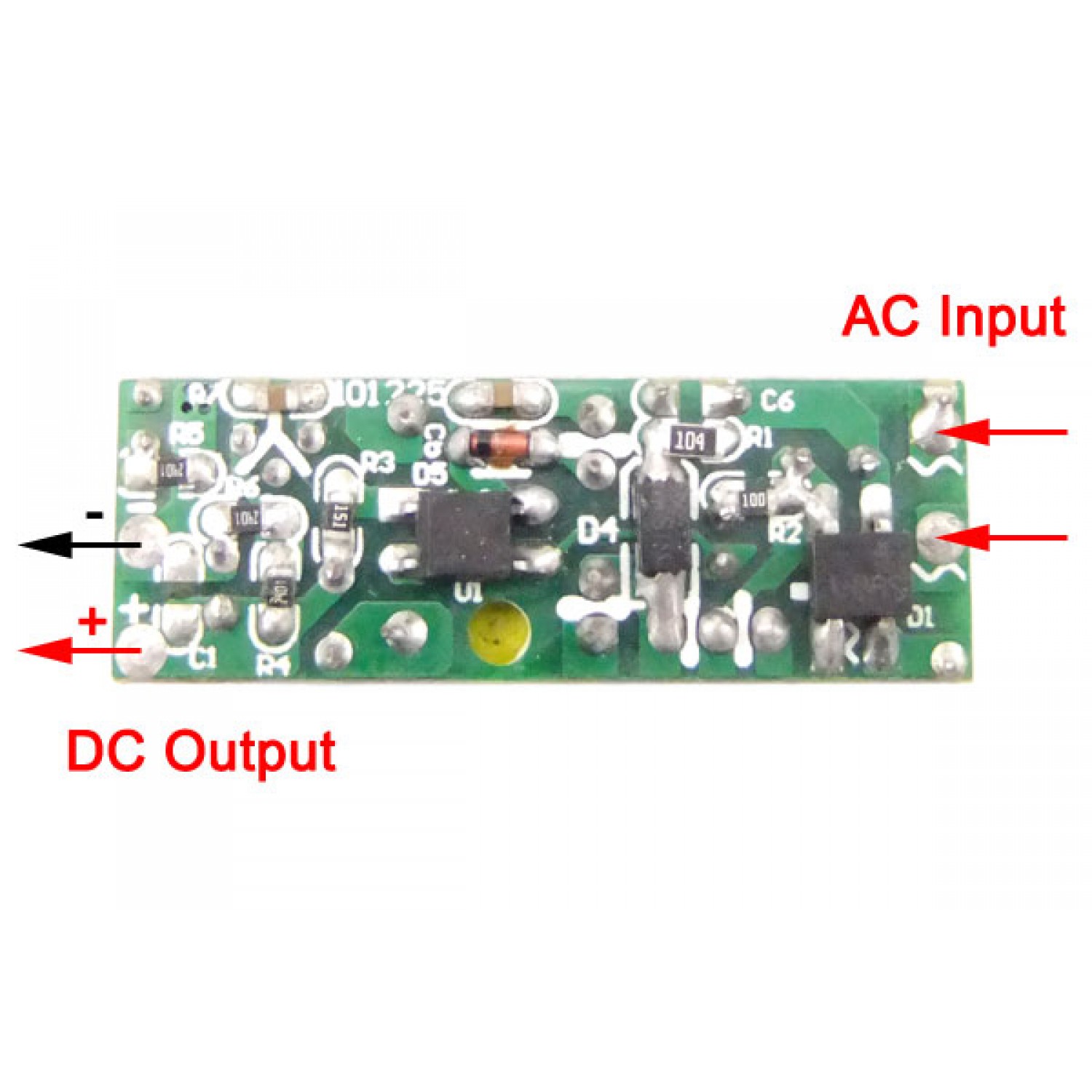

• 90V~240VAC Input, 5VDC Output ,high and low voltage isolation

• Applied to Power supply for adapter, industrial equipment, SCM and LED lights,etc.


• Output power protection: lock, restart recovery
• Shortage Protection: lock, restart recovery
• Temperature protection: lock, restart recovery
• Overcurrent protection: lock, restart recovery

• 1x Switching Power Supply Module
